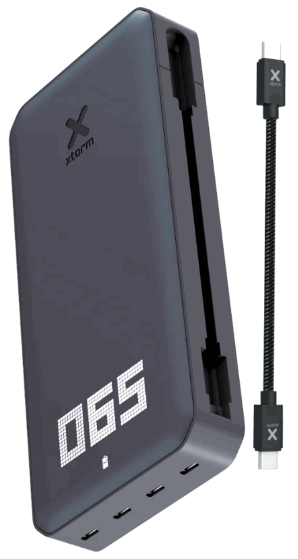

XB402 Titan Pro Power Bank
User Manual
SPECIFICATIONS
 | 24.000 mAh Li-ion / 88.8Wh |
 | 1x USB-C Power Delivery 3.1 140W 1x USB-C Power Delivery 100W 2x USB-C Power Delivery 30W |
 | 185x90x25 mm |
 | 675 grams |
 | 16 Built-in USB-C Power Delivery 140W cable 1x Manual |
When using multiple outputs
When using 2 outputs
①60W
②90W
①90W
③30W
②90W
③30W
③④Share 40W
When using 3 outputs
①60W
②60W
③30W
①60W
②60W
④30W
When using all outputs
①100W
②30W
③Share 40W

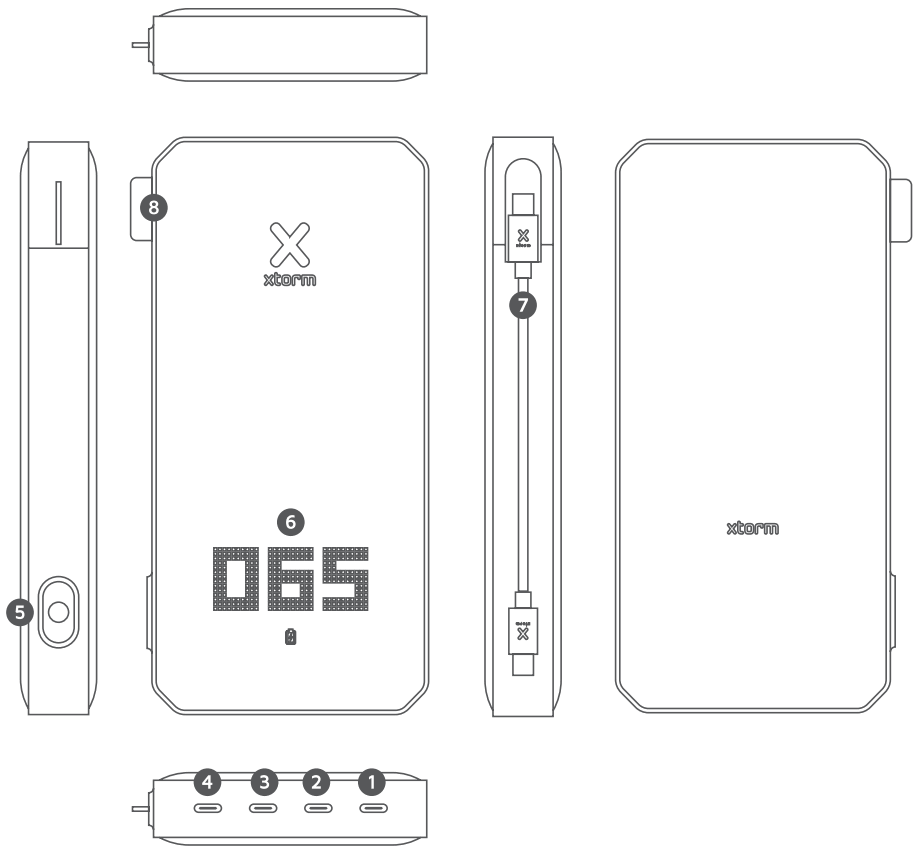

PRODUCT OVERVIEW
- In/Output USB-C PD 100W
- USB-C PD 3.1 140W
- USB-C PD 30W
- USB-C PD 30W
- Power Button
- LED Power Indicator
- Built-in USB-C PD Cable
- Official Xtorm Label

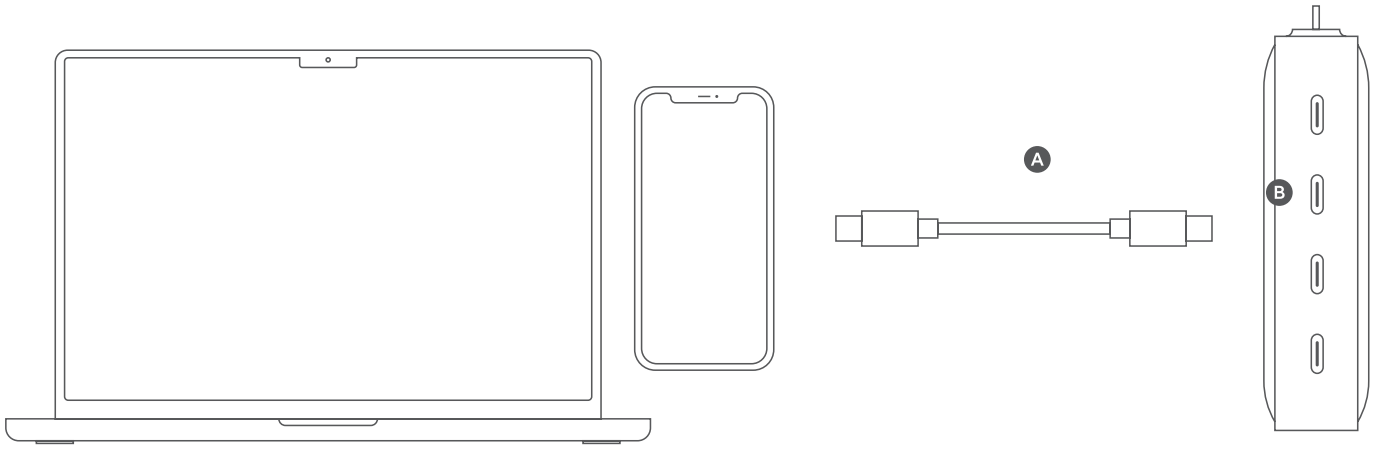

CHARGING YOUR DEVICE

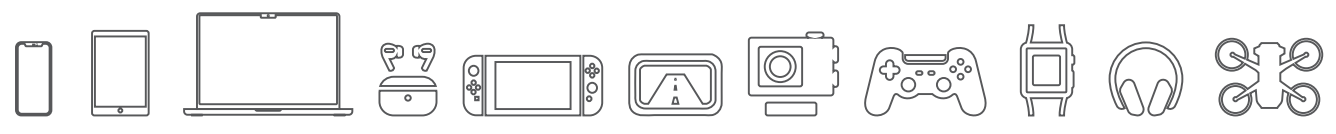

COMPATIBLE DEVICES
3A
Connect one end of the charging cable to one of the outputs of the Power Bank and the other end to the input of your device.
3B
For Charging USB-C Laptops use output 1 (USB-C PD 140W).
RECHARGING THE POWER BANK
4A
Connect one end of the built-in charging cable to output 1 of the Power Bank and the other end to a wall charger.
4B
For the fastest charging possible use a 100W USB-C PD charger. This will fully recharge the Power Bank within 1.5 hours.

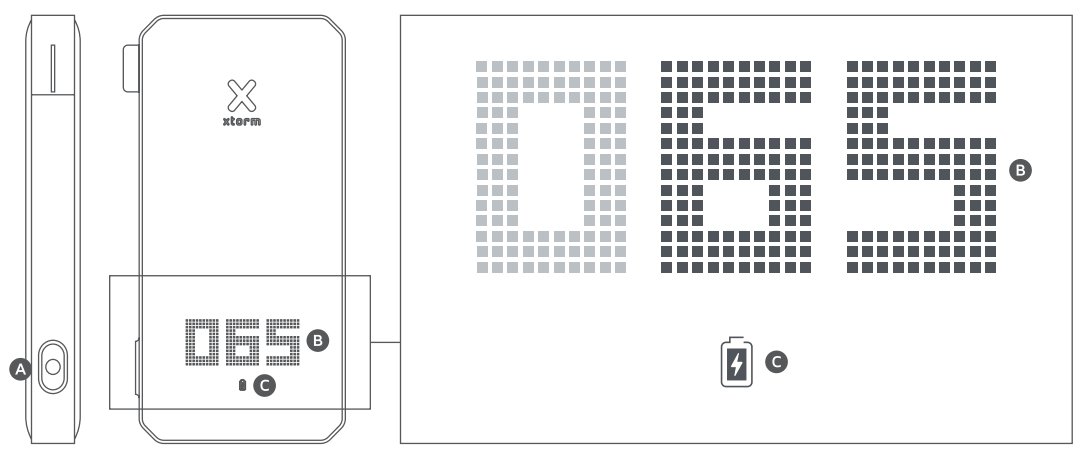

LED POWER INDICATOR
5A
Press the Power Button once to display the battery level remaining in the Power Bank via the LED display.
5B
The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).
5C
The charging icon will flash when the Power Bank itself is being recharged.

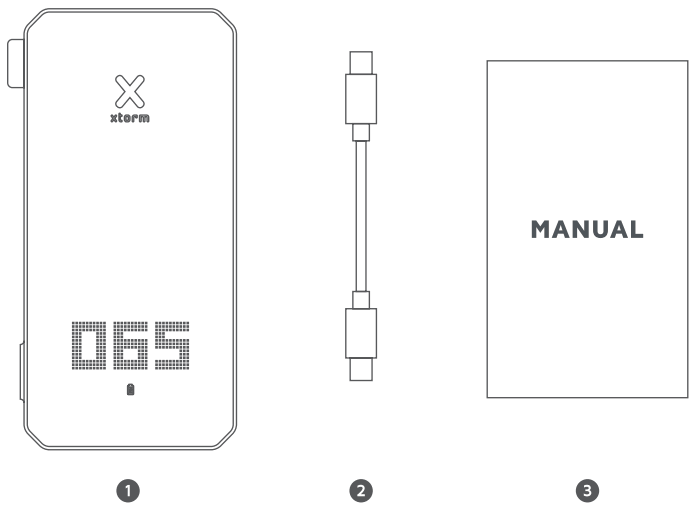

IN THE BOX
- XB402 Titan Pro Power Bank
- Built-in USB-C PD 140W cable
- Manual
RECYCLING
When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.
XTORM SAFETY CHECK
 | 1. TEMPERATURE CONTROL Provided with a temperature control chip that prevents overheating. |
 | 2. OVERLOAD PROTECTION Protects both the internal battery as well as the battery of the attached device from overcharging. |
 | 3. SECURED POWER MANAGEMENT Automatically picks the correct charging speed and efficiently devides power between attached devices. |
 | 4. SHORT CIRCUIT PROTECTION Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm chargerand your device from short circuit damage. |
 | 5. A-CLASS BATTERY CELLS We only use the best battery cells that provide the fast charging you need and meet all safety requirements. |
 | 6. HIGH EFFICIENCY Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process. |
WARNINGS
Don’t drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don’t expose to any heat source. Keep out of reach of children. Don’t use in the presence of flammable gas. The warranty will lapse in the event of improper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the (operation) of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
HIGHER QUALITY
= LOWER IMPACT
CUSTOMER SUPPORT
[email protected]
+31 (0)30 635 4800
TELCO ACCESSORIES GROUP
Hoofdveste 19, 3992DH Houten
The Netherlands
#MOREENERGY
XTORM.EU
