REPAIR SHEET
BRAND
MODEL NO.
R7122

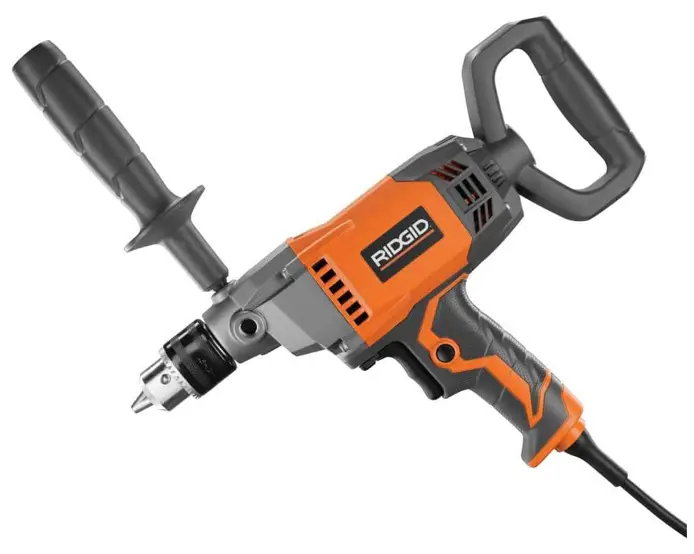

1/2 in. Mud Mixer/Drill
DESCRIPTION
The model number and manufacturing location will be found on a label attached to your product. Always mention this information in all communications regarding this product and when ordering parts.
WARNING: The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage to the System, service should be performed by your nearest authorized service center.

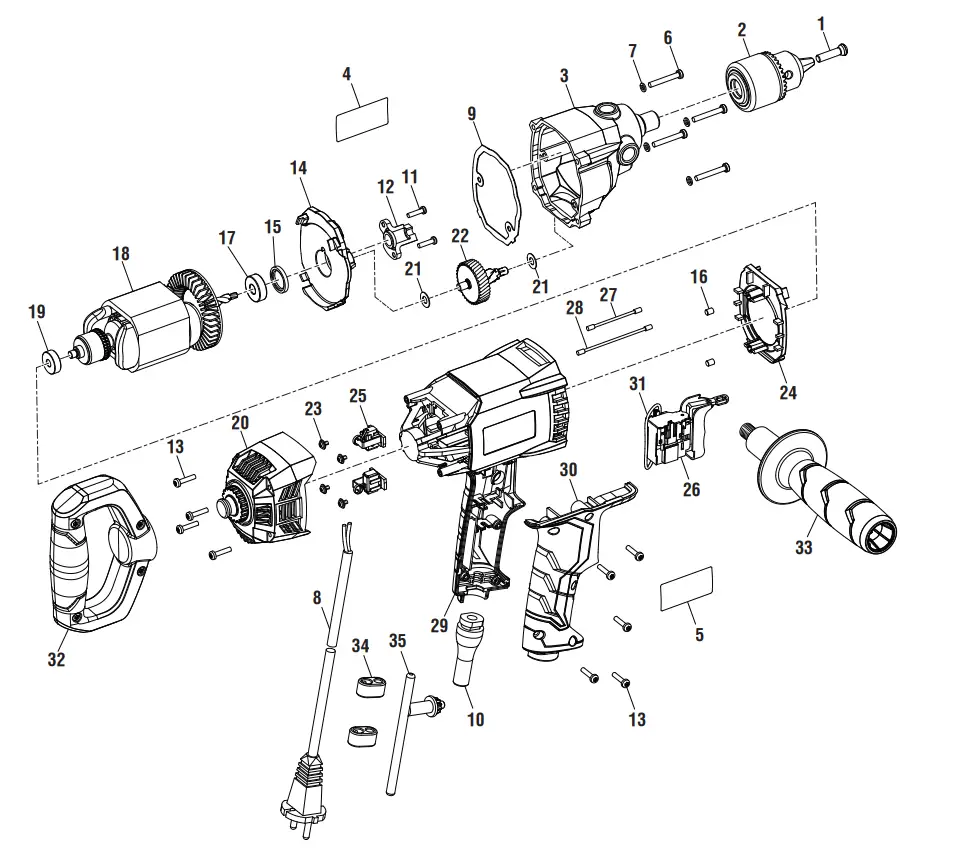

PARTS LIST
| KEY NO. NO. DE RÉF. NÚM. REF. | PART NO. NO. DE PIÈCE NÚM. PIEZA | DESCRIPTION | QTY. QTÉ. CANT. |
| 1 | 6613402 | Screw (M6 x 27 mm) | 1 |
| 2 | 670799001 | 1/2 in. Chuck | 1 |
| 3 | 202411001 | Gear Case and Output Shaft Assembly | 1 |
| 4 | 940114162 | Logo Label | 1 |
| 5-CN | 941003082 | Data Label | 1 |
| 5-VN | 941122838 | Data Label | 1 |
| 6 | 660024011 | Screw (M4 x 28 mm) | 4 |
| 7 | 670030004 | Spring Washer (ID4.3 x OD7.2 x 1t) | 4 |
| 8 | 730377080 or / ou / o 730377075 | Power Cord | 1 |
| 9 | 902683001 | Paper Gasket | 1 |
| 10 | 551079002 | Bend Relief | 1 |
| 11 | 660250002 | Screw (M3.5 x 14 mm) | 2 |
| 12 | 672026002 | Motor Pinion Support | 1 |
| 13 | 660054002 | Screw (M3.5 x 16 mm) | 9 |
| 14 | 202413001 | Gear Case Cover Assembly | 1 |
| 15 | 570593001 | Seal Ring | 1 |
| 16 | 560712002 | Pin | 2 |
| 17 | 680966005 | Ball Bearing (608 2RS) | 1 |
| 18-CN | 202414001 | Motor Assembly (Inc. Key Nos. 17 & 19) | 1 |
| 18-VN | 206414002 | Motor Assembly (Inc. Key Nos. 17 & 19) | 1 |
| 19 | 690727001 | Ball Bearing (626Z) | 1 |
| 20 | 591320001 | Rear Housing | 1 |
| 21 | 631484001 | Washer (ID6.1 x OD13 x 0.5t) | 2 |
| 22 | 202412001 | Gear Shaft Assembly | 1 |
| 23 | 660290004 | Screw (M3 x 5 mm) | 4 |
| KEY NO. NO. DE RÉF. NÚM. REF. | PART NO. NO. DE PIÈCE NÚM. PIEZA | DESCRIPTION | QTY. QTÉ. CANT. |
| 24 | 591321001 | Baffle | 1 |
| 25 | 290069080 | Brush Assembly | 2 |
| 26 | 760406019 | Switch | 1 |
| 27 | 290116046 | Wire and Terminal Assembly | 1 |
| 28 | 290116045 | Wire and Terminal Assembly | 1 |
| 29-CN | 202403001 | Housing Assembly (Inc. Key Nos. 4-5) | 1 |
| 29-VN | 202403002 | Housing Assembly (Inc. Key Nos. 4-5) | 1 |
| 30 | 591319001 | Handle Cover | 1 |
| 31 | 290102010 | Switch Lead | 1 |
| 32 | 202415001 | Rear Handle Assembly | 1 |
| 33 | 305742001 | Auxiliary Handle | 1 |
| 34 | 563078001 | Chuck Key Holder | 2 |
| 35 | 672326001 | Chuck Key | 1 |
| Not Shown: | |||
| 990000210 | Operator’s Manual |
If a key number has multiple part numbers, please order the part that corresponds with the country of origin shown on the product’s data label. CN = China VN = Vietnam

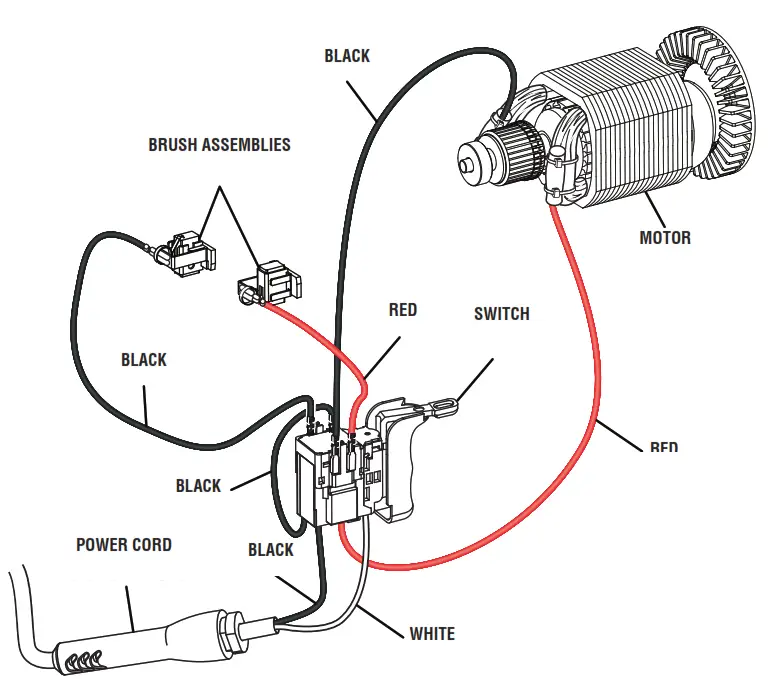

WIRING DIAGRAM
TTI CONSUMER POWER TOOLS, INC.
P.O. Box 1427, Anderson, SC 29622 • 1-866-539-1710
powertools.RIDGID.com
3-9-22 (Rev:04)
