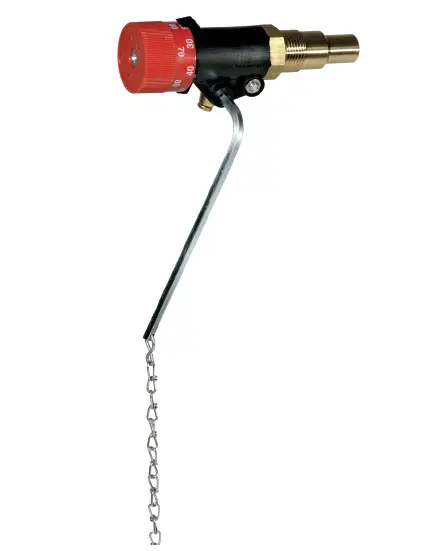

resideo FR124 Combustion Regulator
Safety Guidelines
- Follow the installation instructions.
- Use the appliance
- according to its intended use
- in good condition
- with due regard to safety and risk of danger.
- Note that the appliance is exclusively for use in the applications detailed in these installation instructions (see 2 Technical Data). Any other use will not be considered to comply with requirements and would invalidate the warranty.
- Please take note that any assembly, commissioning, servicing and adjustment work may only be carried out by authorized persons.
- Immediately rectify any malfunctions which may influence safety.
Technical Data
| Connections/Sizes | |
| Connection size: | 3/4″ |
| Nominal size: | DN20 |
| Operating temperatures | |
| Max. ambient temperature: | 70 °C |
| Max. sensor temperature: | 115 °C |
| Setting range: | 30 – 90 °C |
| Specifications | |
| Chain length: | 1.2 m |
| Chain load: | 100 – 600 g (Standard version), 400 – 1000 g (Reinforced version) |
| Tube length: | 53 mm |
| For solid fuel and multi-fuel heating installations to EN 12828 | |
Options
For Options visit homecomfort.resideo.com/europe
Assembly

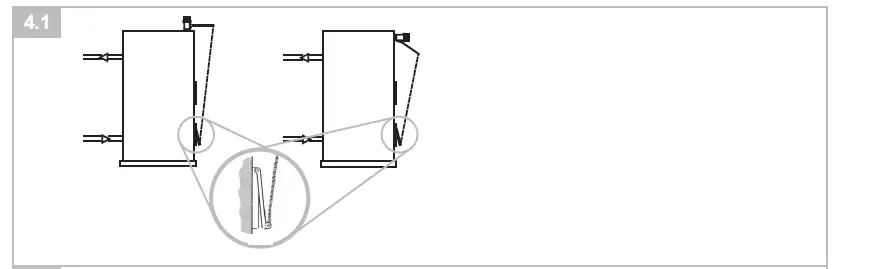

Installation Guidelines
- Horizontal or vertical installation
- Install Combustion Regulator in the water cycle of the boiler
- Only install it in the screw socket intended for this purpose

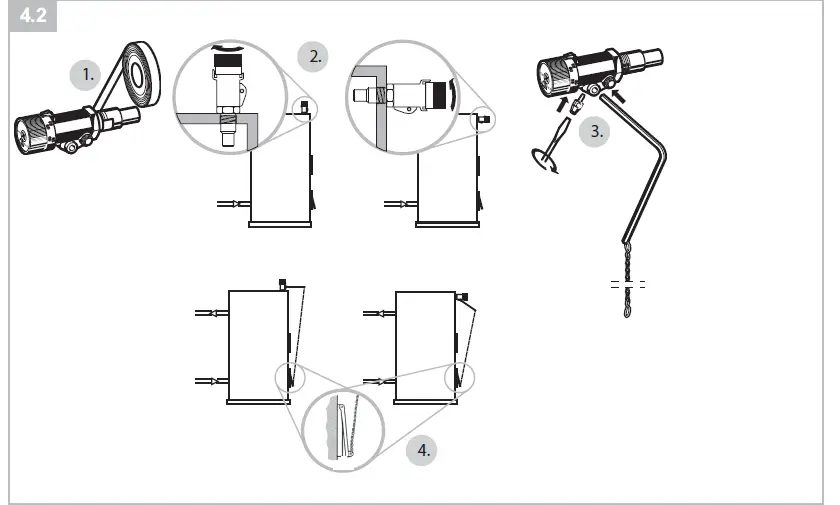

Assembly instructions
- Seal threaded joint with hemp or Teflon tape.
- Screw immersion tube (thread T3/4) into the threaded socket of the boiler
- Secure the lever rod
- Secure chain to the lever rod and the inlet air flap
- The chain hangs free and the lever rod moves freely when the adjuster knob is turned
Start-up

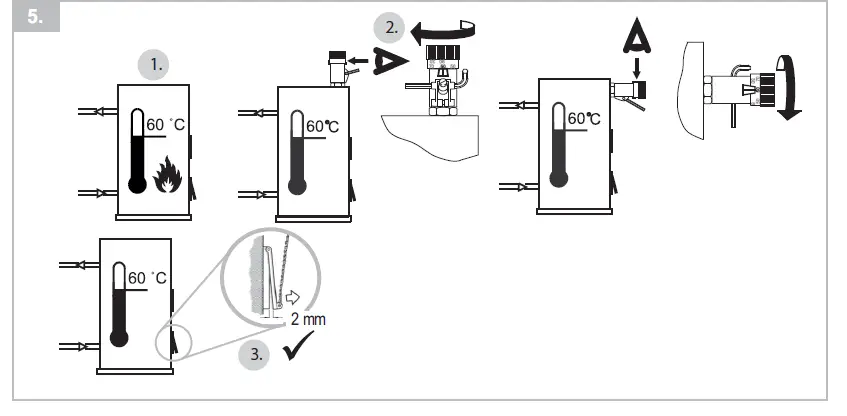

Calibrating the Combustion Regulator
- Heat up the boiler with manually opened inlet air flap
- Set the adjuster knob on the Combustion Regulator to “60”
- Once the water temperature has reached and maintained 60 °C adjust the chain length so that door 2 remains open.
Disposal
Observe the local requirements regarding correct waste recycling/disposal!
Troubleshooting
| Problem | Cause | Remedy |
| Temperature during stabilised operation is below the set value. | Too little inlet air | Shorten chain |
| Other influences, e.g. too much ash in the boiler. | Irrespective of the FR124, check all other influences, e.g. fuel and ash quantities, position of the admixed air flap, boiler inertia and the entire heating system | |
| Temperature during stabilised operation is above the set value. | Too much inlet air | Extend chain |
| Inlet air flap is jammed and does not shut | Oil inlet air flap | |
| Other influences, e.g. too much ash in the boiler. | Irrespective of the FR124, check all other influences, e.g. fuel and ash quantities, position of the admixed air flap, boiler inertia and the entire heating system | |
| Other faults | Call Technical Customer Service | |
Manufactured for and on behalf of Pittway Sàrl, Z.A., La Pièce 4, 1180 Rolle, Switzerland by its authorised representative Ademco 1 GmbH
For more information homecomfort.resideo.com/europe Ademco 1 GmbH, Hardhofweg 40, 74821 MOSBACH, GERMANY
Phone: +49 6261 810
Fax: +49 6261 81309
© 2020 Resideo Technologies, Inc. All rights reserved.
Subject to change. MU1H-1515GE23 R0420
