28002681 Scenecom xl
Instruction Manual

Contents hide

1 INSTALLATION

2 Application area

3 Technical data

4 System design and installation notes

5 Function key

6 Test key

7 Status LED

8 Safety instructions

9 Initial steps after installation

10 Documents / Resources

10.1 References

11 Related Posts

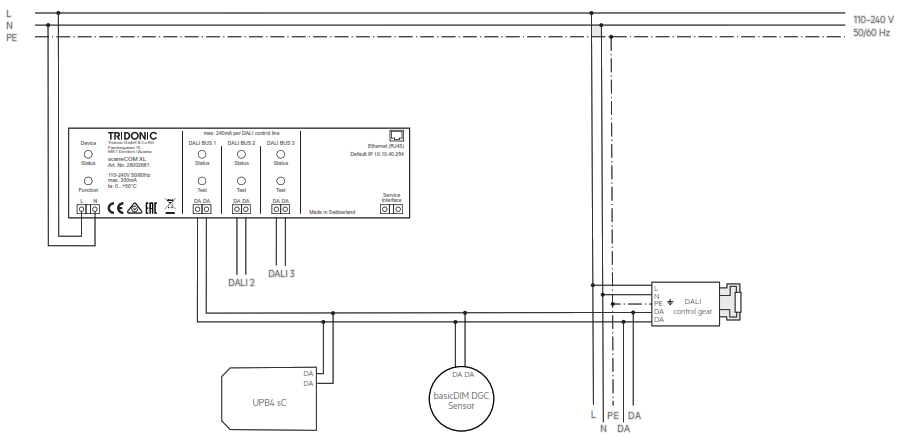

INSTALLATION

Topology A

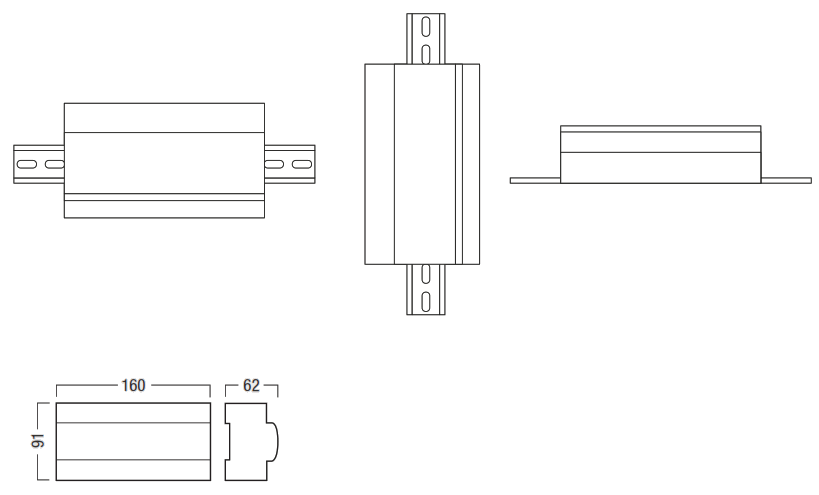

Installation types

Application area

Control device with 3 DALI-compliant outputs for controlling a maximum of 192 luminaires.

Technical data

Nominal voltage	110–240 V, 50–60 Hz
Permissible input voltage	100–260 V, 50–60 Hz
Power dissipation	Max. 20 W
Outputs	3 DALI-compliant outputs (DALI BUS 1 – 3); per output: max. 64 DALI addresses;
Ports	1 Ethernet port (Ethernet): RJ45 plug; speed of data transfer: 10/100 Mbit/s
Interface	Service Interface
Terminals	0.5 – 2.5 mm² (solid or fine-stranded)
Degree of protection	IP20
Protection class	Protection class II (only with correctly installed terminal covering)
Housing material	Polycarbonate (PC), flame-retardant, halogen-free
Installation	On top-hat rail, 35 mm in accordance with EN 50022
Dimensions	160 × 91 × 62 (W × H × D, in mm), 9 HP every 17.8 mm
Permissible ambient temperature	0–50°C, installation type 1 (e.g. in distribution board) 0–40°C, installation types 2 and 3
Permissible relative humidity	20–90%, non-condensing
Weight	Approx. 600 g

System design and installation notes

Installation: fixed only, in a clean and dry environment, access only possible with tools; in solid distribution board or solid, closed distribution unit only, requirements given in standards for fire and contact safety must be met

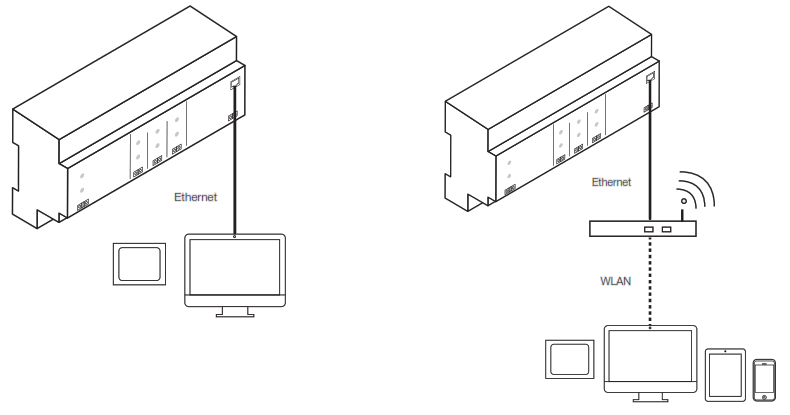

Topology: connect sceneCOM XL and display device (touch panel, computer) via Ethernet cable (topology A) or connect sceneCOM XL and display device (touch panel, computer, mobile device) via a wireless access point (topology B)
Mains line: must not be interrupted by control points
Ethernet line: at least CAT5 cable, shielded
Bus line and DALI control line: use standard installation materials for low-voltage systems (< 1,000 V); only tree, linear and star topologies permitted
Bus cores: may be reverse connected
DALI control line

Conductor cross-section	Maximum DALI line length
2 x 0.50 mm²	100m
2 x 0.75 mm²	150m
2 x 1.50 mm²	300m

Function key

The function key can be used to trigger certain functions

Triggering a function

Press the function key.
Release the function key in the desired orange phase.
→ Function is triggered.

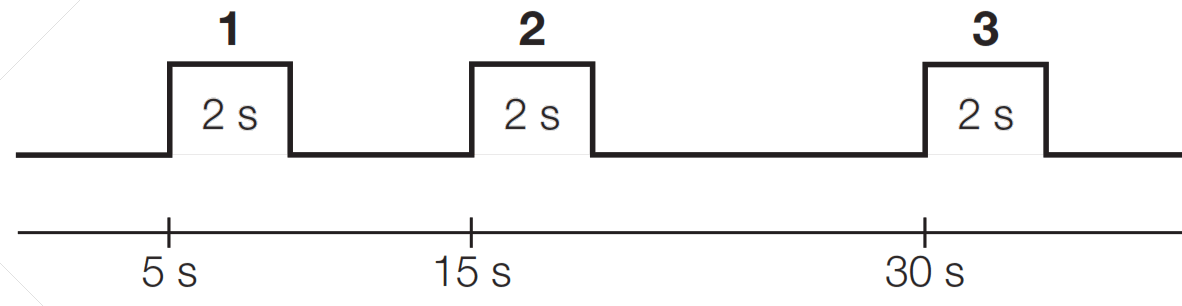

Orange phases (status LED device)

Orange phase	Function
1	Restart the sceneCOM XL.
2	Delete the addresses and short addresses of all control gear and input devices connected to the 3 DALI control lines.
3	Reset the IP address to the factory setting (10.10.40.254).

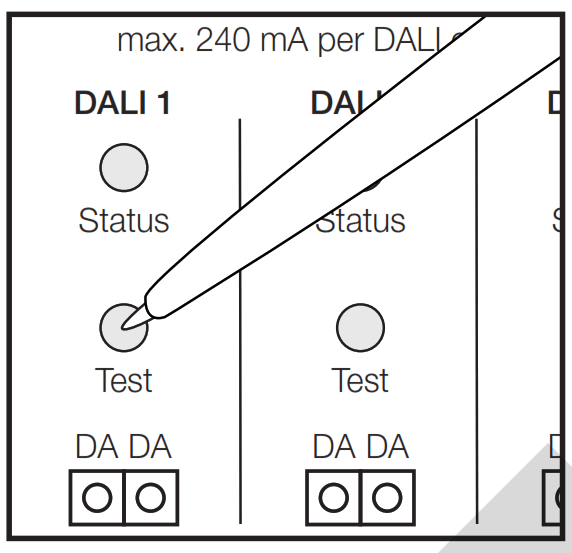

Test key

The test key can be used to trigger tests and certain functions for the related output (DALI BUS 1 – 3)

Triggering a function

Press the test key.
Release the test key in the desired orange phase.
→ Function is triggered

Orange phases (status LED DALI BUS 1 – 3)

Orange phase	Function
1	Exit test mode for all outputs.
2	Delete the addresses and short addresses of all control gear and input devices connected to the corresponding DALI control line.

Test mode

If the test key is pressed for less than 2 seconds, all connected luminaires are switched on.
If the test key is then pressed again for less than 2 seconds, the luminaires alternate each time between on and off.
To exit test mode, press the test key and release during the 1st orange phase

Status LED

Device

Status LED	Duration	Description
Green, intermittently flickering	Continuous	Fault-free operation
Off	Continuous	No mains voltage (L, N)

DALI BUS 1 – 3

Status LED	Duration	Description
Green, intermittently flickering	Continuous	Fault-free operation
Green, flashing on/off every 0.5 s	Continuous	Test mode
Orange, flashing on/off every 0.5 s	Continuous	Addressing (Exception: visual and acoustic sensor location) or DALI initialisation
Off	Continuous	No mains voltage (L, N)
Red	Continuous	More than 64 DALI-compliant devices connected
Red, intermittently flickering	Continuous	DALI control line short-circuited or more than 120 DALI loads
Red, interrupted by intermittent green flickering	Continuous	Lamp failure

Safety instructions

The device may only be used for the application area specified.
Relevant health and safety regulations must be observed.
When mounting and installing the device, the voltage supply must be disconnected.
Only qualified personnel may mount, install and commission the device.
Protection class II can only be guaranteed when the terminal covering has been correctly installed.
If a fault occurs, dangerous voltage levels may be present at the DALI terminals and on the DALI control line.

Installation

Disconnect the voltage supply.

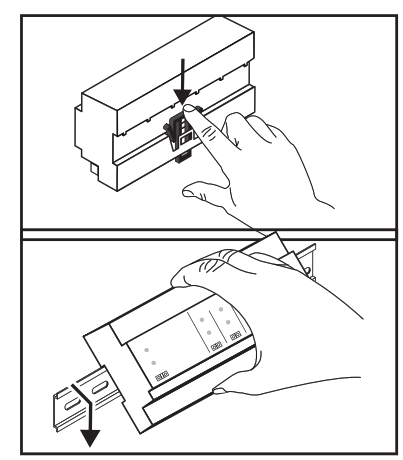

Press the black locking hook down.

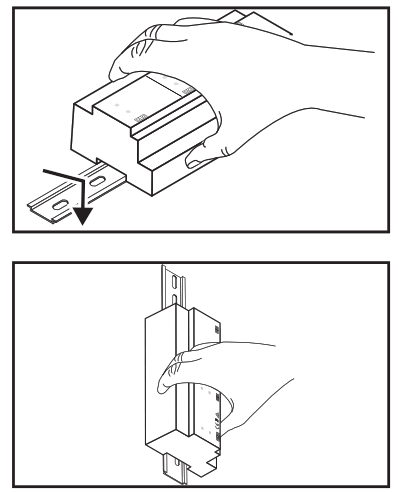

Installation type 1 (e.g. in distribution board)

First attach the top part and then the bottom part of the device to the top-hat rail.

Installation type 2

First attach the top part and then the bottom part of the device to the top-hat rail.

Installation type 3
Depending on which side the black locking hook is situated:

First attach the left part and then the right part of the device to the top-hat rail.
— or —
First attach the right part and then the left part of the device to the top-hat rail.

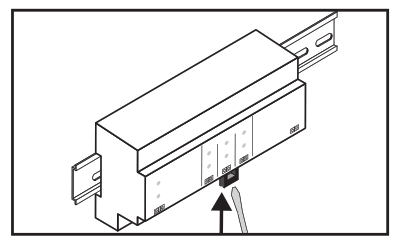

Fasten the locking hook again.
Reconnect the voltage supply.

Initial steps after installation

Requirement:

The sceneCOM XL control device and display device (touch pane) computer) have been connected in accordance with topology A. -Or-
The sceneCOM XL control device and display device (touch panel, computer, mobile device) have been connected in accordance with topology B.

Ensure that the following settings are stored for the display device and the wireless access point:
– IP address 1010.40.2 – 10.10.40.253
– Subnet mask 255255.0.0
Open a browser (Google Chrome recommended).
Go to the IP address of the sceneCOM XL (1010.40.254).
→ The Tridonic system web application is displayed.
Run the installation test (see Test key – Test mode).
Correct the installation faults.
Commission the Tridonic system.
Note: Detailed information on commissioning and configuration can be found in the commissioning instructions.
