Newell LED Light RGB-W
Rangha Nano Sunset
OPERATING MANUAL
SAFETY INSTRUCTIONS
Before using the product, please read the following instruction manual carefully and keep it for future reference. When transferring the product to a third party, it is advisable to include the instructions.
- The lamp is a precision device. Do not drop, hit, crush or expose to any shock.
- The unit is not dustproof or waterproof. Store in a dry, cool and ventilated place. Do not expose to water or other sources of moisture.
- Do not use near flammable materials and solvents.
- Do not use the lamp too close to objects. Do not cover the ventilation holes. Do not insert metal parts into the lamp. Do not touch the electrical parts with conductive materials.
- The lamp can operate in a temperature range of 0-40st
- The lamp will heat up slightly, but it is normal.
- Do not stare directly at the LED panel that is turned on, it may cause eye damage.
- Disconnect the power supply for storage or transportation. Do not lift the camera while holding the lamp handle.
- Allow the unit to cool down before placing it in the package.
- For use by adults.
- If you notice smoke or a strange smell coming from the device, immediately disconnect the power. Do not disassemble. Disassembling the unit will void the warranty. If there are problems with the lamp, bring it to an authorized service center.
Maintenance
Use a dry and soft cloth to clean the unit. Do not clean with water.
A little neutral detergent on the cloth to remove stubborn dirt.
Do not use strong detergents such as thinner, benzine or alcohol as they may damage the protective coatings.

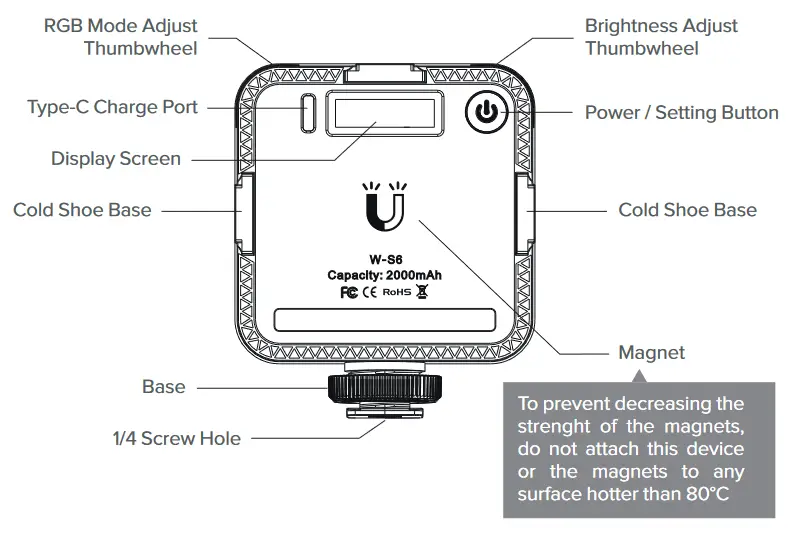

PRODUCT OVERVIEW
USING
Power off/Mode Switch
Long press to turn on the light.
Short press to switch light mode (CTT Mode, RGB Mode, Effect Mode).

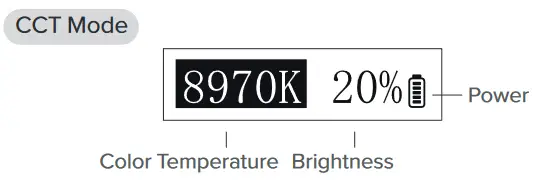

Display Zone
Toggle the Mode Adjust Thumbwheel to adjust the Color Temperature Range: 2500-9000K
Toggle the Brightness Adjust Thumbwheel to adjust the brightness Range: 0-100%

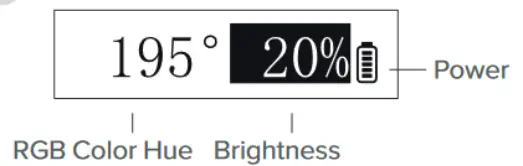

RGB Mode
Toggle the Mode Adjust Thumbwheel to adjust the RGB Color Hue RGB Hue Range: 0-360°
Toggle the Brightness Adjust Thumbwheel to adjust the brightness Range: 0-100%

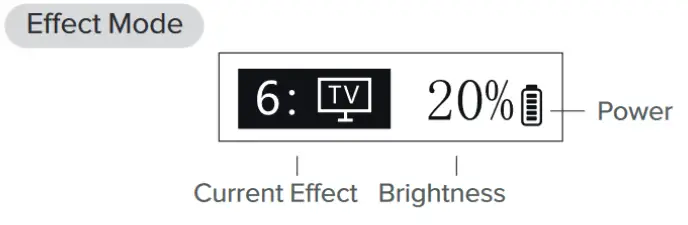

Toggle the Mode Adjust Thumbwheel to shift effects (20 kinds effects)
Toggle the Brightness Adjust Thumbwheel to adjust the brightness Range: 0-100%
EFFECTS
| EFFECTS NAME | EFFECTS NAME | ||
| 1. | Cop Car | 11. | Strobe |
| 2. | Ambulance | 12. | RGB Strobe |
| 3. | Fire Alarm | 13. | Paparazzi |
| 4. | Lightning | 14. | Emergency |
| 5. | Fireworks | 15. | H/L Beam |
| 6. | TV | 16. | Red Flash |
| 7. | Candle | 17. | Green Flash |
| 8. | Party | 18. | Blue Flash |
| 9. | Fault Bulb | 19. | HSI Slow |
| O. | Pulsing | 20. | HSI Fast |
SPECIFICATION
| Model: | Newell LED Light RGB-W Rangha Nano Sunset |
| Beads: | White: 24 PCS I Yellow. 20 PCS, RGB: 1 PCS |
| CRI: | 95+ |
| Voltage: | 3,7V |
| Battery Capacity: | 2000 mAh |
| Illuminance: | 800 LUX / 0.3 m |
| Color Temperature: | 2500-9000K |
| Work Time: | Strongest Brightness > 2h Weakest Brightness > 15h |
| Power: | 6W |
| Charge Port | Type-C |
| Beam Angle: | 60° |
| Charging time: | 2,5h |
* The data of the light is on the base of average, slight difference shall exist among different lights.
SET CONTENT
| NAME | QUANTITY |
| Newell RGB-W Rangha Nano Sunset LED lamp | 1 PC |
| USB-A / USB-C cable | 1 PC |
| Tripod with ball head | 1 PC |
| KMounting bracket | 1 PC |
*The manufacturer reserves the right to change the information contained in this manual without prior notice.
WASTE MANAGEMENT
The crossed-out trashcan symbol means that waste electrical and electronic, batteries and packagings must not be placed with other household waste. They must be handed over to a separate waste collection system.
WARRANTY
Newell products are covered by a 40-month manufacturer’s warranty.
Made in China, In China hergestellt, Hecho en China, Fabbricato in Cina,
