Global Industrial Drum Palletizer Instruction Manual

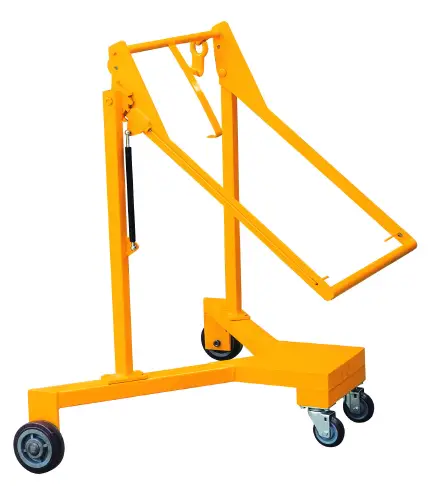

GLOBAL INDUSTRIAL Drum Palletizer

Note: The Owner/Operator must read carefully and understand all the information presented here before operation.

THANK YOU FOR USING THIS DRUM PALLERIZER. FOR YOUR SAFET AND CORRECT OPERATION, PLEASE CAREFULLY READ THIS INSTRUCTION BEFORE USING IT.

NOTE: All of the information reported herein is based on data available at the moment of printing. The factory reserves the right to modify its own products at any moment without notice and incurring in any sanction. So it is suggested to always verify possible updates.

SPECIFICATION

NOTICE

1. Do not operate this pallerizer more than 70m/min speed when overloading.
2. Do not operate the pallerizer unless you are trained and authorized.
3. Please operate the pallerizer on the hard surface.
4. Please push the drum when operating the pallerizer.

OPERATION

1. Clamp the pawl handle for putting the handle on the top position.
2. Push the drum near the pallet, the big hook button up the drum while two small hooks button up the side of drum, then pull the handle until the lowest position.
3. When release the drum, press the handle down, then clamp the pawl handle and lower the handle slowly to put the drum on the ground

EXPLODED VIEW & PART LIST
