Tot Mate Tm8350r Single Floor Vanity Instruction Manual

TM8350R/TM8352R–Single Floor Vanity
Instruction Manual

TM8350R Single Floor Vanity

ATTENTION
Please unpack and assemble in an area away from children’s activities. Remove all tools and excess materials from work area after assembly of unit is complete. Dispose of pallet and packaging materials in an environmentally friendly manner. If any parts are missing or damaged, please call Stevens for immediate parts replacement (1-800-350-3270).
When ordering parts, give the Model Number and Color of the unit.
CAUTION – CHOKING HAZARD
Adult assembly required due to presence of small parts and sharp edges.
IMPORTANT!
Assembly must be securely attached to building structure with anchoring devices of appropriate type, size and quantity in accordance with applicable codes and accepted installation practices.
NOTE: ASSEMBLY INSTRUCTIONS REFERENCE ILLUSTRATIONS AND PART NUMBERS FOR THE TM8352R.

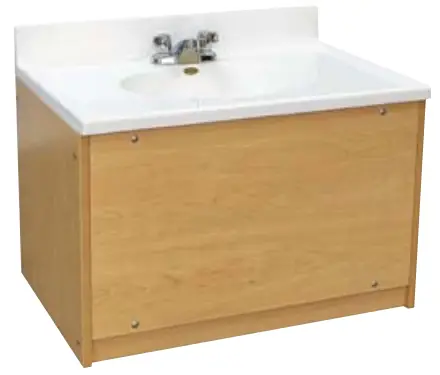

TM8350R Single Floor Vanity

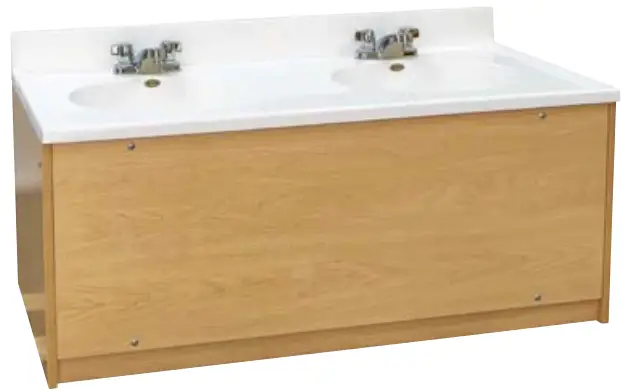

TM8352R Double Floor Vanity

STEP-BY-STEP ASSEMBLY

ILLUSTRATIONS AND PART NUMBERS ARE FOR TM8352R.
BASIC ASSEMBLY INSTRUCTIONS ARE THE SAME FOR BOTH MODELS. 2-PERSON ASSEMBLY RECOMMENDED.
IMPORTANT!
Be sure to keep all parts supported during assembly to avoid damage. Do not over-tighten screws or it will damage the pre-drilled holes; snug fit is adequate.

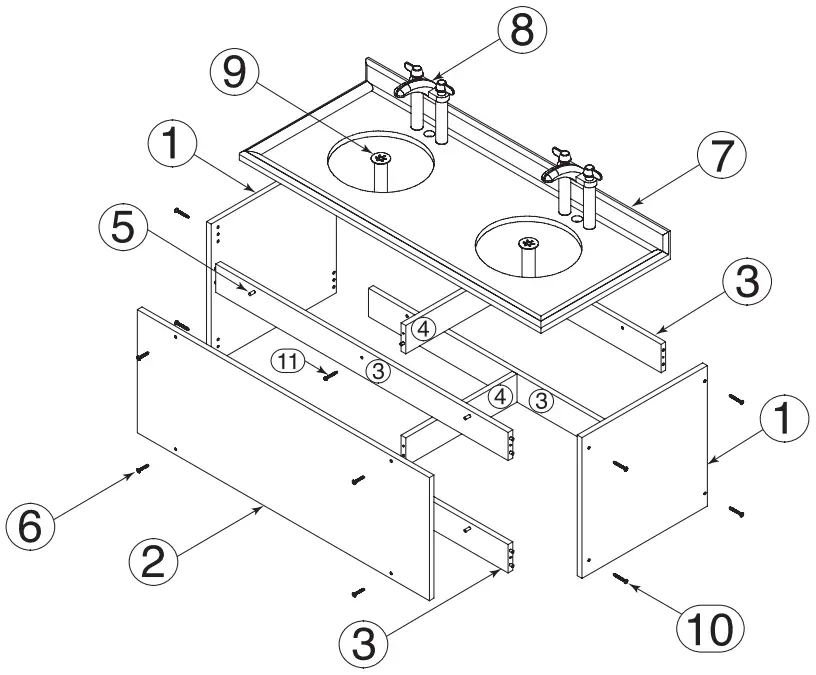

HARDWARE / TOOLS INCLUDED
(Phillips screwdriver and soft mallet required but not included.)

	Confirmat Bolt (10) (Screw Conn HxDc Ni 7mmx50mm)
	Flat Head Confirmat Bolt (11) (Screw Conn HxFl ZN 7mmx50mm)
	Access Panel Nut (5) (Nut Propell 1/4 20x.5 5/8Flang)
	Access Panel Screw (6) (Screw Mach PhTr Zn 1/4-20×1.50)
	Hex Wrench

FOR TM8352R ONLY (STEP 1):
STEP 1
Construct two Rail Supports as follows:

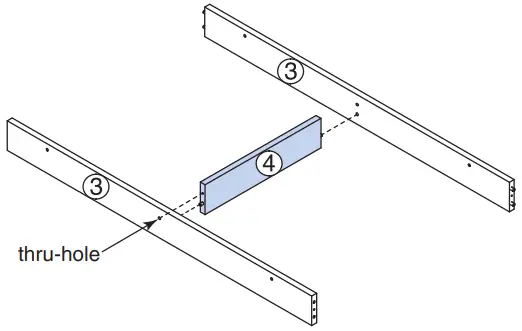

a. Insert dowels on ends of one X Rail (4) into holes in center of two TK Rails (3). Make sure holes in ends of X Rail (4) align with thru-holes in TK Rails (3). Press firmly into place.

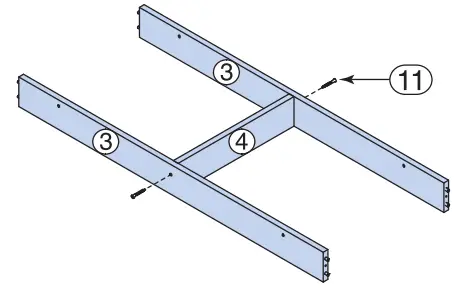

b. Secure Rails (3 & 4) from (a.) together with two Flat Head Confirmat Bolts (11), using the included Hex Wrench.

c. Repeat (a.) and (b.) to construct other Rail Support.
FOR BOTH MODELS (STEPS 2-13):
STEP 2

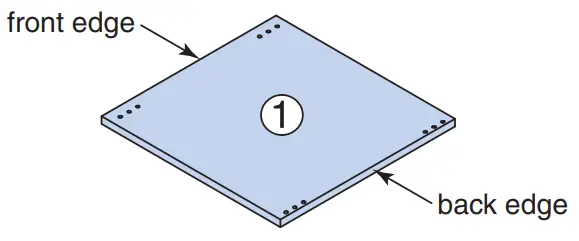

Lay one End (1) flat on floor, with side having the most holes facing up. NOTE: Holes are closer to back edge and further from front edge.
STEP 3

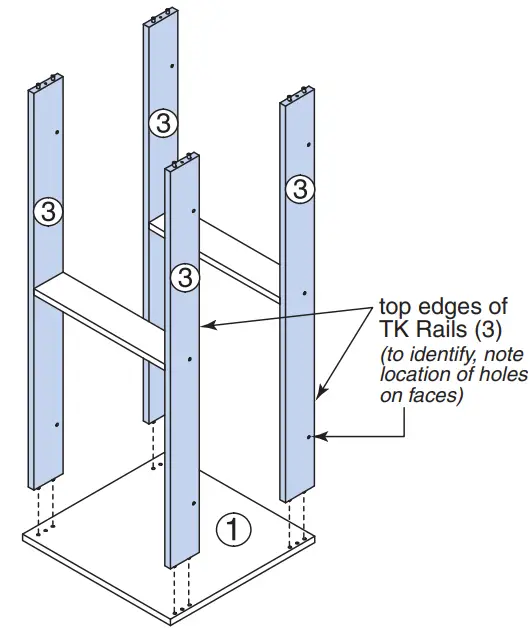

Insert dowels on TK Rails (3) into holes on End (1). (For TM8352R, TK Rails (3) are part of the Rail Supports from Step 1.) Top edges of all TK Rails (3) must be facing same direction. Press firmly into place.

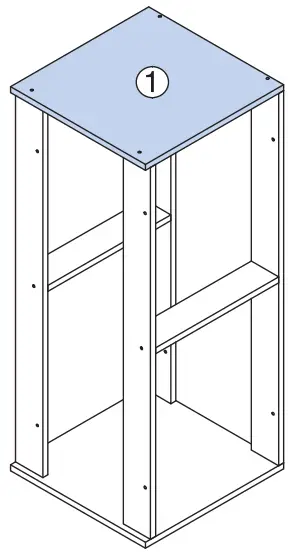

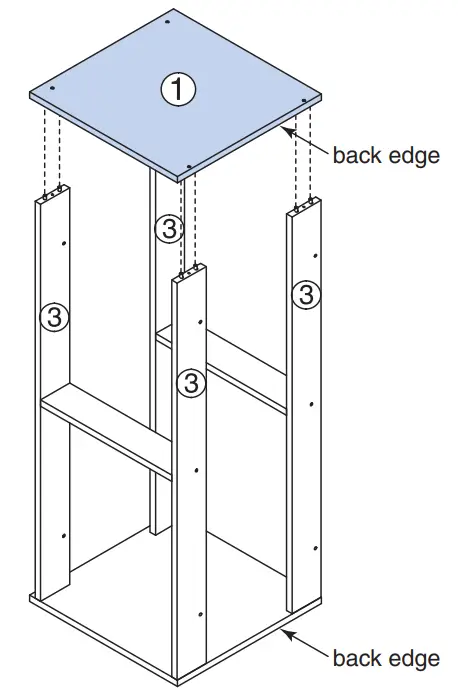

STEP 4
Position other End (1) on top of assembly, so dowels on TK Rails (3) align with holes on End (1) and back edges of both Ends (1) are facing same direction. Press firmly into place.

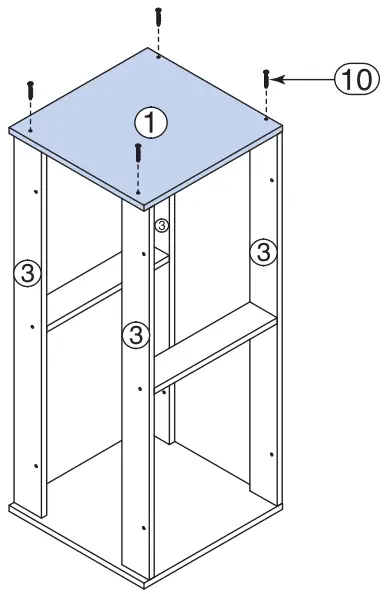

STEP 5

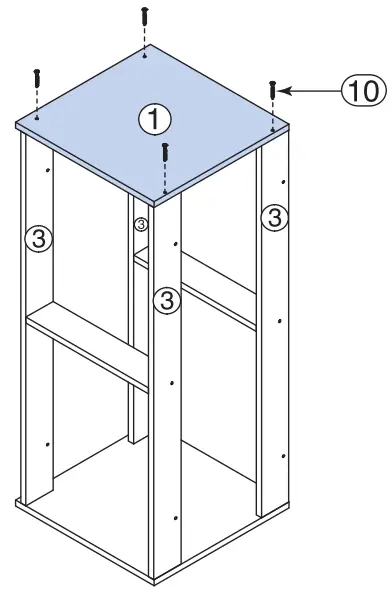

Secure End (1) to TK Rails (3) with four Confirmat Bolts (10).

STEP 6
Carefully turn assembly over, so other End (1) is facing up.

STEP 7
Repeat Step 5 to secure End (1) to TK Rails (3).

STEP 8

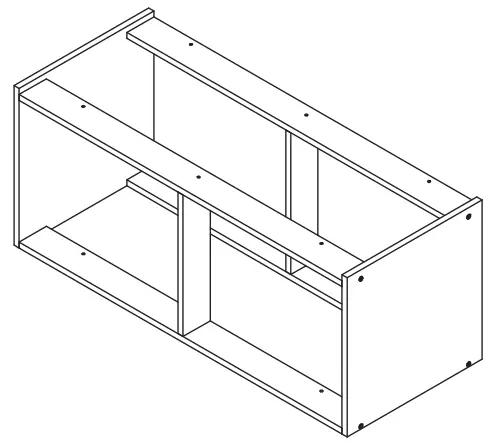

Carefully position assembly with front facing up.

STEP 9

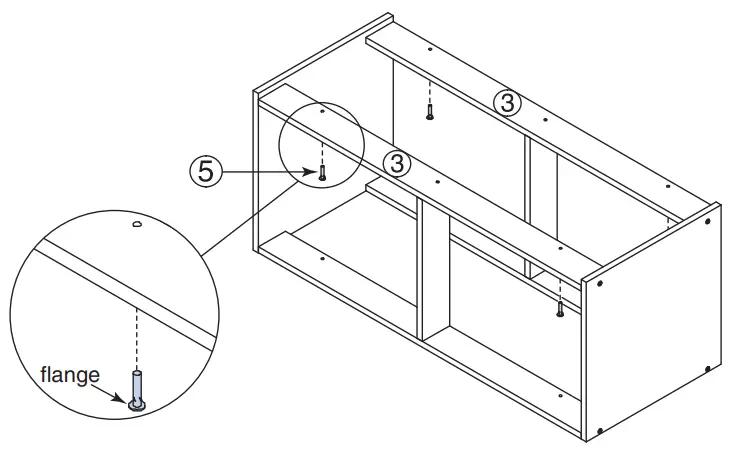

Insert Access Panel Nuts (5) into both holes on each front TK Rail (3), with flange exposed to interior of cabinet. Tap Access Panel Nuts (5) into place with soft mallet.

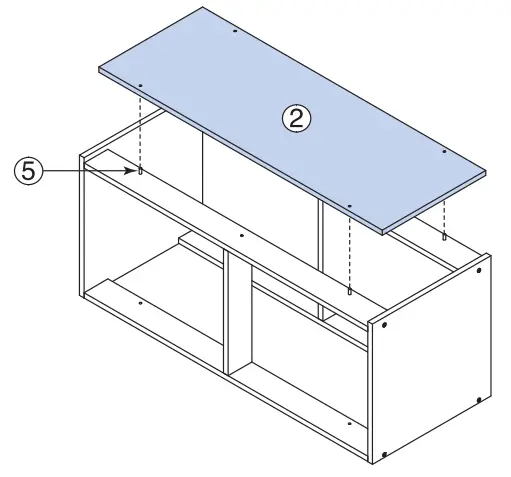

STEP 10
Position Access Panel (2) over assembly, so holes on Access Panel (2) align with Access Panel Nuts (5). Press firmly into place.

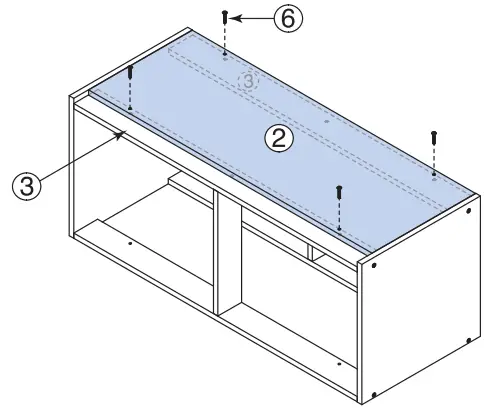

STEP 11
Secure Access Panel (2) to front TK Rails (3) with four Access Panel Screws (6). (Phillips screwdriver not included.) NOTE: The Access Panel can be removed as needed for plumbing access.

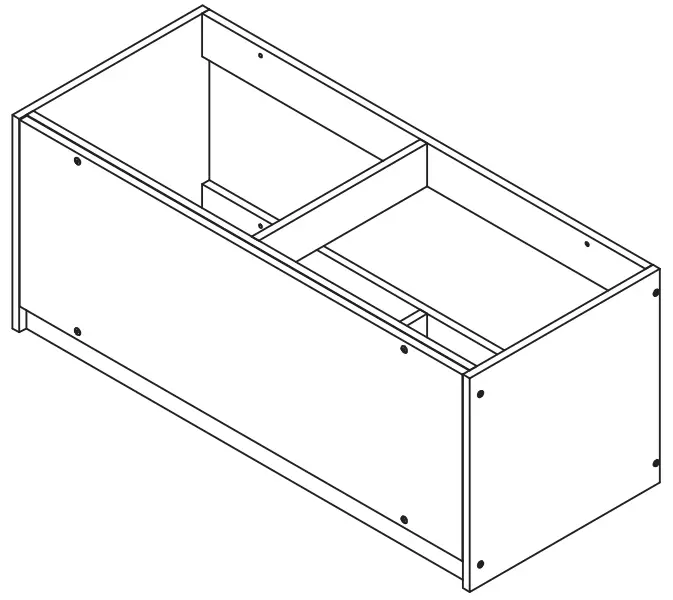

STEP 12
Carefully stand unit upright.

STEP 13
Ensure that all joints, bolts and screws are tight.
This completes the assembly of the cabinet.
Installation of Sinks (7), Faucets (8) and Strainers (9) to be performed by licensed plumber.

by Stevens Industries, Inc.
704 West Main St.
Teutopolis, IL 62467
P: 800.350.3270
P: 217-857-7100
• F: 217-857-7101
www.totmate.com
©2018 Stevens Industries, Inc.
Due to continuing product development, Stevens reserves the right to change specifications without notice.
3594.TM8350/TM8352.9/25/18
#0964-3146
