arlo AVD1001 Essential Wired Video Doorbell User Guide
© Arlo Technologies, Inc. Arlo, Arlo logo, and Every Angle Covered are trademarks of Arlo Technologies, Inc. App Store is a service mark of Apple Inc. Google Play is a trademark of Google LLC. Other trademarks are for reference purposes.
(If this product is sold in Canada, you can access this document in Canadian French at arlo.com/docs.)
For regulatory compliance information including the EU Declaration of Conformity, visit www.arlo.com/about/regulatory/.
Arlo Technologies Intl. Ltd. Ground Floor, Building 3 University Technology Centre Curraheen Road, Cork, T12 EF21 Ireland
Essential Wired Video Doorbell Quick Start
Hello! You’re just a few steps away from getting your doorbell up and running.
To see these steps before you start, watch our HowTo video by scanning this QR code with your mobile device. (You can use a free QR code scanning app.)
Installation Video
- Find your doorbell, chime box, and the electrical panel at your home.
- Download the Arlo app from the App Store or Google Play.
- Follow the step by step instructions in the Arlo app to install.
What’s in the box

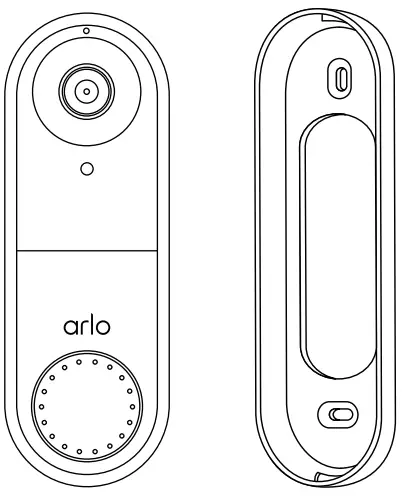

- Doorbell and flat mounting plate (These parts are attached.)

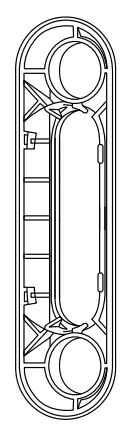

- Angled mounting plate

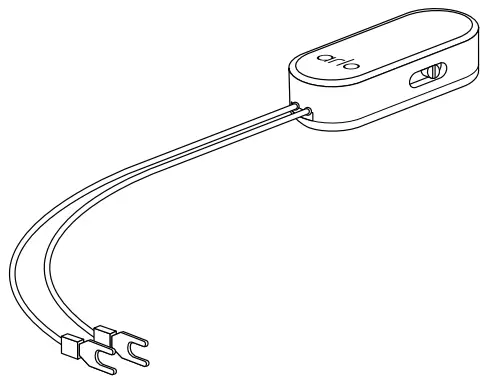

- Power Kit
- Release pin

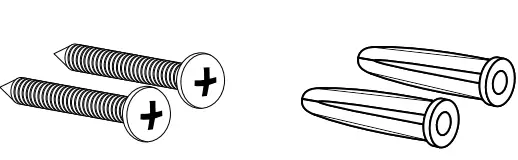

- Wall screws and anchors

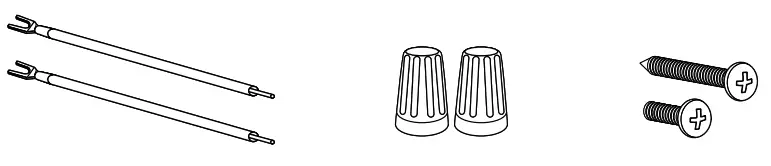

- Optional wire extensions, wire fasteners, and extra screws
Tools
- A Phillips screwdriver is required to install the doorbell (not provided).
- You might also benefit from having a drill, a level, and a ladder(to reach the chime).
Power requirements
Voltage between 16 – 24VAC and a 10VA transformer.
You can use a voltmeter to check the voltage. If your voltage doesn’t meet the power requirements, and you need to install or upgrade a transformer, contact a licensed electrician or visit arlo.com for information about installation services.
WARNING: To prevent fire and injury, connect the Essential Wired Video Doorbell and Power Kit only to voltage between 16 – 24VAC.
Need help?
We are here for you.
Visit www.arlo.com/support for quick answers and resources:
- How-to videos
- Troubleshooting tips
- Additional support resources
