Ring 1080p Wired Video Doorbell
Specifications
- Dimensions 98 in x 1.81 in x 0.88 in (101mm x 45.7mm x 22.4mm)
- Field of View 155° horizontal, 90° vertical
- Audio Two-way audio with noise cancellation
- Internet Requirements High-speed internet
- Connectivity 11 b/g/n Wifi connection @ 2.4 GHz
- Night Vision Yes
- Motion Sensor Yes
- Operating System Support Android, Windows, iOS, macOS/OS X
- Wi-Fi Wi-Fi 4 (802.11n); Single-Band (2.4 GHz)
- AC Input Power VAC50 / 60 Hz
- DC Input Power 24 VDC at 0.5 A
- Power Type Requirement Hardwired
- Power Requirements 10 to 24 VAC; 40 VA Transformer
- Brand Ring
Introduction

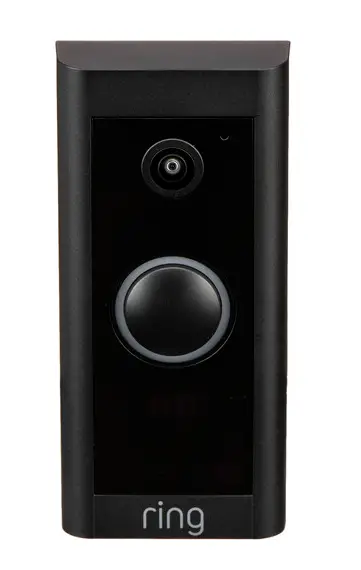

The black 1080p Wired Video Doorbell from Ring lets you keep an eye on your front entrance from anywhere. This Wi-Fi doorbell leverages the electricity provided by your doorbell wiring to record videos with a resolution of 1920 x 1080. A 155° horizontal field of view, night vision capabilities, two-way audio with noise reduction, and programmable motion detection are all included.

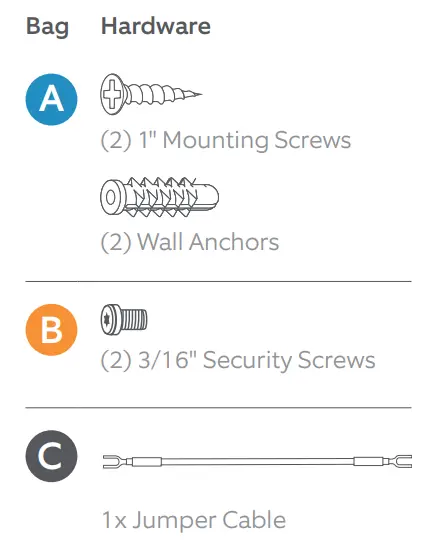

Included hardware
Bag Hardware
Find your doorbell chime.
Your Doorbell Wired is designed to replace an existing doorbell button, and gets its power from the doorbell system.
Ring your existing doorbell and listen for the chime. If it rings, we know your existing doorbell system is working.
Follow the sound to find your chime and make a mental note of the location. We’ll return to your chime soon.
Important
Don’t have an existing doorbell? You can power your Doorbell Wired directly using our Plug-in Adapter. Visit ring.com/accessories to learn more.

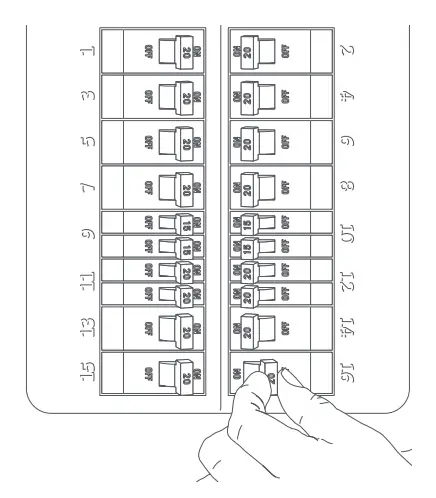

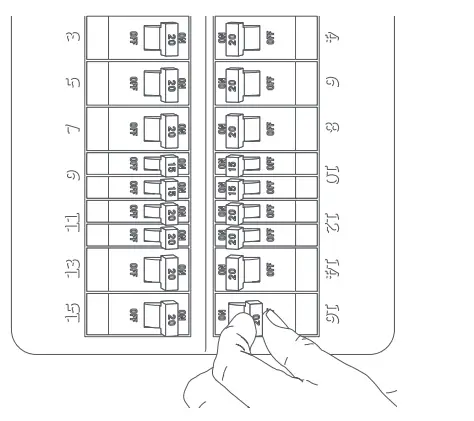

Turn off power at the breaker.
This is essential to keeping you and your new Ring Doorbell safe.If you’re not sure which breaker controls your doorbell chime, turn off the master breaker for your home, or contact an electrician.
CAUTION
You’ll be working with electrical wires during the install process. If you are uncomfortable or inexperienced with doing so, consult with a licensed electrician.

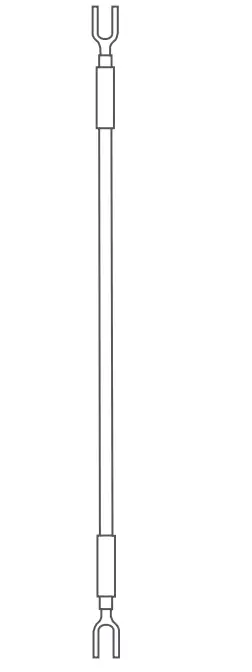

Grab the included Jumper Cable.
The Jumper Cable bypasses and disables your existing doorbell chime, and must be installed before you install your Ring Doorbell.
Your Doorbell Wired is compatible with doorbell systems supplying 10–24 volts AC, at 50 or 60Hz, 40VA max. The AC connector is the class 2 energy source.
Remove the cover from your doorbell chime.
After you’ve located your doorbell chime and turned off power at the breaker, remove the cover from your chime and set it aside for now.
Loosen the “Front” and “Trans” terminal screws.
Make sure to keep the existing doorbell wires in place.

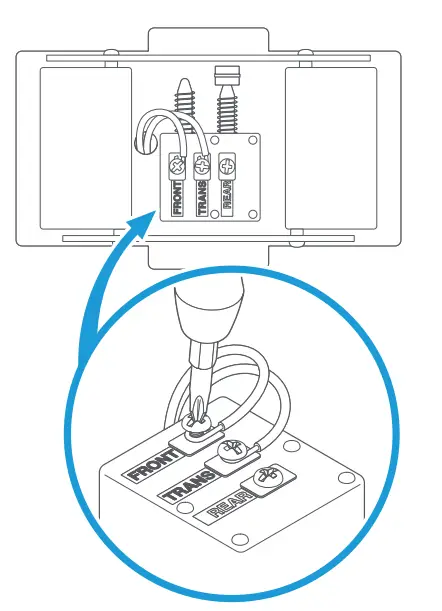

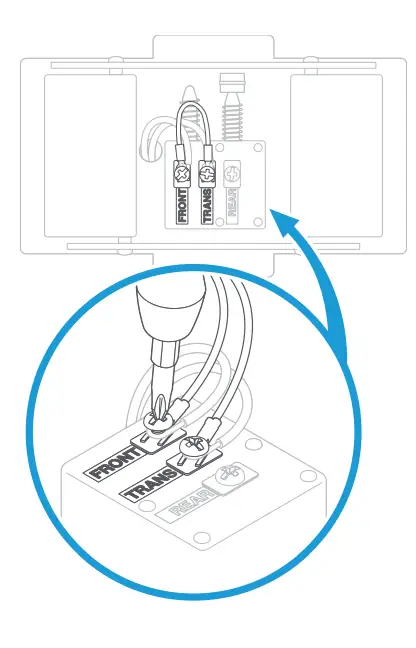

Connect the Jumper Cable
Connect one end of the Jumper Cable to the “Front” terminal, and the other to the “Trans” terminal. It doesn’t matter which wire you connect to which terminal. Then re-tighten the terminal screws.
Uninstall your existing doorbell button.
Remove your doorbell from the wall.
Disconnect the wires. Make sure they don’t fall back inside your wall so you can access them later.

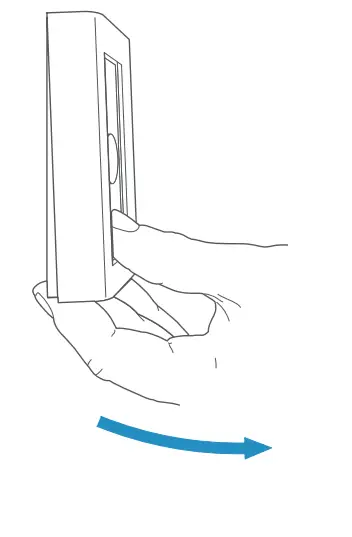

Remove the faceplate
Grasp the bottom of the faceplate and pull to remove.
Mark the screw holes
Using your Ring Doorbell as a template, mark the location of the two mounting holes on your wall.

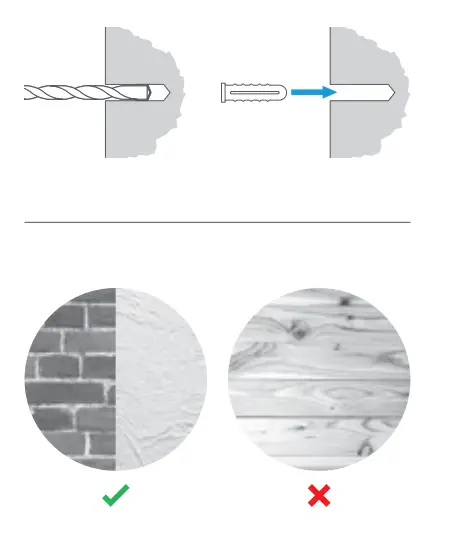

Install the anchors. (optional)
On stucco, brick, or concrete, use a ¼” masonry bit to drill holes in your wall, then insert the included wall anchors.
(If you’re installing on wood or siding, you can skip this step.)

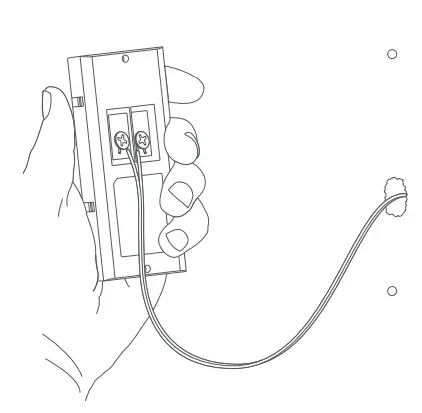

Connect the doorbell wires
Loop one doorbell wire around each of the screw terminals on the rear of your Ring Doorbell then tighten the terminals to secure.

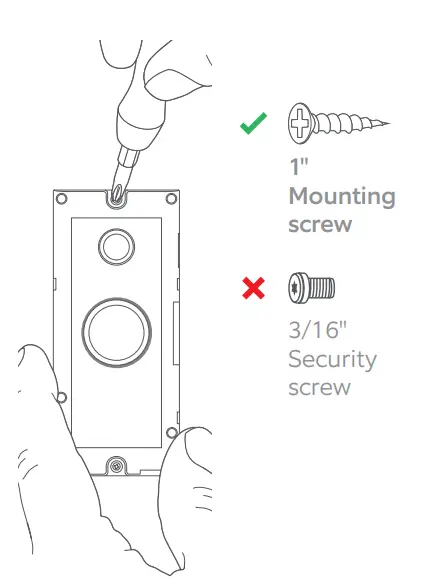

Screw in your Ring Doorbell
Mount your Ring Doorbell with the two included mounting screws. Be sure to feed any excess wiring back into the wall first.
DO NOT USE any screw other than the included mounting screws when securing your Ring Doorbell.
Restore power at the breaker
It may take a moment for your Ring Doorbell to power on. You’ll know it’s ready once it lights up and speaks to you.
Download the Ring App
The Ring App walks you through setting up and managing your Ring Doorbell. Search for “Ring” in one of the app stores below, or visit ring.com/app
Set up your Ring Doorbell.
In the Ring app, select Set Up a Device and follow the in-app instructions.

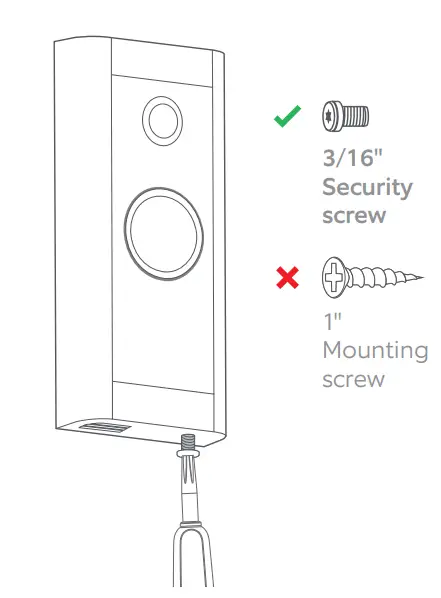

Secure your Ring Doorbell.
Re-attach the faceplate, then use the included screwdriver to drive the small security screw into the bottom of your Ring Doorbell.
CAUTION!
If you use the wrong screws to secure the Video Doorbell, you could damage the battery during installation, create a fire hazard, and be seriously injured.
Review, share and download
Your new device comes with a free 30-day trial of Ring Protect video recording service. To continue your subscription and save your videos, please visit ring.com/protect-plans
- What is Ring Protect? Ring Protect is a subscription service that stores videos from your Ring devices.
- Why do I want it? Ring lets you interact with visitors and monitor your property in real time, while Ring Protect allows you review and share those videos anytime.
- How much does it cost? Ring Protect Basic covers one Ring device for $3 USD/month or $30 USD/year.* Ring Protect Plus covers all Ring devices at one property, and costs $10 USD/month or $100 USD/year.**
- How do I sign up? Simply log into your Ring account at ring.com/protect-plans, and follow the on-screen instructions. *$5 CAD per month or $50 CAD per year **$15 CAD per month or $150 CAD per year For additional help, visit ring.com/help
Or give us a call US 1 800 656 1918 Canada 1 855 300 7289 Worldwide +1 310 929 7085 For a list of all our customer support numbers, visit ring.com/callus For information on our warranty, theft protection, and Ring Protect Plans, see ring.com/legal © 2020 Ring LLC or its affiliates. Ring and all related marks are trademarks of Ring LLC or its affiliates.
