Be Quiet Silent Base 802 Window White User Manual (+ PDF)

3-year manufacturer’s warranty for the consumer (original purchase from authorized be quiet! dealers only)
Your original receipt of purchase will be required before warranty services are rendered. Please store it carefully.
Manipulations and/or technical modifications of any k nd, or damage due to the application of mechanica force, will void your warranty.
To read the warranty terms and conditions in full, see Service/Warranty Conditions on our website at bequiet.com.

Our General Terms and Conditions of Business also apply. For details please refer online under bequiet.com.

Manufacturer’s details

Listan GmbH | Wilhelm-Bergner-Straße 11c | 21509 Glinde | Germany
Tel. 0049 40 736 7686 – 44 Fax 0049 40-7367686-69
Email: [email protected]
Website: www.bequiet.com

Copyright

You are not allowed to reproduce, disclose, publish or store the contents of this documentation, or excerpts of it, without the prior written consent of Liston.
be quiet! n is a registered trademark of Liston GmbH. Other products and company names mentioned in this documentation may be the brands or trademarks of their respective owners.
Inaccordancewithcompanypolicy,allListanproductsaresubjecttoongoingdevelopment.Listanreservestherighttomakechangesandimprovements to any product described in this documentation without prior notice.
Under no circumstances shall Liston be held liable for loss of data or income, or for any specific, incidental, direct, or indirect damage, however it arises.
The content of this documentation represents the status at time of writing. Listan does not assume, whether expressed or implicit, any liability for the correctness or completeness of the content of this documentation, including, but not limited to the implicit guarantee of market suitability and fitness fora particular purpose, unless applicable laws or jurisdiction specifically stipulate such a liability.
Listan reserves the right to make changes to this documentation or to withdraw the documentation at any time without prior announcement.

SPECIFICATIONS

Motherboard compatibility	E-ATX (30.5 x 27.5), ATX, M-ATX, Mini-ATX
Case Type	Midi-Tower
PSU	PS2 ATX (not included)
Dimensions (L x W x H in mm)	539 x 281 x 553
Material	Steel (SECC), ABS plastic
Weight (kg)	12.59 (net) / 13.34 (gross)13.15 (net) / 14.9 (gross)*
I/O Panel	1x USB 3.2 Gen. 2 Type C, 2x USB 3.2 Gen. 1, HD Audio, Fan Switch Button
PCI Slots	7+2
Drive Bays	up to 15x 2.5 (7 included)up to 7x 3.5 (3 included)
Preinstalled fans (mm) / (rpm)	Front: 2x Pure Wings 2 140/1000 Rear: 1x Pure Wings 2 140/1000
Optional fans (mm)	Front: 1x 140 / 3x 120Top: 3x 140 / 3x 120
Optional radiators (mm)	Front: 120 / 140 / 240 / 280 / 360 / 420Top: 120 / 240 / 360Rear: 120 / 140
Maximum Dimensions (mm)	CPU cooler: up to 185 PSU: up to 288GPU: 432 / 287 (with HDD cage)
Special features	4-step fan controller (6x 3-pin) with PWM Hub

Images	Part Name	Amount	Usage
	HDD cage	1	Installation of hard disk
	HDD rubber decoupling	4	Decoupled mounting of HDD
	6#32 screw	12	Aﬃxing the motherboard and PSU bracket
	M3 screw	12	Fastening the SSD
	HDD screw	12	Aﬃxing the HDD
	Velcro ties	6	Cable management

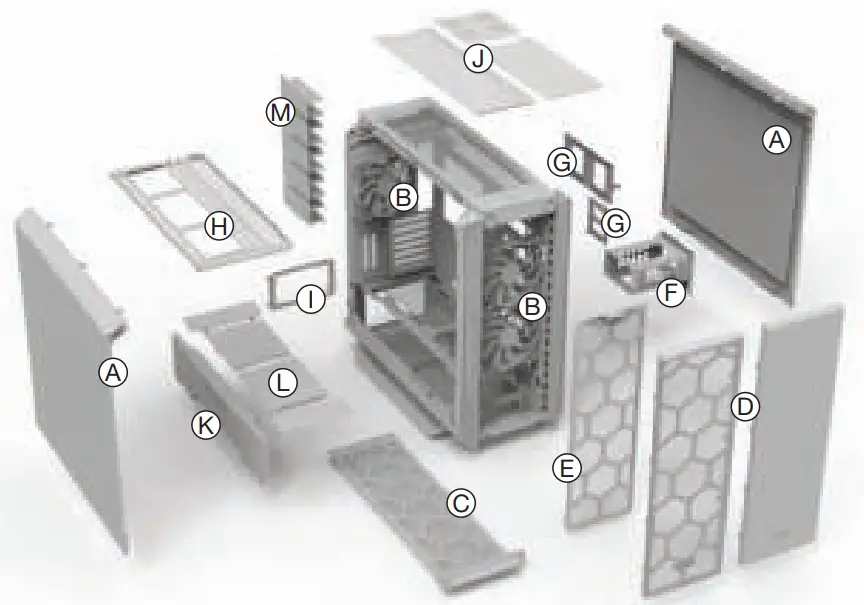

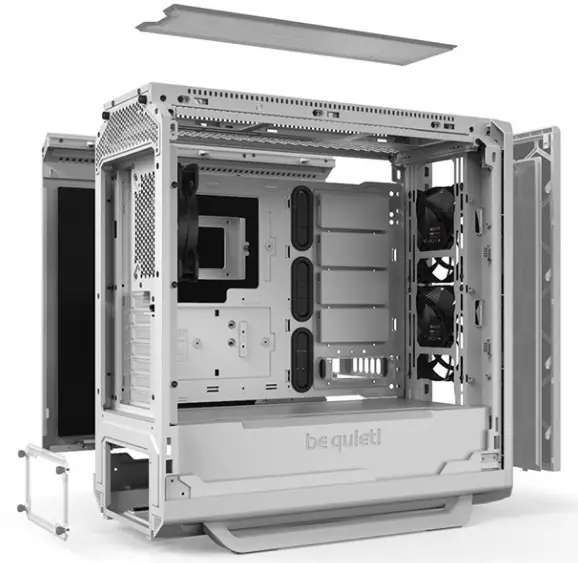

EXPLODED VIEW AND DESCRIPTION OF PARTS

A	Side panel	H	Detachable top bracket for fans and radiators
B	Pure Wings 2 fan	I	PSU bracket
C	Bottom dust filter	J	Interchangeable top covers
D	Interchangeable front panels	K	PSU shroud
E	Front dust filter	L	Top cover of PSU shroud
F	Double HDD cage	M	HDD slot cover*
G	SSD bracket

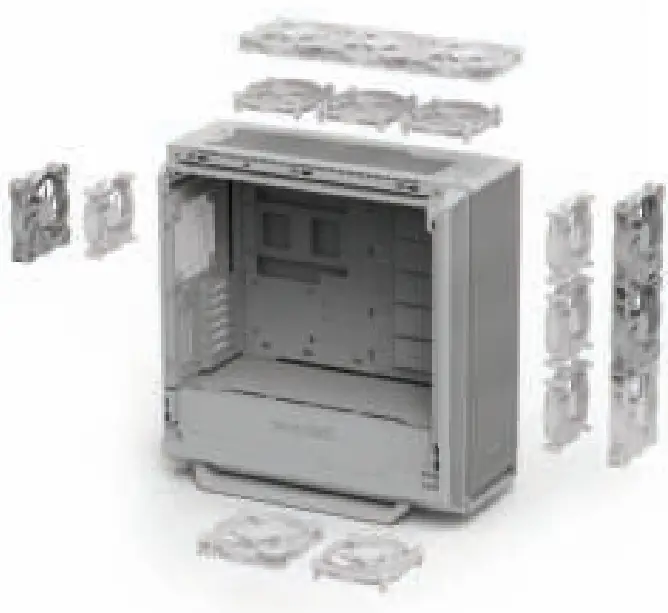

FAN COMPATIBILITY

Position	Size (mm)
Top	3x 140 / 120
Front	3x 140 / 120
Rear	1x 140 / 120
PSU Cover	1x 140 / 120

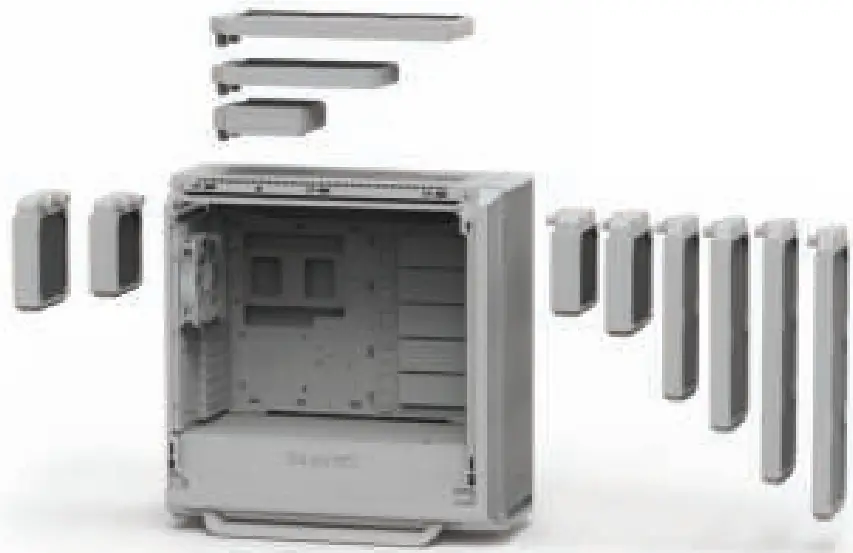

RADIATOR COMPATIBILITY

Position	Size (mm)
Top	120 / 240 / 360
Front	120 / 140 / 240 /280 / 360 / 420
Rear	120 / 140

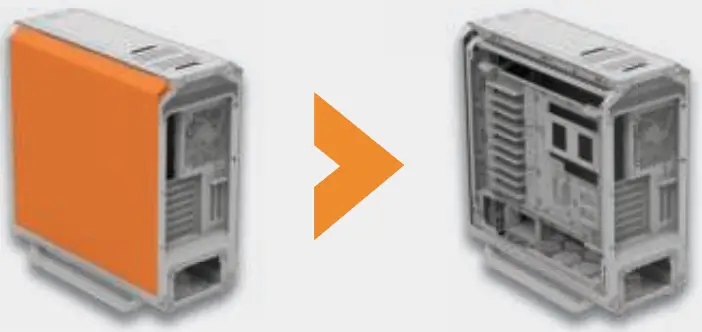

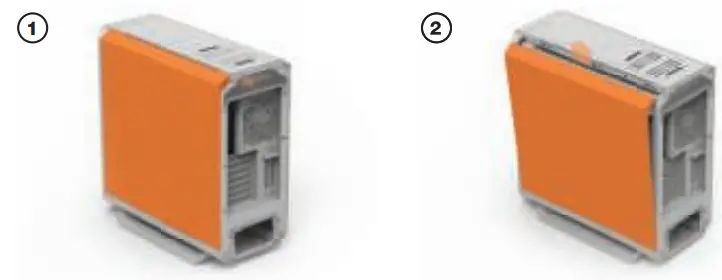

REMOVING THE SIDE PANEL

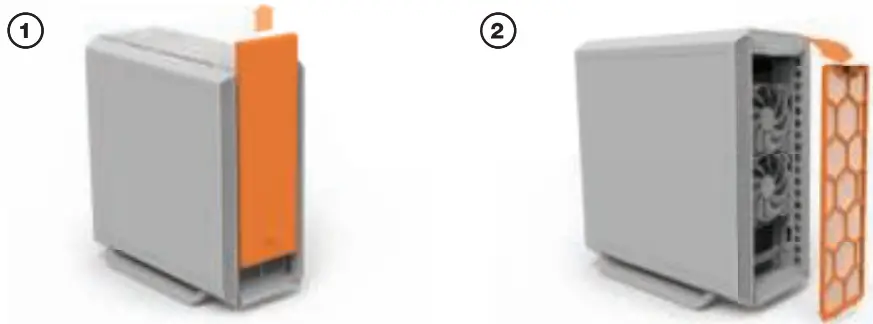

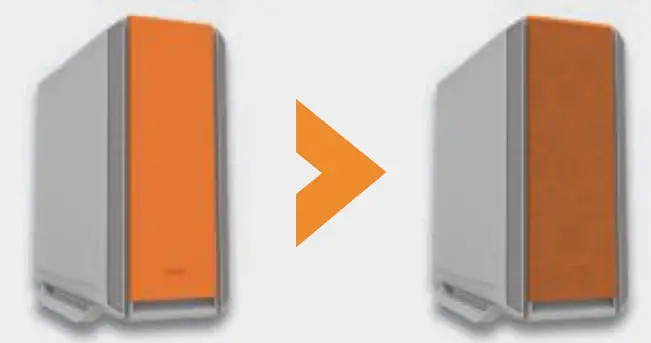

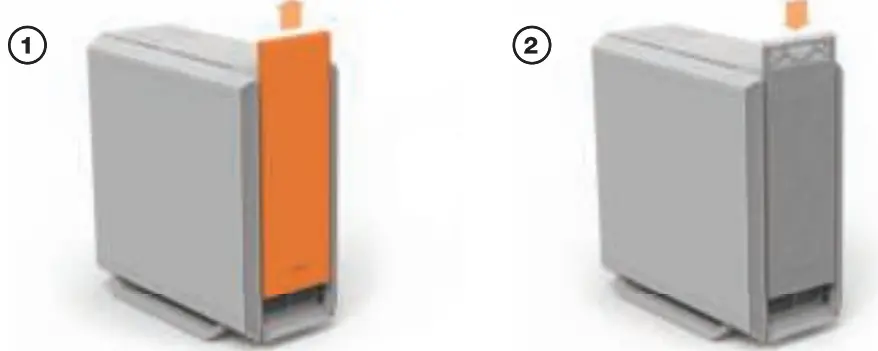

REMOVAL AND INSTALLATION OF THE CASE FRONT

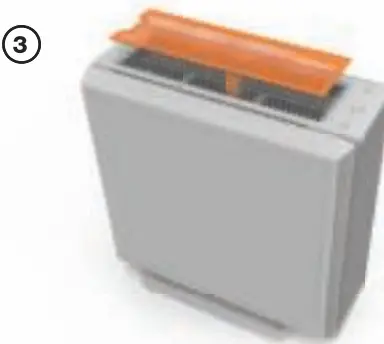

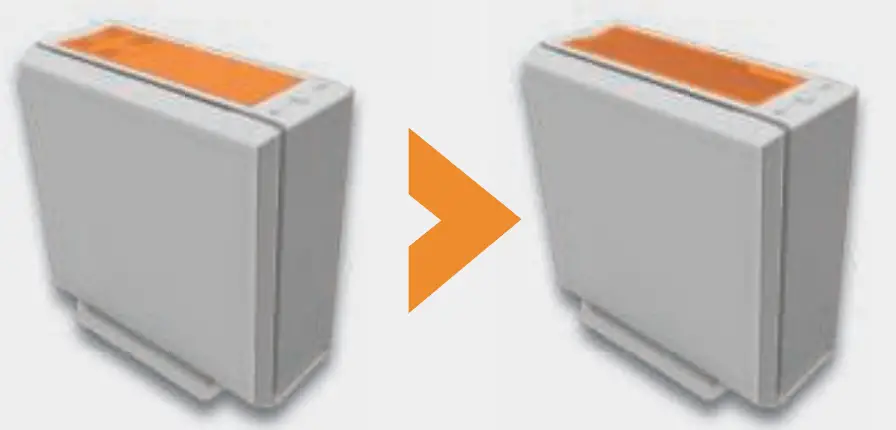

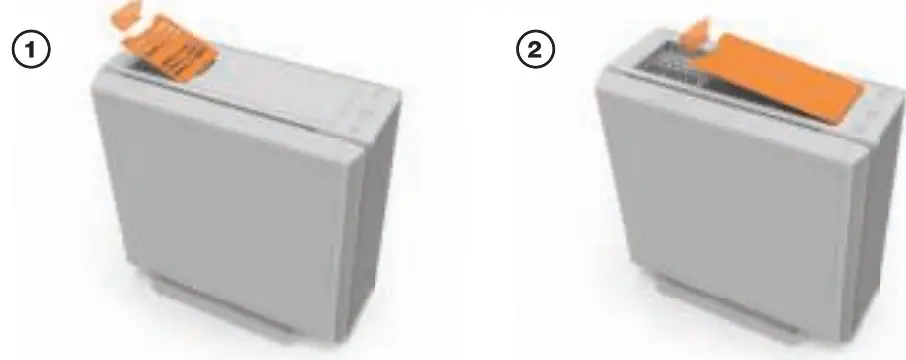

CHANGING THE TOP COVER

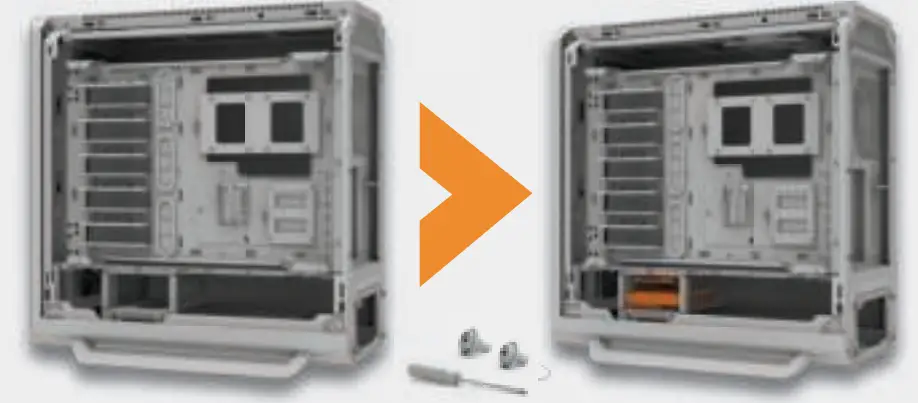

INSTALLATION OF DRIVES INTO THE HDD CAGE

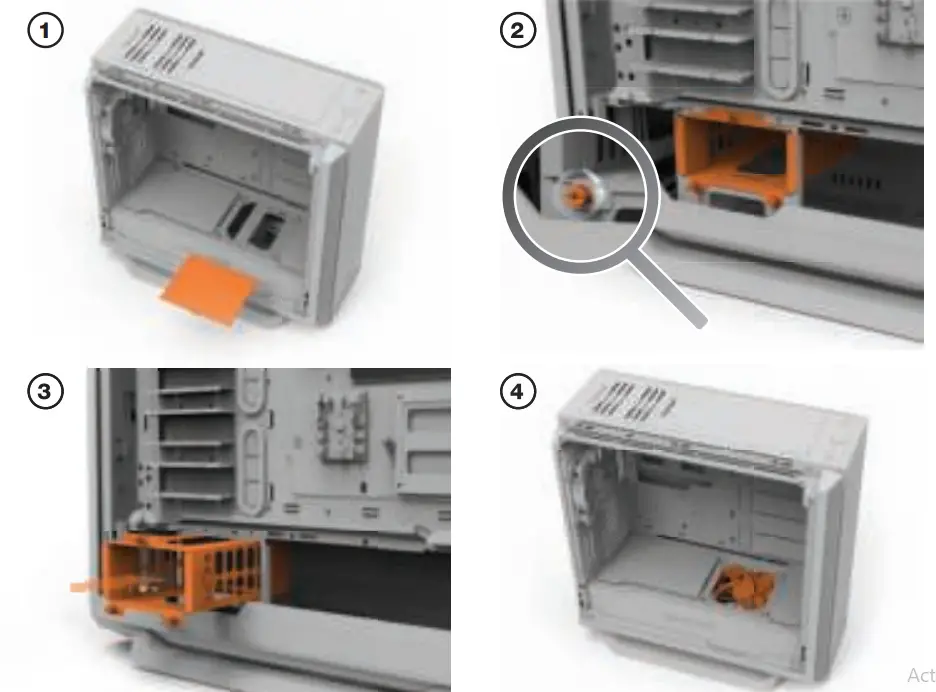

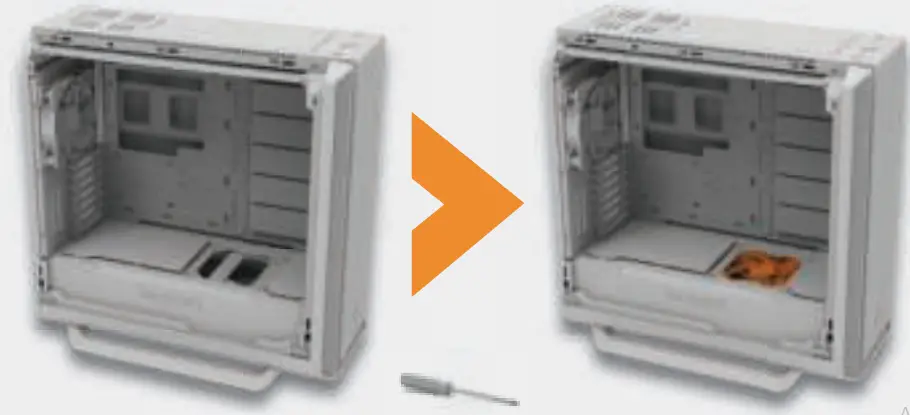

INSTALLATION OF ADDITIONAL FAN INSIDE THE PSU SHROUD

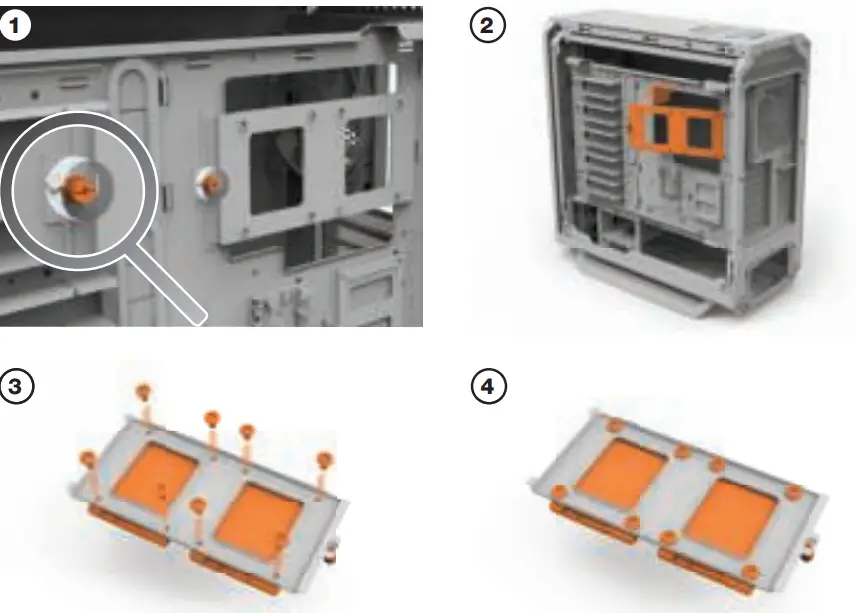

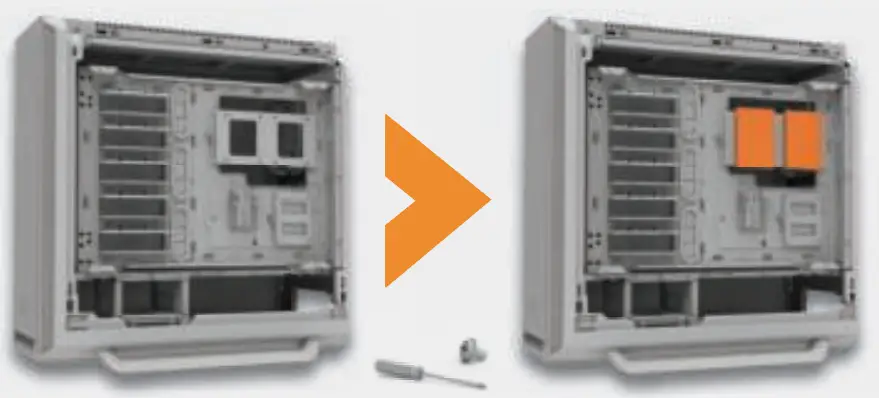

INSTALLATION OF SSDs ON THE BRACKET

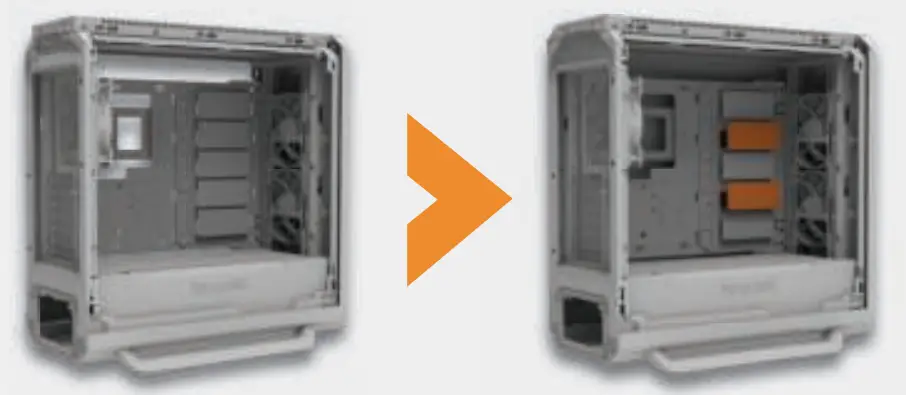

HANDLING OF HDD SLOT COVERS

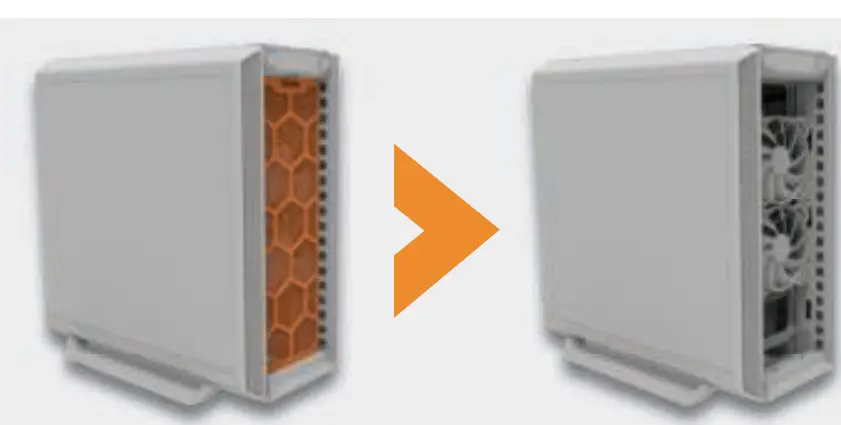

REMOVING THE FRONT DUST FILTER

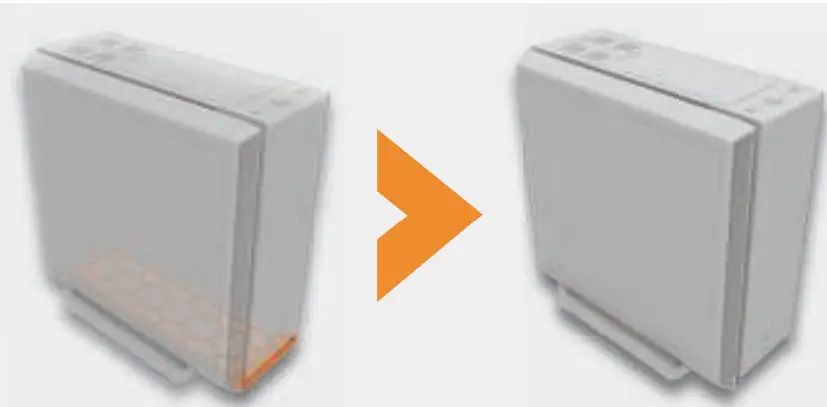

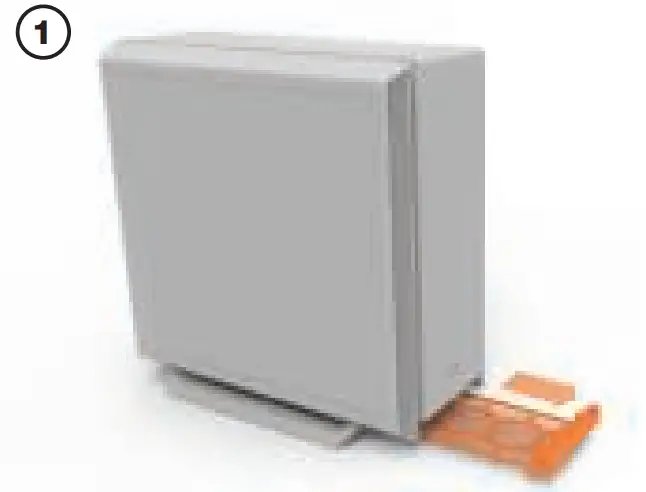

REMOVING THE BOTTOM DUST FILTER

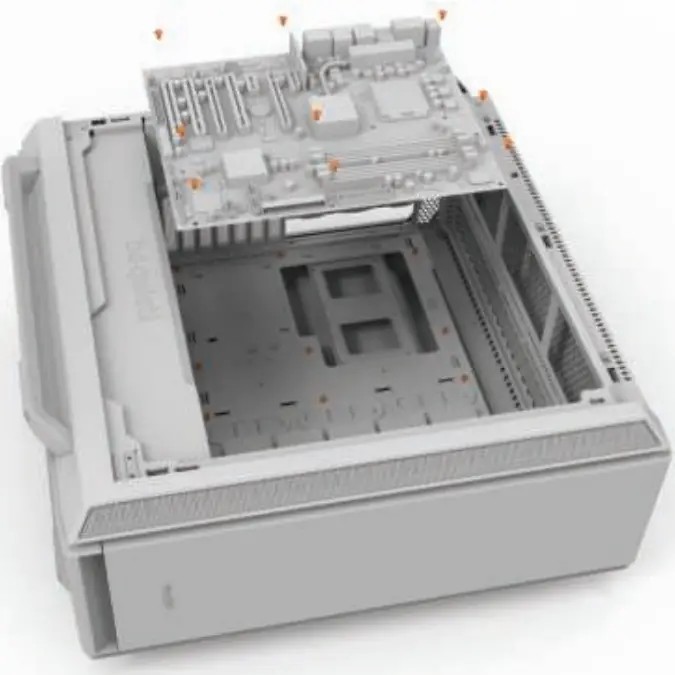

INSTALLING THE MOTHERBOARD

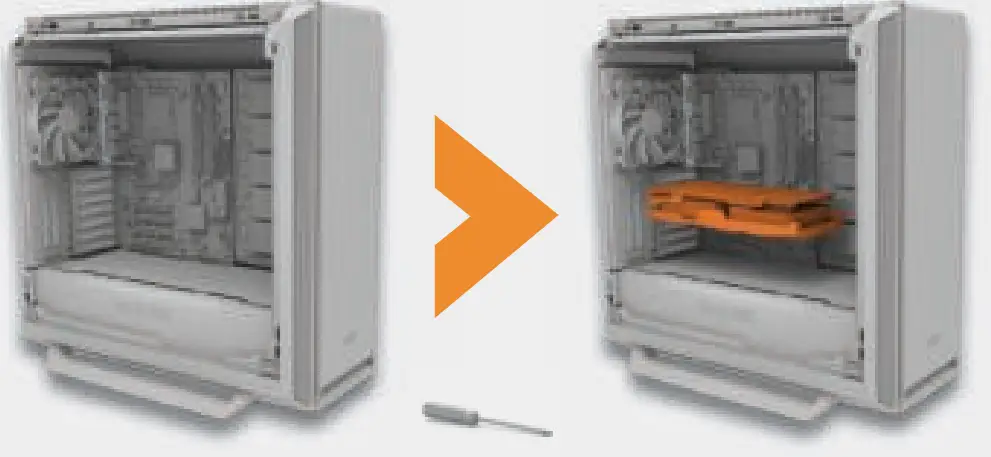

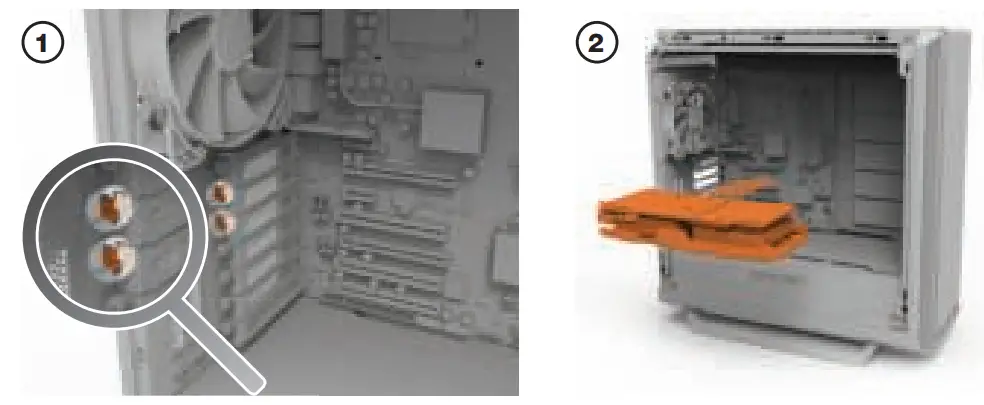

INSTALLING THE PCIe CARDS

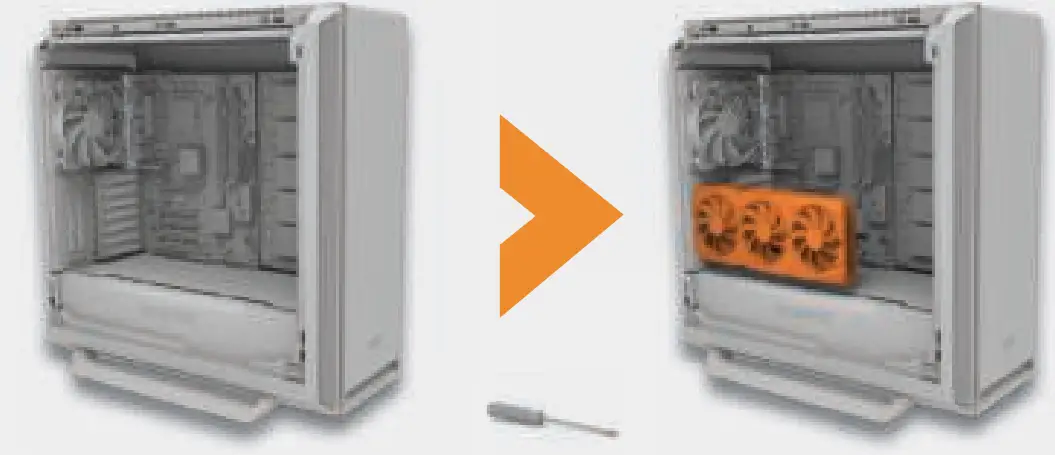

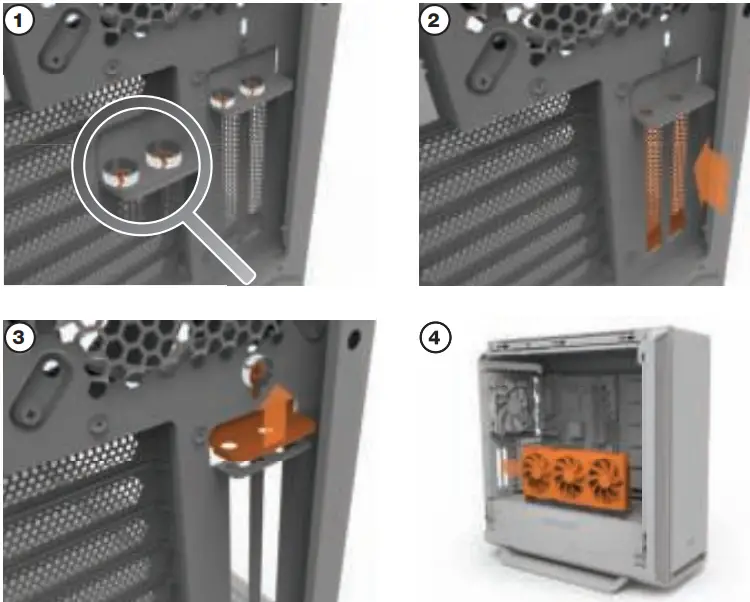

INSTALLING A GRAPHICS CARD VERTICALLY

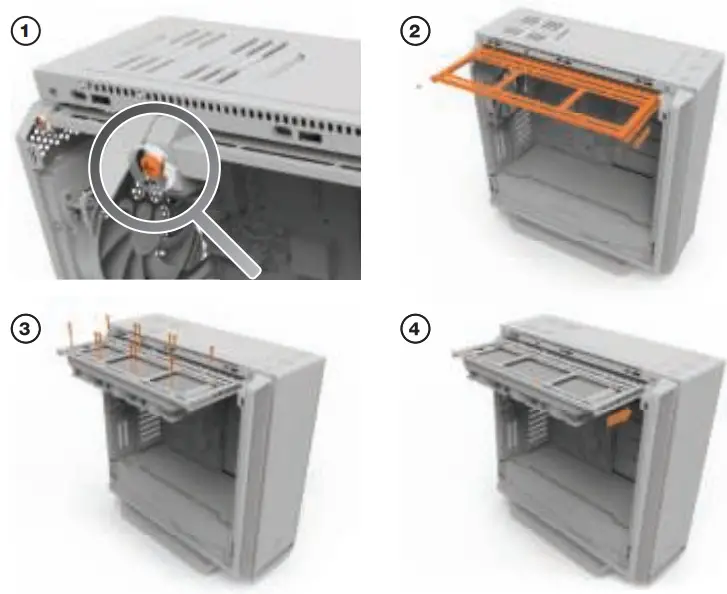

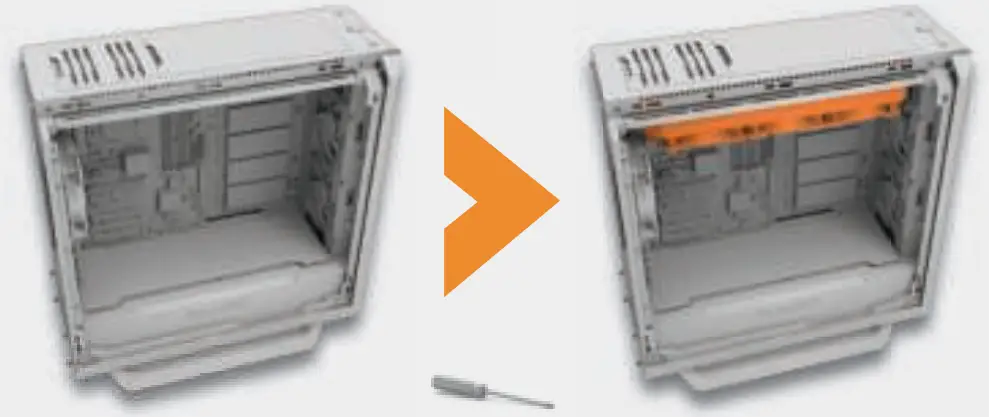

INSTALLING FANS OR RADIATORS ON THE DETACHABLE TOP BRACKET

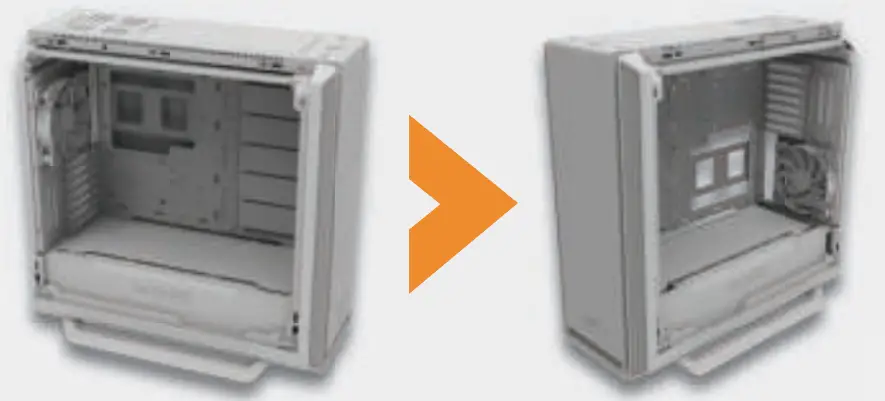

INVERTED LAYOUT

Limited Warranty
As per the terms and conditions of this limited warranty as given below, be quiet! warrants its new products to be free of defects resulting from faulty materials and faulty manufacturing for the length of the warranty period.

APPLICABILITY
This non-transferable warranty is applicable to newly purchased, previously unopened be quiet! products and is enforceable by only the original consumer purchaser. Proof of purchase is required for warranty service, so should be retained. be quiet! does not provide warranty registration services.

WARRANTY PERIOD
For eligible products. parts and labor are warranted for the applicable warranty period from the date of purchase. The applicable warranty period varies by product model. and is identified in your user documentation. on the product package. or as listed below. Should any of these warranty periods differ, the longest specified warranty period will apply. Replaced products will be warranted for the remainder of the original warranty period or thirty days. whichever is longer.

EXCLUSIONS
The following are not covered by the warranty:

1. Normal wear and tear.
Any product which has been modified without permission from be quiet!. or on which the serial number or war-ranty sticker has been defaced. modified, or removed.
Damage. deterioration or malfunction resulting from: Accident, abuse. misuse or improper use. neglect. connection to an improper voltage source. unauthorized prod-uct modification. or failure to follow instructions included with the product. Fire, water, lightning, or other acts of nature. Repair or attempted repair by anyone not authorized by be quiet!. Shipping or transport damage (claims must be made with the carrier). Any other cause which does not relate to a defect in materials or manufacturing workmanship.
Cartons. cases. batteries. cabinets, tapes. accessories or other consumables used with this product.
be quiet!. Inc. does not warrant that this product will meet your requirements. It is your responsibility to deter-mine the suitability of this product for your purpose.
Removal or installation charges.
Shipping charges.
Any incidental charges.

EXCLUSION OF DAMAGES
be quiets sole obligation and liability under this warranty is limited to the repair or replacement of a defective product at its option. be quiet! shall not, in any event, be liable for any special, incidental, indirect. or consequential damages whatsoever. including but not limited to loss of profits, revenue, or data (whether direct or indirect). dam-ages resulting from interruption of service and loss of business, or for liability in tort relating to this product or re-sulting from its use or possession, even if be quiet! has been advised previously of the possibility of such damages.

LIMITATIONS OF IMPUED WARRANTIES
There are no other warranties. expressed or implied. including but not limited to those of merchantability or fitness for a particular purpose. The duration of implied warranties is limited to the warranty length specified in Paragraph I.

LOCAL LAW AND YOUR WARRANTY
This warranty gives you specific legal Fights. You may also have other rights granted under local law. These rights may vary.

NO OTHER WARRANTY
No be quiet! employee, dealer. or other agent is authorised to make any modification, extension, or addition to this warranty.

TO OBTAIN TECHNICAL SUPPORT OR WARRANTY SERVICE Please see your product owner’s manual or visit the service section at wnw.bequiet.com for details and contact information. You will need to provide proof of purchase for warranty service.
