Ergochair Ergo-rs Height Adjustable Creeper Seat User Guide

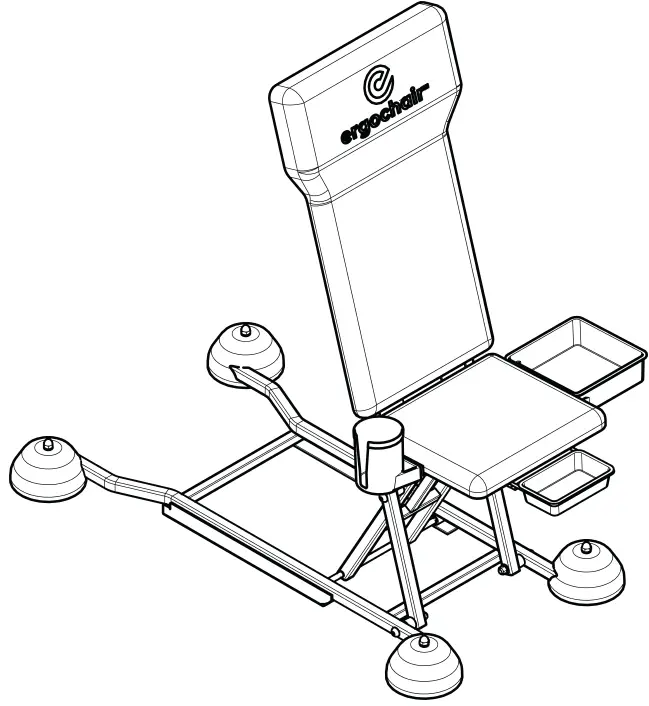

ergochair ERGO-RS Height Adjustable Creeper Seat

Copyright. Copyright © 2022 BendPak Inc. All rights reserved. You may make copies of this document if you agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain any rights to this content, and you will not use the copies for commercial purpose.
Trademarks. Ergochair and the Ergochair logo, BendPak and the BendPak logo are registered trademarks of BendPak Inc. All other company, product, and service names are used for identification only. All trademarks and registered trademarks mentioned in this Manual are the property of their respective owners.
Limitations. Every effort has been made to ensure complete and accurate instructions are included in this Guide. However, product updates, revisions, and/or changes may have occurred since this Guide was published. BendPak reserves the right to change any information in this Guide without incurring any obligation for equipment previously or subsequently sold. BendPak is not responsible for typographical errors in this Guide. You can always find the latest version of the Quick Start Guide for your product on the BendPak website.

Warranty.

The BendPak warranty is more than a commitment to you: it is also a commitment to the value of your new product. Contact your nearest BendPak dealer or visit www.bendpak.com/support/warranty for full warranty details. Go to bendpak.com/support/register-your-product/ and fill out the online form to register your product (be sure to click Submit). Safety. Your Ergo-RS Creeper was designed and manufactured with safety in mind. However, your safety also depends on proper training and thoughtful operation. Do not install, operate, maintain, or repair the unit without reading and understanding this Quick Start Guide and the labels on the unit; do not use the Ergo-RS Creeper unless you can do so safely!
WARNING
Please read this entire guide prior to use. Failure to follow the instructions and safety precautions in this guide can result in serious injury. Make sure all other operators also read this guide. By proceeding with setup and operation, you agree that you fully understand the contents of this guide and assume full responsibility for the use of this product.

• California Proposition 65: This product can expose you to chemicals including styrene and vinyl chloride, which are on the list of over 900 chemicals identified by the State of California to cause cancer, birth defects, or other reproductive harm. Always use this product in accordance with BendPak Ergo chair’s instructions. For more information, visit www.p65warnings.ca.gov.

Ergo-RS Product Description and Accessories

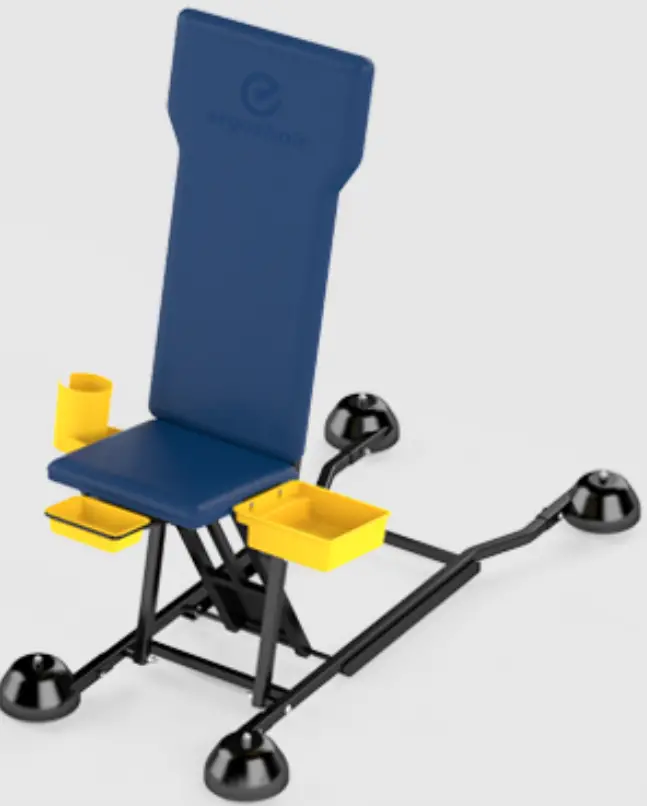

The Ergo-RS Creeper (5215988) provides increased mobility on a stable platform as you work around and under Vehicles. Six Backrest/Seat locking positions from 0° to 75° and four 360° swivel Casters allow freedom of movement and comfort while working.
Included with the Ergo-RS Creeper:

• Magnetic Parts Tray (5701172)
•  Side Parts Tray (5716066)
•  Front Parts Tray(5716065)
•  Cup Holder (5701777)

Ergo-RS Wall Hanger (Sold Separately)
An optional Wall Hanger (5701830) is available for the Ergo-RS. Stow your Ergo-RS on the wall, up and out of the way.

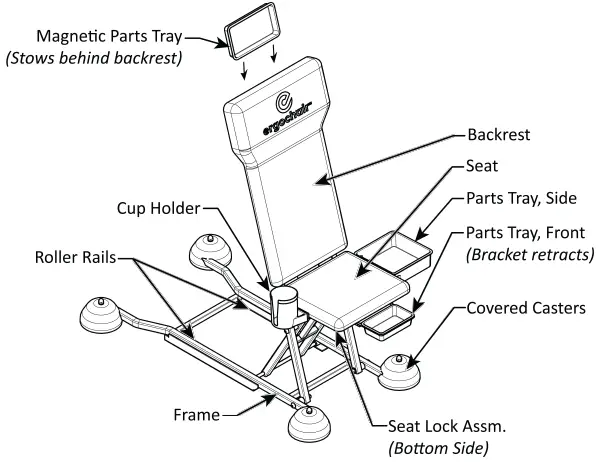

Ergo-RS Components

Specifications:

• Max. Capacity: 350 lbs. / 159 kg.
• Max. Backrest Height: 49 in. / 1,245 mm
• Max. Seat Height: 21 in. / 533 mm
•  Min. Height: 5.7 in. / 144.8 mm
• Collapsed length: 56 in. / 1,424 mm
• Overall width with Trays: 30 in. / 762 mm
• Overall Width without Trays: 28 in. / 711 mm

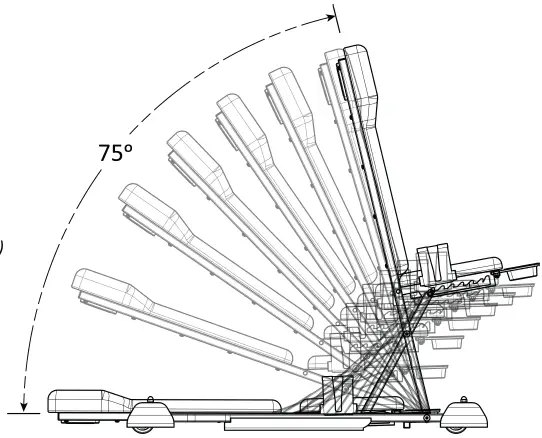

Ergo-RS Range of Adjustment

•  Ergo-RS Weight: 53 lbs. / 24 kg.
•  Seat Locking Positions: Six positions 0° to 75°
• Casters: Four 360° Covered Swivel Casters, Ø75 mm x 25 mm, sleeve bearings, oil resistant, non-marking rubber wheels
• Seat Materials: Padded Marine Vinyl Back Rest and Seat. Marine Vinyl is abrasion, chemical and oil resistant
• Frame Materials: Full powder coated, welded tubular steel

Ergo-RS Creeper Trays

Ergo-RS Safety Information

WARNING
Always inspect the Ergo-RS Creeper for loose or damaged components prior to each use. If a problem exists resolve the issue. If the issue cannot be resolved, cease all use and contact your authorized Ergochair parts provider.

• Always be alert and aware of dangers around you while using this equipment.
• Only use the Ergo-RS on hard, flat surfaces.
• Always sit down on the Ergo-RS gently. Avoid shock loads caused by jumping or falling onto the seat.
• Never stand on the Ergo-RS or use it for a purpose for which it was not designed.
• Do not allow unsupervised children or persons to use this product.
• This product is not a toy. Never use as a skateboard or dolly.
• Beware of pinch and crush hazards when adjusting the seat position on this product. Exercise caution when making seat height adjustments. Keep hands clear when adjusting.
• Be aware of the Maximum Weight limit for the Ergo-RS Creeper. Do not remove Vehicle components that, when combined with your own weight, exceed the maximum weight rating of 350 lbs. / 159 kg.
• Replace warning labels that are damaged or illegible.
• Always be alert for danger when using the Ergo-RS creeper and working around and under vehicles.
• Do not operate your Ergo-RS Creeper if you find maintenance issues or it operates in an abnormal manner, take it out of service, then contact BendPak Technical Support, email [email protected] or call (800) 253-2363 ext. 196.

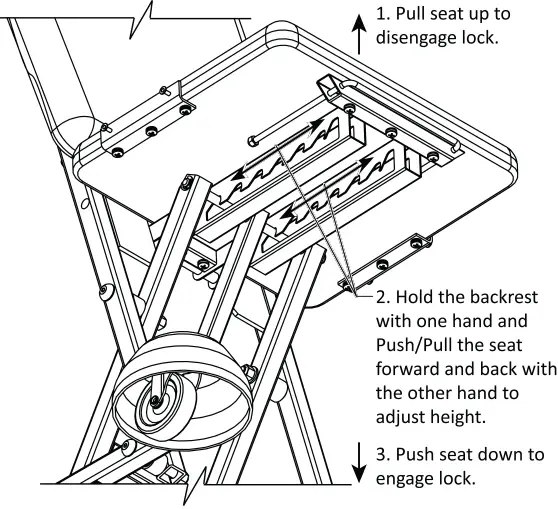

To adjust the Ergo-RS Creeper seat:

1.  Pull up on the Seat while holding the Backrest of the Ergo-RS to free it from the Seat Lock.
2. Push or pull the Seat and the Backrest at the same time to adjust the height.
3.  Push down on the Seat to engage the closest Seat Lock.

To clean the Ergo-RS Creeper seat:

1. While Marine Vinyl is water, stain and abrasion resistant, it is still a porous material which can become clogged with dirt. Wash the Ergo-RS Vinyl frequently using soap and water.
2.  Wipe the Vinyl and the Frame of the Ergo-RS dry after washing.
3.  If a more powerful cleaner is required, use a gentle cleaner similar to Simple Green® or a small amount of dish soap and a soft bristle brush.
4.  Rinse with water and wipe dry.
5.  Allow to dry fully.
6.  Do not use bleach, vinegar or alcohol based cleaners. These can dry out the Vinyl and cause cracking.
7.  Store the Ergo-RS in a clean, ventilated and dry area.

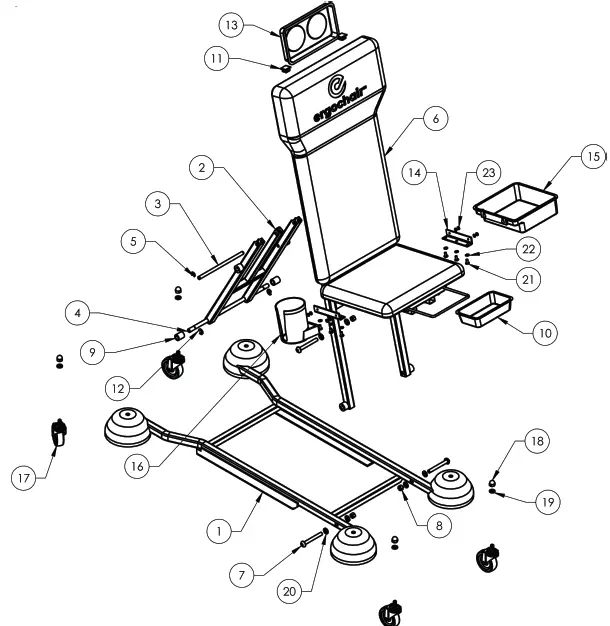

Parts List:

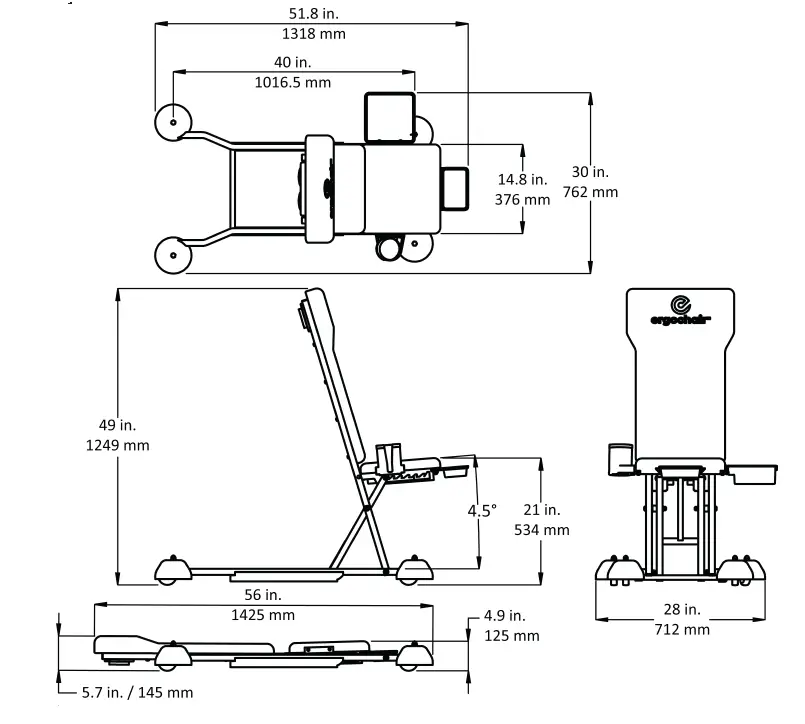

Dimensions:
