VERMEIREN SE40 Turios Electric Adjustable Seat

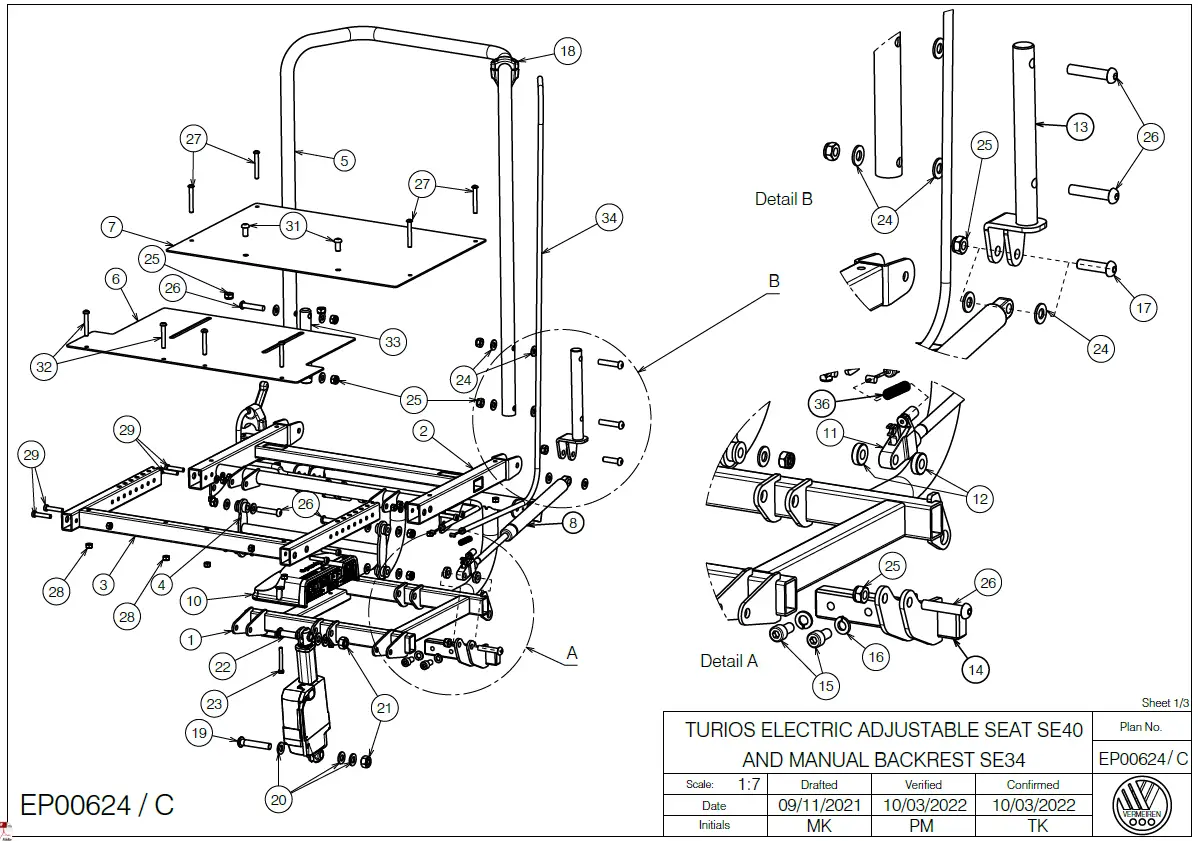

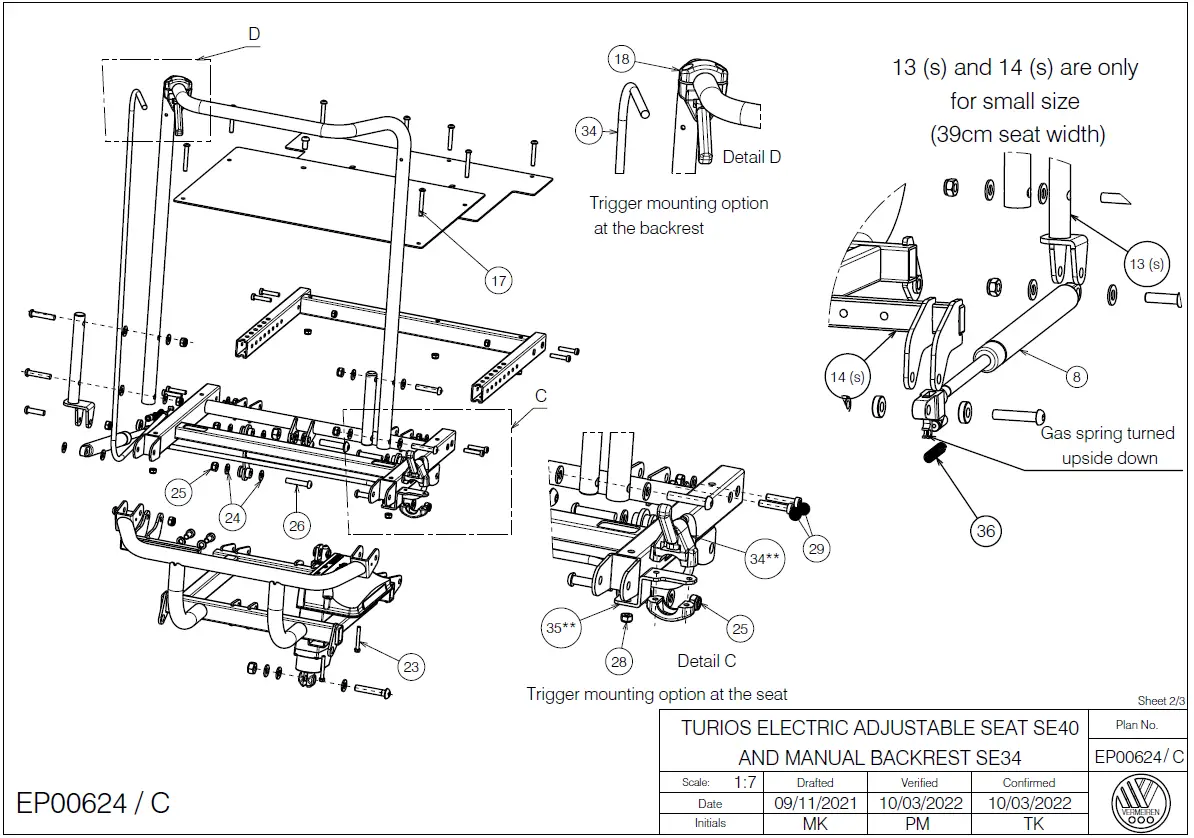

Parts
| Material | |||
| No. | Plan | Article | Quantity |
| 1 | YP07411 (S) | 2776954 | 1 |
| YP07412 (M) | 2777054 | 1 | |
| YP07413 (L) | 2777154 | 1 | |
| 2 | YP07414 (S) | 2777254 | 1 |
| YP07415 (M) | 2777354 | 1 | |
| YP07416 (L) | 2777454 | 1 | |
| 3A | YP07417 (S) | 2777554 | 1 |
| YP07418 (M) | 2777654 | 1 | |
| YP07419 (L) | 2777754 | 1 | |
| 3B* | YP08368 (S) | 2614954 | 1 |
| YP08369 (M) | 2615054 | 1 | |
| YP08370 (L) | 2615154 | 1 | |
| 4 | YP07421 (M) | 2777954 | 1 |
| 5 | YP07682 (S) | 2600854 | 1 |
| YP07683 (M) | 2600954 | 1 | |
| YP07684 (L) | 2601054 | 1 | |
| 6 | YP07706 (S) | 2779754 | 1 |
| YP07707 (M) | 2779854 | 1 | |
| YP07708 (L) | 2779954 | 1 | |
| 7 | YP07709 (S) | 2780054 | 1 |
| YP07710 (M) | 2780154 | 1 | |
| YP07711 (L) | 2780254 | 1 | |
| 8 | GAS SPRING 275N | 1991628 | 1 |
| 9 | LINAK MOTOR | 1908165 | 1 |
| 10 | LINX 60A | 1912304 | 1 |
| 11 | TRIGGER | 1994748 | 1 |
| 12 | X004967 | 1908262 | 2 |
| Material | |||
| No. | Plan | Article | Quantity |
| 13 | P00031739 (S) | 26483 | 1 |
| YP09272 (M) | 26428 | 1 | |
| YP09272 (L) | 26428 | 1 | |
| 14 | P00028106 (S) | 26482 | 1 |
| YP09267 (M) | 26427 | 1 | |
| P00031741 (L) | 26484 | 1 | |
| 15 | M8x16 | 1915411 | 2 |
| 16 | Washer M8 | 1001570 | 2 |
| 17 | M8x30 | 1992717 | 2 |
| 18 | Brake Handle | 1996806 | 1 |
| 19 | M10x55 ISO 7380 | 1998518 | 1 |
| 20 | M10 DIN125 | 1001558 | 9 |
| 21 | M10 DIN985 | 1001683 | 4 |
| 22 | M10x45 | 1908848 | 3 |
| 23 | M5x40 DIN933 | 1001427 | 2 |
| 24 | M8 DIN125 BLACK | 2994415 | 16 |
| 25 | M8 DIN985 | 1001682 | 10 |
| 26 | M8x40 | 1008739 | 8 |
| 27 | M6x45 | 1991017 | 4 |
| 28 | M6 DIN985 | 2994063 | 15 |
| 29 | M6X30BLACK | 1915416 | 8 |
| 30 | M6 DIN125 | 1001564 | 10 |
| 31 | M8x16 | 1991858 | 2 |
| 32 | M6x40 | 1006111 | 4 |
| 33 | XP02856 | GP21400 | 1 |
| 34 | Cable line | 1999963 | 0,96m |
| 34** | Cable line | 1999963 | 070m |
| 35** | YP09313 | 2643754 | 1 |
| 36 | Spring | 2992121 | 1 |
- Only with BZ7E
- Trigger mounting option at the seat
