JENNAIR JBSS42E22L00 42 Inch Stainless Steel Built-In Side-By-Side Refrigerator with External Ice And Water Dispenser

Product Dimension

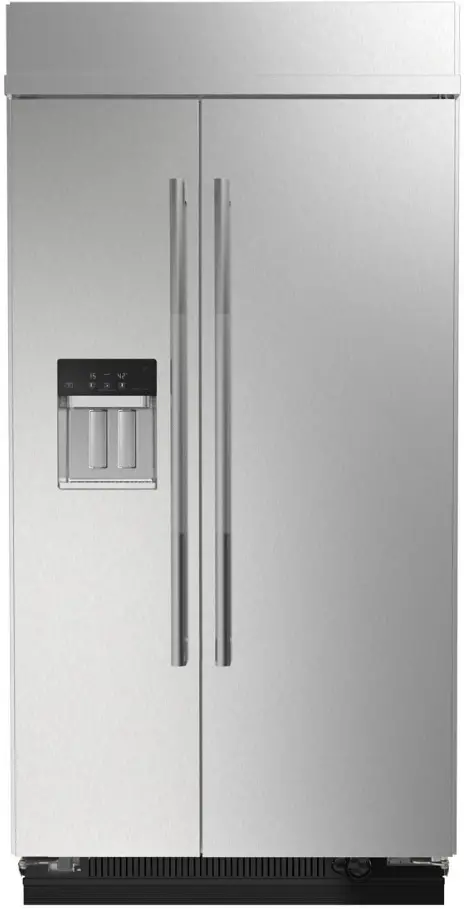

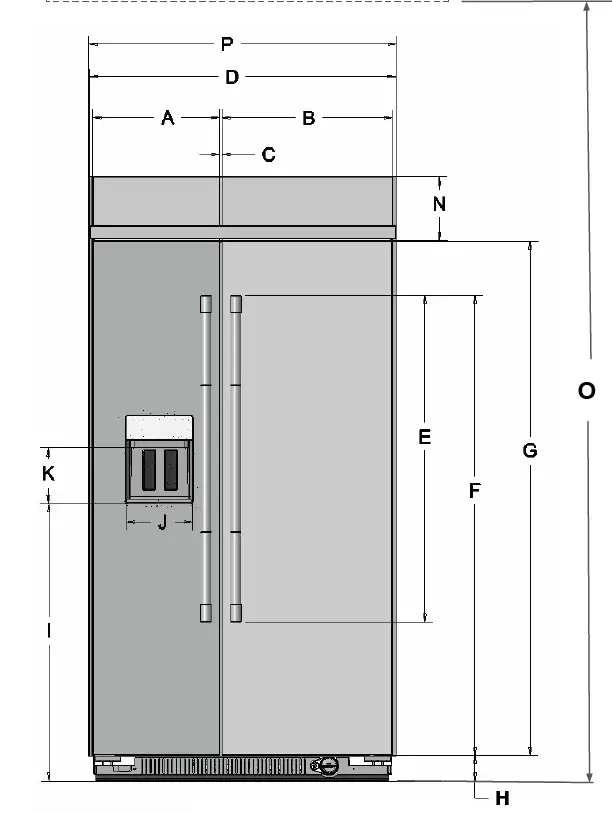

Front View

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see the Installation Instructions packed with the product. Specifications are subject to change without notice.

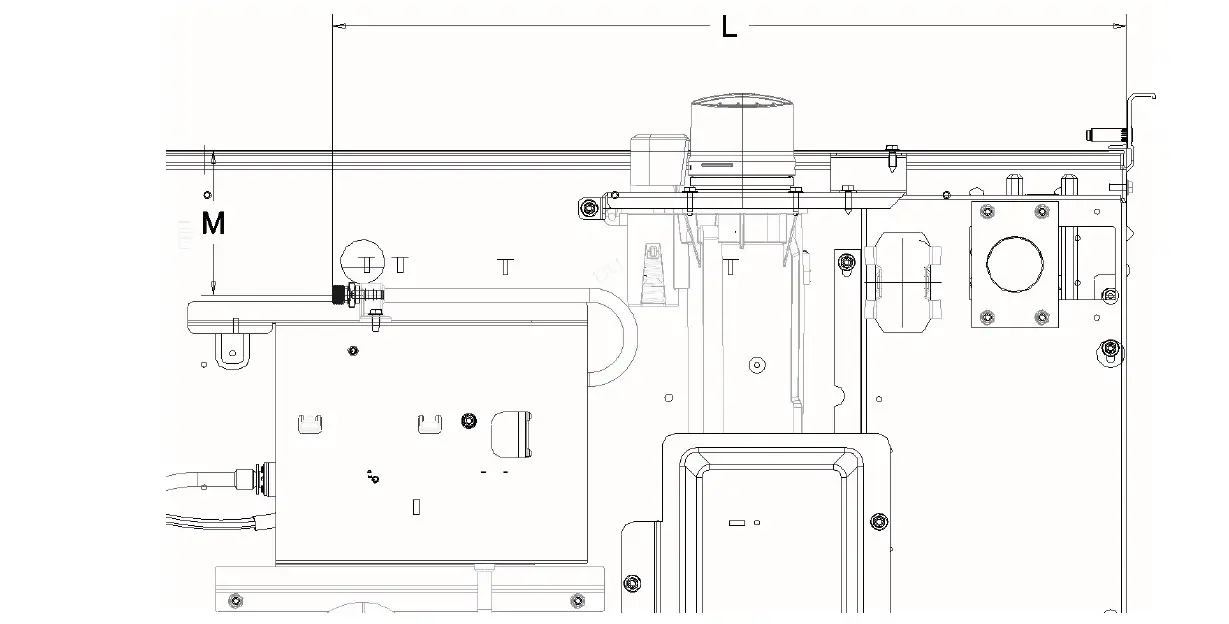

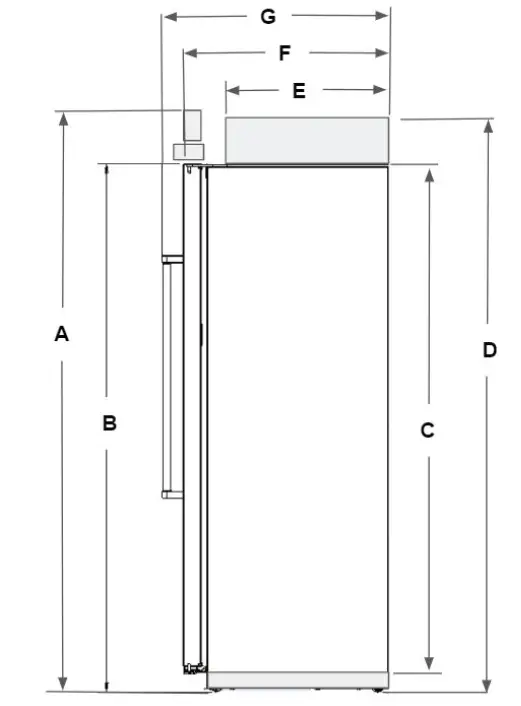

Side View

Electrical Requirements

Electrical Shock Hazard

• Plug into a grounded 3-prong outlet.
• Do not remove the ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Failure to follow these instructions can result in death, fire, or electrical shock.

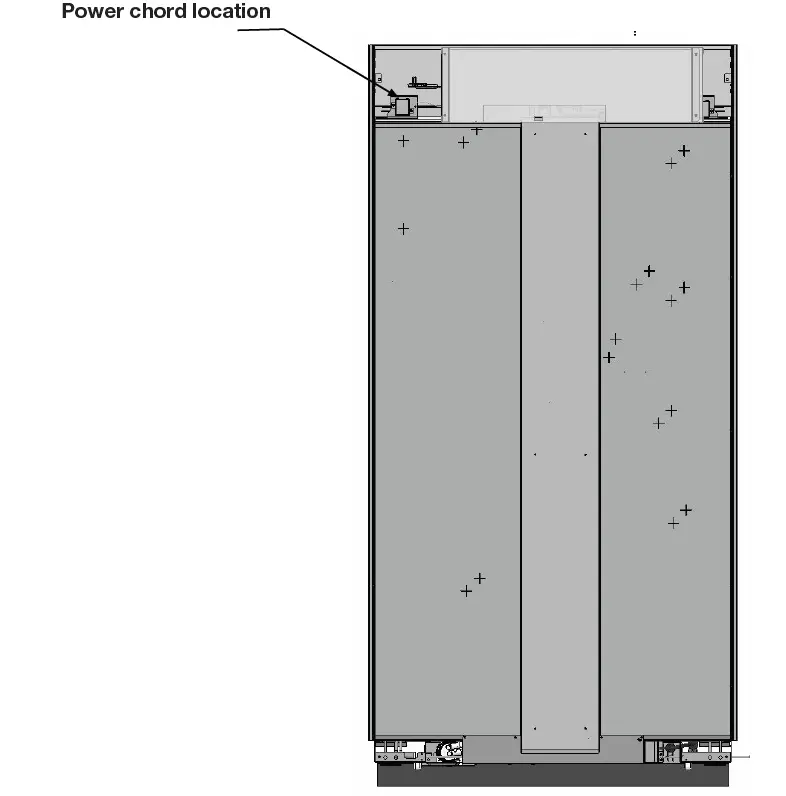

	Power chord
	Type	Length
		Inches (cm)
	Standard	60″ (152.5)

Electrical: A 115V, 60 Hz, AC only, 15A or 20A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Water: A cold water supply with water pressure of between 30 and 120 psi (270 kPa and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice. Dimensions are for planning purposes only. For complete details, see the Installation Instructions packed with the product. Specifications are subject to change without notice.

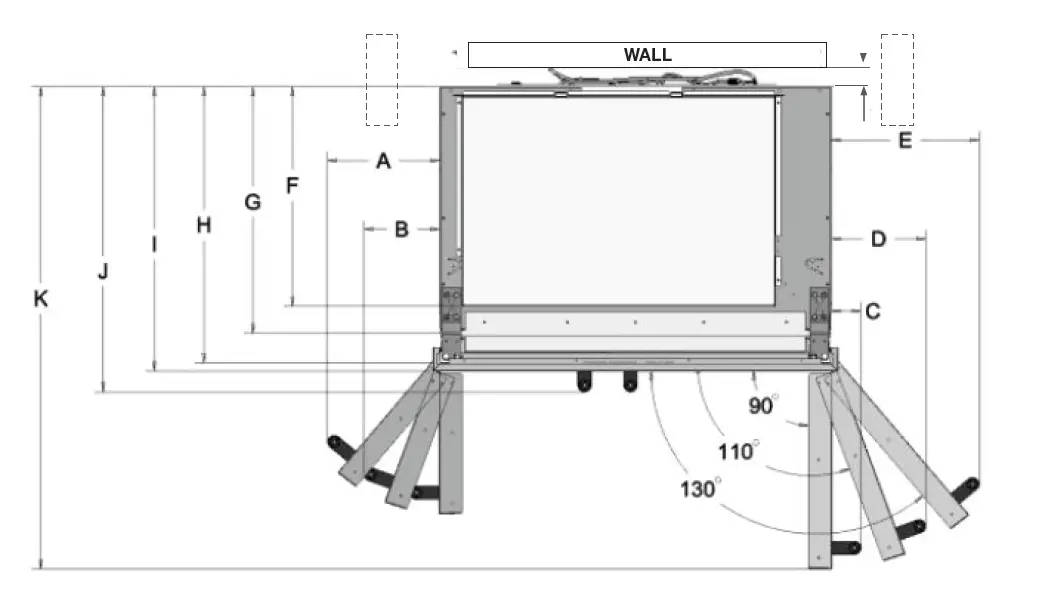

Top View

Layout

Location Requirements

Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
Failure to do so can result in death, explosion, or fire.

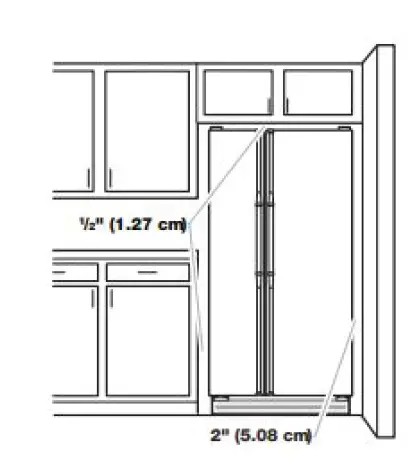

To ensure proper ventilation for your refrigerator, allow for 1/2″ (1.27 cm) of space on each side and at the top. Allow for 1″ (2.54 cm) of space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 2″ (5.08 cm) minimum space on each side (depending on your model) to allow the doors to swing open.
NOTES:

• This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.
• The normal minimum cabinet cut-out width required for product installation is 36″ (91.44 cm).
  However, if the product is placed against an extended wall and the ability to remove the crisper pans is desired, an additional 18″ (45.72 cm) of cabinet width is required, so a total cabinet opening width of 54″ (137.16 cm) is recommended.

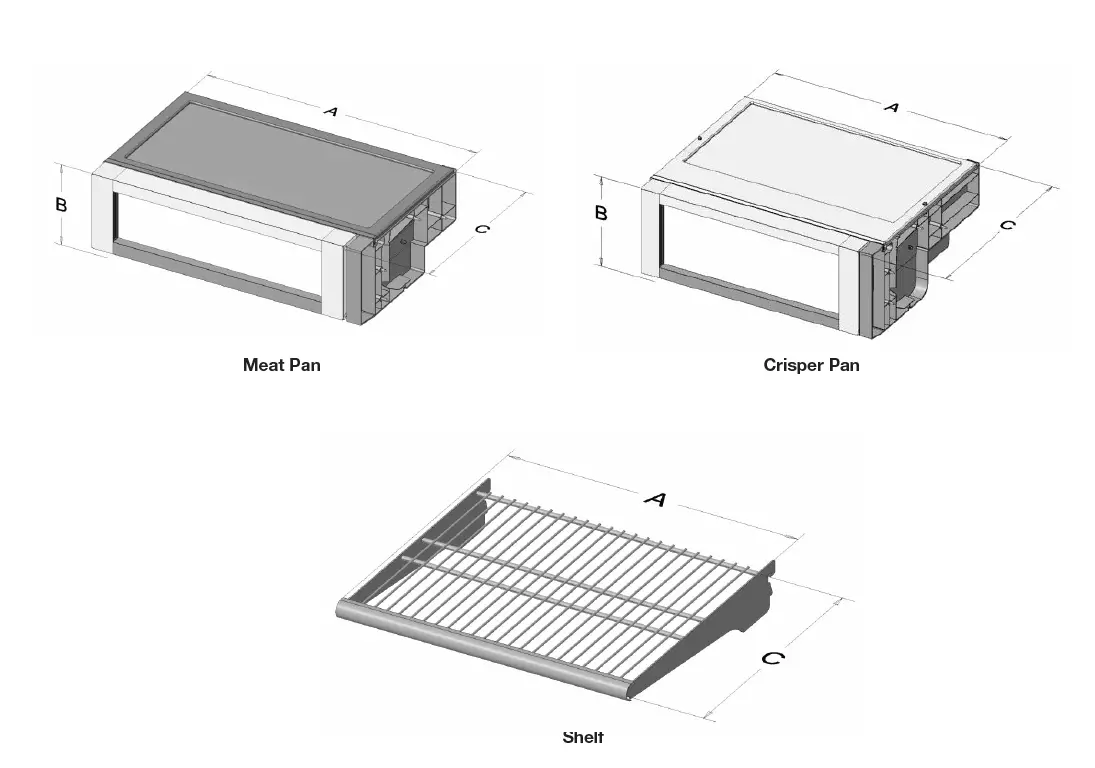

Refrigerator Compartment Features

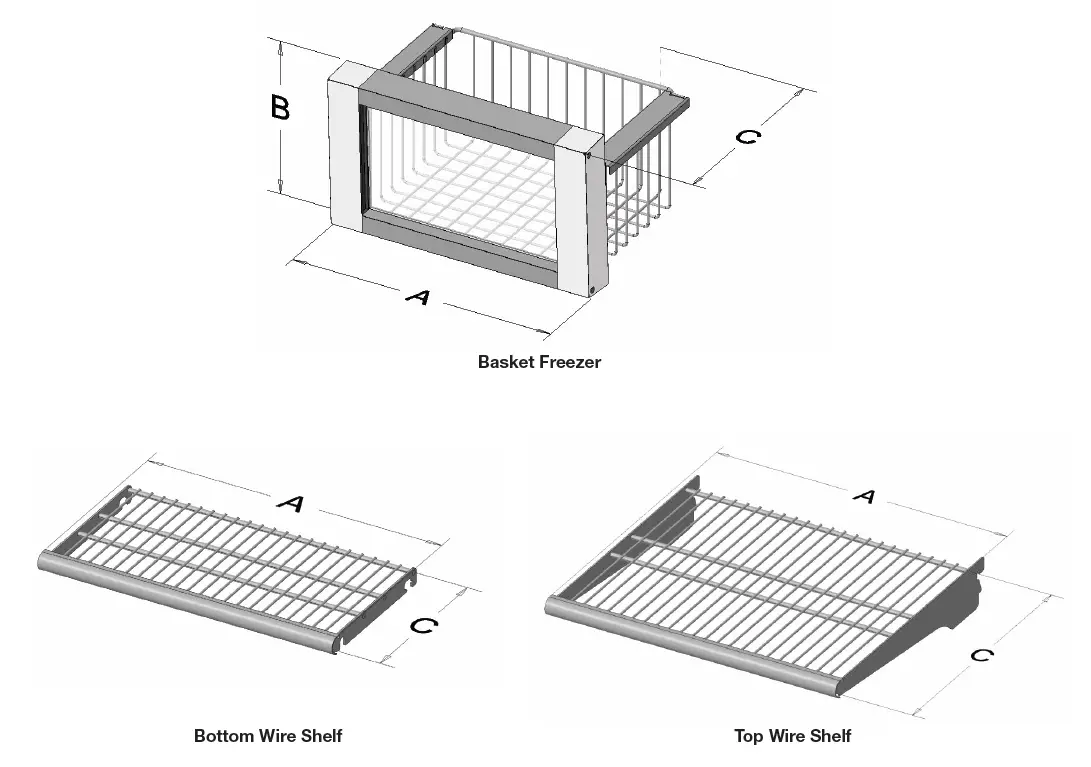

Freezer Compartment Features
