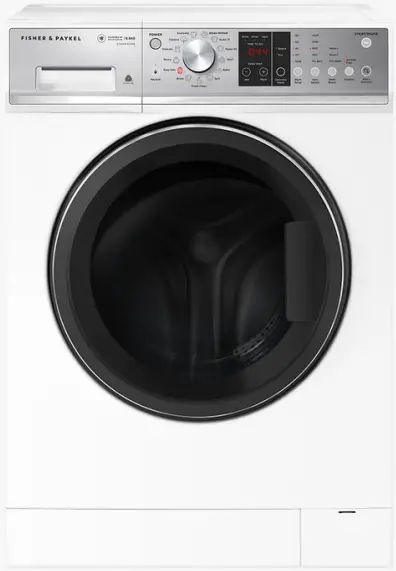

WH8560P3 8.5kg Front Loader Washing Machine with Steam Care
User Guide
WH8560P3 8.5kg Front Loader Washing Machine with Steam Care
QUICK REFERENCE GUIDE > WH8560P3
Front Loader Washing Machine, 8.5kg, Steam Care
Series 5 | Front Load
White
This Fisher & Paykel 8.5kg washing machine has 13 different fabric care cycles to cater to every type of load.
- Reduce odors, refresh and de-wrinkle clothes with no need for a full wash cycle, using Steam Refresh
- Save time or maximize energy efficiency and reduce water usage with the Optimise Wash option
- Quickly and easily add or remove any item from the machine during the wash cycle with the Add a Garment function
- Delivers a quiet, reliable wash with its unique cushion drum design powered by SmartDriveTM technology
DIMENSIONS
| Height | 850mm |
| Width | 600mm |
| Depth | 655mm |
FEATURES & BENEFITS
13 Fabric care cycles
13 fabric care cycles including Steam Refresh, Quick 30, Bulky and Easy Iron. A gentle, effective wash action protects clothes while delivering an optimal wash performance.
Quick steam refresh
Steam Refresh is perfect for occasions where clothes have been worn once and need freshening up. The 20-minute cycle will reduce odors and de-wrinkle clothes, making them ready to wear again without the need for a full wash cycle.
Customize your wash
Select “Speed” to shorten wash and rinse times or choose “Eco” to wash more sustainably with lower temperatures and less water usage.
A smarter, quieter motor
SmartDriveTM Technology is a gentle, quiet, and efficient combination of smart electronics and a direct drive motor that senses the load to deliver better fabric care.
Approved by WoolmarkTM
Our Wool cycle is an extra gentle warm wash, perfect for machine washable woolen items. It has a WoolmarkTM guarantee so you can wash with confidence, saving time on hand washing.
Add a Garment
The Add a Garment feature allows you to quickly add or remove any size garment mid-cycle. Simply press the Add a Garment button and the door will unlock. If the drum water is too high, just enough will be drained out before the door is unlocked.
Designed to Match
The complete package for a beautiful laundry. The 8.5kg washing machine is designed to match our 8kg Heat Pump Condensing Dryer or the 8kg Condensing Dryer. With outstanding aesthetics and a complimentary wash and dry cycles, they become the perfect pair to deliver complete fabric care.
SPECIFICATIONS
| Consumption | |
| Energy rating | 4.5 star |
| Water rating | 4.5 star (WELS) |
| Water usage (per wash cycle) | 73L |
| Features | |
| Add a garment (immediate | • |
| Anti-fungal door gasket | • |
| Auto out of balance correction | • |
| Automatic water level | • |
| Cold water inlet | • |
| Delay start | • |
| Excess foam detection | • |
| Extra rinse option | • |
| Flood protection | • |
| Interior light | • |
| Keylock | • |
| Pre Wash | • |
| Progress indicator | • |
| Rinse + | • |
| SmartTouch™ control dial | • |
| Spin speeds | 5 |
| Stainless steel drum | • |
| Time to go | • |
| Timed liquid detergent | • |
| Wash + | • |
| Water temperature controls | 5 |
| Woolmark certified | • |
| Wrinkle Free | • |
| Performance | |
| Load sensing | • |
| Maximum spin speed | 1400 rpm |
| Number of spin speeds | 5 |
| Smart Diagnosis of problems | • |
| SmartDrive™ technology | • |
| Steam refresh | • |
| Vortex Wash | • |
| Product dimensions | |
| Depth | 655mm |
| Height | 850mm |
| Width | 600mm |
| Warranty | |
| Parts and labor | 2 years |
| Parts only SmartDrive™ Motor | 10 years |
| Wash Cycles | |
| Bulky | • |
| Cotton | • |
| Customize cycle | • |
| Delicate | • |
| Drum Clean | • |
| Eco | • |
| Everyday | • |
| Heavy | • |
| Number of wash cycles | 13 |
| Quick | • |
| Quick 30 | • |
| Rinse | • |
| Spin | • |
| Super Quick | • |
| Wool | • |
| SKU | 92288 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
