QUICK REFERENCE GUIDE > WH1060SG1
Front Loader Washing
Machine, 10kg, Steam Care
Series 9 | Front Load
Graphite
User Guide

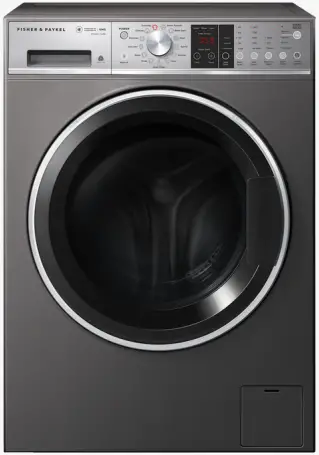

WH1060SG1 10kg Steam Care Front Loader Washing Machine
In a subtle and sophisticated graphite colour to match any laundry design, this Steam Care front loader has advanced wash functions including Steam Refresh, and uses quiet and reliable SmartDrive™ technology.
- Refresh, revive and dewrinkle garments using the 20 minute Steam Refresh cycle
- Save time, minimise noise and reduce water usage with Optimise Wash options
- Add a Garment function allows you to add items of any size mid cycle
- With Auto Dose mode, there’s no need to fill the detergent dispenser for every wash
DIMENSIONS
| Height | 850mm |
| Width | 600mm |
| Depth | 675mm |
FEATURES & BENEFITS
THE PINNACLE OF FABRIC CARE
With 14 fabric care cycles including Quick 15, Wool, Sports and Allergy. The specially-designed cushioned drum provides a gentle, effective washing action, protecting clothes while delivering an optimal wash performance.
REFRESH, REVIVE, RESPECT
Bring lightly-worn clothes, musty stored garments and even soft furnishings back to life with Steam Refresh. The 20-minute cycle removes odours so clothes can be worn again without the need for a full wash cycle, while steam reduces creases to save you precious time spent ironing.
HEALTH AND HYGIENE
Our Hygiene cycles include Allergy and Sanitise, to provide extra protection for your clothes. The higher wash temperature and an extra rinse cycle is designed to kill more than 99.99% of bacteria and reduce allergens*.
LESS WASTE WITH AUTO DOSE
Auto Dose dispenses the exact amount of liquid detergent required based on load size – resulting in less waste, less hassle and less detergent residue, with the added convenience of not needing to fill the dispenser for every wash.
CUSTOMISE YOUR WASH
Shorten your total wash time with our Speed option, or choose Eco to wash more sustainably. The Quiet mode reduces cycle noise, perfect for late night washing.
TIME SAVING
When time is short you can select a quick 15-minute wash for freshening up new or lightly-soiled garments. In fact, Vortex Wash allows most cycles to take less than one hour to complete.
Water is forced from the bottom of the drum so detergent reaches your clothes faster, cleaning quickly and avoiding overwashing.
A SMARTER, QUIETER WASH
SmartDrive™ technology is a gentle, quiet, and efficient combination of smart electronics and a direct drive motor that senses the load, with less moving parts, to deliver better fabric care.
SPECIFICATIONS
| Consumption | |
| Energy rating | 4.5 star |
| Energy usage | 290kWh/year |
| Water rating | 4.5 star (WELS) |
| Water usage (per wash cycle) | 86L |
| Features | |
| Add a garment (immediate | • |
| Adjustable alert beeps | • |
| Anti-fungal door gasket | • |
| Auto out of balance correction | • |
| Automatic water level | • |
| Choice of cold only or hot and | • |
| Delay start | • |
| Excess foam detection | • |
| Fabric softener dispenser | • |
| Flood protection | • |
| Interior light | • |
| Keylock | • |
| Pre Wash | • |
| Progress indicator | • |
| Quiet mode | • |
| Rinse + | • |
| SmartTouch™ control dial | • |
| Soak | • |
| Speed mode | • |
| Spin speeds | 5 |
| Stainless steel drum | • |
| Time to go | • |
| Timed liquid detergent | • |
| Wash + | • |
| Water supply | Hot & Cold |
| Water temperature controls | 5 |
| Wi-Fi capable | • |
| Woolmark certified | • |
| Wrinkle Free | • |
| Performance | |
| Auto-dose | • |
| Load sensing | • |
| Maximum spin speed | 1400 rpm |
| Number of spin speeds | 5 |
| Smart Diagnosis of problems | • |
| SmartDrive™ technology | • |
| Spin performance | No Spin, 500, 800, 1100, 1400 |
| Steam refresh | • |
| Vortex Wash | • |
| Product dimensions | |
| Depth | 675mm |
| Height | 850mm |
| Width | 600mm |
| Warranty | |
| Parts and labour | 2 years |
| Parts only SmartDrive™ Motor | 10 years |
| Wash Cycles | |
| Cottons | • |
| Delicate | • |
| Drum Clean | • |
| Easy Iron | • |
| Eco | • |
| Everyday | • |
| Favourite | • |
| Number of wash cycles | 14 |
| Quick 15 | • |
| Quick 30 | • |
| Rinse | • |
| Sanitise | • |
| Spin | • |
| Sports | • |
| Steam Refresh | • |
| Wool | • |
| SKU | 92290 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
