QUICK REFERENCE GUIDE > OB60SC5CEX2
Oven, 60cm, 5 Function
Series 5 | Contemporary
Stainless Steel
User Guide

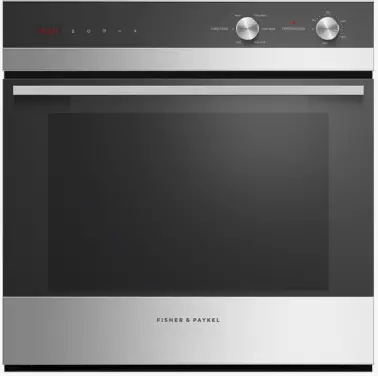

OB60SC5CEX2 5 Function 60cm Oven
With generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- 85L total capacity
- Five oven functions including Pizza Bake

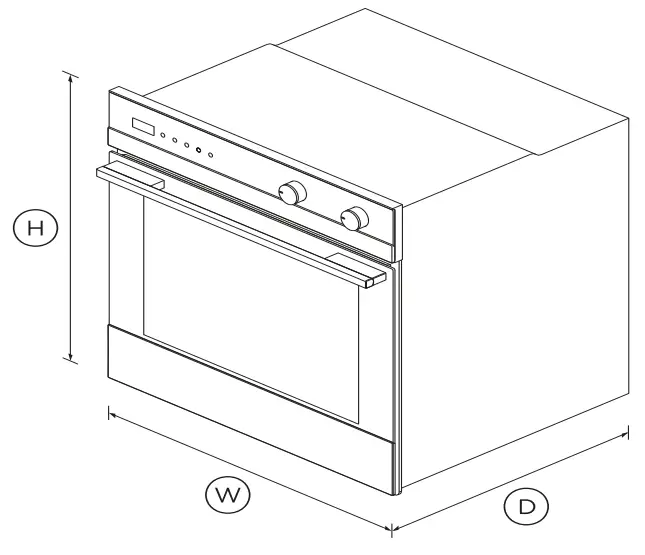

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
This built-in oven has five functions including Bake, Fan Bake and Pizza Bake, allowing you to use a variety of cooking styles.
GENEROUS CAPACITY
Designed for multi-shelf cooking, this built-in oven has a total capacity of 85L allowing you to create several dishes at once.
CONSISTENTLY HOT
Ideal for multi-shelf cooking, this built-in oven features AeroTech™ – a technology that circulates heat evenly.
FAST AND EASY CLEANING
Cleaning this built-in oven is quick and easy thanks to the optional catalytic liners which absorb oil and fat splashes during cooking.
REFINED STYLING
With sophisticated handle styling and black glass finish, our builtin ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SAFE AND SOUND
The CoolTouch door of this built-in oven is safe to touch from the outside. Sturdy, fully extendable shelves slide all the way out, reducing the need for you to reach inside.
SPECIFICATIONS
| Accessories | |
| Catalytic panels | • |
| Chromed shelf runners | • |
| Full extension sliding shelves | Optional (part 565048) |
| Full extension telescopic | Optional (part 565048) |
| Optional Accessory round | Part 81645 |
| Optional catalytic panels | Part 562816 |
| Optional round handle | Part 81645 |
| Roasting dish | 1 |
| Step down wire shelf | 1 |
| Telescopic sliding runners | 1 set |
| Telescopic sliding shelves | 1 set |
| Capacity | |
| Shelf positions | 6 |
| Total gross | 85L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Controls | |
| Automatic cooking/minute | • |
| Electronic clock | • |
| Functions | |
| Bake | • |
| Fan bake | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 5 |
| Pastry Bake with Pizza mode | • |
| Pizza bake | • |
| Performance | |
| AeroTech™ technology | • |
| Grill power | 3000W |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| SKU | 81748 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
