PRELIMINARY SPECIFICATION GUIDE
OVEN, 60CM

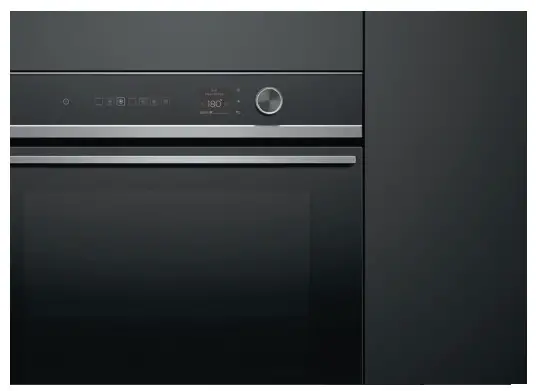

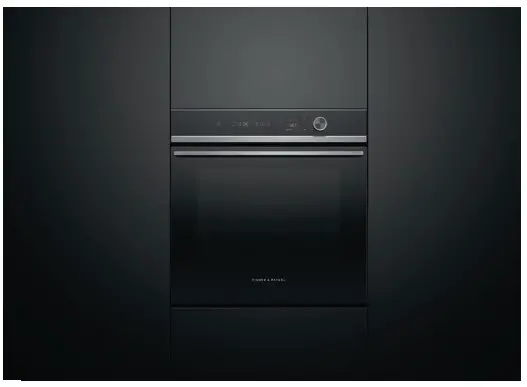

OVERVIEW
Designed to fit seamlessly into any kitchen with Contemporary styling, these ovens feature a generous 85L total capacity. Achieve perfect results with Aerotech™ technology which circulates heat evenly throughout the cavity, ideal for multi-shelf cooking. Beautiful to use, the intuitive interface and dial offer simple guided cooking, while Pyrolytic self-cleaning breaks down grime and greased keep the oven pristine for the next use.
MODELS
Oven, 60cm, 16 Function OB60SD16PLX1
Oven, 60cm, 13 Function OB60SD13PLX1
Oven, 60cm, 11 Function OB60SD11PLX1
Oven, 60cm, 9 Function OB60SD9PLX1
85L, Self-cleaning, Stainless steel, Dial
FEATURES
- Contemporary style, designed to fit flush with cabinetry
- Generous 85L total capacity with six shelf positions
- Intuitive 2.4″ screen with illuminated dial
- Up to 16 ovens functions
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Guided cooking, with the option to access additional functionality via the Samarths™ app*
- Wired Temperature Sensor**
- Optimised moisture levels thanks to AeroTech™ technology
- Wi-Fi/Connected capability*
*Selected markets and models
**Compatible with 16 and 13 function models only
SERIES & STYLE
Series 7
Contemporary
ACCESSORIES
- Baking tray
- Roasting dish*
- Grill rack*
- Step down wire rack
- Full extension sliding shelves*
- Self-cleaning side runners*
- Telescopic Runners*
- Flat wire shelf*
*Selected markets and models
SPECIFICATIONS
| Model No. | OB60SD16PLX1, OB60SD13PLX1 OB60SD11PLX1, OB60SD9PLX1 |
| Dimensions | H 598mm W 596mm D 565mm |
| Total capacity | 85L |
| Weight | 32kg (unpackaged) 44kg (packaged) |
| Electrical | |
| Supply | 220-240VAC, 50Hz |
| Service | 15A circuit |

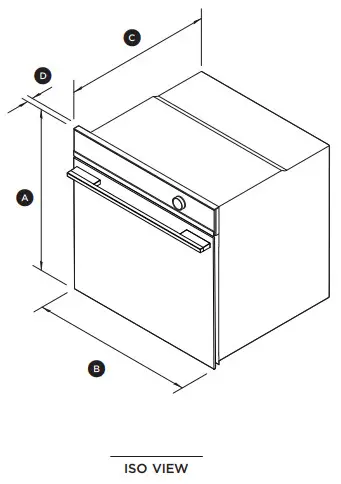

PRODUCT DIMENSIONS
| mm | |
| A Overall height | 598 |
| B Overall width | 596 |
| C Depth of chassis | 545 |
| D Depth from front frame (excludes dial and handle) | 20 |
| Depth of oven door when fully open (measured from front of control panel) | 460 |

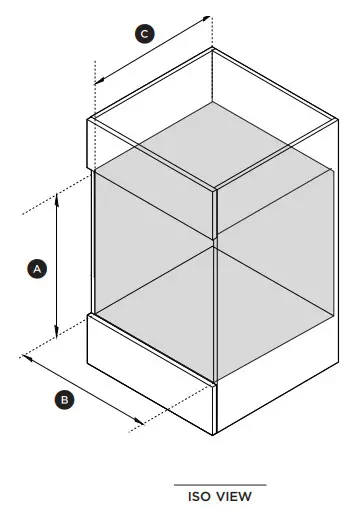

| mm | |
| A Minimum inside height | 580 |
| B Minimum inside width | 560 |
| C Minimum inside depth | 550 |
9002332A from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
