QUICK REFERENCE GUIDE > OB60SD7PX1

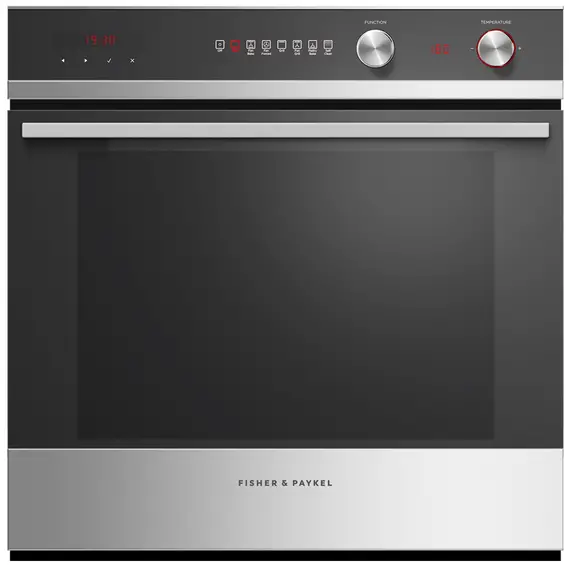

OB60SD7PX1 60cm Oven
Oven, 60cm, 7 Function, Selfcleaning Series 5 | Contemporary
Stainless Steel
With generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- 85L total capacity, with 7 oven functions including Pastry Bake
- Moisture level control with ActiveVent™ and AeroTech technology
- Pyrolytic self-cleaning function breaks down food residue for an easy clean
- Optional non-tip, full-extension shelves for safe removal of hot dishes

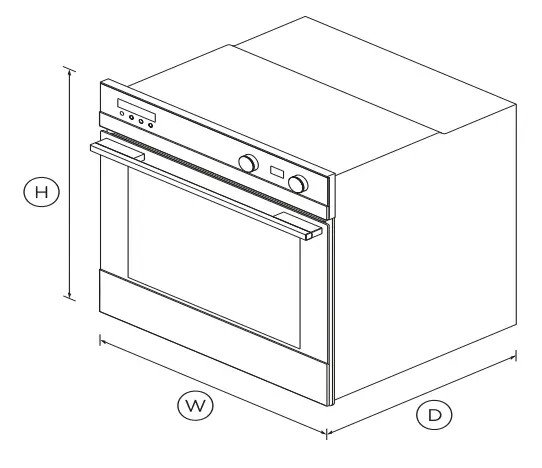

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
MULTI-FUNCTION FLEXIBILITY
Seven functions with pre-set temperatures including Pastry Bake, Fan Bake, and Fan Grill mean no matter what you’re cooking, you’ve got the right heat to match.
GENEROUS CAPACITY
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
ACTIVEVENT™ TECHNOLOGY
With ActiveVent™ technology for optimised moisture levels and AeroTech™ for even heat distribution, you’ll get perfect results even when using multiple shelves.
CLEANING IS SIMPLE
Pyrolytic self-clean breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
REFINED STYLING
With sophisticated handle styling and a brushed stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Chromed shelf runners | • |
| Contemporary round handle | Part 81645 |
| Full extension sliding shelves | Optional (part 565048) |
| Full extension telescopic | Optional (part 565049) |
| Grill rack | 1 set |
| Optional round handle | Part 81645 |
| Roasting dish | 1 |
| Step down wire shelf | 1 |
Capacity
| Shelf positions | 6 |
| Total gross | 85L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Consumption | |
| Energy rating | A |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft open and close door | • |
| Turned stainless dials with | • |
Functions
| Bake | • |
| Classic bake | • |
| Fan bake | • |
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 7 |
| Pastry Bake | • |
| Pastry Bake with Pizza mode | • |
| Roast | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Grill power | 3000W |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
Product dimensions
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
Warranty
| Parts and labour | 5 years |
| SKU | 82270 |
