Netgear 6000450 Aircard Usb Modems And Mobile Hotspots User Manual

6000450 AirCard USB Modems and Mobile Hotspots
User Manual

6000450 AirCard USB Modems and Mobile Hotspots

Usage: Laptop screen mounted external antenna for improving MIMO, 3G/4G coverage in areas with low signal strength.
Cable Length: 50 cm / 19.7″
Compatibility: AirOard 753S/754S, AirCard 312U/313U Requires USG or mobile hotspot with 2 TS-9 connectors.
Note: Ideal for use in low signal areas.

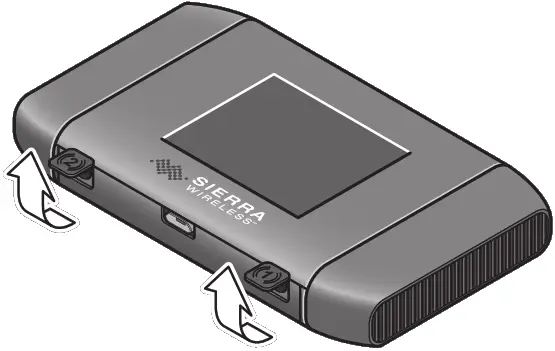

1. Flip open the antenna connector covers on your USB modem or mobile hotspot.

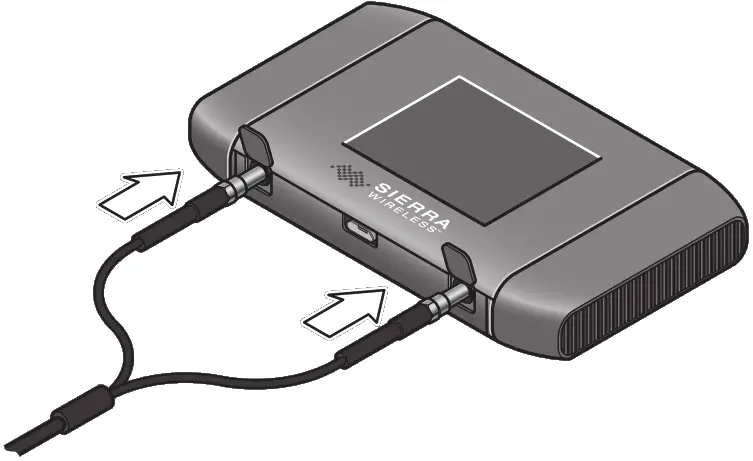

2. Insert the antenna plugs into the TS-9 connectors.

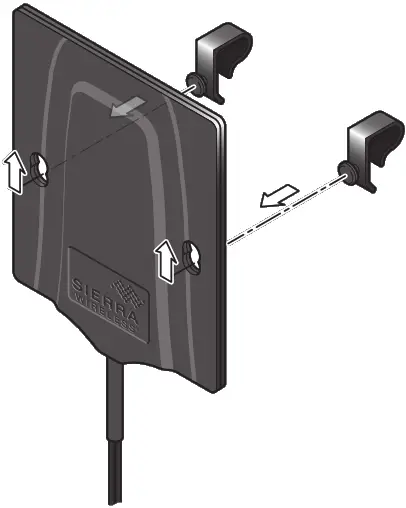

3. Attach the laptop clips to the MIMO antenna.

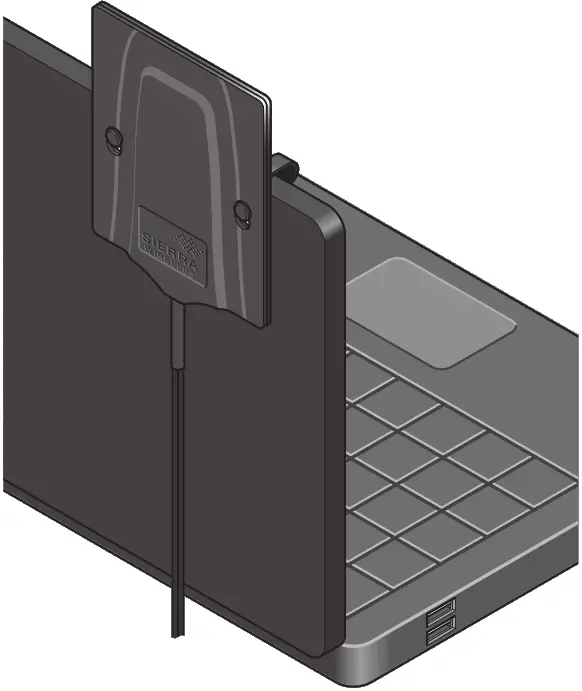

4. Clip the antenna to your laptop screen.

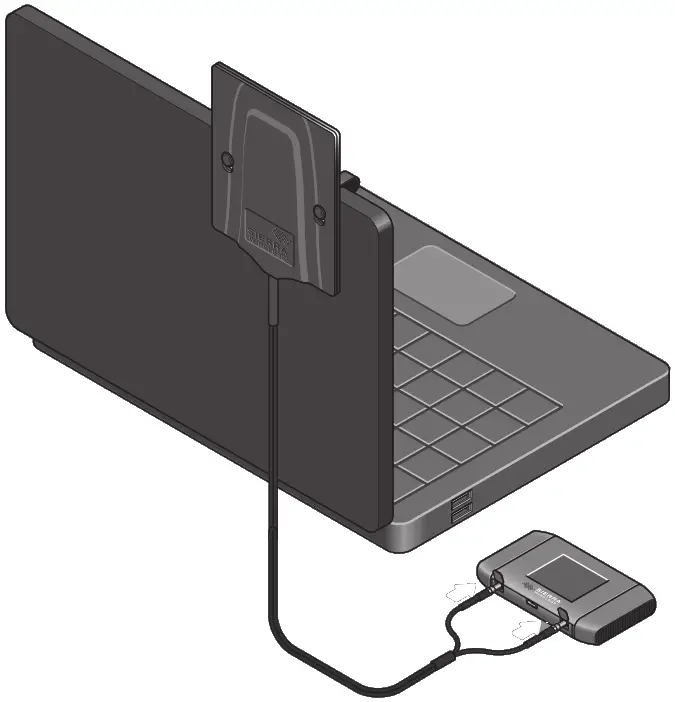

5. Insert the USB modem into your laptop or turn on your mobile hotspot.

	THIS DOCUMENT, SUBMITTED IN CONFIDENCE, CONTAINS PROPRIETARY INFORMATION WHICH SHALL NOT BE REPRODUCED OR TRANSFERRED TO OTHER DOCUMENTS OR DISCLOSED TO OTHERS OR USED FOR MANUFACTURING OR ANY OTHER PURPOSE WITHOUT WRITTEN PERMISSION OF SIERRA WIRELESS, INC						Copyright 2010

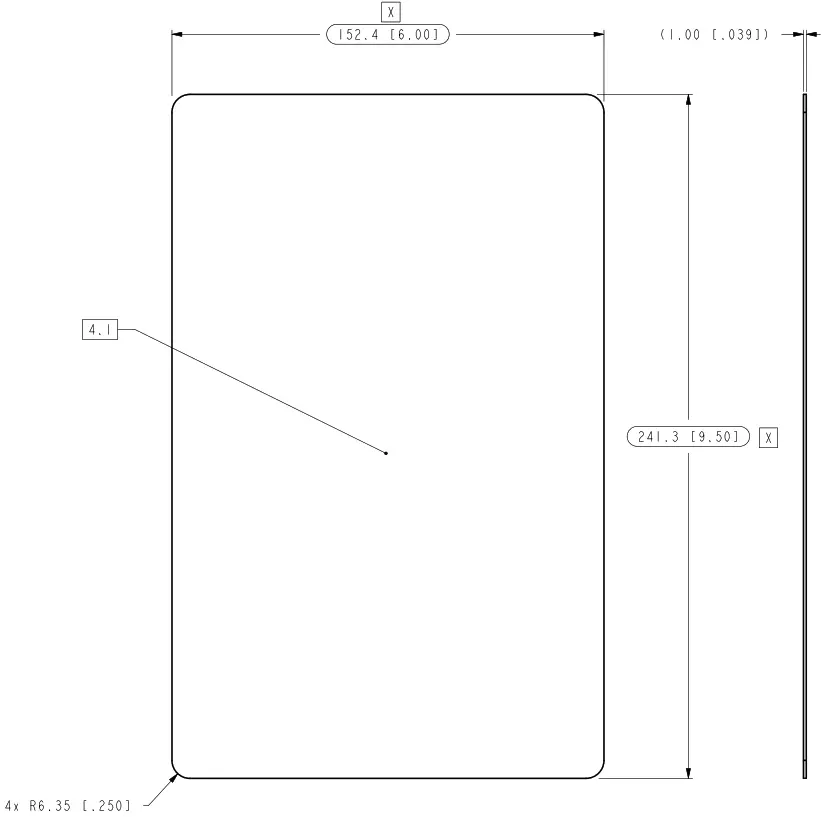

	TITLE: 2400117 MIMO ANTENNA BACK CARD
