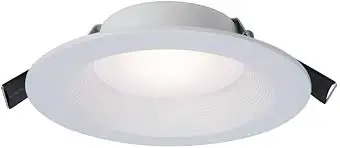

HALO 4-inch All-purpose LED retrofit module SeleCCTable switch
Top Product Features
- Select from 5 CCTs via switch; 2700K, 3000K, 3500K, 4000K, 5000K CCT; 90 CRI

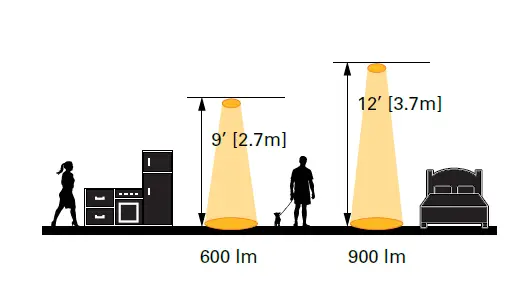

- Lumens: 600, 900
- Use with 4” housings with screwbase adapter included
- Dimmable down to 5%
- Friction blade mounting

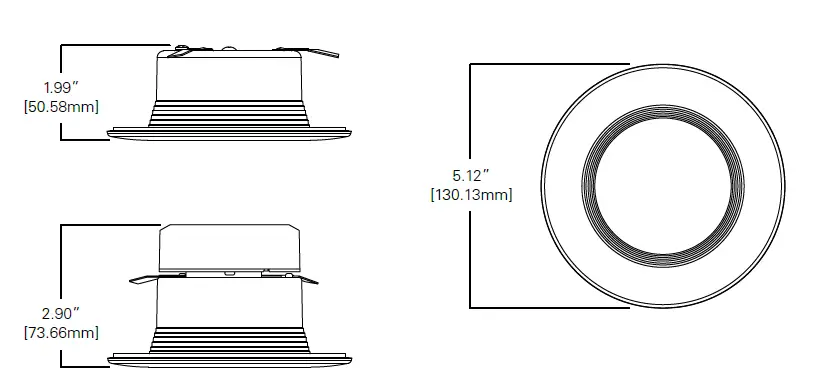

Dimensional and Mounting Details
Scale

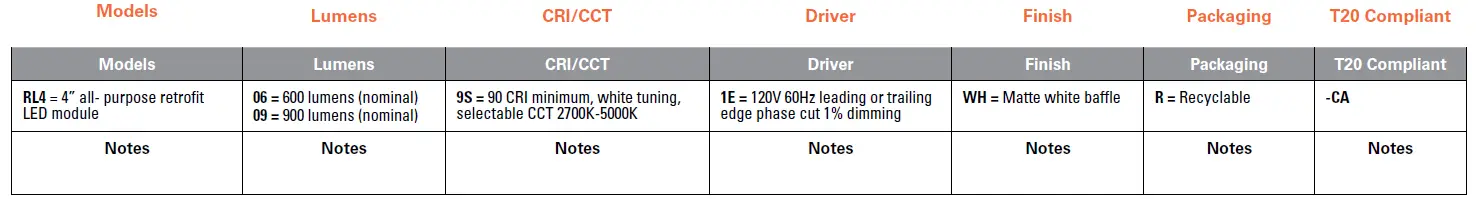

Order Information
SAMPLE ORDER NUMBER: RL4069S1EWHR
Accessories

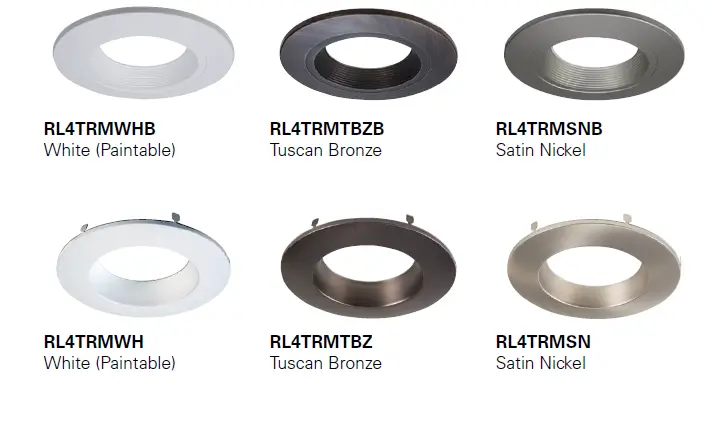

Designer Trims
RL4TRMWHB = 4” White Paintable Trim Ring, Baffle
RL4TRMSNB = 4” Satin Nickel Trim Ring, Baffle
RL4TRMTBZB = 4” Tuscan Bronze Trim Ring, Baffle
RL4TRMWH = 4” White Paintable Trim Ring
RL4TRMSN = 4” Satin Nickel Trim Ring
RL4TRMTBZ = 4” Tuscan Bronze Trim Ring
Housings
Halo Ultra-shallow LED Housings
H245ICAT = 4” IC, airtight ultra-shallow new construction housing, LED, 120 – 277V
H245RICAT = 4” IC, airtight ultra-shallow remodeler housing, LED, 120 – 277V
Halo LED Housings
H995ICAT = 4” IC, airtight shallow new construction housing, LED, 120 – 277V
H995RICAT = 4” IC, airtight shallow remodeler housing, LED, 120 – 277V
Halo Housings
H99TAT = 4” non-IC, airtight shallow new construction housing, E26, 120V
H99RTAT = 4” non-IC, airtight shallow remodeler housing, E26, 120V
H99ICAT = 4” IC, airtight shallow new construction housing, E26, 120V
E4TATSB = 4” non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V
E4RTATSB = 4” non-IC, airtight shallow remodeler housing, adjustable socket bracket, E26, 120V
E4ICATSB = 4” non-IC, airtight shallow new construction housing, adjustable socket bracket, E26, 120V
Product Specifications
CCT Select System
- Use the switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K CCT.
Module – Trim - Module construction includes LED array, heat sink, reflector, lens, baffle and trim ring.
- Regressed baffle
- Heat sink designed to conduct heat away from the LED array, keeping the junction temperatures below specified maximums, even when installed in insulated ceiling environments.
LED Array - Mid power LED array provides a uniform source with high efficiency and no pixilation.
- 90 CRI minimum, R9 greater than 50
- Color accuracy at 4 SDCM in between endpoints, provide color accuracy and uniformity.
- Color Temperature (CCT) has a selectable range from 2700K to 5000K (factory default 3000K)
Optical Assembly
- Regressed lens
- Impact-resistant polycarbonate
- Convex form and lamp-like appearance
- Diffuse for even illumination
Driver
- Integral 120V 60 Hz constant current driver provides noise free operation
- Continuous, flicker-free dimming from 100% to 5%.
- Inline electrical quick connect and E26 adapter (provided) provides mains connections
- See Dimming Guide for compatible dimmers
Retention - Push-N-Twist universal installation clips
- Clips are pre-installed and designed to fit 4” compatible recessed housings
Designer Skins (sold separately) - RL4 skins are accessory rings that attach to the
- RL4 for a permanent finish. Refer to the RL4 accessories specification sheet for details.
- White (Paintable)
- Satin Nickel
- Tuscan Bronze
Gaskets - Closed cell gaskets achieve restrictive airflow requirements without additional caulking.
Compliance
- UL Certified
- Wet and Damp location listed
- Airtight certified per ASTM-E283
- Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
- EMI/RFI emissions per FCC 47CFR Part 15 consumer limits
- Contains no mercury or lead and RoHS compliant
- Photometric testing in accordance with IES LM-79-08
- Lumen maintenance projections in accordance with IES LM-80-08 and TM-21-11
- Can be used for State of California Title 24 high efficacy luminaire compliance. Complies with Title 24 JA8-2016-E.
- Can be used International Energy Conservation Code (IECC) high efficiency luminaire compliance.
- ENERGY STAR® listed, reference database for current listings
Warranty - Five year limited warranty, consult website for details. www.eaton.com/lighting/legal

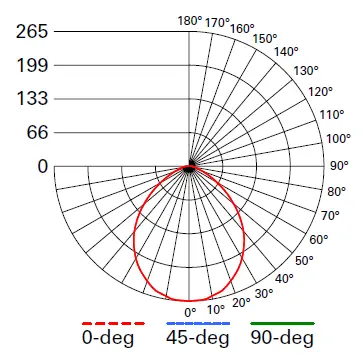

Photometric Data

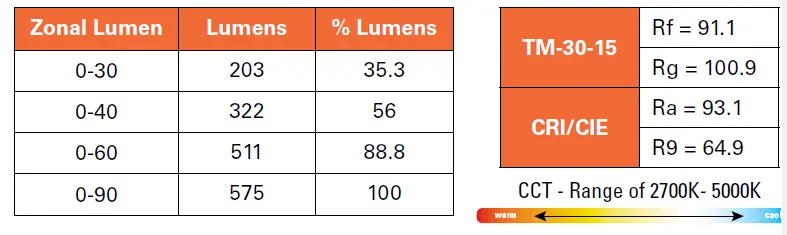

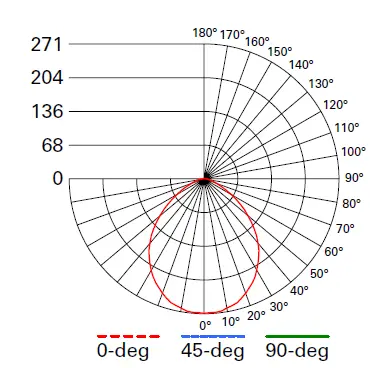

RL4069S1EWHR-3000K
Spacing criterion: (0-180) 1.18
(90-270) 1.18
(Diagonal) 1.26

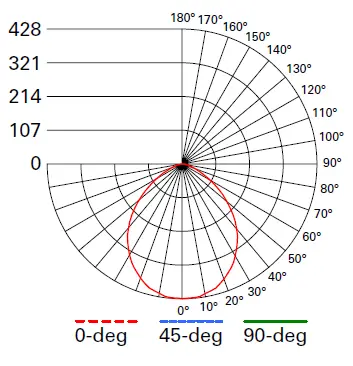

RL4099S1EWHR-3000K
Spacing criterion: (0-180) 1.17
(90-270) 1.17
(Diagonal) 1.25

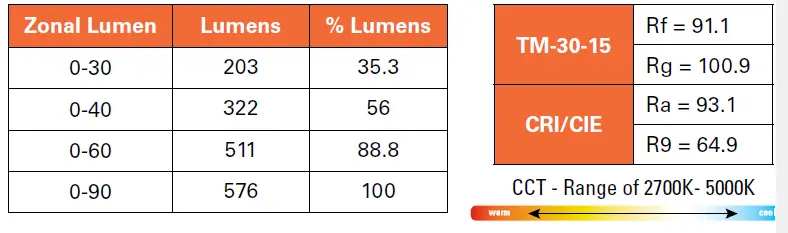

Energy and Performance Data
RL4069S1EWHR
Max. Lumens 632 @ 5000K
Input Voltage 120V
Input Frequency 50/60 Hz
Input Power 8.0W
Input Current 0.075A – 0.0875A
(Per input power)
Power Factor >0.90
THD <20%
EMI/RFI FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Sound Rating Class A
Minimum Starting
Temp -30°C (-22°F)

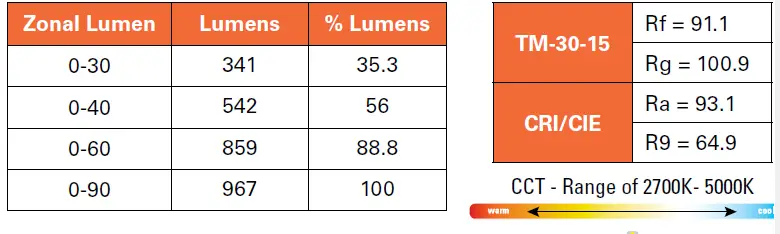

RL4099S1EWHR
Max. Lumens 1033 @ 5000K
Input Voltage 120V
Input Frequency 50/60 Hz
Input Power 11.9W
Input Current 0.075A – 0.0875A
(Per input power)
Power Factor >0.90
THD <20%
EMI/RFI FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Sound Rating Class A
Minimum Starting
Temp -30°C (-22°F)
RL4069S1EWHR-CA-3000K
Spacing criterion: (0-180) 1.17
(90-270) 1.17
(Diagonal) 1.25

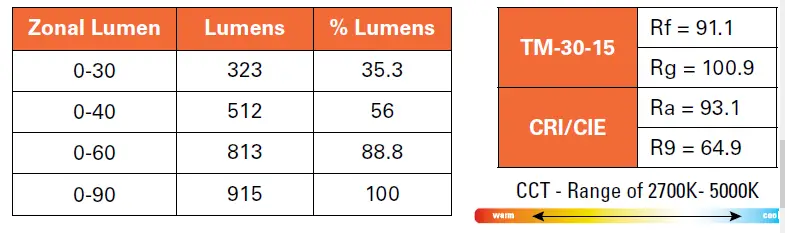

RL4099S1EWHR-CA-3000K
Spacing criterion: (0-180) 1.17
(90-270) 1.17
(Diagonal) 1.25
Energy and Performance Data
RL4069S1EWHR-CA
Max. Lumens 590 @ 4000K
Input Voltage 120V
Input Frequency 50/60 Hz
Input Power 6.3W
Input Current 0.075A – 0.0875A
(Per input power)
Power Factor >0.90
THD <20%
EMI/RFI FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Sound Rating Class A
Minimum Starting
Temp -30°C (-22°F)
RL4099S1EWHR-CA
Max. Lumens 992 @ 5000K
Input Voltage 120V
Input Frequency 50/60 Hz
Input Power 9.8W
Input Current 0.075A – 0.0875A
(Per input power)
Power Factor >0.90
THD <20%
EMI/RFI FCC Title 47 CFR,
Part 15,
Class B (Consumer)
Sound Rating Class A
Minimum Starting
Temp -30°C (-22°F)
