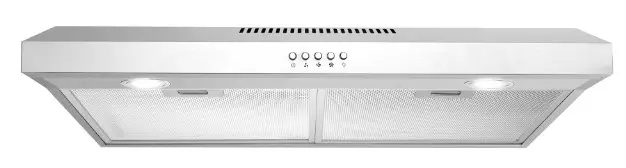

COSMO COS 5U30 30 Inch Under Cabinet Stainless Steel Range Hood

COS-5U30
Presenting this modern European-style range hood, Cosmo’s COS-5U30 is powered by efficient airflow suction, aluminum mesh filters and LED lights for better visibility while cooking.

Features

  • Designed for under cabinet mounting
  • 3 fan speeds
  • Push button controls
  • 2 CLEAR-FLOW® mesh filters
  • 2 Front LED lights
  • 65 dB for quiet operation
  • Top or back vented
  • Convertible to ductless operation with carbon filter kit (sold separately)

SPECIFICATIONS

COS-5U30 Range Hood

Size30 Inch
Mounting TypeUnder Cabinet
ControlsPush Button
Filters2 x Aluminum Mesh Filters
Material430 Grade Stainless Steel
Air FlowEfficient
Noise Level65dB (Max)
Vent StyleExternal
Lighting2 x Front LED
Voltage120V / 60Hz
Wattage75W
Included ComponentsBulb(s), Damper, Exhaust Vent, Fan Hardware, Installation Kit, Power Cord

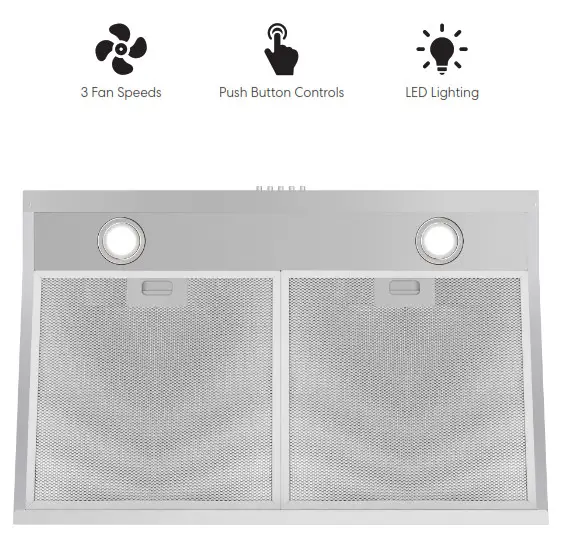

COSMO COS 5U30 30 Inch Under Cabinet Stainless Steel Range Hood - fig

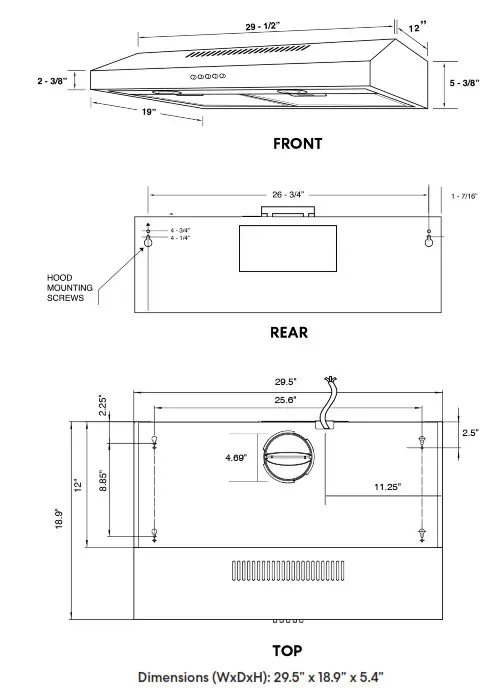

DIMENSIONS

COS-5U30 Range HoodCOSMO COS 5U30 30 Inch Under Cabinet Stainless Steel Range Hood - fig 1

For more information, please
visit: www.cosmoappliances.com
