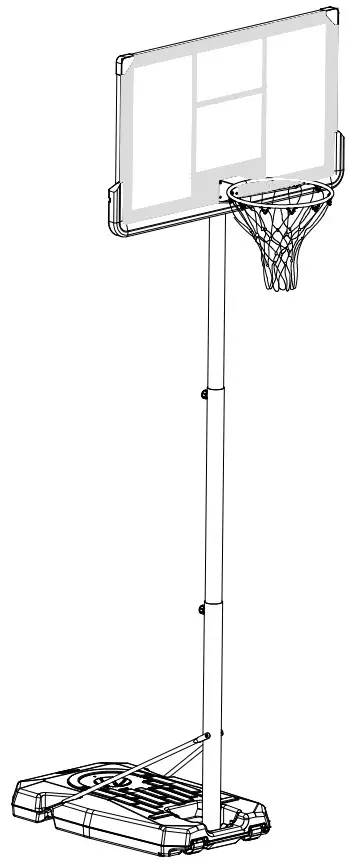

CDB-022B Portable Basketball
Hoops and Goals
User Manual
Thank you for purchasing the Portable Basketball Hoops & Goals. Please read this user manual carefully and keep it in a safe place for future reference.
Product Specifications
| Model | CDB-022B |
| Name | Portable Basketball Hoops & Goals |
| Backboard material | PC, Transparent backboard |
| Backboard size | 107x70x3cm |
| Hoop diameter | 45cm (inner) |
| Lifting height | 2.0-3.05m |
| Hoop material | Iron |
| Base size | 111×70.5×14.5cm |
| Counterweight (Maximum carrying capacity) | 80KG water or 100KG sand |
| Package dimensions | 115x80x20cm |
| Height | 365cm (Max) |
| Width | 111cm |
Important Safety Precautions
Notice:
- Please read all instructions before attempting to install or assemble this item. Assembly should be done by adults only.
- Firmly secure all screws before use.
- Reconfirm that all bolt, screws, and knobs are secure every 90 days.
- The product is intended for outdoor use.
- If any parts are missing, broken, damaged, or worn, stop using this item until repairs are made and/or factory replacement parts are installed.
- Do not use this item in a way inconsistent with the manufacturer’s instructions as this could void the product warranty.
- Do not hang from the rim or climb on the pole. Do not climb on the base or structure in general, as this could result in serious injuries.
- Adjustment and moving of the basketball set must be carried out by adults.
- Always check the unit to ensure the base is full of water or sand, and that all fittings and hardware are tight before each use.
- Always place the base of the set on a flat surface.
- Do not allow water to freeze in the base.
- The set requires two people for assembly.
- Check the base regularly for any leakage before playing.
Basketball Maintenance - Please check the degree of corrosion and firmness of the connection and welding parts twice a year. When abnormalities such as looseness and rust are found, repair and anticorrosive treatment should be performed in time.
- The surface of the ball rack should be cleaned with a neutral detergent to avoid damaging the surface of the ball rack plastic powder.

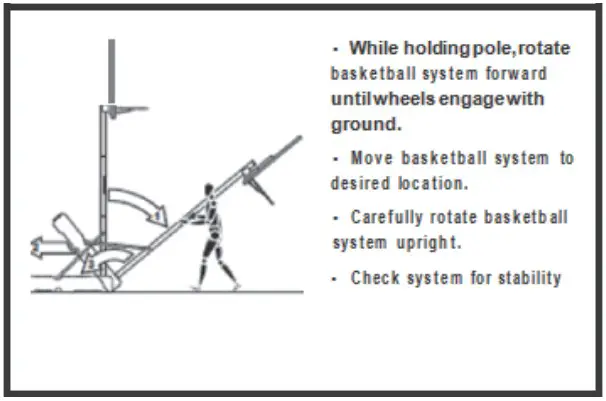

Moving System

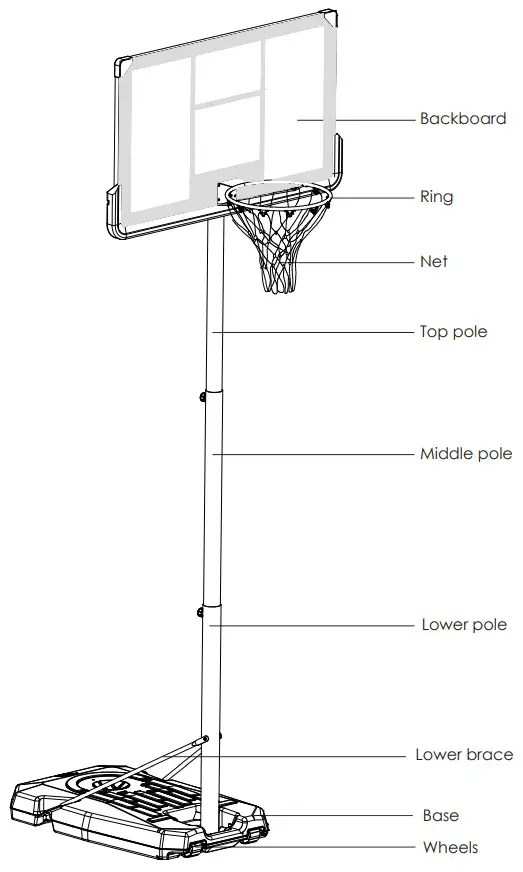

Product Design

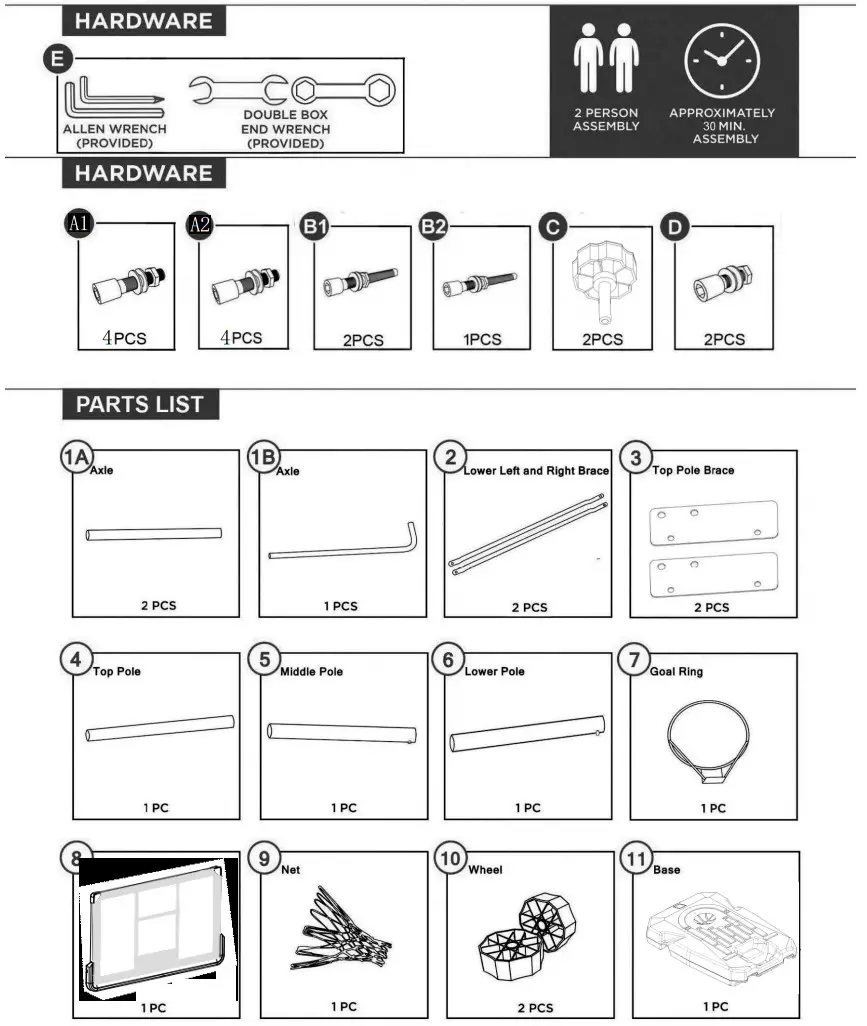

PRODUCT ASSEMBLY
STEP1

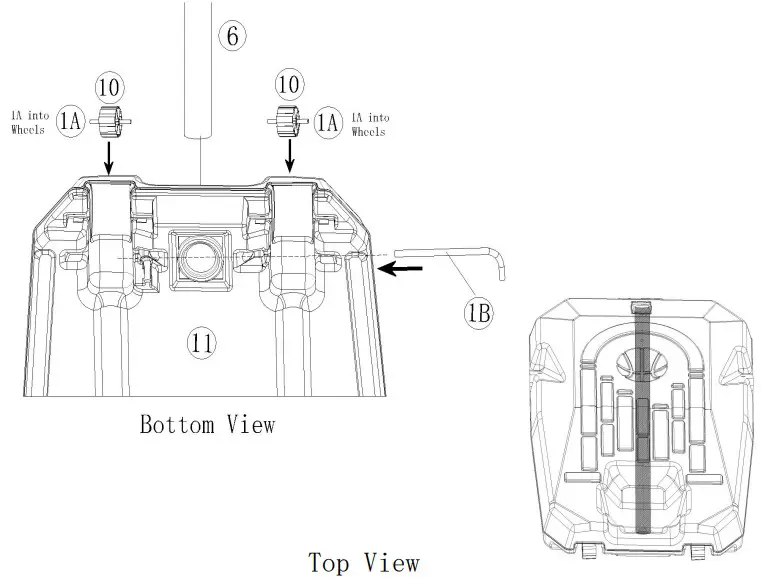

Insert Axles (#1A) into the Wheels (#10) as shown. Next press wheels into the Base (#11). Place the Lower pole (#6) into the top side of the Base (#11) and place into position in the base and slide Axle (#1B) through holes on the bottom of the base.
STEP2

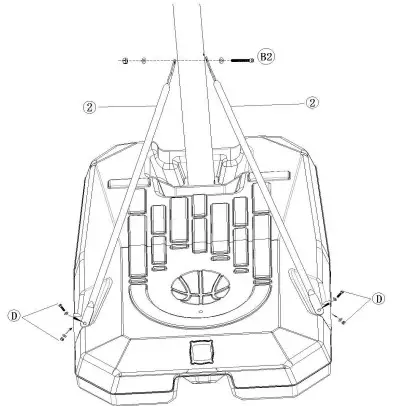

Firstly, fix the Lower Left and Right Braces (#2) with bolts, nuts and washers (#D) to the bottom of the base. Next lock the Lower Left and Right Braces (#2) to the Lower Pole (#6) with Bolt, Nut and Washer (#B2).
STEP3

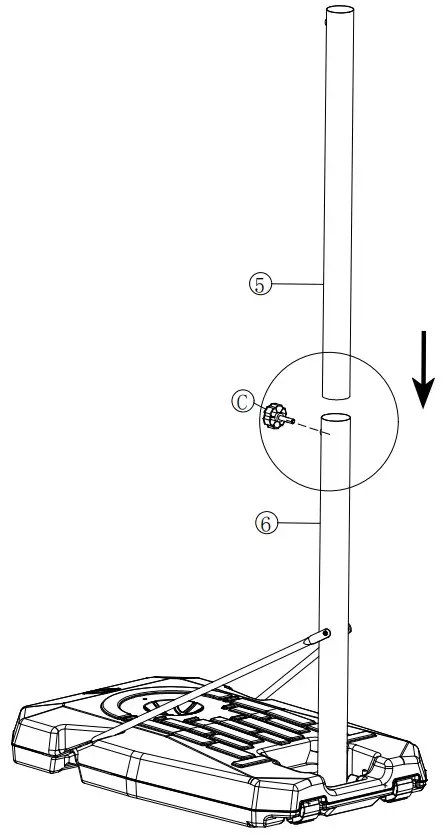

a: Insert the Middle Pole (#5) into the Lower Pole (#6).
b: Fix the Lower Pole (#6) and the Middle Pole (#5) with the Tension Knob (C).
Note: Lower Pole position (#6) with Tension Knob (C) toward the back.
STEP 4

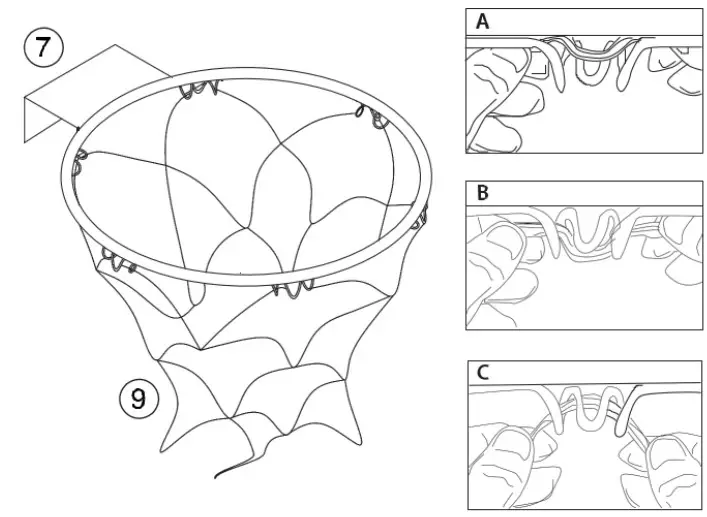

Attach Net (#9) to Rim (#7).
Slip the wire into both sides of the hook and into the hook from below.
STEP 5

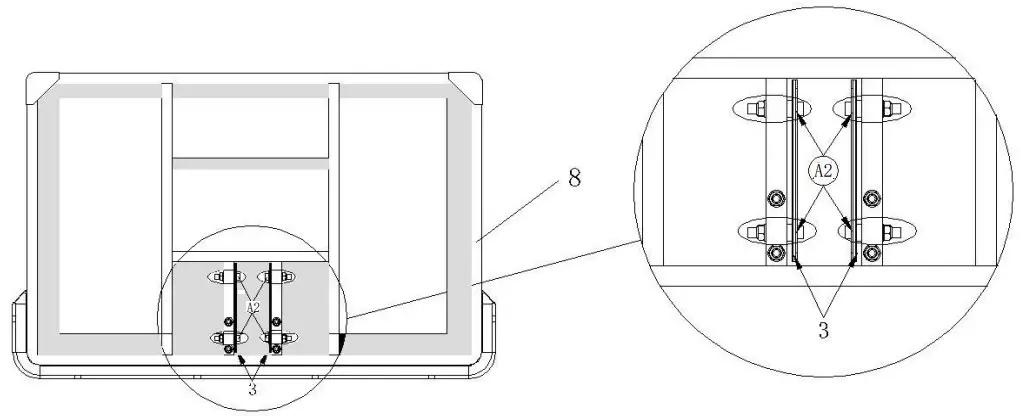

Lock the Top Pole Braces (#3) to the Backboard (#8) with Bolts, Nuts and Washers (#A2), and then tighten them.
STEP 6

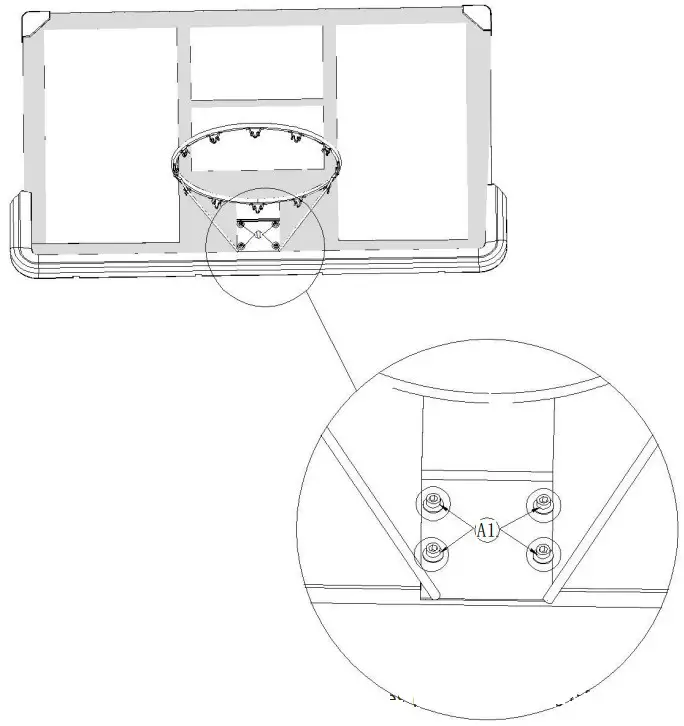

Lock the Rim (#7) to the Backboard with 4 sets of Bolts, Nuts & Washers (#A1) as shown.
Fix the Top Pole (#4) to the Top Pole Braces (#3) with 2 sets of Bolts, Nuts & Washers (#B1).
8 STEP

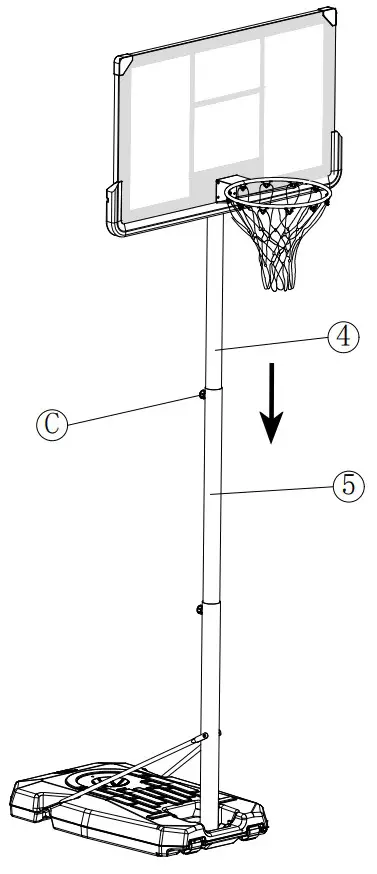

Insert the Top Pole (#4) into Middle Pole (#5). Secure using the Tension Knob (#C).
STEP 9
REMINDER

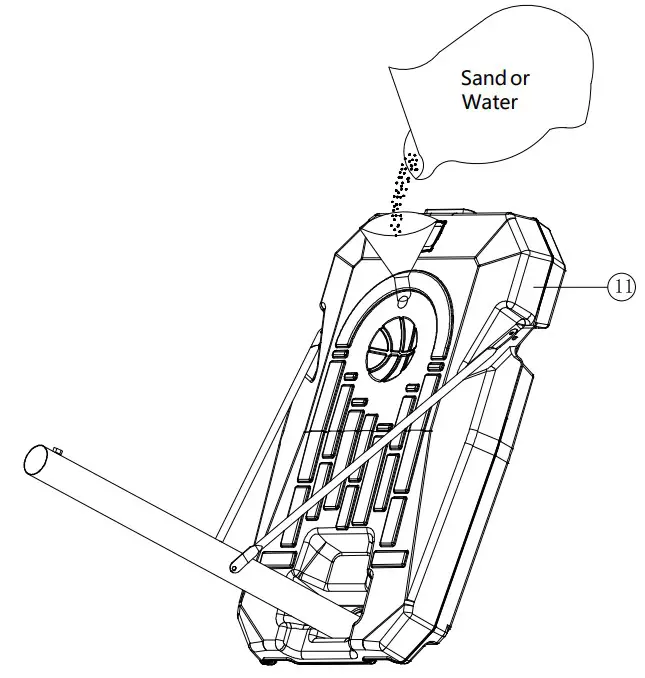

Please tighten all the nuts & Telescopic Knobs. Add sand or water to the base to make the basketball equipment stable.
Troubleshooting
| Problem | Cause | Solution |
| Parts are hard to put together. | 1.Incorrect installation. 2.Missing parts. | Please follow the steps in the installing video provided. |
| Knob is hard to be turned. | Incorrect knob installation. | Please re-install this part of the product as we’ve already ameliorate the knob. |
| Difficult to move the product even with the moving wheel. | Incorrect moving method. | To better move the product, please tilt the base more than 40 degrees to the ground. |
| The rebound feels wobbly, not stable at all. | 1.Loose connection of the knob on top. 2.Not enough support from the base. | 1.Please tighten the knob on top of the rebound. 2.Put water or sandbags at the base to weigh it down. |
| Missing parts. | 1.Lost during transportation. 2.Lost during installation. | Contact us and we’ll reship the parts to you. |
| Wobbly base. | Not enough water/sand added to the bottom. | Add more weighs to the bottom. |
Product Highlights
- Improved height adjustment, giving you the freedom to choose the height of the basketball rack.
- Added front wheels for easy movement.
- Durable, equipped with a 44-inch durable polycarbonate backboard, a bumper, an all-weather net, and sturdy heavy-duty steel poles
- Safe and convenient to use.
Customer Support
If you need help regarding product issues, after-sales service, or other relevant problems, please contact us via the the amazon order number.
Please have the following information ready when requesting for service: Problem Description
*Note: Products purchased directly from benefit from our after-sales service. If the purchases are made from other selling teams, we recommend you contact them for warranty issues.
