SMP9010C Electric Induction Hob
Product Information
The Whirlpool product is an appliance designed for cooking
purposes. It is a hob that provides a cooking surface for various
types of cookware. The appliance has specific safety features and
guidelines that need to be followed for safe and efficient
usage.
Health & Safety Guide
The user manual provides important safety instructions that must
be read and observed before using the appliance. These instructions
aim to prevent accidents and ensure proper usage. The manufacturer
holds no liability for failure to follow these safety instructions
or misuse of the appliance.
Important Safety Warnings:
- If the hob surface is cracked, do not use the appliance as it
poses a risk of electric shock. - Do not store items on the cooking surfaces to avoid the danger
of fire. - Always supervise the cooking process, especially when using
high heat or cooking with fat or oil. - Never leave unattended cooking on a hob with fat or oil, as it
can be dangerous and may lead to a fire. Do not attempt to
extinguish a fire with water; instead, switch off the appliance and
cover the flame with a lid or fire blanket. - Do not use the hob as a work surface or support. Keep flammable
materials away from the appliance until it has completely cooled
down. - Avoid placing metallic objects such as knives, forks, spoons,
or lids on the hob surface, as they can become hot. - After use, switch off the hob element using its control and do
not rely solely on the pan detector. - The appliance and its accessible parts become hot during use.
Take caution to avoid touching heating elements. Children under 8
years of age should be kept away unless continuously
supervised. - The appliance is intended for household and similar
applications. It should not be used for professional purposes or
outdoors. It is not suitable for heating rooms.
Installation:
The appliance must be handled and installed by two or more
persons to avoid the risk of injury. Protective gloves should be
used during unpacking and installation to prevent cuts. All cabinet
cutting operations should be completed before fitting the
appliance, and any wood chips and sawdust should be removed. If the
appliance is not installed above an oven, a separator panel (not
included) must be installed in the compartment below the
appliance.
Electrical Warnings:
- The appliance must be easily disconnectable from the power
supply by unplugging it or through a multi-pole switch installed
upstream of the socket, following wiring rules and national
electrical safety standards. - Do not use extension leads, multiple sockets, or adapters with
the appliance. - After installation, the electrical components must not be
accessible to the user. - Do not operate the appliance when wet or barefoot.
- Do not use the appliance if it has a damaged power cable or
plug, if it is not working properly, or if it has been damaged or
dropped.
Product Usage Instructions
- Read and understand all safety instructions mentioned in the
user manual. - Register your product on www.whirlpool.eu/register for complete
assistance. - Ensure that the hob surface is not cracked before using the
appliance. - Avoid storing items on the cooking surfaces to prevent fire
hazards. - Always supervise the cooking process, especially when using
high heat or cooking with fat or oil. - In case of a fire, switch off the appliance and cover the flame
with a lid or fire blanket. Never use water to extinguish a
fire. - Do not use the hob as a work surface or support. Keep flammable
materials away from the appliance until it has cooled down
completely. - Avoid placing metallic objects on the hob surface as they can
become hot. - After use, switch off the hob element using its control.
- Take caution while using the appliance as it becomes hot during
use. Keep children under 8 years of age away unless continuously
supervised. - Use the appliance only for household purposes. Do not use it
for professional purposes or outdoors. - Install the appliance with the help of two or more persons,
using protective gloves to prevent injury. - Complete all cabinet cutting operations before fitting the
appliance and remove any wood chips and sawdust. - Ensure that the appliance is properly disconnected from the
power supply before installation. - Do not use extension leads, multiple sockets, or adapters with
the appliance. - Keep the electrical components inaccessible to the user after
installation. - Avoid operating the appliance when wet or barefoot.
- If the power cable or plug is damaged, if the appliance is not
working properly, or if it has been damaged or dropped, do not use
it.
User Manual
www.whirlpool.eu/register
USER MANUAL
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register.
INDEX HEALTH & SAFETY GUIDE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 USE & CARE GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Product description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 How to use the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 First time use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Daily use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Special functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Cooking table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Maintenance and cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Sounds produced during operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Verified cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 After-sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 INSTALLATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2
Health & Safety guide
SAFETY INSTRUCTIONS
EN
IMPORTANT TO BE READ AND OBSERVED
Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
WARNING: If the hob surface is cracked, do not use the appliance – risk of electric shock.
WARNING: Danger of fire: Do not store items on the cooking surfaces.
CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous – risk of fire. NEVER try to extinguish a fire with water: instead, switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
Do not use the hob as a work surface or support. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely – risk of fire.
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
After use, switch off the hob element by its control and do not rely on the pan detector.
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
PERMITTED USE CAUTION: the appliance is not intended to be
operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is intended to be used in household and similar applications such as: staff kitchen areas
in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.
No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors.
INSTALLATION The appliance must be handled and installed by
two or more persons – risk of injury. Use protective gloves to unpack and install – risk of cuts.
Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation. The appliance must be disconnected from the power supply before any installation operation – risk of electric shock. During installation, make sure the appliance does not damage the power cable – risk of fire or electric shock. Only activate the appliance when the installation has been completed.
Carry out all cabinet cutting operations before fitting the appliance and remove all wood chips and sawdust.
If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance.
ELECTRICAL WARNINGS It must be possible to disconnect the appliance
from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard – risk of electric shock.
3
CLEANING AND MAINTENANCE WARNING: Ensure that the appliance is switched
off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment – risk of electric shock.
Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol . The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Make the most of your hot plate’s residual heat by switching it off a few minutes before you finish cooking. The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted. Cover your pots and pans with tight-fitting lids while cooking and use as little water as possible. Cooking with the lid off will greatly increase energy consumption. Use only flat-bottomed pots and pans.
DECLARATION OF CONFORMITY
This appliance meets the Ecodesign requirements set out in European Regulation n. 66/2014, in conformity to the European standard EN 60350-2.
NOTE
People with a pacemaker or similar medical device should use care when standing near this induction cooktop while it is on. The electromagnetic field may affect the pacemaker or similar device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction cooktop.
Health & Safety guide
4
Use & Care guide

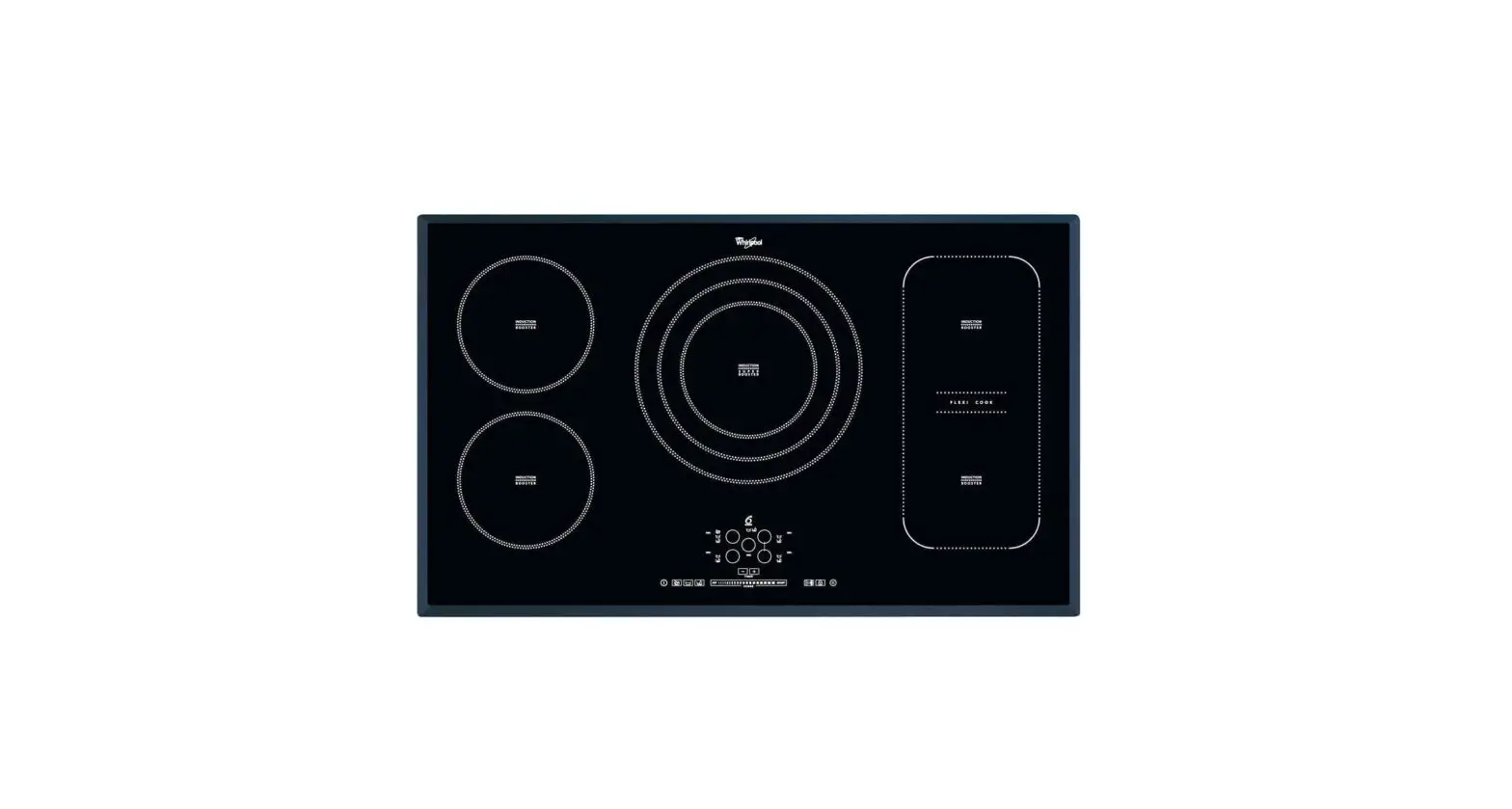

PRODUCT DESCRIPTION
EN
1. Cooking area 2. Control panel
1
2
CONTROL PANEL
12
3
45
6
1. On/ off button 2. Indicator light – hob switched on 3. “6th Sense” button (special functions)
7
8
9
4. Indicator light – key lock active 5. Key lock 6. Cooking zone selection display 7. Cooking zone off button
10
8. Slide touchscreen 9. Quick heat button 10. “Manage functions” display
5
Use & Care guide
ACCESSORIES
POTS AND PANS
OK
NO Only use pots and pans made from ferromagnetic
material which are suitable for use with induction
hobs. To determine whether a pot is suitable,
check for the symbol (usually stamped on the bottom).A magnet may be used to check whether pots are magnetic. The quality and the structure of the pot base can alter cooking performance. Some indications for the diameter of the base do not correspond to the actual diameter of the ferromagnetic surface.
MINIMUM DIAMETER OF POT/PAN BASE FOR THE DIFFERENT COOKING AREAS
To ensure that the hob functions properly, the pot must cover one or more of the reference points indicated on the surface of the hob, and must be of a suitable minimum diameter.
120
220
240
EMPTY POTS OR POTS WITH A THIN BASE
Do not use empty pots or pans when the hob is on.
The hob is equipped with an internal safety system that constantly
monitors the temperature, activating the “automatic off” function where
high temperatures are detected. When used with empty pots or pots with
thin bases, the temperature may rise very quickly, and the “automatic off”
function may be triggered with a slight delay, damaging the pot or pan.
If this occurs, do not touch anything, and wait for all components to cool down.
100
If any error messages appear, call the service centre.
HOW TO USE THE APPLIANCE
FIRST TIME USE
The hob settings can be changed at any time. To change the settings,
click on the symbol that appears on the manage functions display.
From the settings menu, you can: · select the language; · adjust the brightness; · adjust the volume of the sound alerts; · adjust the button tones; · adjust the power of the hob; · restore the factory settings of the hob; · check the software version installed.
If a power failure occurs, the settings are maintained.
ADJUSTING THE POWER OF THE HOB
The maximum power level of the hob can be set from the settings menu, in accordance with requirements, or with the timer duration. The power levels available are: 4,0kW 6,0kW 7,4kW 11,0kW.
DAILY USE
SWITCHING THE HOB ON/OFF To switch the hob on, press the on button for approx. 1 second until the displays light up. The hob will be automatically deactivated after 10 seconds if you do not select a function within this time. To switch off, press the same button until the displays switch off. All the cooking zones are deactivated. The hob turns off if you press any button for more than 10 seconds. If the hob has been in use, when you switch it off, all cooking zones will be deactivated, and the residual heat indicator “H” will remain lit until the cooking zones have cooled down.
SELECTING THE COOKING ZONE The desired cooking zone can be selected from the left-hand display, by pressing the corresponding pane. The selected zones are highlighted.
To create a flexible area: Select multiple panes or slide your finger across, gradually joining the panes together.
To divide a flexible area: Press and hold the pane corresponding to the zone that you want to separate for 3 seconds. Alternatively, press the “divide zone” button that appears in the manage functions display. When the cooking zone is divided, the same level of power is set for each of the separate zones. If all the selected cooking zones are not covered by the pot in 30 seconds, a dense striped will appear on the left-hand display. It’s possible to reactivate that area with the “Add pot” command using the right-hand display.
SELECTING THE FLEXIBLE AREA The flexible area is the area in which several of the cooking zones overlap, and can be used as a single cooking zone.
6
Use & Care guide
ACTIVATING/DEACTIVATING COOKING ZONES AND ADJUSTING POWER
To activate the cooking zones: 1. Switch on the hob. If a recipient is already in place, the hob automatically
detects it. Select the suggested zone to choose the power. 2. Place the pot in the chosen cooking zone, ensuring that it is covering
one or more of the reference points on the surface of the hob.
EN
ADD POT When using a cooking area composed of several zones, the pot can be placed anywhere on the active area. The hob will automatically recognise the actual positioning of the pot. If you wish to add an additional pot to the active cooking area, use the “Add pot” command to allow the hob to detect the new pot.
* Using this position will allow you to benefit from maximum power output.
Please note: Do not cover the display or the slide touchscreen with accessories. If a utensil is covering one of the displays, the hob may not function properly. On the right display, the message “CHECK TOUCH AREA, remove the object within one minute” will appear. Remove the object and wait until the message disappears. If the problem persists, disconnect and reconnect the power to the cooktop. In the cooking zones close to the control panel, it is advisable to keep pots and pans inside the markings (taking both the bottom of the pan and the upper edge into consideration, as this tends to be larger). This prevents excessive overheating of the touchpad. When grilling or frying, please use the rear cooking zones wherever possible.
*
KEY LOCK To prevent accidental activation of the hob during cleaning, or to prevent the controls from being changed accidentally whilst cooking, press the “Key lock” button for 3 seconds: a beep and a warning light indicate that this function has been activated. The control panel will be locked, with the exception of the off button. To reactivate the controls, press the “Key Lock” button again for 3 seconds. The warning light switches off and the hob is active again.
TIMER When the hob is off, you can use the right-hand display as a timer.
To activate the timer: 1. Switch on the hob. 2. Press the hourglass icon that appears on the manage functions
display. 3. Use the “+”/”” buttons to set the time. 4. When the set time has elapsed, an acoustic signal sounds.
To change or deactivate the timer: 1. Press the hourglass icon that appears on the manage functions
display. 2. Use the “+” and “” buttons to reset the desired time, or press the
“STOP” button to turn off the timer.
3. Select the cooking zone or flexible area from the left-hand display. 4. Set the desired power level by pressing or moving your finger
horizontally across the slide touchscreen.
The power level set will appear in the pane of the cooking zone selected.
Each cooking zone offers a range of different heat settings, from “1” (minimum power) to “18” (maximum power). Using the slide touchscreen, you can also select the quick heat function, which will appear on the display with the letter “P”. Please note: The cooking zone pane will flash, if the pot is not suitable for induction cooking, is not positioned correctly or is not of an appropriate size. If no pot is detected within 30 seconds of making the selection, the cooking zone switches off.
SETTING THE COOKING TIME
The cooking zones can be programmed to switch off automatically.
To set the cooking time: 1. Select the cooking zone and set the required power level. 2. Press the stopwatch icon that appears on the manage functions
display. 3. Use the “+”/”” buttons to set the time. 4. Once the set time has elapsed, an acoustic signal sounds and the
cooking zone switches off automatically.
To change or deactivate the cooking timer: 1. Select the active cooking zone. 2. Press the stopwatch icon that appears on the manage functions
display. 3. Use the “+” and “” buttons to reset the desired time, or press the
“STOP” button to cancel the set cooking time.
A cooking time can be set for each zone or flexible area by following the same steps.
To deactivate the cooking zones: Select the cooking zone in the left-hand display and press the “OFF” button at the top of the slide touchscreen. If the cooking zone is still hot, the residual heat indicator “H” will appear in the corresponding pane.
H
7
Use & Care guide
SPECIAL FUNCTIONS
6th SENSE The 6th Sense button allows users to access a number of special features: · Assisted Cooking · Chef Control · Flexifull In the right-hand manage functions display, you can navigate between the special functions and select the option you want. With the arrows, you can scroll through the available options. Use the button to confirm your choice, and the double arrow to return to the previous menu.
ASSISTED COOKING This function allows you to select one of the pre-set functions which help you to cook a range of different types of food in the best possible manner. The hob assists the user by providing ideal conditions for heating and seasoning the pot. It also provides instructions to be followed during the different stages of cooking, in order to achieve optimum results.
To activate the Assisted Cooking function: 1. Press the 6th Sense button. 2. Select “Assisted Cooking” from the manage functions display and
confirm.
6TH SENSE MENU
Assisted Cooking
3. Select the category of food that you plan to cook and confirm.
SELECT FOOD
8. In the right-hand display, the instructions to follow will appear (e.g.”Add Oil” or “Add food”). At the end of each stage, the user must confirm in order to proceed with cooking.
9. If necessary, the pre-set power level can be changed at any time, using the “+” and “” buttons.
10. When cooking is complete, press the “STOP” button to turn off the cooking zone. If multiple zones have been used during cooking, you must first select the cooking zone you want to switch off.
Pasta
Boiling
Please note: The “Assisted Cooking” function can be activated even when one or more cooking zones are already active.
To activate the Assisted Cooking function for more than one cooking zone: After activating the “Assisted Cooking” function for the first cooking zone, press the 6th Sense button again, and repeat the activation process for a new cooking zone. Zones that are already active cannot be selected.
Please note: You can use up to 6 zones with the “Assisted Cooking” function, provided that the power level setting selected allows for this. The zones cannot be combined to form a larger area.
To cook traditionally when the Assisted Cooking function is active: When the “Assisted Cooking” function is active, you can select the cooking zone that you wish to activate from the left-hand display, and set the power level for this zone, before proceeding with using this in the normal way.
Selectable options
FOOD CATEGORY
COOKING METHOD
Meat
Grilling, pan frying, boiling
Vegetables
4. Select the cooking method and confirm.
SELECT MODE Grilling
Pan frying Boiling
5. Select the cooking conditions and confirm.
SELECT THICKNESS Thick Thin
Fish
Vegetables Sauces, gravies, soups Desserts
Eggs Cheese Pasta and Rice
Grilling, pan frying, boiling
Grilling, pan frying, boiling
Sauces (Tomato, creamy soups, bechamelle) Soups (searing, no preheat) Custard, panna cotta, melted chocolate, pancakes, rice pudding Fried eggs, omelette, boiling (boiled eggs, à la coque), frittata, scramble Grilling, pan frying, fondue
Boiling, pan frying, rice
6. Place the pot in position, ensuring that it is covering at least two of the reference points on the surface of the hob.
The “Moka” cooking mode is the only one which allows just one reference point to be covered.
Beverages Custom
Simmering (milk), water (boiling, simmering), moka Boiling, grilling, pan frying, simmering, melting
Below is an example of positioning for a number of accessories.
MAIN COOKING METHODS (Each method may include additional options)
7. Select the desired cooking zone from the left-hand display. An “A” will appear in the selected zone. The available zones that are recommended for positioning the utensil appear on the display.
MELTING
To bring food to the ideal temperature for melting and to maintain the condition of the food without risk of burning. This method does not damage delicate foods such as chocolate, and prevents them from sticking to the pot. The rate of cooking can be adjusted at any time using the “+” and “” buttons on the right-hand display.
SIMMERING
For slow-cook dishes and for slowly evaporating liquid, maintaining the condition of the food without risk of burning. This method does not damage food, and prevents it from sticking to the pot. The quality and type of pot can affect performance or cooking times.
8
Use & Care guide
The rate of cooking can be adjusted at any time using the “+” and “” buttons on the right-hand display.
BOILING*
To efficiently heat water and alert the user when it begins to boil, via an audible and visual signal. While awaiting confirmation from the user, the system keeps the water at a controlled simmer, preventing spills and wasted energy. Whilst this function is active, an audible alarm warns the user if the pot is empty (no water) or if it has boiled dry. The rate of cooking can be adjusted at any time using the “+” and “” buttons on the right-hand display. Only add salt after the boiling alert has sounded.
PAN FRYING*
To preheat or season an empty pot or pan. An audible and visual signal indicates that the ideal temperature has been reached for food to be added to the pot or pan. While awaiting confirmation from the user, the system keeps the accessory at a controlled heat, preventing the pan from reaching damaging temperatures and avoiding energy wastage. For optimum conditions, use this function with pots and seasoning at room temperature. The rate of cooking can be adjusted at any time using the “+” and “” buttons on the right-hand display. Dedicated accessories must be used for this function. Do not use the lid – to protect against splashes, a splash guard is recommended. It is advisable to use oils that are suitable for frying when cooking with this function, such as seed oils of various types. When using different oils, always take extra care to supervise cooking during first use.
GRILLING*
This function allows for optimum grilling of a range of foods, according to their thickness. When the ideal temperature has been reached for food to be added, the hob beeps. The hob then stabilises the temperature throughout cooking, keeping it constant. Once the user has confirmed that food has been added, cooking begins. It is advisable to prepare the food during the heating stage, adding it as soon as you hear the beep. For optimum conditions, use this function with pots and seasoning at room temperature. The rate of cooking can be adjusted at any time using the “+” and “” buttons on the right-hand display. If you are not using the wire rack designed for this purpose, take extra care when first using the grill function, as the quality of the base may affect heating times. Accessories with very thin bases can reach very high temperatures in a short time.
EN
CHEF CONTROL This function divides the hob into four cooking zones, activating these simultaneously at a pre-set power level. It allows you to move pots from one area to another, to allow you to continue cooking at different temperatures. To activate the Chef Control function: 1. Place the pot in position. 2. Press the 6th Sense button. 3. Select “Chef Control” from the manage functions display and confirm.
6TH SENSE MENU
Chef Control
4. The four cooking zone panes appear on the left-hand display, with the corresponding power level (low, medium, high).
5. If you wish to add more pots, use the “Add pot” command . 6. To exit this function, press “STOP”.
CHEF CONTROL
Place a pot
To change the power of a cooking zone: 1. Select cooking zone. 2. Select the desired power level by dragging your finger across the
slide touchscreen, which will remain visible for 30 seconds. 3. The word corresponding to the power level selected (low, medium,
high) reappears.
Please note: The changed settings are saved until you change them again or reset them.
FLEXIFULL This function allows the four zones to be combined for use as a single cooking area. To activate the Flexifull function: 1. Place the pot in position. 2. Press the 6th Sense button. 3. Select “Flexifull” from the manage functions display and confirm.
6TH SENSE MENU
Flexifull
MOKA*
This function allows “moka” stove-top coffee makers to be heated automatically. The heating cycle can be activated by selecting the function in the menu, and a beep will sound when the coffee is ready. The function is programmed to switch off automatically, preventing spills. When using for the first time, always check that the conditions described are met. For optimum conditions, use this function with the coffee maker and water at room temperature.
4. Set the desired power level from the slide touchscreen. The power level set appears on the left-hand display.
5. If you wish to add more pots, use the “Add pot” command . 6. To exit this function, press “STOP”.
FLEXIFULL
Place a pot
* For these functions, the use of dedicated accessories is recommended: · for boiling: WMF SKU: 07.7524.6380 · for pan frying: WMF SKU: 05.7528.4021 · for grilling: WMF SKU: 05.7650.4291 · for Moka, Bialetti: MOKA INDUZIONE 3TZ ANTRACITE
Please note: Try not to move the pot or pan during the first minute of heating, in order to allow the hob to function optimally.
9
INDICATORS
Use & Care guide
RESIDUAL HEAT INDICATOR
When the letter “H” appears in one of the cooking zone selection display panes, this means that the corresponding cooking zone is still hot. When the cooking zone has cooled, the “H” disappears.
COOKING TABLE
POWER LEVEL TYPE OF COOKING
RECOMMENDED USE Indicating cooking experience and habits
Max. heat setting
P Fast heating
Ideal for rapidly increasing the temperature of food to a fast boil (for water) or for rapidly heating cooking liquids.
Frying, boiling
14 – 18 Browning, sautéing, boiling, grilling
Ideal for browning, starting to cook, frying deep-frozen products, bringing liquids to the boil quickly.
Ideal for sautéing, maintaining a lively boil, cooking and grilling.
10 – 14
Browning, cooking, stewing, sautéing, grilling
Cooking, stewing, sautéing, grilling, cooking until creamy
Ideal for sautéing, maintaining a gentle boil, cooking and grilling, and preheating accessories.
Ideal for stewing, maintaining a gentle boil, cooking and grilling (for longer periods).
5 – 9
Cooking, simmering, thickening, creaming
Ideal for slower-cook recipes (rice,sauces,roast,fish) with liquids (e.g. water, wine, broth, milk), and for creaming pasta.
Ideal for slow-cook recipes (quantities under 1 litre: rice, sauces, roasts, fish) with liquids (e.g. water,wine,broth,milk).
Melting, thawing
1 – 4 Keeping food warm, creaming risotto
Ideal for softening butter, gently melting chocolate, thawing small items.
Ideal for keeping small portions of just-cooked food or serving dishes warm and for creaming risotto.
Zero power Off
–
Hob in stand-by or off mode (possible end-of-cooking residual heat, indicated by an “H”).
MAINTENANCE AND CLEANING
!
WARNING · Do not use steam cleaning equipment.
· Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator (“H”) is not displayed.
Important: · Do not use abrasive sponges or scouring pads as they may damage
the glass. · After each use, clean the hob (when it is cool) to remove any deposits
and stains from food residue. · A surface that is not kept suitably clean may reduce the sensitivity of
control panel buttons. · Use a scraper only if residues are stuck to the hob. Follow the scraper
manufacturer’s instructions to avoid scratching the glass. · Sugar or foods with a high sugar content can damage the hob and
must be immediately removed. · Salt, sugar and sand could scratch the glass surface. · Use a soft cloth, absorbent kitchen paper or a special hob cleaner
(follow the Manufacturer’s instructions). · Spills of liquid in the cooking zones can cause the pots to move or vibrate. · After cleaning the hob, dry thoroughly.
If the iXeliumTM logo appears on the glass, the hob has been treated with iXeliumTM technology, an exclusive Whirlpool finish which ensures perfect cleaning results, as well as keeping the surface of the hob shiny for longer.
To clean iXeliumTM hobs, follow these recommendations: · Use a soft cloth (microfibre is best) dampened with water or with
everyday glass cleaning detergent. · For best results, leave a wet cloth on the glass hob surface for a few
minutes.
10
Use & Care guide
EN
TROUBLESHOOTING
· Check that the electricity supply has not been shut off.
Please note: The presence of water, liquid spilled from pots or any objects
· If you are unable to turn the hob off after using it, disconnect it from resting on any of the hob buttons can accidentally activate or deactivate
the power supply.
the control panel lock function.
· If alphanumeric codes appear on the display when the hob is switched
on, consult the following table for instructions.
Error code
Description
Possible causes
Cure
C81, C82 F02, F04
The control panel switches off because of excessively high temperatures.
The connection voltage is wrong.
The internal temperature of electronic parts is too high.
The sensor detects a discrepancy between the appliance voltage and that of the mains supply.
Wait for the hob to cool down before using it again.
Disconnect the hob from the mains and check the electrical connection.
F01, F06, F12, F13, F25, F34, F35, F36, F37, F41, F47, F58, F61, F76
Disconnect the hob from the power supply. Wait a few seconds then reconnect the hob to the power supply. If the problem persists, call the service centre and specify the error code that appears on the display.
SOUNDS PRODUCED DURING OPERATION
Induction hobs may whistle or creak during normal operation. These noises actually come from the cookware and are linked to the characteristics of the pan bottoms (for example, when the bottoms are made from different layers of material or are irregular).
These noises may vary according to the type of cookware used and to the amount of food it contains and are not the symptom of something wrong.
VERIFIED COOKING
A table below has been created specially to make it possible for inspection bodies to use our products.
Verified cooking
Heat distribution, “Pancakes” test acc. to EN 60350-2 §7.3
Heat performance, “French fries” test acc. to EN 60350-2 §7.4
Verified cooking positions
Melting and keep warm, “chocolate”
Simmering, “rice pudding”
ECO-DESIGN: The test was carried out in accordance with regulations, by selecting all of the cooking zones on the hob to form a single area, or by using the Flexifull function.
11
AFTER SALES SERVICE
Use & Care guide
BEFORE CALLING THE AFTER-SALES SERVICE:
· the service number (number after the word Service on the rating
1. See if you can solve the problem by yourself with the help of the
plate). The service number is also indicated on the guarantee booklet;
suggestions given in the TROUBLESHOOTING.
2. Switch the appliance off and back on again to see if the fault persists.
IF AFTER THE ABOVE CHECKS THE FAULT STILL OCCURS, GET IN TOUCH WITH THE NEAREST AFTER-SALES SERVICE. To receive assistance, call the number shown on the warranty booklet or follow the instructions on the website www.whirlpool.eu.
When contacting our Client After sales service, always specify: · a brief description of the fault; · the type and exact model of the appliance;
Made in X
Type: XXX Mod.: XXX
01 XXXX XXX XXXXX
XXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XX XXXX XXXXX
· your full address; · your telephone number.
If any repairs are required, please contact an authorized after-sales service (to guarantee that original spare parts will be used and repairs carried out correctly).
In the case of flush-mounted installation, call the After Sales Service to request assembly of screws kit 4801 211 00112.
12
860 mm
510 mm
4 mm
A
R = Min. 6.5mm 483 mm
Max. 8mm
832 mm
53 mm
R = 11.5mm
0
863 + 2 mm
513
+
0 2
mm
840
+
0 2
mm
0
840 + 2 mm
490
+
0 2
mm
R = 11.5 mm
Min. 50 mm
490
+
0 2
mm
R = Min. 6.5 mm Max. 8 mm
A
6mm
2 x kit 4801 211 00112
65mm
100mm 15mm
min. 20mm
60mm
min. 20mm
min. 20mm
min. 45mm min. 550mm
min. 45mm min. 550mm
min. 5mm min. 20mm
60mm
min. 5mm
13
x4
1
2
2mm
x4
4 3
2
1 3
90°C
1
2
x4
14
380-415V 3 N~ 380-415V 2 N~
220-240V~
AU-UK-IRL
220-240V3~
BE
220-240V~
230V 2 Phase 2N~
NL
R
S T
=E
black-nero-negro-preto–must-melns-juodas-czarny-schwarz-noir-zwart-negru –crna-crno—-cerná-cierna-fekete-svart-musta-svart-sort siyah-dubh
brown-marrone-marrón-marrom–pruun-brns-rudas-brzowy-braunen-brun-bruin maro—rjava-sme—-hndý-hnedý-barna brunt-ruskea-brunt-brun-kahverengi-donn
blue (gray)-blu (grigio)-azul (gris)-azul (cinza)- ()-sinine (hall)-zila (pelka) mlyna(pilkas)-niebieski (szary)-blau (grau)-bleu (gris)-blauw (grijs)-albastru (gri) ()- ()-modro(sivo)-plava (siva)- ()- () ()-modrý (sedá)-modrý(sivá)-kék (szürke)-blå (grå)-sininen (harmaa)-blå (grå) blåt (gråt)-mavi (gri)-gorm (liath)
yellow/green-giallo/verde-amarillo/verde-amarelo/verde/-kollane/roheline dzeltens/zas-geltona/zalia-ólty/zielony-gelb/grün-jaune/vert-geel/groen-galben/verde /-/-rumeno/zeleno-zuto/zelena-/-gul/grønn /-/-zlutá/zelená-zltá/zelená-sárga/zöld-keltainen/vihreä gul/grön-gul/grøn-sari/yeil-buí/glas
N
blue-blu-azul-azul–sinine-zila-mlyna-niebieski-blau-bleu-blauw-albastru- -modro-plava—-modrý-modrý-kék-blå-sininen-blå-blåt-mavi-gorm
400011493644
15
Register | Whirlpool Europe
