Lock Handle Door Handle Post Spindle Wood Screws Instructions
Door Preparation

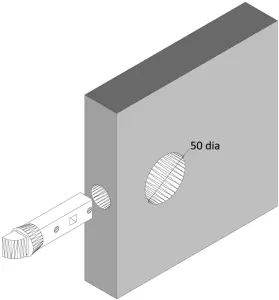

Option 1
Note: Preferred option when installing a Privacy Adaptor
Pre-latched doors often come with a drive in latch and a 50mm diameter hole. Door handles are suitable for this.
For non pre-latched doors drill a 50mm diameter hole cut out to the backset of the latch.

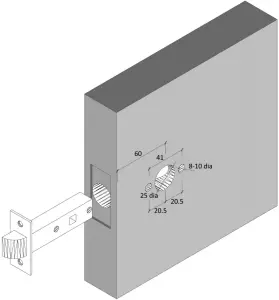

Option 2
Drill out and checkout as required to fit your latch (see latch for instructions) Drill out a 25mm diameter hole set back 60mm from door edge. Drill out 2 x 8-10mm diameter holes horizontally either side of the first hole as shown.
With each set of handles you should have
- 2 — handles
- 1 — spindle
- 2 — posts
- 2 — tie-bolts
- 4 — wood screws
- 5 — escutcheon

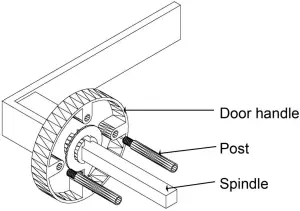

To prepare to fit off handles
- separate all components
- screw in posts to handle as shown.
Placing The Handle

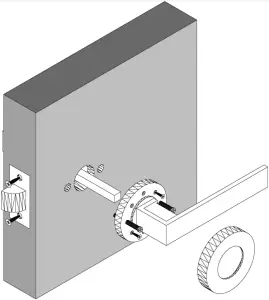

- Place handle with the posts onto the door making sure that the posts fit through the latch.
- Place spindle through the latch from the other side and into the door handle.
- Place tie-bolts through the other handle as shown and fit over the spindle.
- Tighten tie-bolts into posts and ensure smooth action.

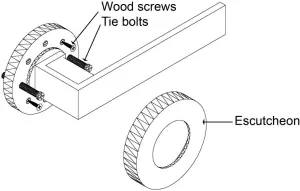

- Screw in minimum 2 wood screws to ensure that handle does not turn. If only using 2 screws, they should be placed diagonally opposite to each other.

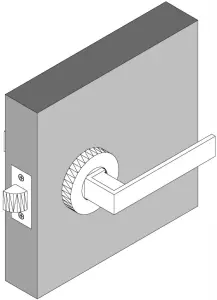

- Fit off the escutcheon by carefully slotting it over the handle. Screw on tightly.
