KSM24XU 24 Inch Stainless Steel Decorative Wall Hood
Instruction Manual
KSM24XU 24 Inch Stainless Steel Decorative Wall Hood
TYPE
Product family: Hood
- Hood Type: Decorative wall hood
- Hood width: 24 “
- Extraction: Vented
- EAN code: 8017709118433
AESTHETIC
Color: Stainless steel
- Finishing: Satin
- Aesthetic: Universal
- Design: Flat T-shaped
- Material: Stainless steel
- Stainless steel type: Brushed
PROGRAMS / FUNCTIONS
Speed levels: 3
TECHNICAL FEATURES
No. of lights: 2
- Lighting: Halogen
- Light power: 20 W
- Maximum extraction capacity at free mode: 521 CFM
- Motor power: 450 W
- No. of filters: 2
- Anti-grease filters: Stainless steel
- Vent outlet: 150 “
- No-return valve: Yes
PERFORMANCE / ENERGY LABEL
ELECTRICAL CONNECTION
Electrical connection rating: 490 W
- Voltage: 120 V
- Frequency (Hz): 60 Hz
- Power supply cable length: 59 “
OPTIONAL ACCESSORIES
SPEED LEVEL 1
Extraction rate: 203 CFM
- Noise level: 53 dB(A)
- Power: 190 W
SPEED 2
Extraction rate: 406 CFM
- Noise level: 69 dB(A)
- Power: 320 W
SPEED 3
Extraction rate: 494.5 CFM
- Noise level: 74 dB(A)
- Power: 450 W
SPEED LEVEL 4
INTENSIVE SPEED
LOGISTIC INFORMATION

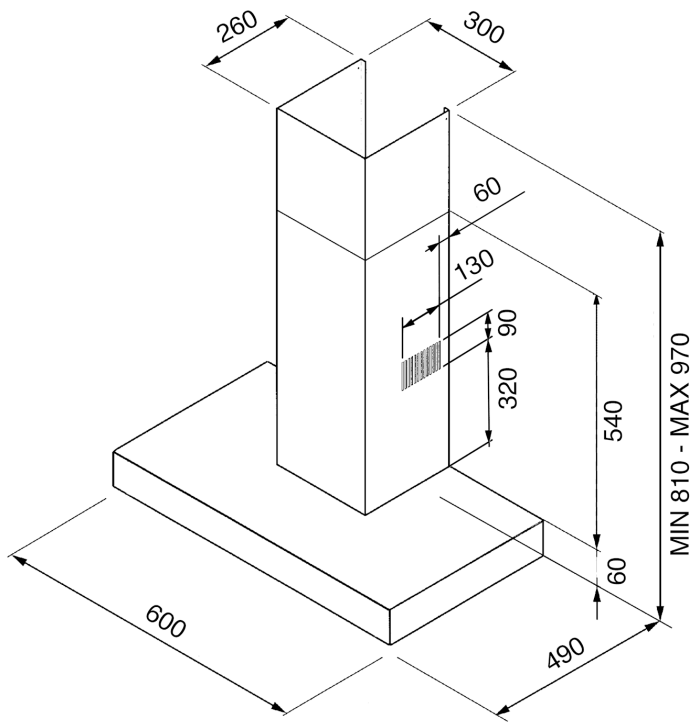

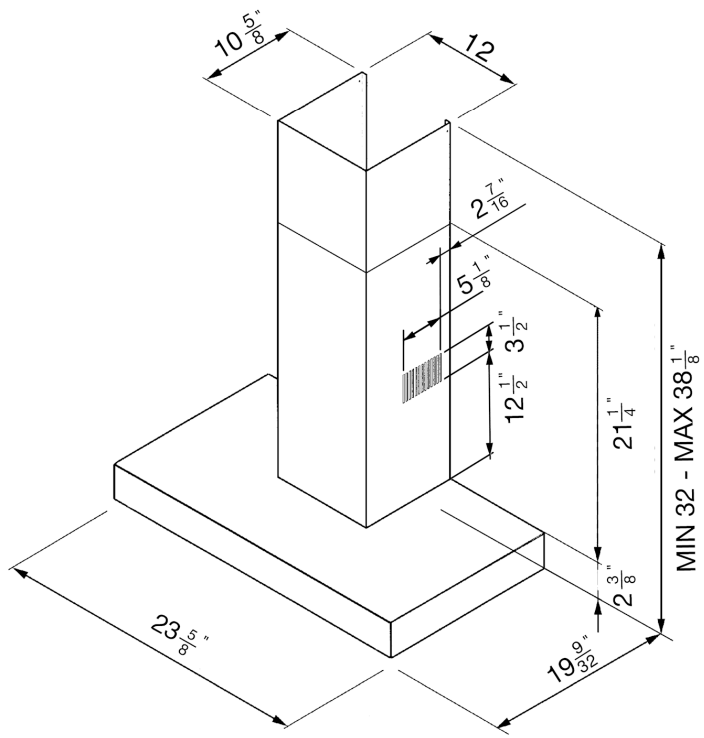

Dimensions: 760x600x675
- Width: 23 5/8 “
- Depth: 26 9/16 “
- Height: 29 15/16 “
- Net weight: 36 lbs
OPTIONAL
KITFC161: Charcoal filter, HoodsKITSMNKSM: Chimney extension, Hoods
