nVent FLEXCOND50 Eriflex Flexbus Supports and Bracing System

INSTRUCTION SHEET

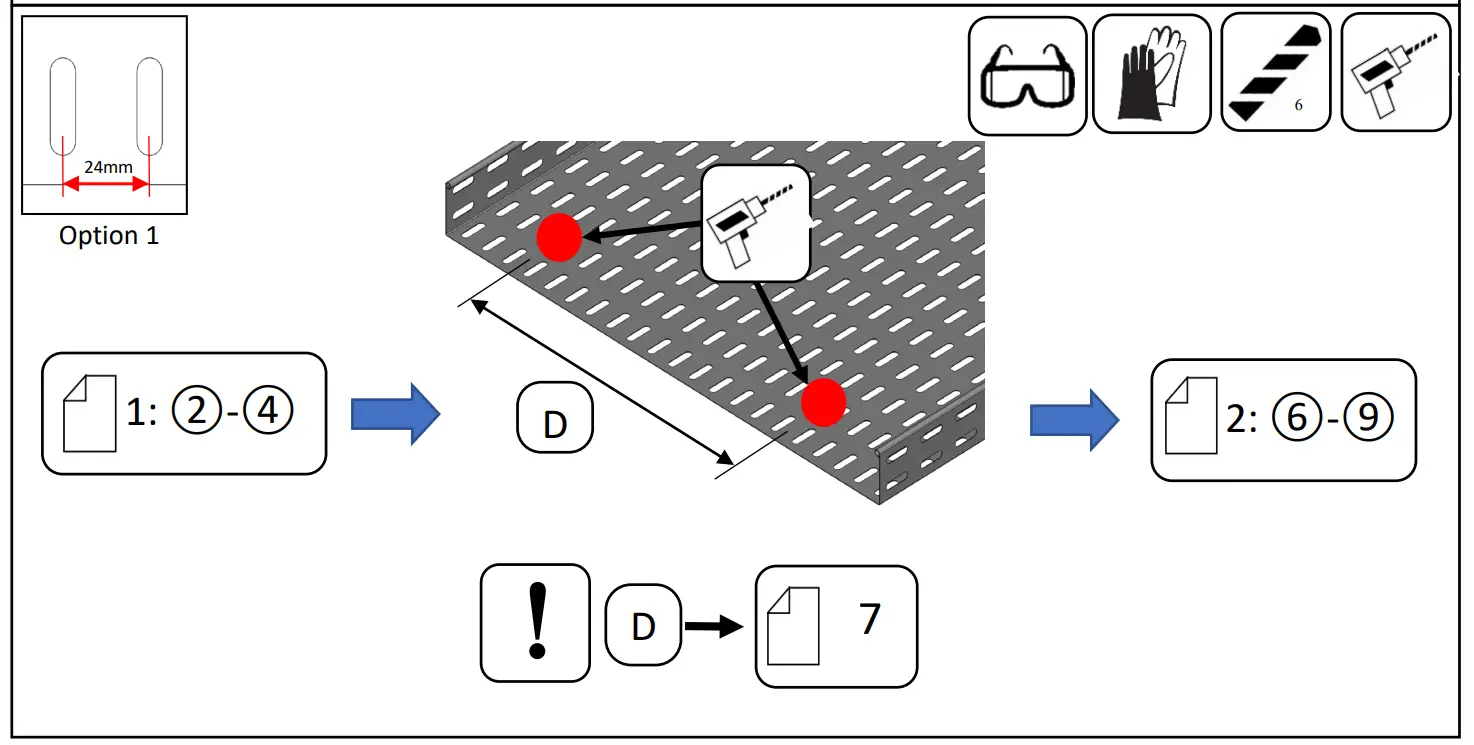

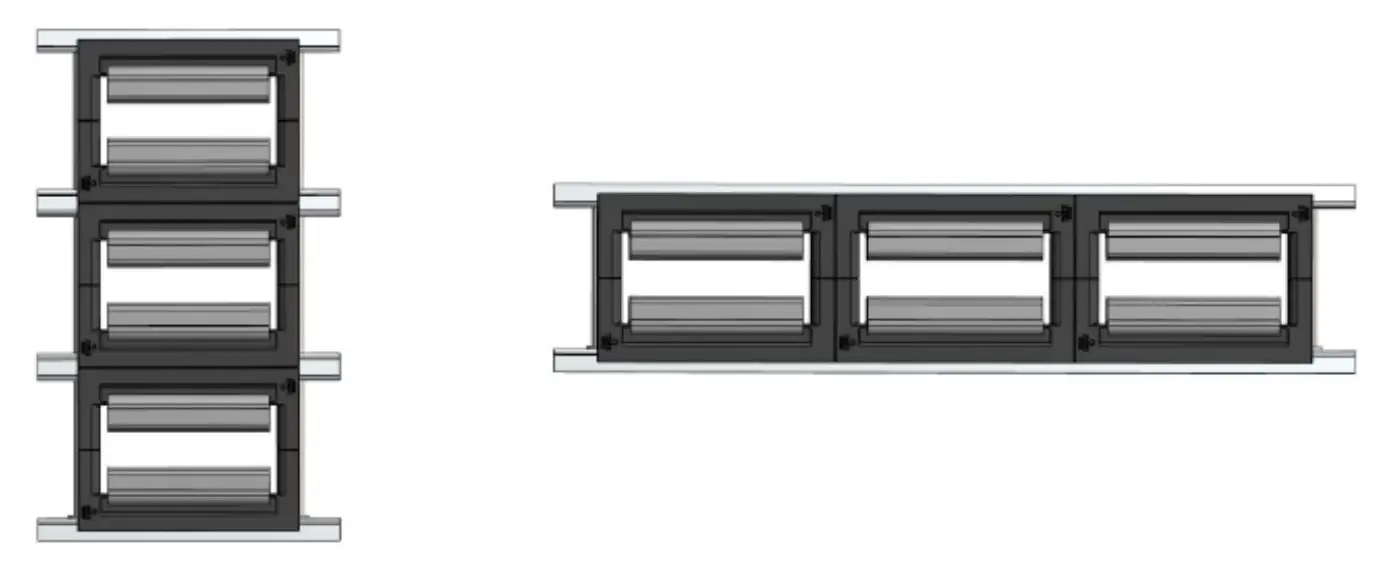

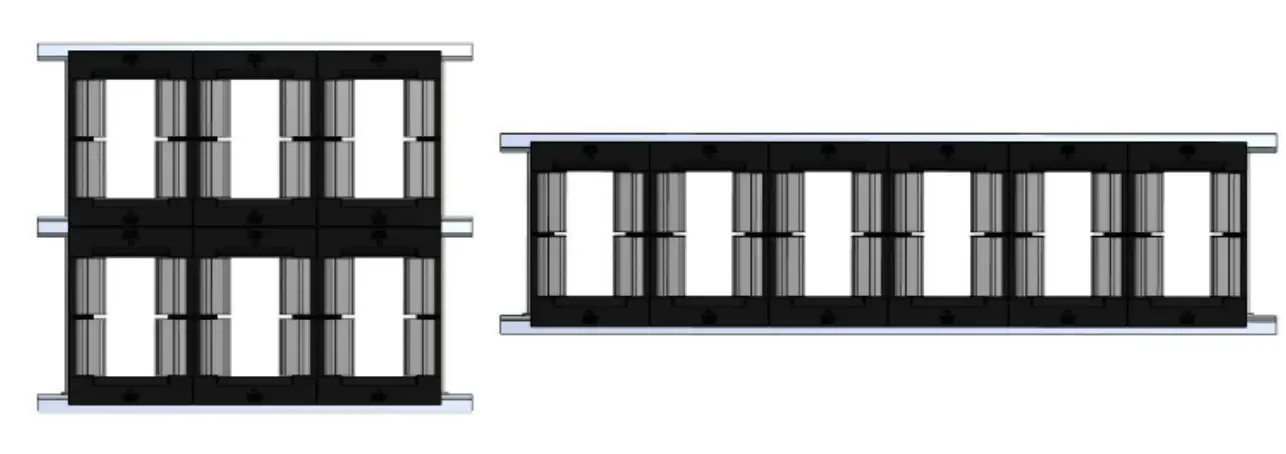

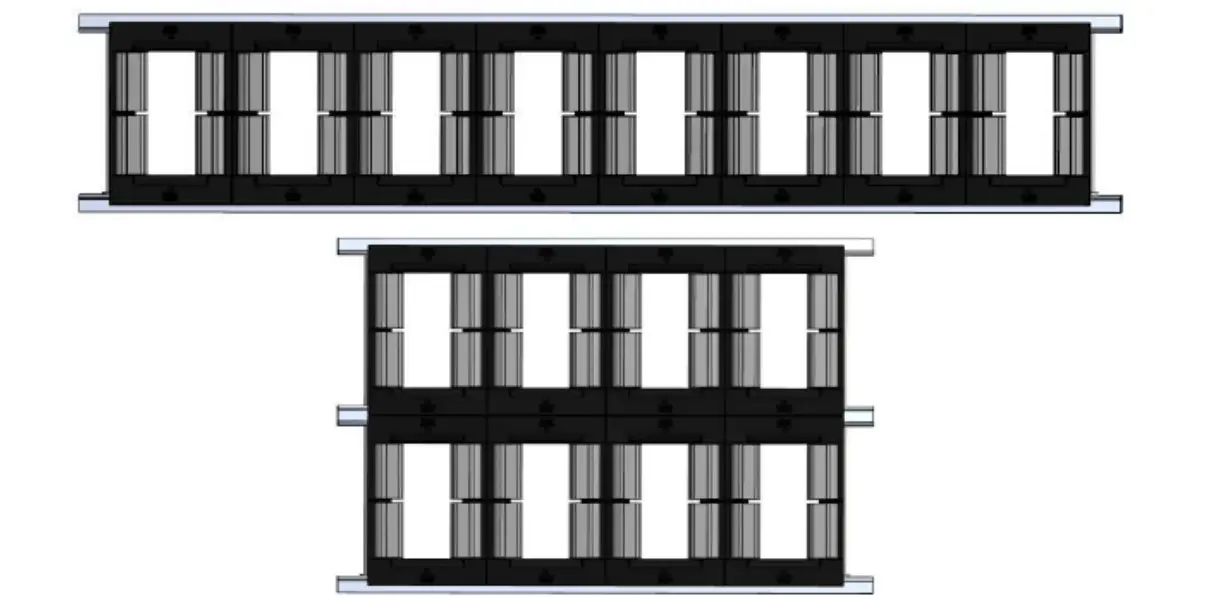

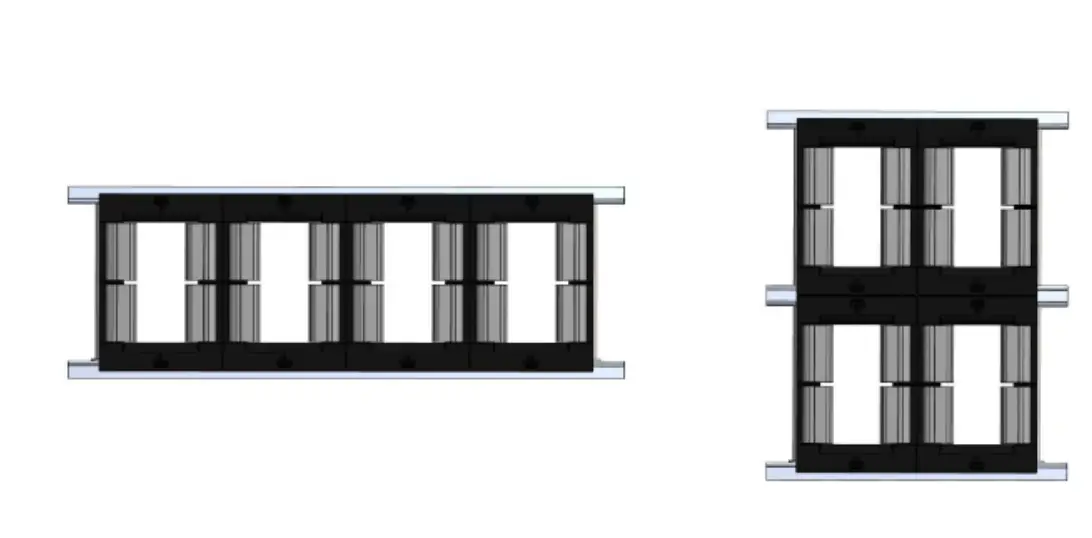

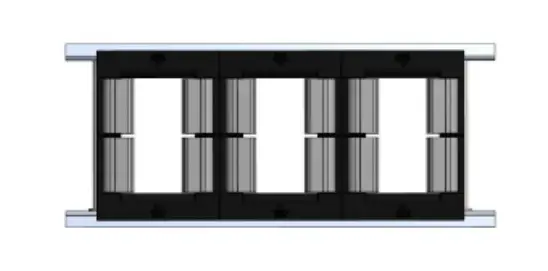

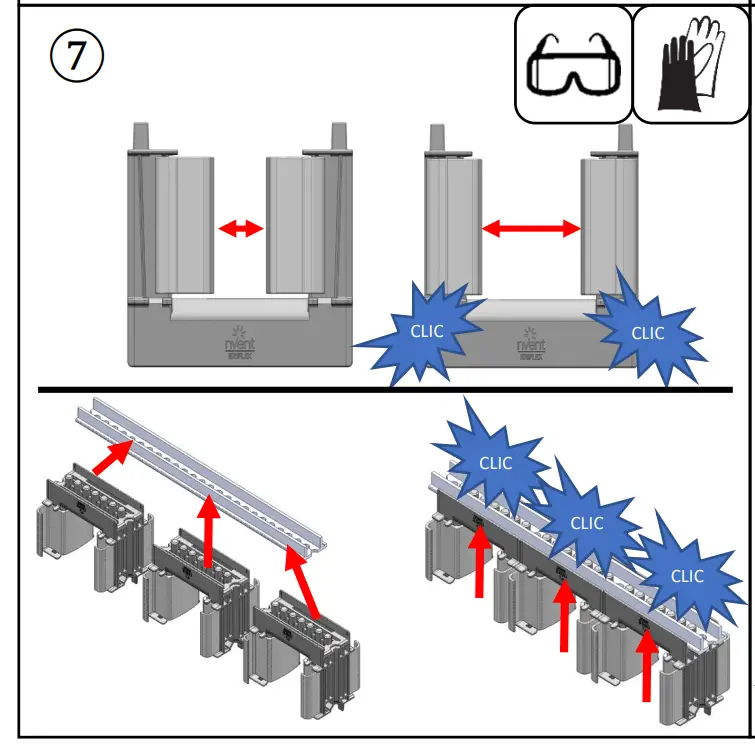

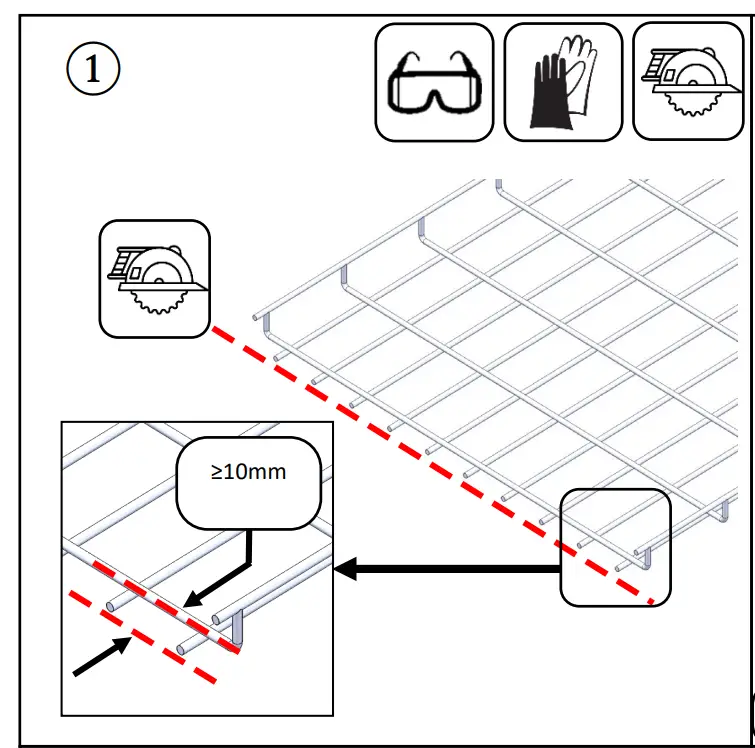

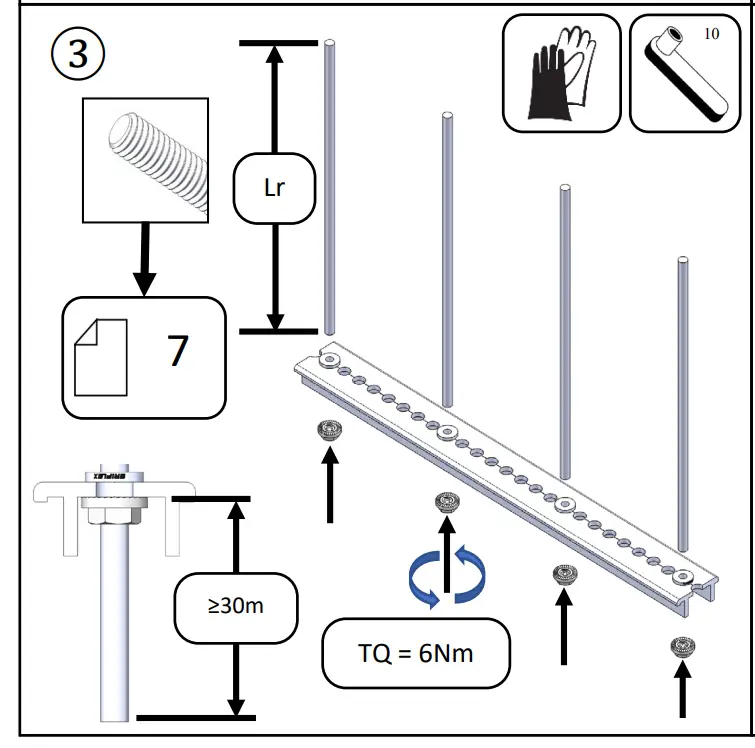

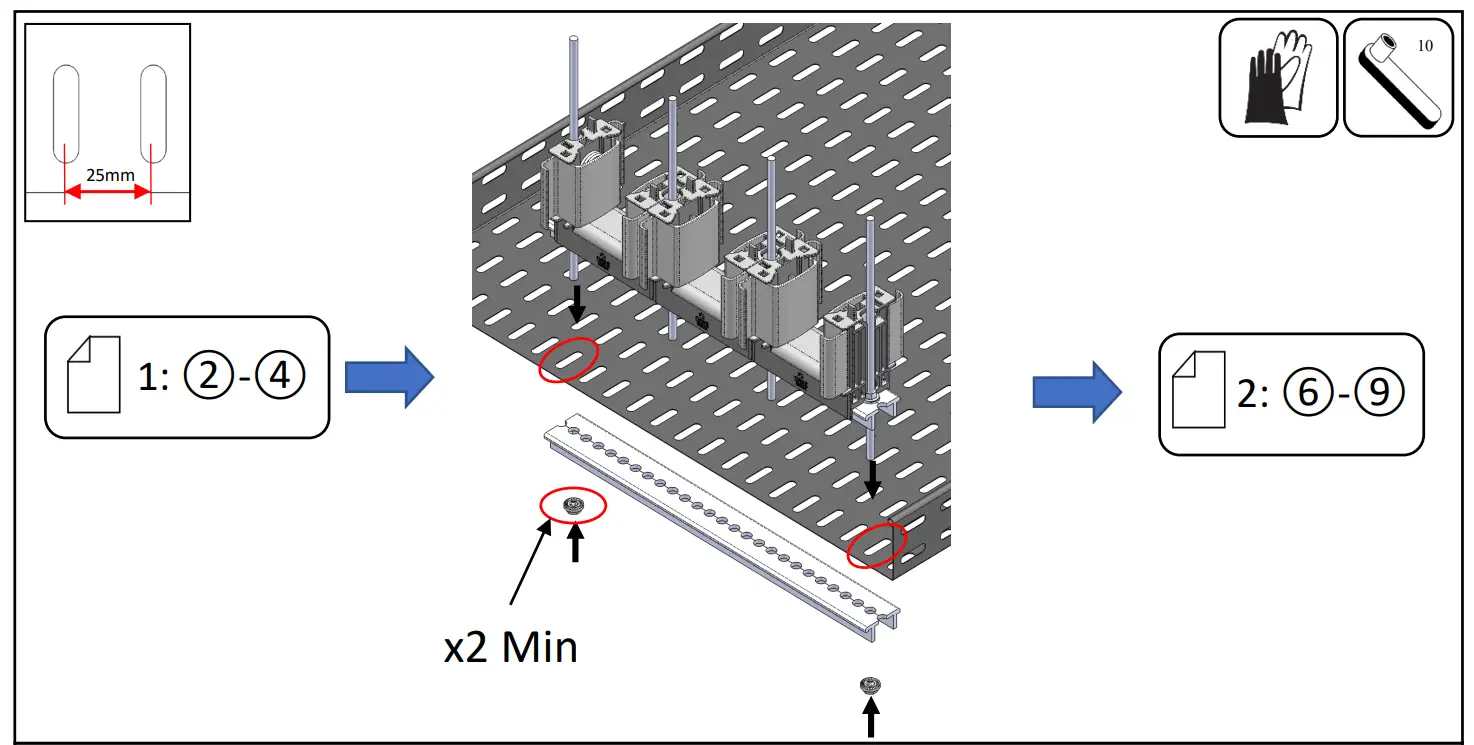

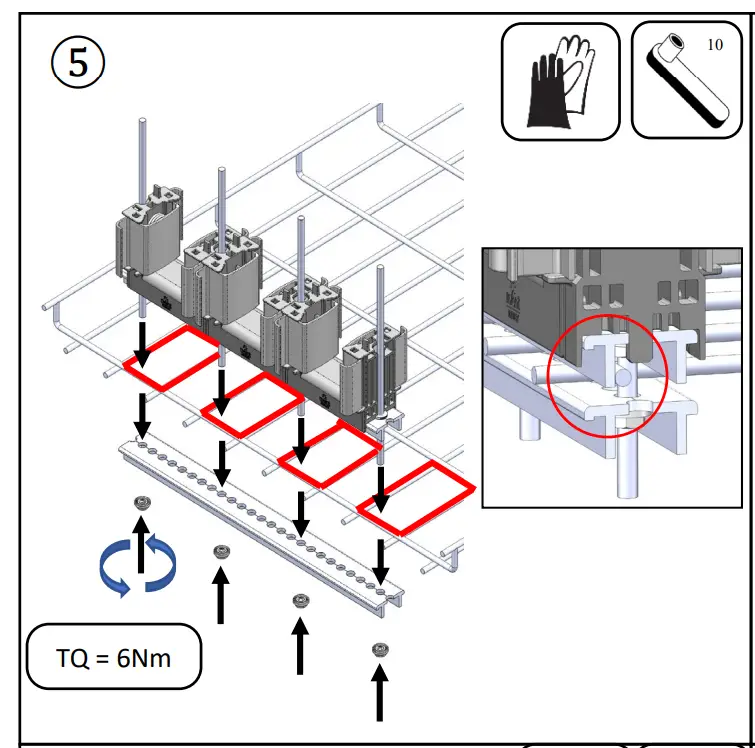

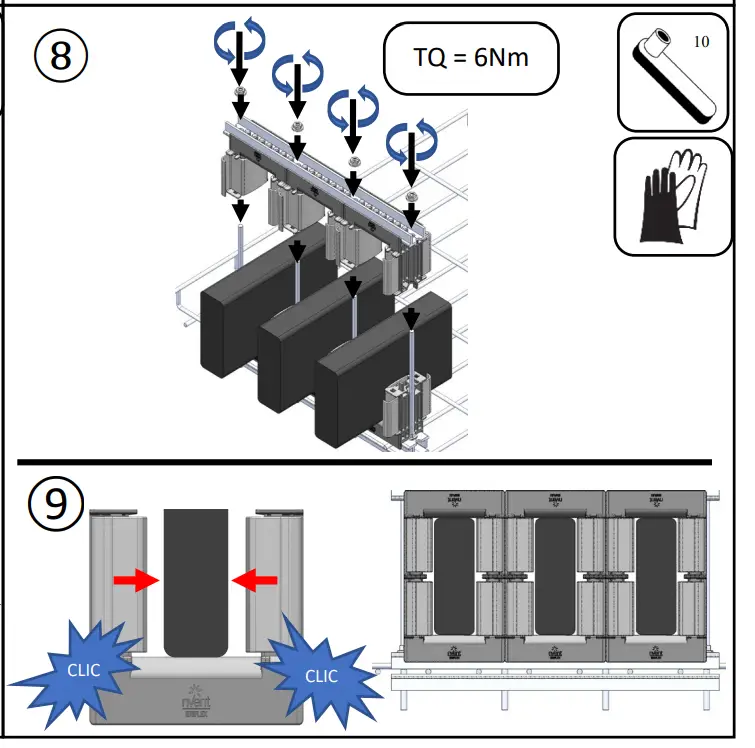

On Edge Support Kit

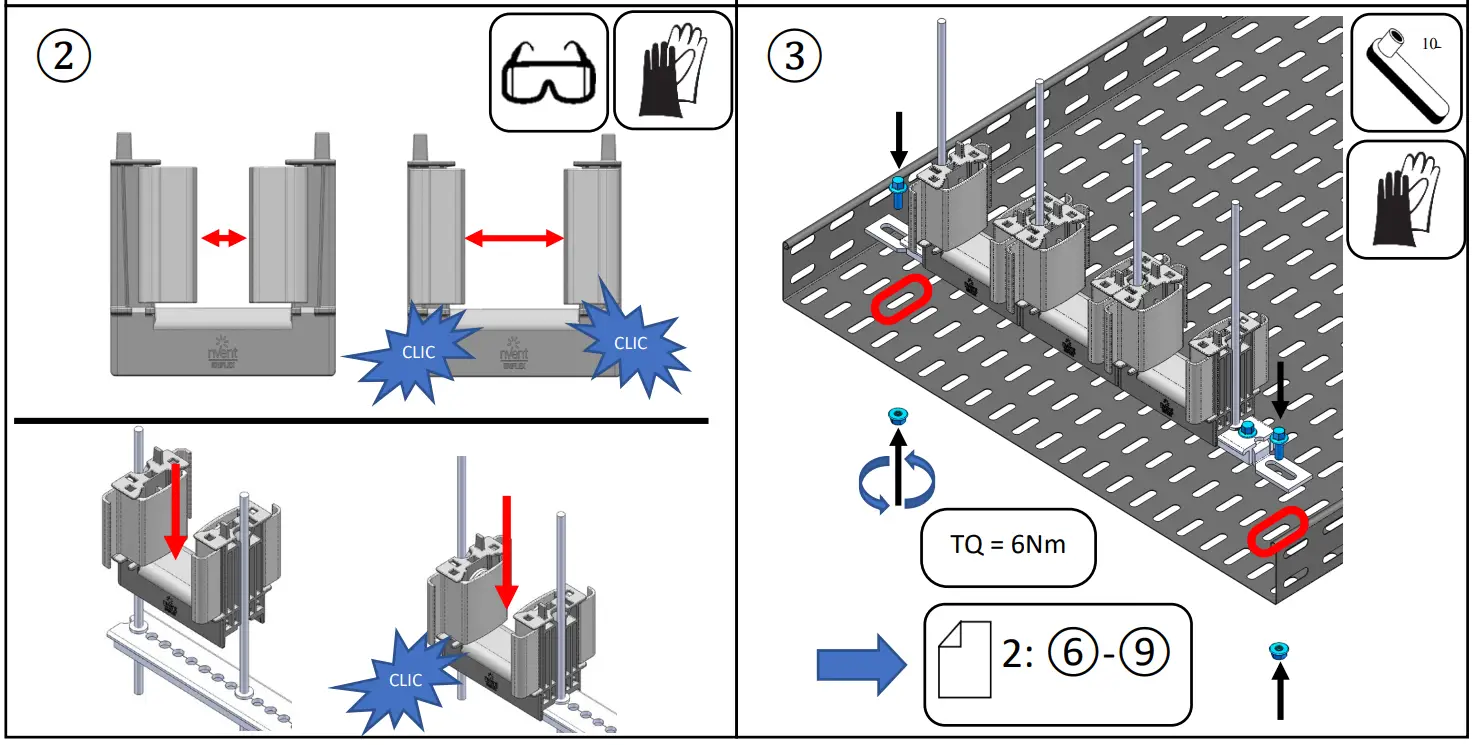

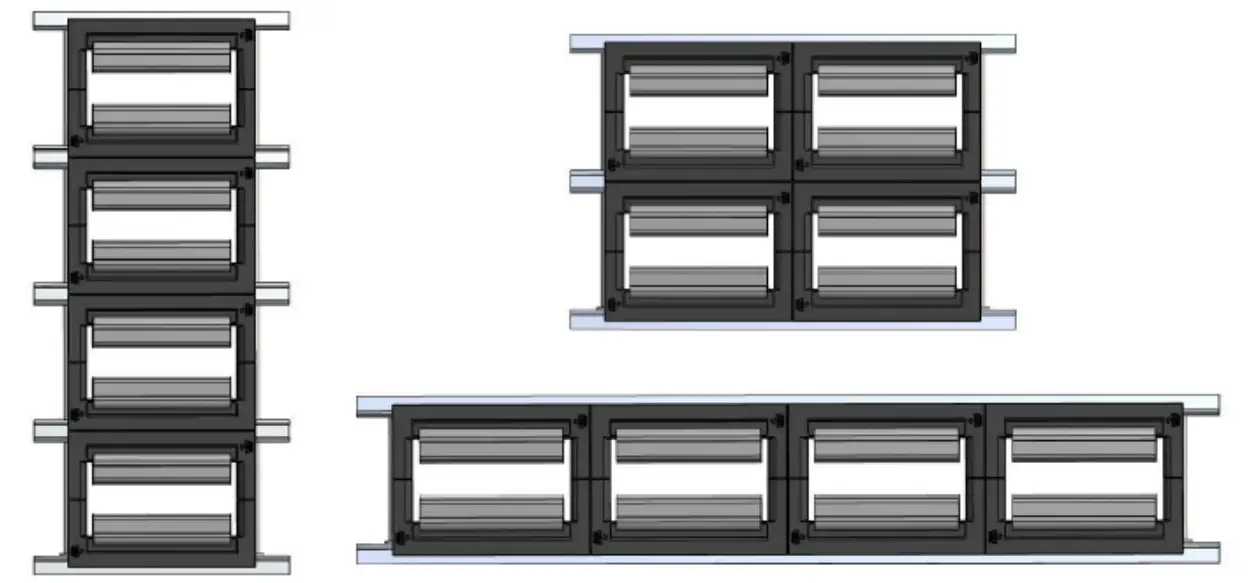

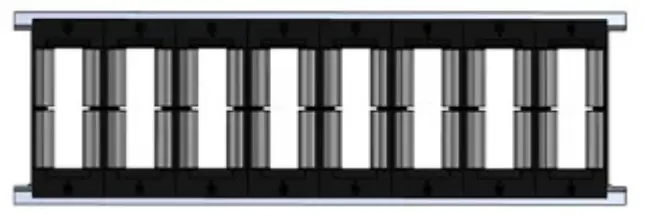

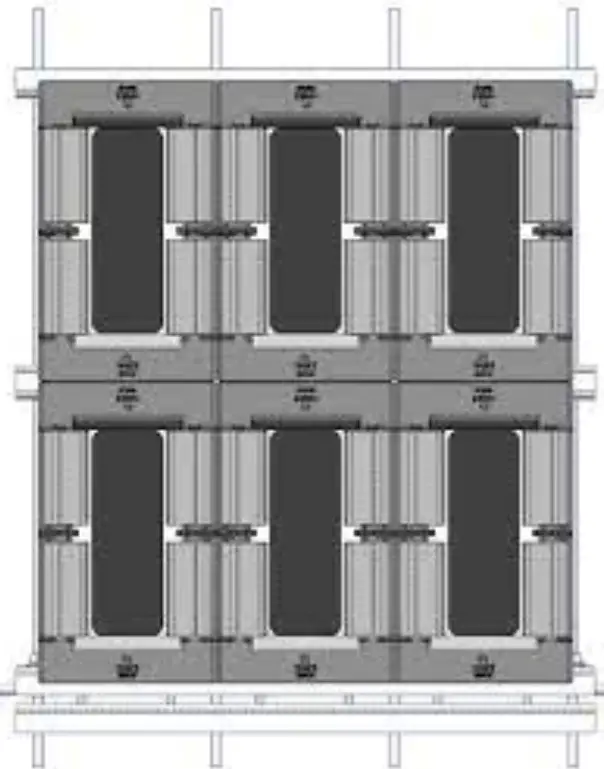

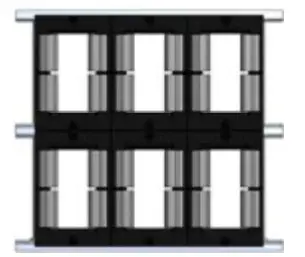

Configuration	1 Conductor per Phase	2 Conductors per Phase

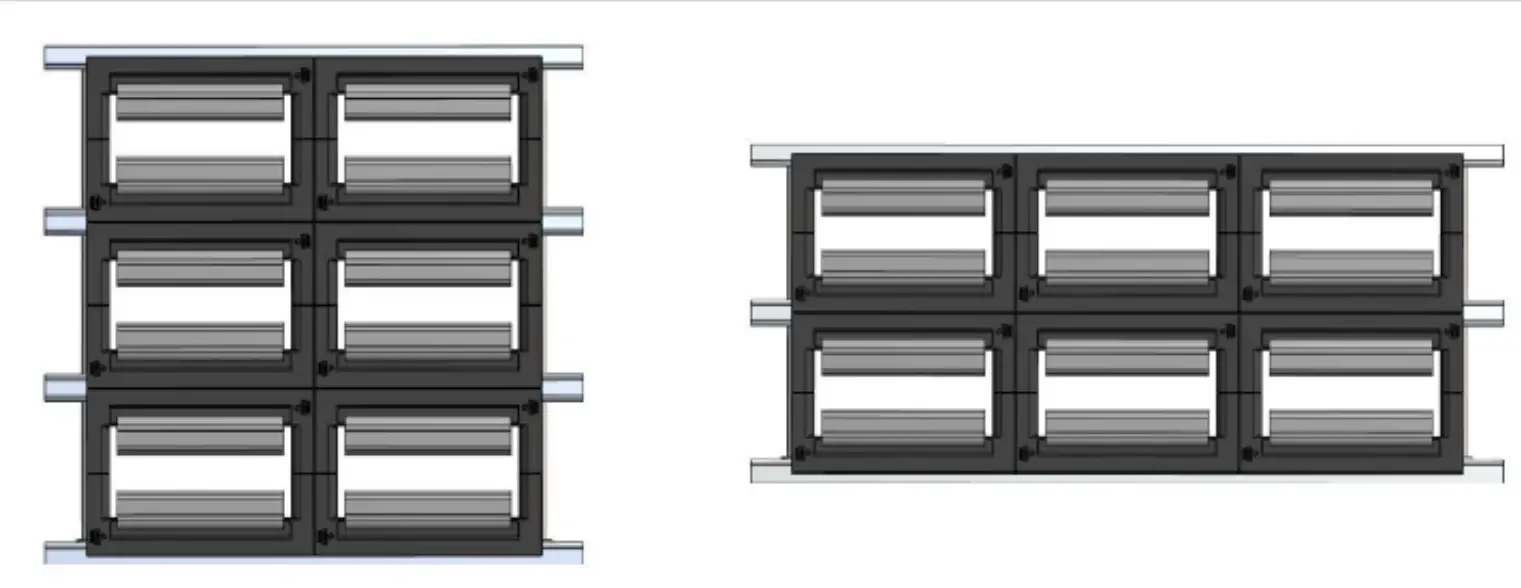

3P
3P+N

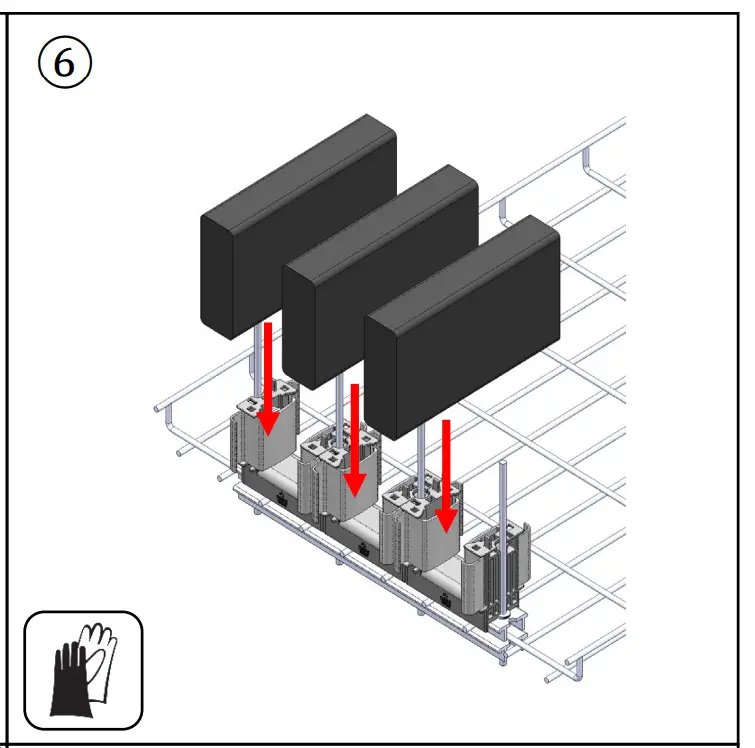

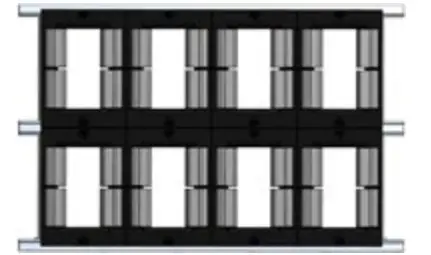

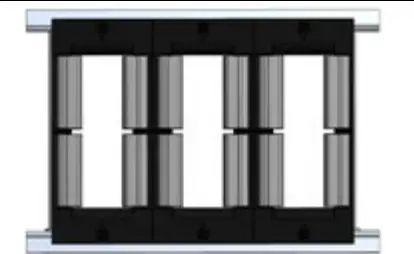

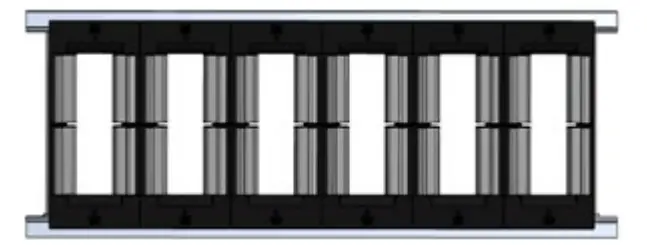

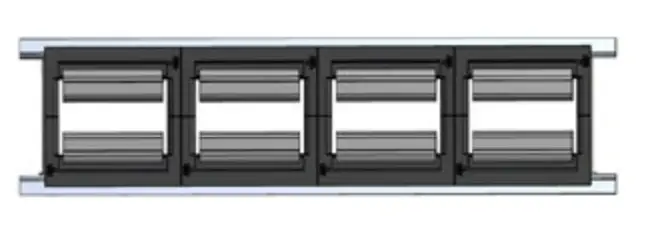

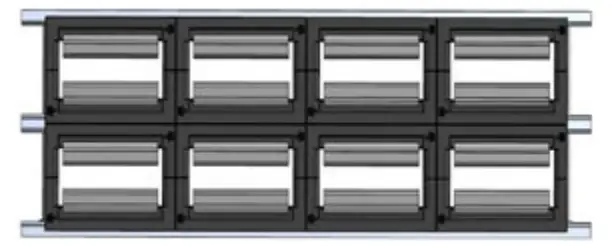

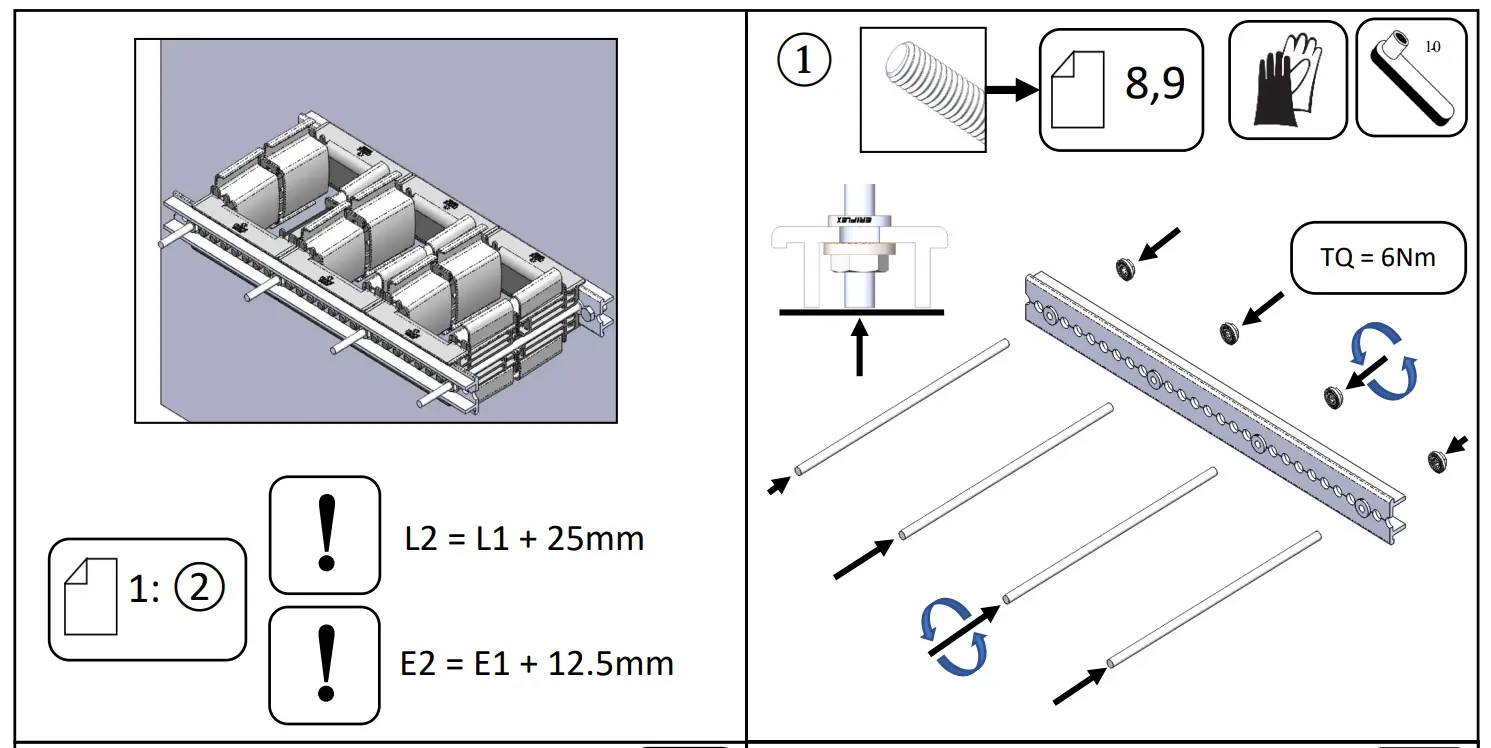

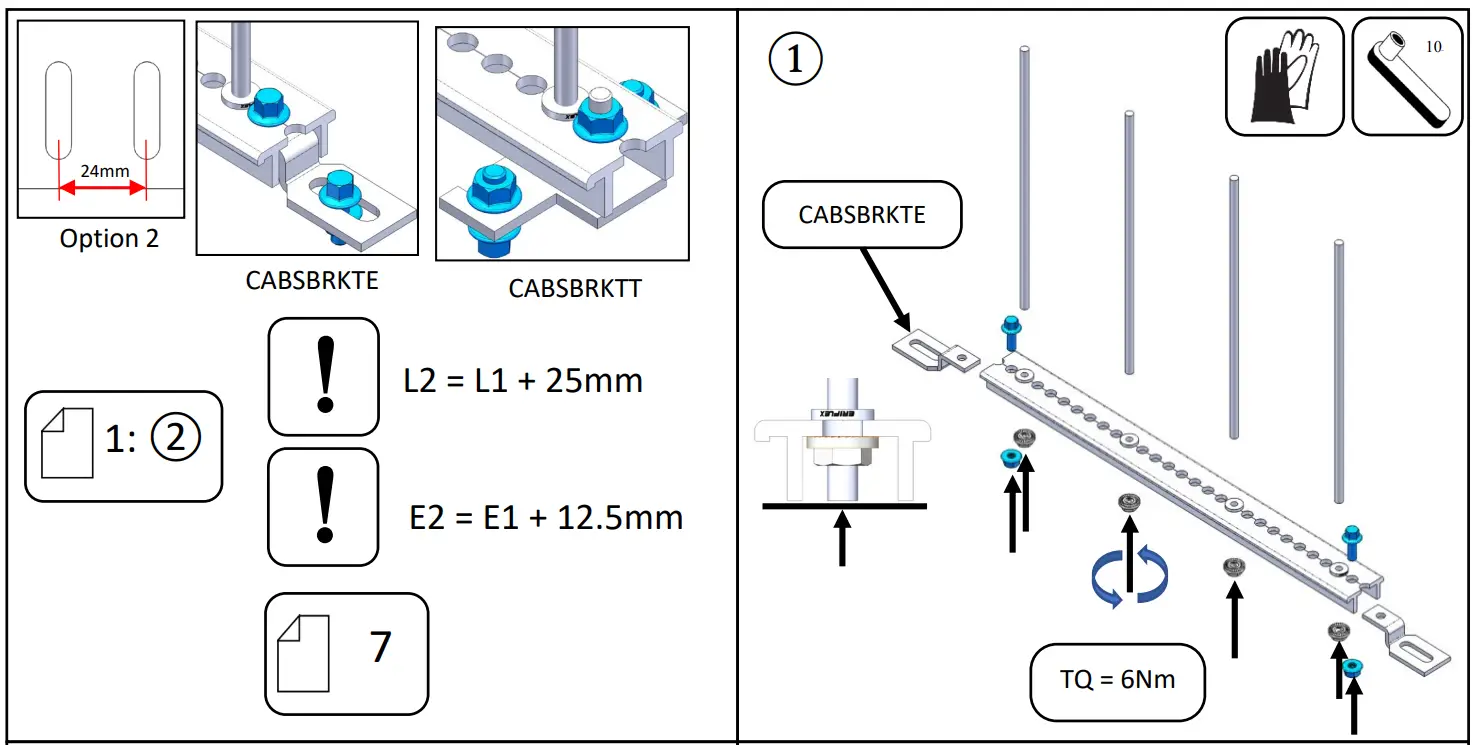

Flat Support Kit

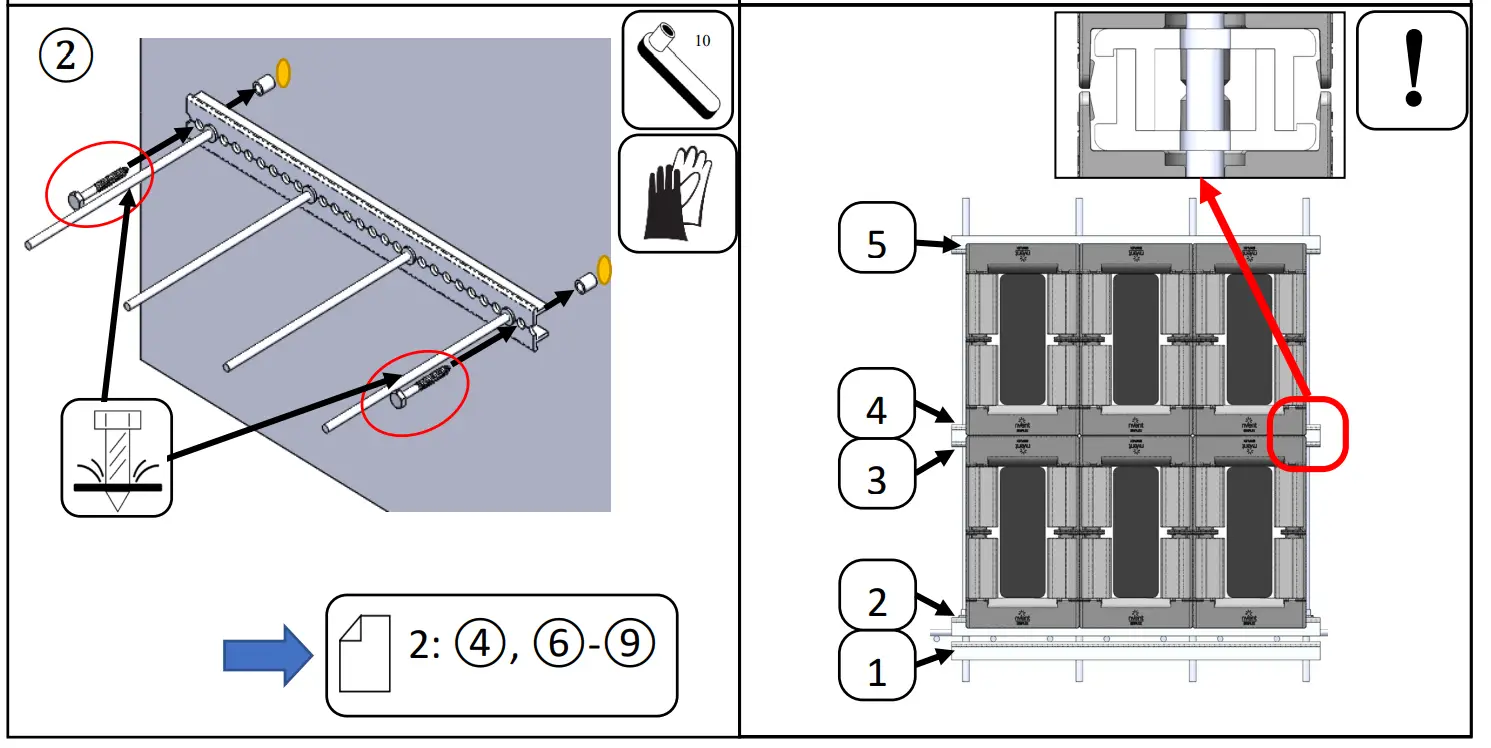

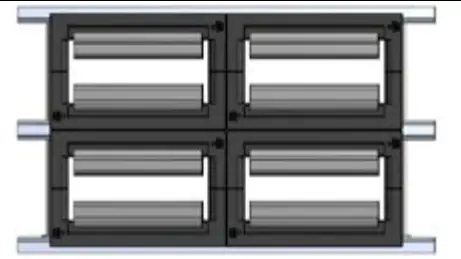

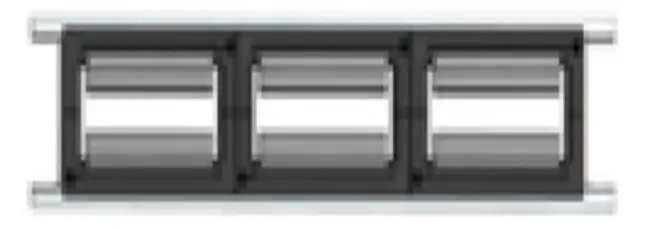

Configuration	1 Conductor per Phase	2 Conductors per Phase
3P

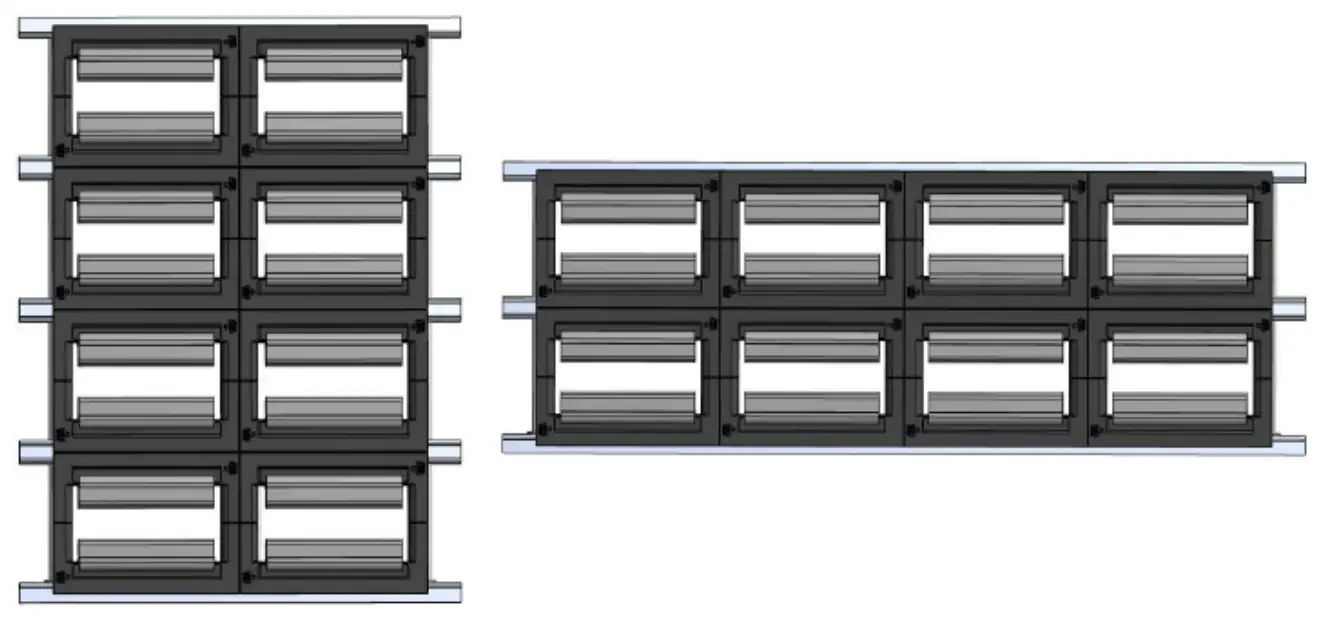

3P+N

CONFIGURATION		FLEXCOND50							FLEXCOND100
		L1	# L1	E1	S	Lr	# Lr	D	L1	# L1	E1	S	Lr	# Lr	D
3P (I)		287,5	3	12,5	87,5	150	4	262,5	325	3	12,5	100	186	4	300
		112,5	7	12,5	87,5	420	2	87,5	162,5	7	12,5	137,5	186	2	137,5
		287,5	3	12,5	87,5	150	4	262,5	437,5	3	12,5	137,5	290	4	412,5
3P (II)		550	3	12,5	87,5	150	7	525	625	3	12,5	100	186	7	600
		287,5	5	12,5	87,5	245	4	262,5	325	5	12,5	100	343	4	300
		200	7	12,5	87,5	420	3	175	300	7	12,5	137,5	420	3	275
		287,5	5	12,5	87,5	290	4	262,5	437,5	5	12,5	137,5	290	4	412,5
3P + N (I)		375	3	12,5	87,5	150	5	350	425	3	12,5	100	186	5	400
		200	5	12,5	87,5	245	3	175	225	5	12,5	100	343	3	200
		200	5	12,5	87,5	290	3	175	300	5	12,5	137,5	290	3	275
		112,5	9	12,5	87,5	550	2	87,5	162,5	9	12,5	137,5	550	2	137,5
		375	3	12,5	87,5	150	3	350	575	3	12,5	137,5	186	3	550
3P + N (II)		725	3	12,5	87,5	150	9	700	825	3	12,5	100	186	9	800
		375	5	12,5	87,5	245	5	350	425	5	12,5	100	343	5	400
		200	9	12,5	87,5	550	3	175	300	9	12,5	137,5	550	3	275
		375	5	12,5	87,5	290	5	350	575	5	12,5	137,5	290	5	550

WARNING

1.  nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at www.nVent.com and from your nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3.  All instructions must be completely followed to ensure proper and safe installation and performance.
4.  Improper installation, misuse, misapplication or other failure to completely follow nVent’s instructions and warnings may cause product malfunction, property damage, serious bodily injury and/or death, and void your warranty.

SAFETY INSTRUCTIONS: All governing codes and regulations and those required by the job site must be observed. Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.

nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are owned by nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without prior notice.

TECHNICAL SUPPORT:
www.nVent.com
