INSTALLATION INSTRUCTIONS FOR
PLMRWB65LEW/PLMRWB65LEB
PLMRWB85LEW/PLMRWB85LEB
Product Technical Parameters
| MARINE SPEAKER MODEL | PLMRWB65LEW/PLMRWB65LEB |
| – 2-Way Mini Box Speaker System | 6.5″ |
| – Long Excursion Woofer | |
| – 1.07itanium Dome Tweeter | |
| – Heavy Duty ABS Construction | |
| – Quick Connect Speaker Terminals | |
| – Max Power | 200 Watts |
| – Magnet | 10 Oz |
| – Frequency Response | 40Hz-20KHz |
| – Impedance | 4 Ohms |
| – Sensitivity | 90 dB |
| – Dimensions(mm) | 217x217x230 mm (HxWxD) |
| MARINE SPEAKER MODEL | PLMRWB85LEW/PLMRWB85LEB |
| – 2-Way Mini Box Speaker System | 8″ |
| – Long Excursion Woofer | |
| – 1.0″Titanium Dome Tweeter | |
| – Heavy Duty ABS Construction | |
| – Quick Connect Speaker Terminals | |
| – Max Power | 260 Watts |
| – Magnet | 20 Oz |
| – Frequency Response | 30Hz-20KHz |
| – Impedance | 4 Ohms |
| – Sensitivity | 91 dB |
| – Dimensions(mm) | 252x252x245 mm (HxWxD) |
Mounting:

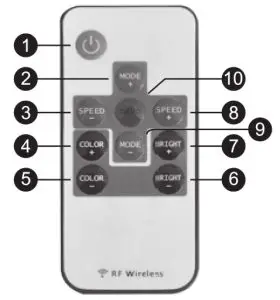

REMOTE CONTROL FEATURES
- Turn On / Standby: Press this key to turn on LEDs or switch to standby mode.
- / 9. Dynamic Mode button: Switch from dynamic mode to color mode or switch between dynamic modes.
- / 8. Dynamic Mode Speed button: Use these buttons to adjust dynamic mode speed If the unit is in static mode, pressing these buttons will switch the unit to dynamic mode.
- / 5. Static Color Adjust button: Use this button to switch between static colors. Pressing these keys while in dynamic mode will switch the unit to static mode.
- / 7. Brightness Adjust button: Pressing these buttons will adjust brightness whihle in static mode. If these buttons are pressed while the unit is in dynamic mode, it will switch to static mode.
10. Demo Mode button: this button will switch the unit into demo mode. While in demo mode, unit will loop through 9 of the dynamic modes with each repeating 3 times.
- Please remember to remove the plastic insulator from the remote unit battery compartment.
- This remote uses a 3-volt CR2025 type battery. When replacing be sure to use only the same type of battery
- The remote signal can pass through most obstacles.
- Do not Install units in areas surrounded by metal as the remote signal will not reach the unit.
For more detailed information visit us at: PyleAudio.com
1600-63rd Street Brooklyn, NY 11204 USA
