LOW-PROFILE MARINE SPEAKER SYSTEM
USER MANUAL
| Model: PLMRS4W – PLMRS4B 4″ -inch Speaker Pairs |
| Model: PLMRS43WL – PLMRS43BL 4″ -inch Speaker Pairs with Built-in LED Lights |
| Model: PLMRS5W – PLMRS5B 5.25” -inch Speaker Pairs |
| Model: PLMRS53WL – PLMRS53BL 5.25” -inch Speaker Pairs with Built-in LED Lights |
| Model: PLMRS6W – PLMRS6B 6.5” -inch Speaker Pairs |
| Model: PLMRS63WL – PLMRS63BL 6.5” -inch Speaker Pairs with Built-in LED Lights |
These speakers were designed and manufactured for your installation needs and have been thoroughly tested to ensure consistent and reliable performance.
For further information, installation assistance or product troubleshooting visit us on PyleUSA.com
Speakers & Options:
| Model Number | Speaker Size | Max Output Power | LED Light Bulb | Cut-Out Diameter | Mounting Depth |
| PLMRS4W | 4″ | 100 Watt | 3.7″ | 0.9″ | |
| PLMRS4B | 4″ | 100 Watt | 3.7″ | 0.9″ | |
| PLMRS43WL | 4″ | 100 Watt | Blue Illumination | 3.7″ | 0.9″ |
| PLMRS43BL | 4″ | 100 Watt | Blue Illumination | 3.7″ | 0.9″ |
| PLMRS5W | 5.25″ | 180 Watt | 4.7″ | 0.9″ | |
| PLMRS5B | 5.25″ | 180 Watt | 4.7″ | 0.9″ | |
| PLMRS53WL | 5.25″ | 180 Watt | Blue Illumination | 4.7″ | 0.9″ |
| PLMRS53BL | 5.25″ | 180 Watt | Blue Illumination | 4.7″ | 0.9″ |
| PLMRS6W | 6.5″ | 240 Watt | 5.3″ | 0.92″ | |
| PLMRS6B | 6.5″ | 240 Watt | 5.3″ | 0.92″ | |
| PLMRS63WL | 6.5″ | 240 Watt | Blue Illumination | 5.3″ | 0.92″ |
| PLMRS63BL | 6.5″ | 240 Watt | Blue Illumination | 5.3″ | 0.92″ |
| Model Number | Total Speaker Diameter | Total Speaker Depth | Magnet | Frequency Response | Speaker Weight |
| PLMRS4W | 5.2″ -inches | 1.5″ -inches | 3.4 Oz | 90Hz-18khz | 0.66 lbs.(Each) |
| PLMRS4B | 5.2″ -inches | 1.5″ -inches | 3.4 Oz | 90Hz-18khz | 0.66 Ibs.(Each) |
| PLMRS43WL | 5.2″ -inches | 1.5″ -inches | 3.4 Oz | 90Hz-18khz | 0.66 Ibs.(Each) |
| PLMRS43BL | 5.2″ -inches | 1.5″ -inches | 3.4 Oz | 90Hz-18khz | 0.66 Ibs.(Each) |
| PLMRS5W | 6.4″ – inches | 1.6″ – inches | 5.4 Oz | 80Hz-18khz | 0.88 Ibs.(Each) |
| PLMRS5B | 6.4″ – inches | 1.6″ – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53WL | 6.4″ – inches | 1.6″ – inches | 5.4 Oz | 80Hz-18khz | 0.88 lbs.(Each) |
| PLMRS53BL | 6.4″ – inches | 1.6″ – inches | 5.4 Oz | 80Hz-18khz | 0.88 Ibs.(Each) |
| PLMRS6W | 7.3″ – inches | 1.6″ – inches | 5.4 Oz | 60Hz-18khz | 0.95 Ibs.(Each) |
| PLMRS6B | 7.3″ – inches | 1.6″ – inches | 5.4 Oz | 60Hz-18khz | 0.95 Ibs.(Each) |
| PLMRS63WL | 7.3″ – inches | 1.6″ – inches | 5.4 Oz | 60Hz-18khz | 0.95 Ibs.(Each) |
| PLMRS63BL | 7.3″ – inches | 1.6″ – inches | 5.4 Oz | 60Hz-18khz | 0.95 lbs.(Each) |
Features:
- Includes (2) Component Speakers
- Waterproof & Weather-Resistant Design
- Rugged Marine Grade Construction
- Low-Profle Slim Style Speaker Housing
- 2-Way Full Range Stereo Sound Reproduction
- Molded ABS Machined Basket and Grill
- Universal Standard OEM Replacement Size
- For Boat, Marine Watercraft & Of-Road Vehicles
What’s in the Box:
- (2) Marine Speakers
- (2) Speaker Connection Wires, 9.8’ ft.
Technical Specs:
- Voice Coil Type: Aluminum
- Construction Material: Engineered ABS
- Impedance: 4 Ohm

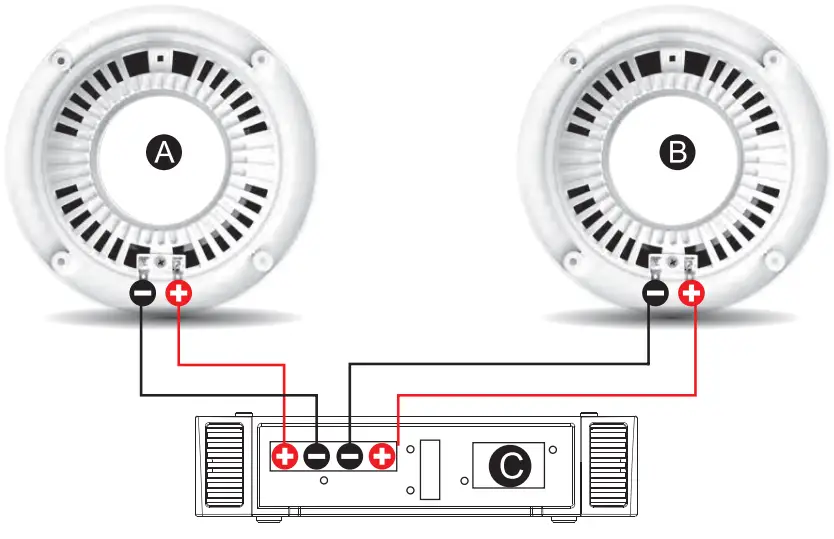

Speaker Wiring
Models: PLMRS4W – PLMRS4B
PLMRS5W – PLMRS5B
PLMRS6W – PLMRS6B
Speaker Pairs
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’

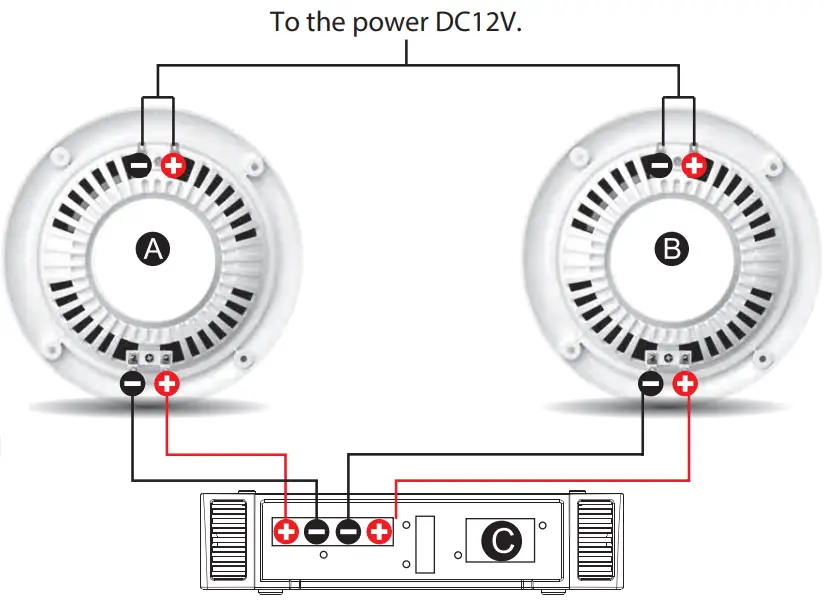

Models: PLMRS43WL – PLMRS43BL
PLMRS53WL – PLMRS53BL
PLMRS63WL – PLMRS63BL
Speaker Pairs Built-in LED Lights
- Connect the red and black cables to their respective positive and negative terminals.
- Speakers ‘A’ and ‘B’ connect to an amplifier source ‘C’
VISIT US ONLINE:
Have a question?
Need service or repair?
Want to leave a comment?
PyIeUSA.com/ContactUs
