Xantrex Lithium-ion Batteries
Important Safety Information
READ AND SAVE THESE INSTRUCTIONS
Electrical equipment shall be installed, operated, serviced, and maintained only by qualified personnel. Certain configuration tasks shall only be performed by qualified personnel in consultation with your local utility and/or an authorized dealer. Servicing of batteries and the BMS shall only be performed or supervised by qualified personnel with knowledge of lithium-ion batteries and their required precautions. Qualified personnel have training, knowledge, and experience in:
- Installing electrical equipment
- Applying applicable installation codes
- Analyzing and reducing the hazards involved in performing electrical work
- Installing and configuring lithium-ion batteries
- Selecting and using PersonalProtective Equipment (PPE)
An example of an arc flash event could be a direct short circuit caused by a metallic object such as a tool bridging between the positive and negative of an energized circuit.
No responsibility is assumed byXantrex LLC for any consequences arising out
of the use of this material.
 |
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, BURN, OR ARC FLASH
Failure to follow these instructions will result in death or serious injury. |
|
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, BURN, OR ARC FLASH
Failure to follow these instructions will result in death or serious injury. |
|
HAZARD OF FIRE, ELECTRICSHOCK, EXPLOSION, AND PERSONAL INJURY
Failure to follow these instructions can result in death or serious injury. |
WARNINGNOTICE |
RISK OF EQUIPMENT DAMAGE
Failure to follow these instructions can result in damage to equipment and may void the warranty |
IMPORTANT |
| ON FIRSTUSE: Perform a full charge, discharge, and charge cycle to ensure maximum battery life. For information, see Battery Storage Guide on the reverse side of this document. |
Introduction
The Xantrex Lithium-ion Batteries are lithium iron phosphate (LiFePO4) chemistry batteries used in conjunction with the internal Battery Management System (BMS) unit which protects the batteries and monitors state-of-charge (SoC), voltage, current, and temperature.
|
| At the end of the battery’s useful life, proper disposal is required. Do not dispose the battery with ordinary household waste. Refer to your local codes for proper disposal of lithium-ion batteries. |
Installation
- Check the battery and the battery cable (if included) for visible damage including cracks, dents, chips, and deformations.
- Select a location for the battery that is stable, clean, cool, dry, and well ventilated.

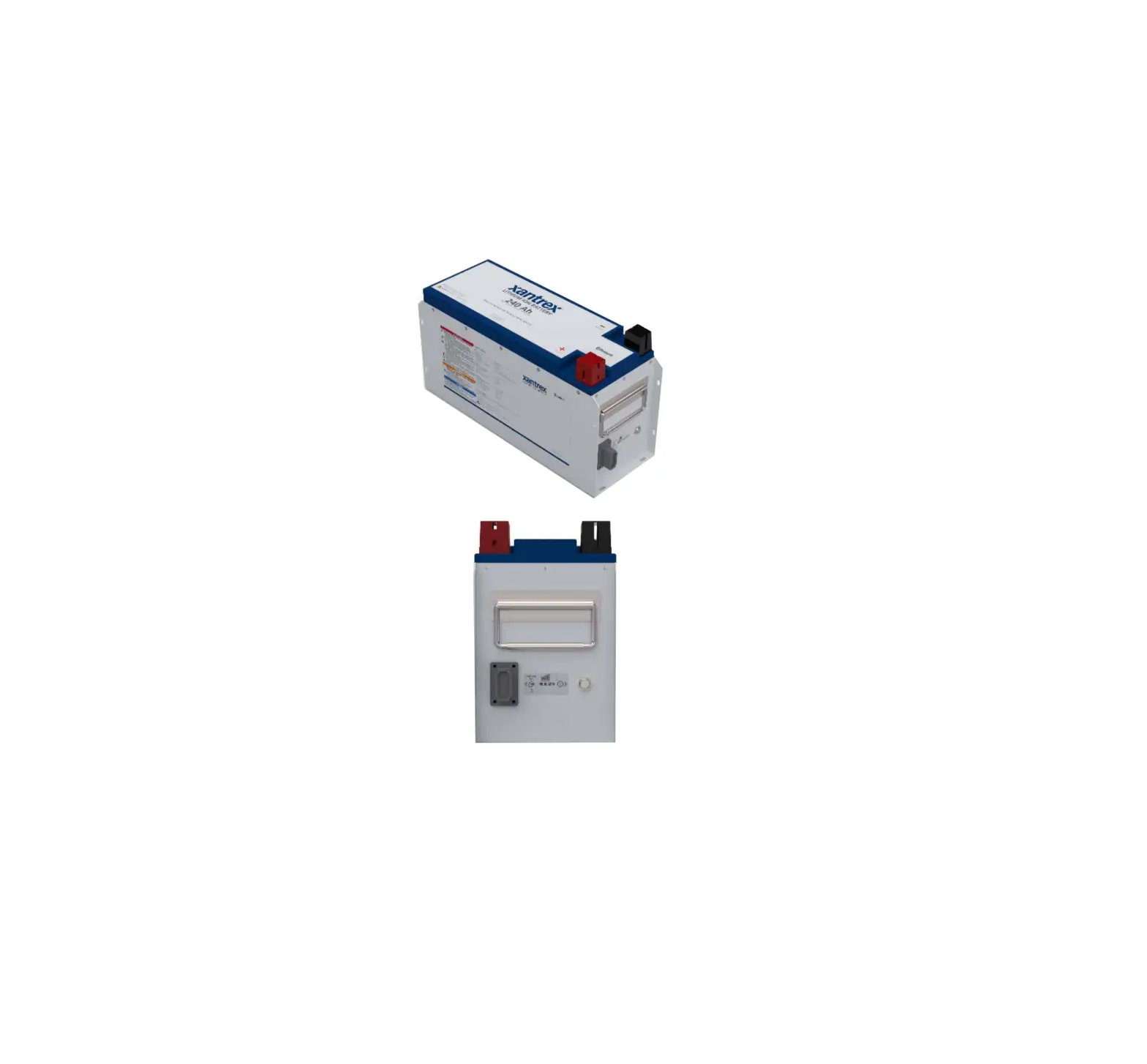

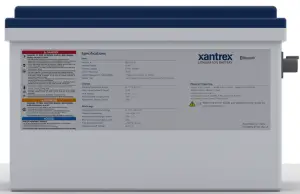

- Mount the battery in upright (terminals pointing up) or sideways (terminals pointing to one side) position with safety labels still visible and away from heat sources.

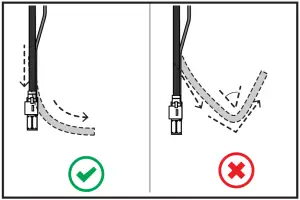

- Orient the devices so that the cables avoid sharp bends. Follow the bending radius recommendation below. This applies to both the communication and battery cables.
Optional: Connect the 4-pin connector cable and route the remote panel connectors as required.
NOTE: Installation and maintenance shall only be performed by qualified personnel as defined in Important Safety Information above. Contact Xantrex for information resources.
Specifications
NOTE: Specifications are subject to change without prior notice.
Feature | 883-0105-12 | 883-0125-12 |
| Nominal Capacity | 105Ah | 125Ah |
| Nominal Voltage | 12.8V | 12.8V |
| Charging Voltage (max) | 14.6V | 14.6V |
| Float Voltage | 13.4V | 13.4V |
| Low Battery Cutoff Voltage | 10.0V | 10.0V |
| Recommended Charge Current | 50A | 62.5A |
| Max Charge Current (continuous) | 100A | 125A |
| Recommended Discharge Current | 50A | 62.5A |
| Max Discharge Current (continuous) | 100A | 125A |
| Max Pulse Discharge Current | 200A (3 sec) | 200A (3 sec) |
| Internal Impedance | 3-4mΩ | 3-4mΩ |
| Weight | 26.5lbs (12Kg) | 28lbs (12.7Kg) |
| Charging Temperature | 32 – 131 °F (0 – 55 °C) | |
| Discharging Temperature | -4 – 131 °F (-20 – 55 °C) | |
| L x W x H | 10.24 x 6.6 x 8.23 in (260 x 168 x 209 mm) | 13.1 x 6.8 x 8.7 in (332 x 172 x 220 mm) |
| Cycle Life at 25C to 80% Capacity | 2800 (0.5C, 100% DOD) | 2500 (0.5C, 80% DOD) |
Battery Storage and Maintenance Guidelines
In order to keep your Xantrex Lithium-ion Batteries at peak performance and at its healthiest state, you have to store it according to proper storage conditions and also maintain it with proper care.
Storage can be short term, such as less than one month or long term, such as more than three months.
Storage Specifications
Table 1 For batteries with 880-prefix Product numbers
| Term | Temperature | Humidity | Self-discharge Rate | Duration |
| < one month | –4 to 95°F (–20 to 35°C) | 45 to 75%RH | ≤3% per month | Short |
| < three months | 14 to 86°F (–10 to 30°C) | 45 to 75%RH | ≤3% per month | Short |
| > three months* | 59 to 95°F (15 to 35°C) | 45 to 75%RH | ≤3% per month | Long |
* the approximate voltage should be:
13.2V for a 12V battery,
26.4V for a 24V battery,
52.8V for a 51V battery,
(~50%SoC) and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge-dischargerecharge to 50% SoC cycle every six months (see C. Storage and Maintenance Instructions for Long Durations).
Table 2 For batteries with 883-prefix Product numbers
| Term | Temperature | Humidity | Self-discharge Rate | Duration |
| < one week | –4 to 113°F ( –20 to 45°C) | < 85%RH | ≤3% per month | Short |
| < one month | 14 to 113°F (–10 to 45°C) | < 85%RH | ≤3% per month | Short |
| < six months | 50 to 77°F (10 to 25°C) | < 85%RH | ≤3% per month | Short |
| > six months* | 50 to 77°F ( 10 to 25°C) | < 85%RH | ≤3% per month | Long |
* For long term duration storage the battery should be kept in a particular charged state such as, 13.2V, ~50% SoC, and stored at the recommended storage specifications shown above.
Storage Instructions for Short Durations
- Fully charge the battery.
- Turn off the battery using the ON/OFF button.
- Keep the battery in an environment according to A. Storage Specifications.
Storage and Maintenance Instructions for Long Durations
- Reduce the battery state-of-charge (SoC) to 50% ±10% which is approximately,
• 13.2V for a 12V battery,
• 26.4V for a 24V battery,
• 52.8V for a 51V battery. - Turn off the battery using the ON/OFF button.
- Keep the battery in an environment according to A. Storage Specifications.
- Every six months maintain the battery by charging it to 100% SoC, then discharging the battery to low voltage cutoff (LVC) level, then charging it back to 50% ±10% SoC.
NOTICE |
| RISK OF BATTERY DAMAGE Do not charge the battery in ambient temperature below freezing. Failure to follow these instructions can result in damage to the battery and may void the warranty. |
Battery System Maintenance
The Xantrex Lithium-ion Batteries system is designed to require the least amount of maintenance as possible. The Xantrex Lithium-ion Batteries and internal Xantrex BMS are contained in a sealed device and do not require disassembly for maintenance reasons.
In general, to properly maintain the battery, follow the storage guidelines in the previous sections.
If the Xantrex Lithium-ion Batteries are in regular use, then it is recommended that the Xantrex Lithium-ion Batteries be fully charged a minimum of once per two weeks in order for the Xantrex BMS to recalibrate its State of Charge (SoC) setting. This process also ensures that the SoC meter maintains its accuracy.
|
| HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH This Battery Storage Guide is in addition to, and incorporates by reference, the relevant product manuals for each product in the power system. After reviewing this guide you must read the relevant product manuals. Unless specified, information on safety, specifications, installation, and operation is as shown in the primary documentation received with the product. Ensure you are familiar with that information before proceeding. Failure to follow these instructions will result in death or serious injury. |
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; (B) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND (C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION, THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION WHICH IS POSTED AT http://WWW.XANTREX.COM
NOTE: Visit http://www.xantrex.com , click Products, select a Product category, select a Product, and search the Product Documents panel for a translation of the English guide, if available.
Contact Information
Telephone: +1-800-670-0707 / +1-408-987-6030
Email: [email protected],
http://www.xantrex.com/power-products-support/
Web: http://www.xantrex.com
