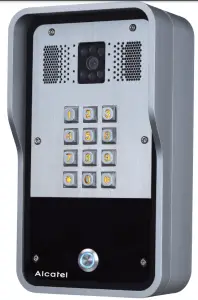

Alcatel Sd602 Heavy Duty Video Access Control User Guide

S D602

Quick guide

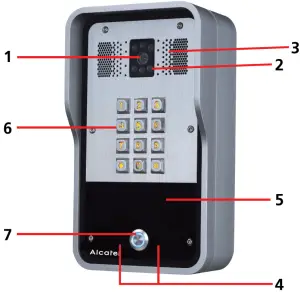

Description

Visual indicators

	Status	Description
Lock		Door unlocking
		Door locked
Call Status		Talking state
		On look
		Ringing or call hold
		Card using state
Network & SIP Regist		SIP Registration succeeded
		The network is normal, SIP not registered
		Network error
Ring		Ringing
		on hook

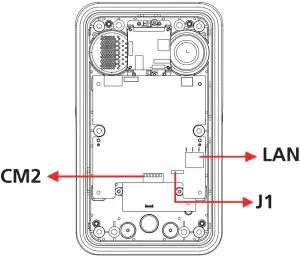

Port Definition

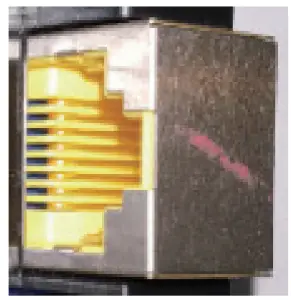

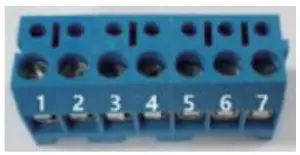

LAN: Network ConnectorCM2: Power and lock connector

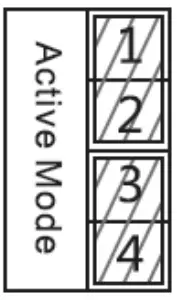

Jumper

Lock: Electric lock type
Fail-safe: power OFF unlocked – power ON locked
Fail secure: power OFF locked – power ON unlocked

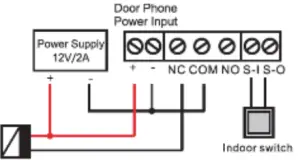

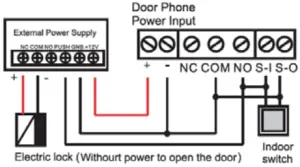

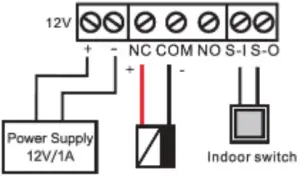

Wiring instructions

MODE		LOOK		J1	CM2
Active	Passive	fall save	Fall secure
√		√
√			√
	√	√
	√		√
	√	√

2-Wall mounting
@ Checklist

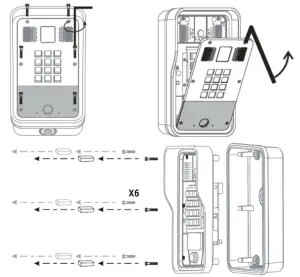

DrillingRemove back pannel

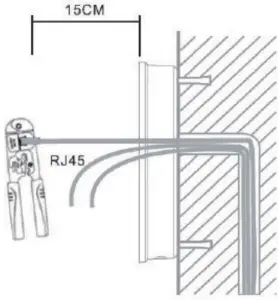

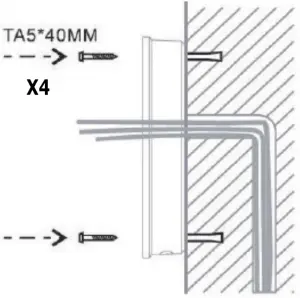

Hanging the wall mount bracket and cabling Line connection

Note: Before dosing the unit verify connections are functional: press the # button for 3 seconds to get a voice announcement of the device’s IP  address.Input access password or press the indoor switch to check electric-lock installation

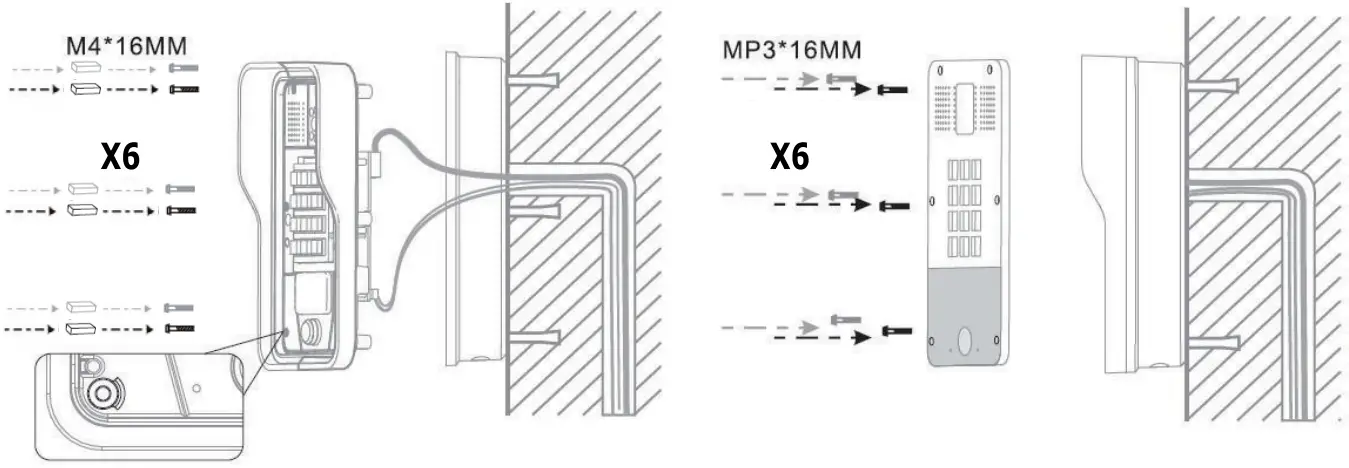

Mounting

1. To set up your system you will need to find out the IP address of your CD602. Press and hold the “#” key for 3 seconds: a voice announcement will read out your CD602 IP address.
2. Open a web browser on our computer. Enter HTTP:// and the IP address in the address bar
3. Default login and password: admin/admin for an administrator.
Note: your system uses DHCP by default to acquire an IP address. If you wish to switch to fixed IP (default address 192.168.1.128), press and hold the DSS Key for 10 seconds until you hear a beep. Then press the
DSS key 3 times. After 1 0secs the IP address acquisition mode will have changed.

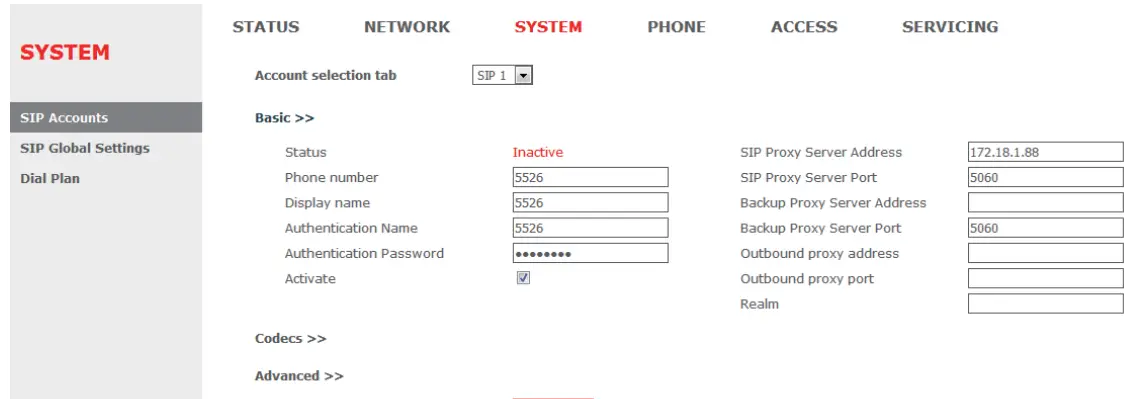

4- SIP Door Phone Setting

Go to SYSTEM» SIP Accounts. Configure at least SIP proxy address and port, phone number, and authentication name and password. Select “Activate”, and click “Apply” to save.

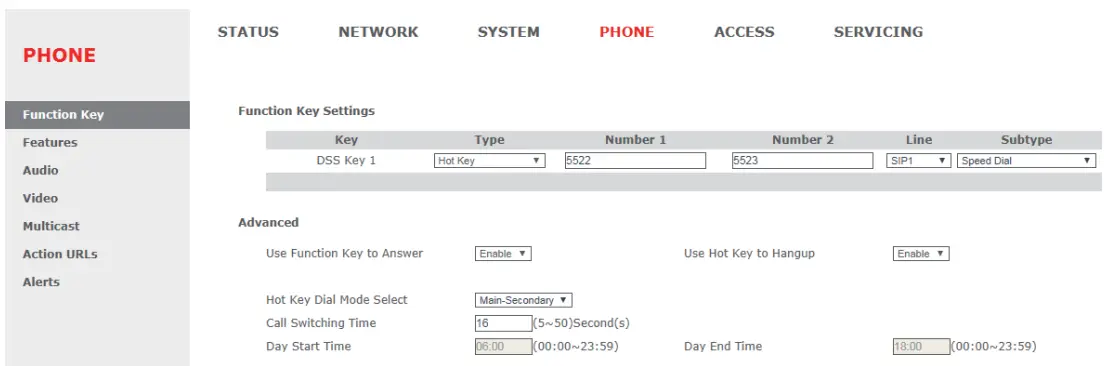

Setting DSS key

Go to PHONE» Function Key. For a quick start, set the DSS key as Quick Dial (see figure above), with your desired destination numbers.

5-Access Control Setting Options

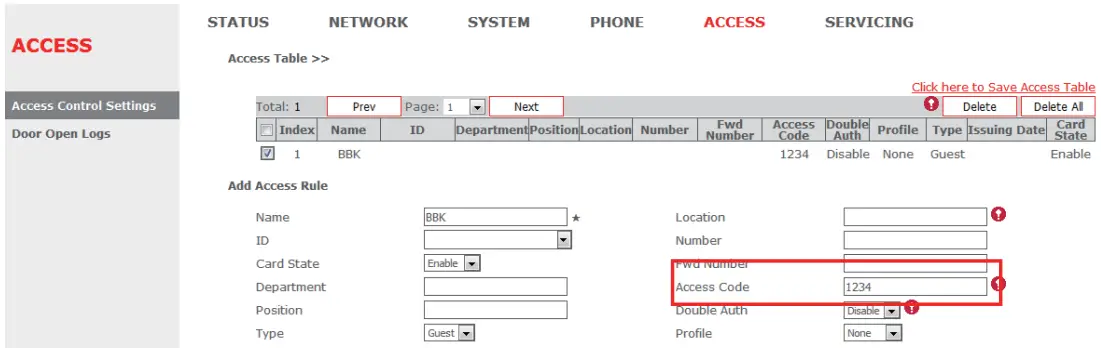

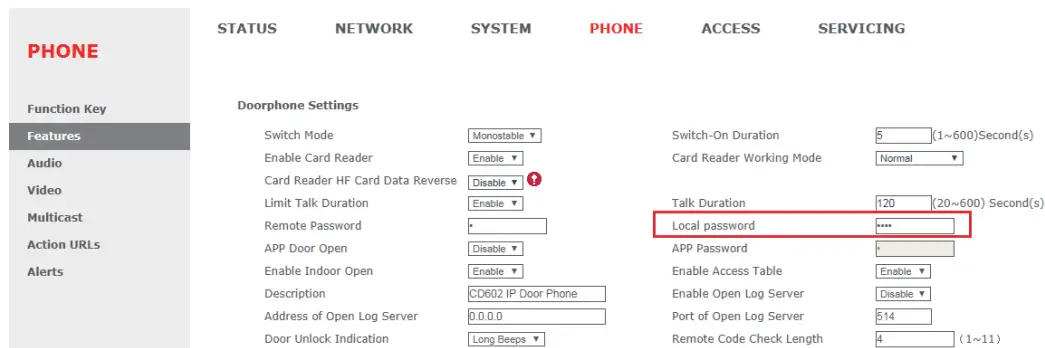

Private access code

Go to ACCESS>>Access Control Settings>>Add Access Rule. Enter private Access Code and press Add. To open the door, input this access code and press the # key on the door phone numeric keypad.

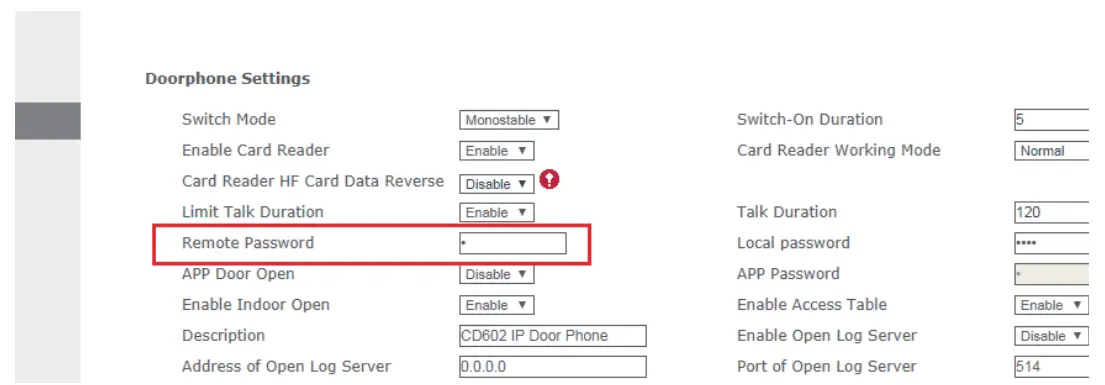

Remote password

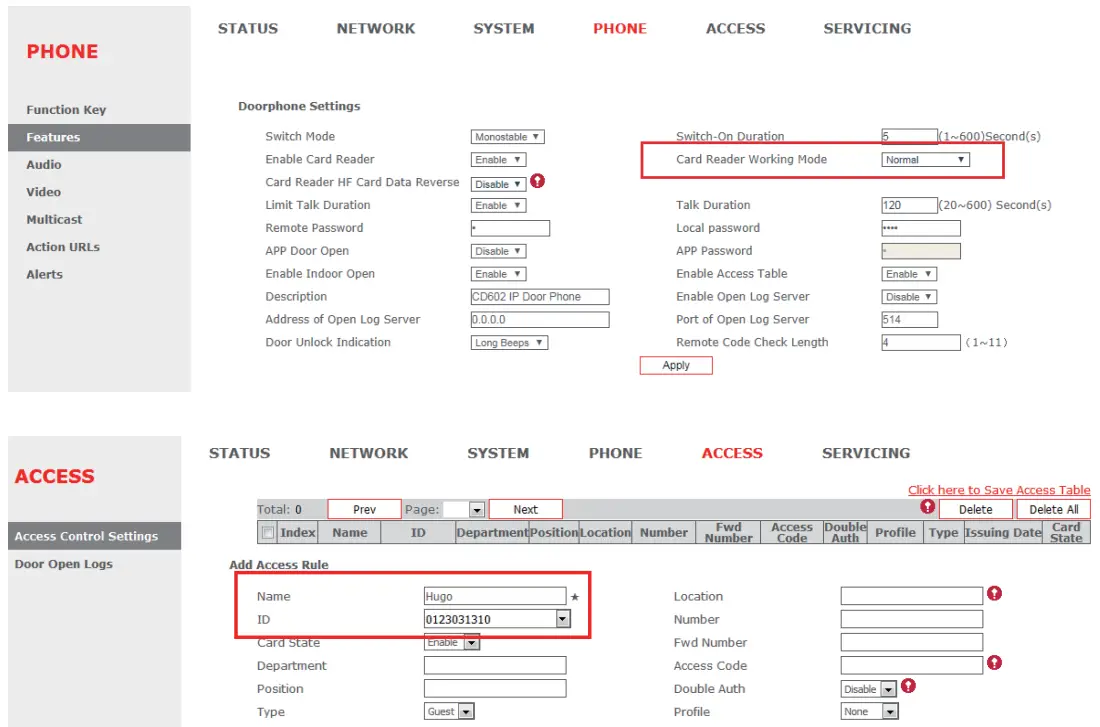

RFID Card1. Go to PHONE>>Features>>Doorphone Settings >> Card Reader Working Mode>>Set to Card issuing state.
2. Register one or more RFID cards by approaching them to the CD602 card reader area. The phone will beep after each successful registration.
3. Add an access rule for each card through ACCESS>>Access Control Settings>>Add Access Rule>>Add a Name and select your Card ID from the drop-down list. Then press Add
To open the door approach an authorized card to the CD602’s RFID reader area.
Note: remember to return your CD602 Card Reader Working Mode to a Normal state after you have issued the cards.
Declaration of conformity for the European Community

The CE logo shown on the products indicates that they are compliant with the basic requirements of all the applicable directives. You can download the declaration of conformity from the following address: www.swissvoice.net

EnvironmentEnglish: This symbol means that your inoperative electronic appliance must be collected separately and not mixed with the household waste. Help us to protect the environment in which we live!
(a)- If you are a professional user, please follow your supplier’s instructions.
(b)- If the appliance is rented to you or left in your care, please contact your service provider.
Please help us protect the environment in which we live!

Customer care

For quick assistance, please refer to the user guide. Our Swissvoice reseller will be happy to help with any further questions related to your Swissvoice terminal.
Notice of copyright and trademarks
Copyright ©2018 Atlinks Europe. All rights reserved. Atlinks Europe reserves the right to change the technical specifications of its products without prior notice, so as to make technical improvements or respect new regulations. Alcatel is a trademark of Nokia used under license by Atlinks.
