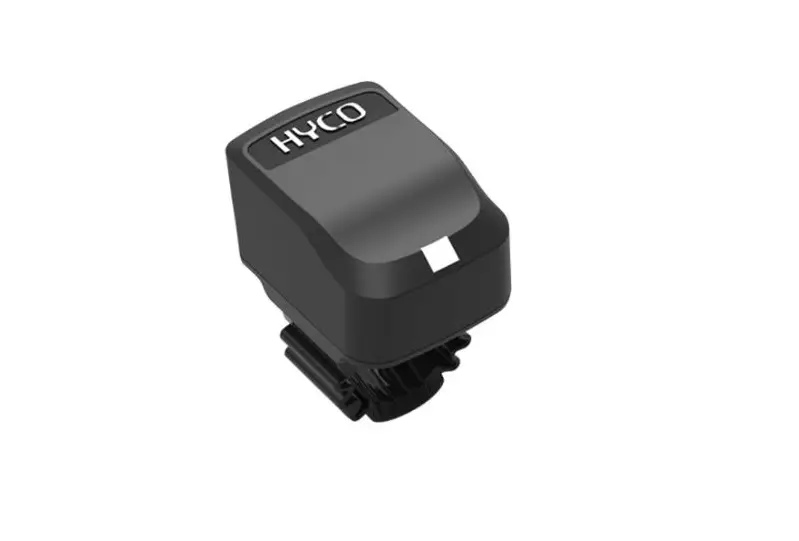

Hyco W79 2d Ring Scanner User Manual

Hyco W79 2d Ring Scanner User Manual

HYCO logo

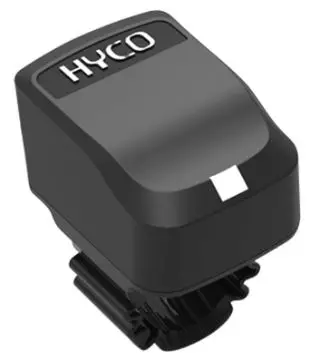

HYCO W79 2D Ring Scanner

HYCO W79 2D Ring Scanner

Features

  • Barcodes and 20 barcodes scanning
  • Extremely small & light: only 20g weight brings comfortable wearing experience
  • World’s leading ultra-low power consumption technology
  • Industrial Grade: IP66
  • Drop Test: 3m
  • Stabilized Bluetooth communication

Benefits

  • Hands-free and efficient
  • Ultra-low power consumption and eco-friendly
  • small, light and comfortable to wear
  • Full-angle scan and high-speed decoding

Specifications

Model                           W79
ScannerHYCO CMOS-Sensor Scanner
Resolution1280×800 pixcels
Code ReadingBarcodes/2D codes
Scanning DistanceLong, general or macro type
Weight20g (without strap)
Dimensions (W D*H)38.6mm*29.0mm*22.1mm
Ring Straps1O pcs in different sizes
BluetoothBT4.2, BLE
LED IndicatorRGB LED (programmable)
Vibration IndicatorSupported
Battery[email protected]
Charging CradleWith USB dongle and Bluetooth adapter


Battery Life

8 hours (when fully charged with 15-20cm depth of field, and scanning once every 5

seconds)

Scanning TriggerTouch-lo-scan
IP LevelIP66
Drop Test3 meters
Operating Temperature-10°C to 50°C(14 °F to 122 °F)
Humidity0%-95%RH (non condensing)

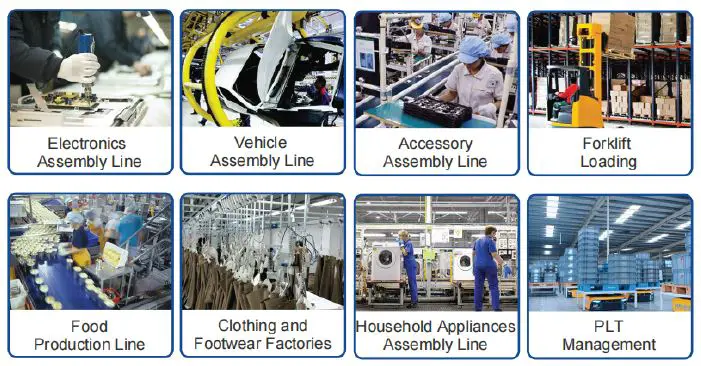

Applications

HYCO W79 2D Ring Scanner-1

[email protected]
www.hycoiot.com
