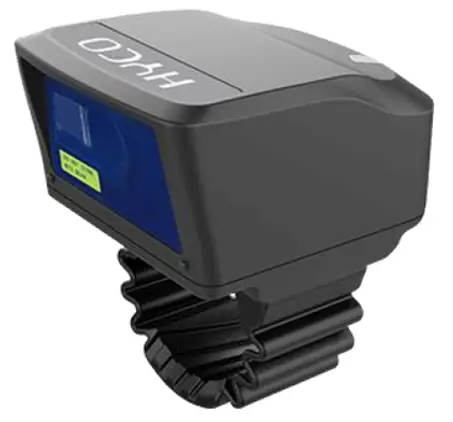

W27 CCD Ring Scanner
Owner’s Manual
W27 CCD Ring Scanner
W27 CCD Ring Scanner
Features
- High-speed CCD scanning, Supports fast recognition of barcodes on screens
- Extremely small & light: only 20g weight brings comfort wearing experience
- World’s leading ultra-low power consumption technology
- Industrial Grade: IP66
- Drop Test: 3m
- Stablized bluetooth communication
Benefits
- Hands-free and efficient
- Ultra-low power consumption and eco-friendly
- small, light and comfort to wear
Specifications
| Model | W27 |
| Scanner | HYCO CCD scanner |
| Resolution | 2500 pixels |
| Code Reading | Printed and on-screen barcodes |
| Scanning Distance | General type |
| Weight | 20g |
| Dimensions (W*D*H) | 38.6mm*29.0mm*22.1mm |
| Ring Bands | 10 pcs in different sizes |
| Bluetooth | BT4.2, BLE |
| LED Indicator | RGB LED (programmable) |
| Vibration Indicator | Supported |
| Battery | [email protected] |
| Charging Cradle | With USB dongle and Bluetooth adapter |
| Battery Life | 12 hours (when fully charged with 15-20cm depth of field, and scanning once every 5 seconds) |
| Scanning Trigger | Touch-to-scan |
| IP Level | IP66 |
| Drop Test | 3 meters |
| Operating Temperature | -10℃ to 50 ℃ (14 ℉ to 122 ℉) |
| Humidity | 0%-95%RH (non condensing) |
Applications
