Leds C4 Dn-1601-14-00 Dome Ø120 Recessed Ceiling Lamp Installation Guide

DN-1601-14-00 Dome ø120 Recessed Ceiling Lamp
Installation GuideProduct Code
DN-1601-14-00

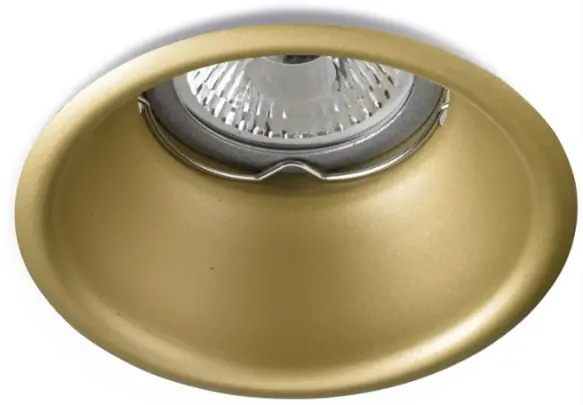

DN-1601-14-00 Dome ø120 Recessed Ceiling Lamp

Dome ø120
Downlight Dome ø120 8 40º White IP23 707lm

Technical features

Luminaire total power: 8W
Real lumens: 707
Real lm/W: 88
Lens / reflector angle: MEDIUM 40º
Structure material: Steel
Structure finish: White
Recommended light bulb: GU10
Equipment necessary but not included
Voltage / frequency: 100-240V/50-60Hz
Warranty: 5 años
Easily recyclable luminaire

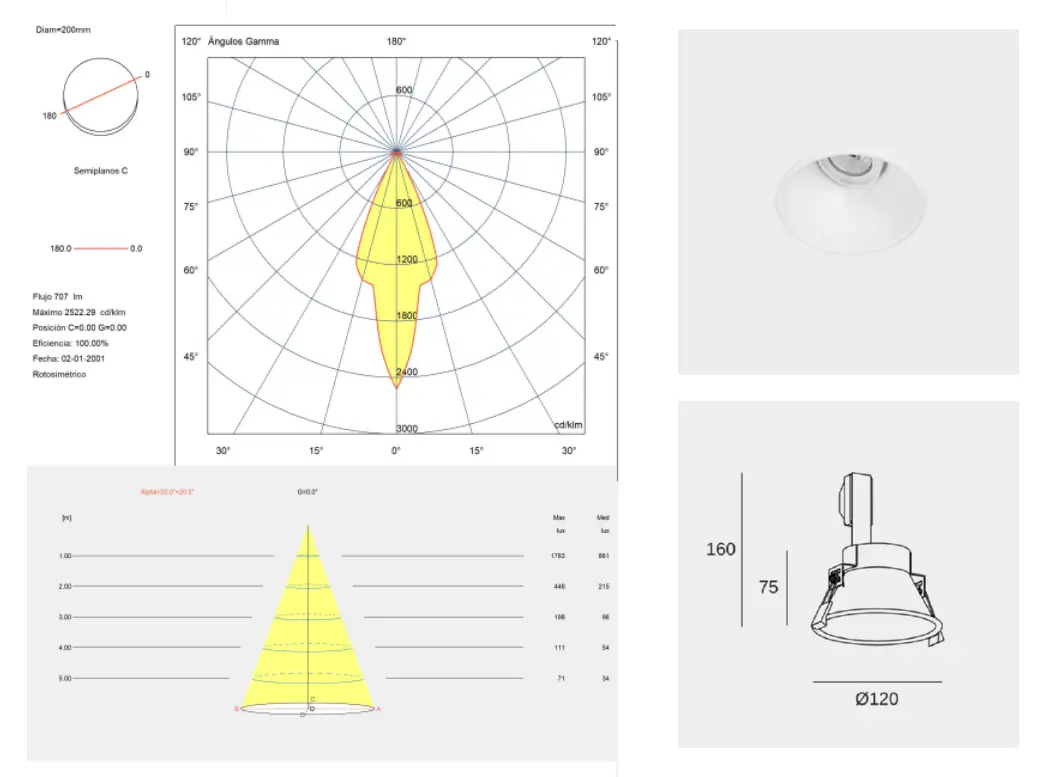

Luminotechnic features

UGR crosswise: 18.2
UGR lengthwise: 18.2

Image may not match reference. LedsC4 reserves the right to amend any of the product’s components. The data related to flux, power and colour temperature may be subject to changes made by the manufacturer.

Logistics

x 64
Net weight (kg): 0.22
Packaged weight (kg): 0.31
Packaging: 130mm x 130mm x 100mm

Installation Instructions
3D File Photometry Dialux | ULD Revit (BIM)

https://ledsc4.com/en/downloads?title=dn-1601-14-00
Dome ø120
DN-1601-14-00
[email protected]
LedsC4, Afores s/n 25750
Torà (Lleida) Spain +34 973 468 100
