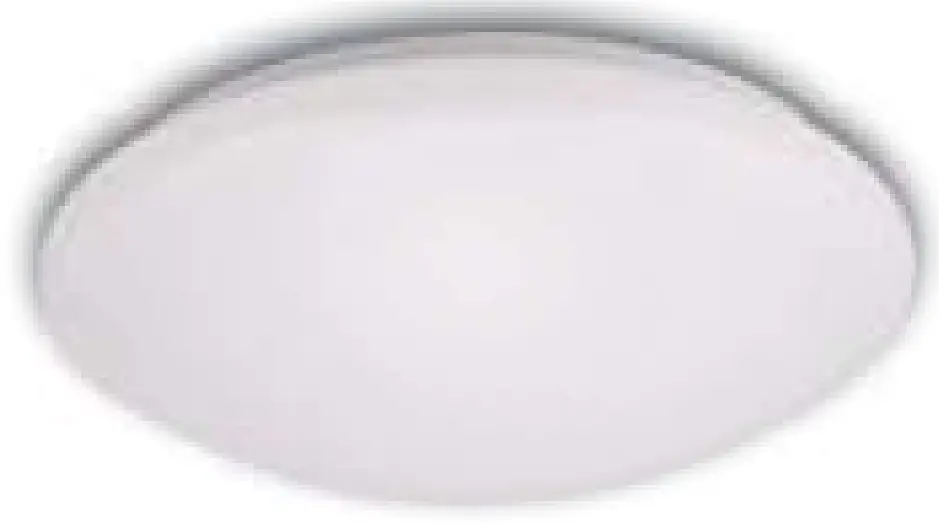

810519 LED Ceiling Lamp
Installation Guide
810519 LED Ceiling Lamp
1260Lm
18w
4000k
-5.8GHz
35.000h
328×95mm
IP44
Installation

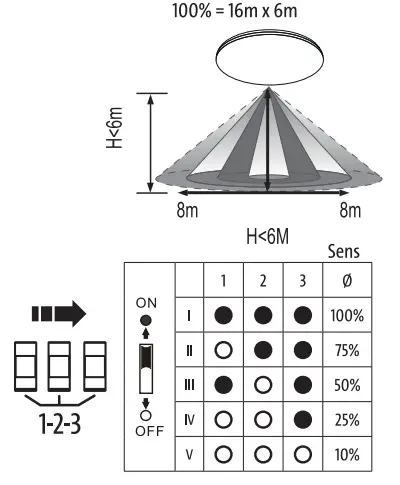

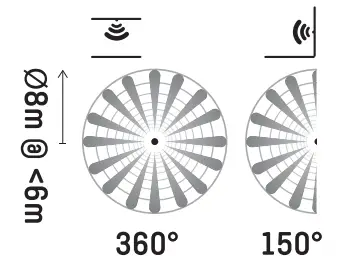

Sensor
220-240Vac 50Hz 400W @ induct. 800w @ Ohm 5.8GHz±75MHz, ISM <5.0.5W <0.5mW 50.000h
IP20

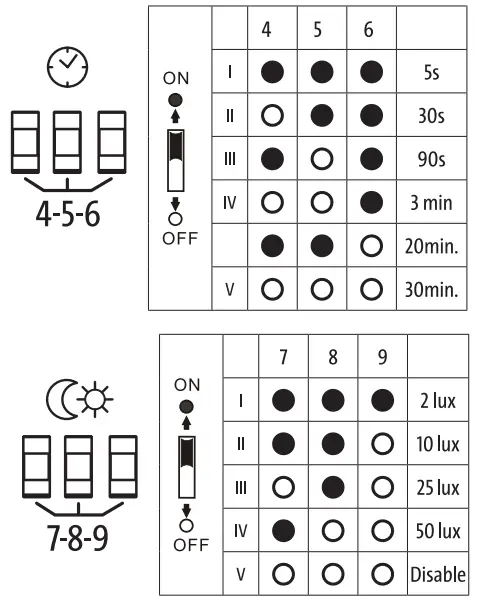

5s/30s/90s/3min/20min/30min
100k/250k/50%/75W1000/15
2Wx/101ux/25Iux/501ux/Dkabled
WARNING!
If there is metal material within the detection field of the sensor, the device may not work, or have only limited functionality!
WARNING!
Safety warning!
Ensure you have fully read and understood the instructions in this document before you install or use the product following the installation/wire diagram (when applicable). Keep this document for future reference and only use the product as described in this document. Any other use of the product than described in this manual may damage the product or cause injury to the user (e.g. due to a short circuit fire or electric shock). Disconnect the product from the power source if problems occur. Do not drop the product and avoid bumping. Do not use the product if a part is damaged or defective. Replace a damaged defective product immediately. When a non-standard consumer (power)installation is required this should be performed by a qualified technician to reduce the risk of an electric shock. Make sure the product is sufficiently ventilated during use. Never cover an electrical (LED) device during usage since it can generate heat causing damage. Besides LED can be extremely bright and may cause serious eye damage so don’t stare at it directly. When a product is meant for indoor and/or outdoor use only. this will be mentioned on the product/parts or in the manual. Keep the product out of reach of children or animals.
Cleaning and Maintenance warning!
Do not use cleaning solvents or abrasives. Do not clean the inside of the device. Do not attempt to repair the device when the device does not operate correctly, replace it Clean the outside of the device using a soft, damp cloth (don’t use microfiber cloth).
Support
If you need further help or have comments or suggestions please visit www.shada.nl/nl/contact
Caution! Risk of electric shock. This product contains a light source of energy effciency class F NTOTE!!! Opening the device volds the warranty
The item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, mou will help reduce the volume of waste sent to incinerators or land-fill and minimize anu potential negative impact on human health and the environment.
This product carries the CE mark, uihich confirms that this product meets EU safety, health and environmental protection requirements.
SHRDR
Molenmakershoek 28, NL-7328 JK APELDOORN
– The Netherlands www.shada.n1 D.O.C.I shada.nVp/810519
shada.nl/p/810519
