Oil and Liquid Remover
Instruction Manual
OPERATING INSTRUCTIONS
Important, Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
SAFETY INSTRUCTIONS
Read the Operating Instructions carefully before use. Save these instructions for future reference.
- Do not use the rnachine to handle solvents or toxic, harmful or corrosive chemicals.
- Do not use the machine to handle petrol or other flammable liquids.
- Do not expose the machine to knocks and blows.
- The machine must only be used as it is intended to be used and in accordance with these instructions. Do not dismantle the machine or try to modify or repair it. • Do not expose the machine to moisture, extreme temperatures or direct sunlight.
- Empty and clean the machine immediately after use.
TECHNICAL DATA
| Dimensions | H640x0155mm |
| Volume | 9 |
DESCRIPTION

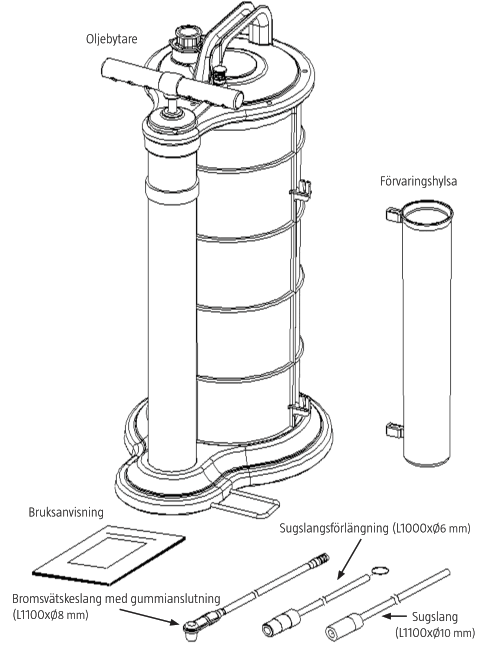

PACKAGE CONTEXTS
PARTS
| A.Lid B. Lock ITAton C. Container D.Tube E.Foot play F. Base Plate G.Hand PUMP | H.Handle I.Opening J. Inlet connection K.suction hose extension L.Suction hose M. Brake fuel hose with Rubber Connection |
USE
NOTE: Manging engine 0011. the engin. run for alml5minutes sota Me and any impurilies are mixed in.

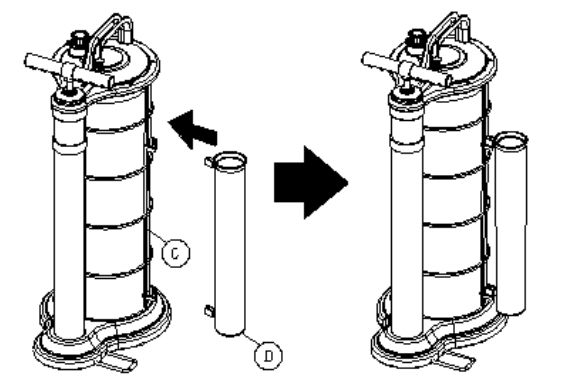

- itthetube 0)) on the Iwo hooks p.m container M.

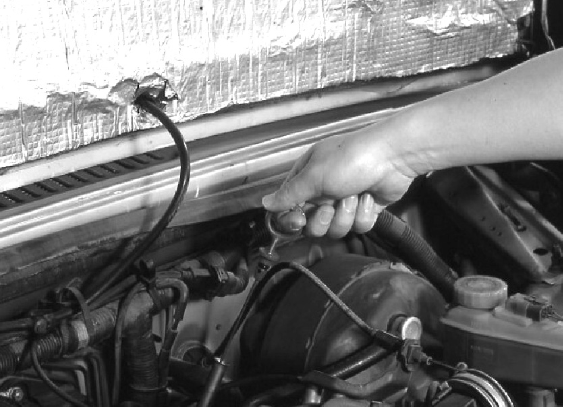

- Remove the dipstick From the engine

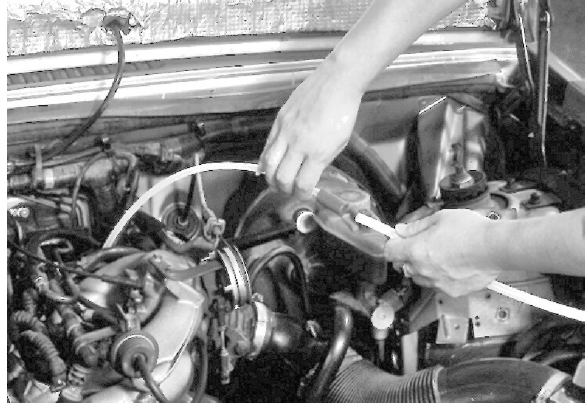

- InseRthe suction hos.) i.the hole fort. dipstick sot.ft reach.the nine oil pan. Connalt.suction hose.nsion tote inlet connection (A .nnect.e sudon hose extension .
 | |

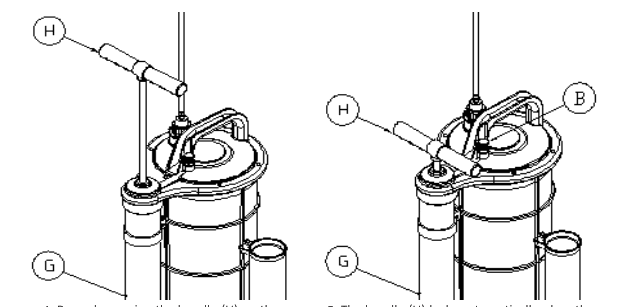

| 4. Pump by moving the handle (H) on the hand purnp (G) up and down between the end positions. The machine sucks fluid. | 5.The handle (H) locks automatically when the level of the fluid in the container reaches the FULL marking. Press the lock button (B) on the lid (A) and press down the handle (H) all the way to release the hand purnp. |
 | |

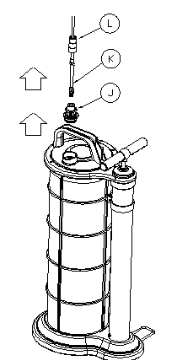

| 6. Disconnect the suction hose extension (K) and suction hose (L) and pull them out of the oil pan. Open the inlet connection (J) and pour the fluid into a suitable container. Dispose of fluid in accordance with local regulations. | |
TROUBLESHOOTING
| PROBLEM | ACTION |
| The machine does not suck up fluid | a.→Check that the end of the hose is immersed in the fluid.b. → Check that all the fluid has not been sucked up→ Check that the container is not full. |
