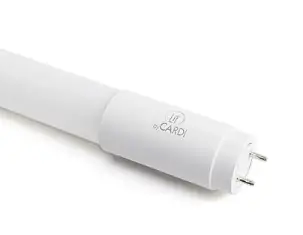

Lit By Cardi LED T8 TUBE Instruction Manual

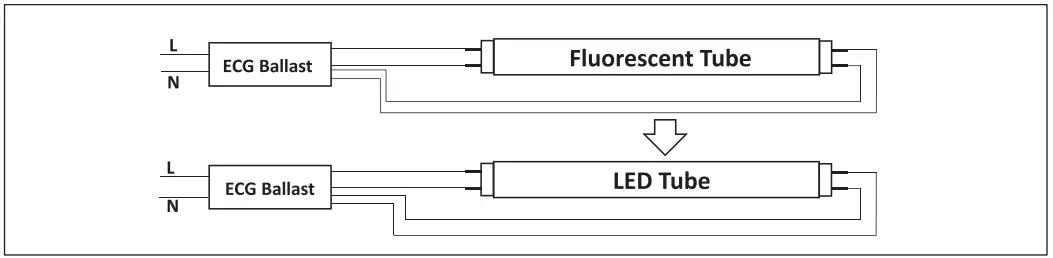

ECG Mode
Product Overview
- Model
- Size
- CCT
- Power
- Input Voltage
- Frequency
- Input Current
- CRI/ IRC
- Life time
- BA
| Model | SGSO Sku | * Size | * CCT | * Power | * Input Voltage | * Frequency | * Input Current | * CRI | Lumen | * Life time | * BA |
| LATUB05 | 0019590062 | 1200mm | 4000K | 17W | 50-70V | 20-75KHz | 300-700mA | >80 | 2400lm (360°) | 50000H | 2400 |
| LATUB06 | 0019590063 | 1500mm | 4000K | 26W | 50-70V | 20-75KHz | 300-700mA | >80 | 3600lm (360°) | 50000H | 2400 |
ECG MODE BALLAST COMPATIBLE LIST
| Ballast Brand | Part Number | Ballast Brand | Part Number |
| BAG | SCS36.1S-01/230-240 | OSRAM | QTP 1×36 |
| BAG | SCS36.2SR-11/220-240 | OSRAM | QT-FIT8 1×58-70 |
| BAG | MLS39.2S-01/220-240 | OSRAM | QT-FIT8 2×36 |
| Helvar | EL2x58ngn | OSRAM | QT-FIT8 2×58-70 |
| Helvar | EL2x36ngn | PHILIPS | HF-P 218/236 TL-D III |
| Helvar | ELI x14-35ngn5 | PHILIPS | HF-P 258 TL-D III IDC |
| Helvar | ED x36/40/18s | PHILIPS | HF-P 158 TL-D III IDC |
| HEP | SIS118-361 | PHILIPS | HF-P 158 TLD Ell 220-240 |
| HEP | ESB154-58 | PHILIPS | HF-P 118/136 TL-D III |
| HEP | SIS136A | PHILIPS | HF-S 258 TL-D II |
| HEP | ESB254-58 | PHILIPS | HF-S 118/136 TL-D II |
| HEP | ESB218-40 | PHILIPS | HF-S 158 TL-D II |
| HEP | SIS236A | PHILIPS | HF-S 218/236 TL-D II |
| LCI | EBS 118-40 | PHILIPS | HF-S 336 TL-D II |
| LCI | EB 154-58 | PHILIPS | HF-P 336 TL-D III IDC |
| LCI | EB 118-40 | QUICKTRONIC | QTP-OPTIMAL 1×18-40 |
| LCI | BTL8 136 | QUICKTRONIC | QTP5 2×14-35 |
| LCI | EB 218-40 | TCI | BTL8 236 |
| LCI | BTL8 258 | TCL | BTL8 158 |
| OSRAM | QTP-OPTIMAL 2×54-58 | TRIDONIC | PC 1/30 T8 PRO |
| OSRAM | QTP-OPTIMAL 2×18-40 | TRIDONIC | PC 2×36 T8 PRO sl |
| OSRAM | QTP 1 x36/230-240 | TRIDONIC | PC 2×58 T8 PRO sl |
| OSRAM | QTP 1 x58/230-240 | TRIDONIC | PC 1×58 T8 PRO Ip |
| OSRAM | QTP 2×58/230-240 | TRIDONIC | PC 1×36 T8 PRO Ip |
| OSRAM | QT-FIT8 1 x36 | TRIDONIC | PC 1×36 T8 TEC |
| OSRAM | QT-FIT 5/8 1×18-39 | TRIDONIC | PC 1×36 T8 TOP sl |
- ECG MODE BALLAST COMPATIBLE LIST
- Ballast Brand
- Ballast Merkevare
- Part Number
WARNING:

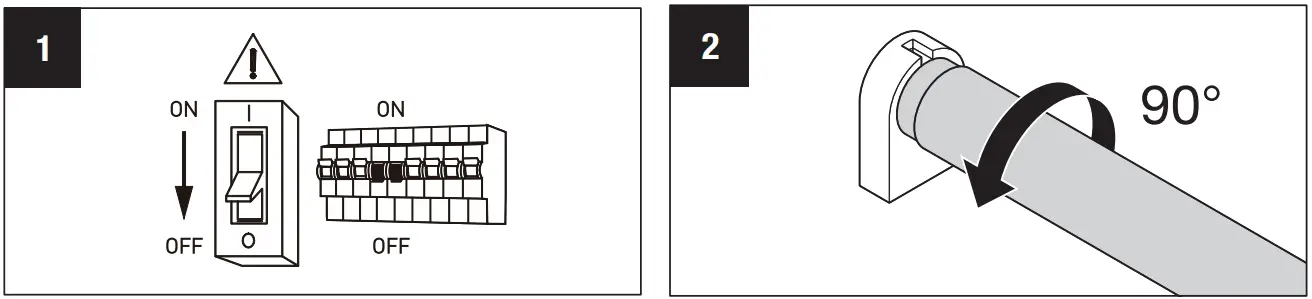

- Ensure that the main electrical supply is switched off before installing the luminaire.
- The product contains glass, if the glass is broken, it should be changed by professional installer.
- Replace 36w fluorescent lamp with 1200mm LED lamp, 1500mm LED light replaces 58w fluorescent light.
- No modification of the luminaire which the LED lamp is to be used.
- LED Tubes operate in temperatures from -20℃ to +50℃.
- This lamp is designed for general lighting service (excluding e.g. explosive atmospheres).
- This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
