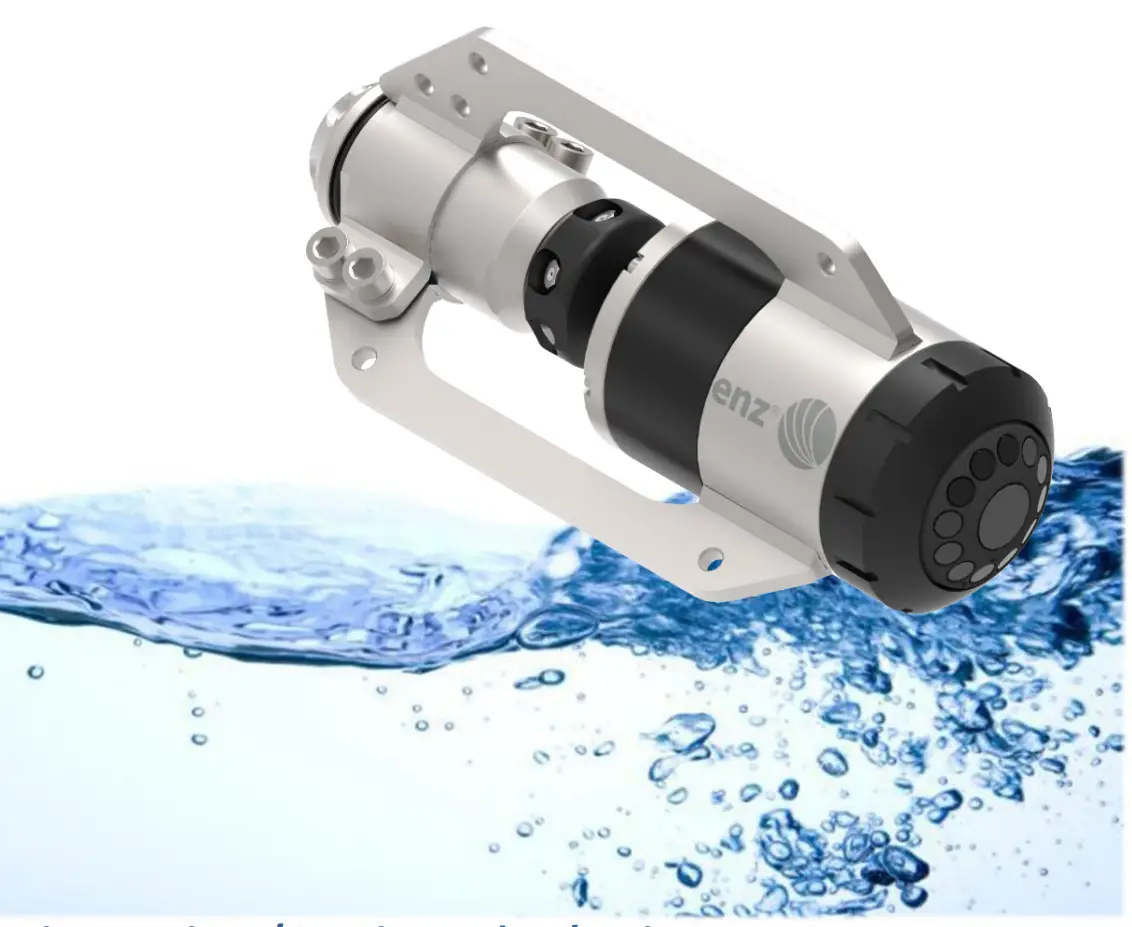

enz eBulldog the Camera Nozzle
Safety instructions
- The product may be used exclusively in pipes or pipe-like channels. The profile to be cleaned must be closed at the top and surrounded all around by material.
- During operation, no persons may remain in the pipes or at the ends of the pipes.
- Only accessory parts provided and approved by enz® technik ag may be used.
 | DANGER! |
| The maximum working pressure of 200 bar must never be exceeded. If the nozzle ruptures, walls of the pipe may be pierced through and parts thrown away at high speed. There is mortal danger. | |
| DANGER! |
| In larger pipes, the tool may turn. Use a safety pipe for this purpose, this can result in death or very serious injurie | |
| WARNING! |
| Do not drop the enz® Camera. The Li-Ion rechargeable battery installed may be damaged. There is a fire hazard! |
Technical information
Order-No. |  |  |  |  |  |  |  |  |  |  | ||||
mm | inch | l/min | US gpm | mm | inch | bar | psi | |||||||
402.200iA | 3/4“ BSPP | 200-600 | 7.9-23.6 | 200 | 52.8 | 6x M10 | 9x M8 | – | 160×333 | 6.3×13.1 | 6.5 | ok | 200 | 2900 |
402.200iB | 1“ BSPP | 200-600 | 7.9-23.6 | 200 | 52.8 | 6x M10 | 9x M8 | – | 160×325 | 6.3×12.8 | 6.4 | ok | 200 | 2900 |
| 402.200iC | 1 1/4“ BSPP | 200-600 | 7.9-23.6 | 200 | 52.8 | 6x M10 | 9x M8 | – | 160×380 | 6.3×15.0 | 7.0 | ok | 200 | 2900 |
| Connecting thread | | Min. flow at 100 bar | | Thrust jet | | Measures | | Recycling |
| Range Champ | | Rotating nozzles/Holes | | Front jet | | Weight [kg] | | Max. working pressure |
Accessories
| Illustration | Description | Order-Nr. |
 | Lens cleaner (PE bottle, 3.3 fl oz) | C 290 |
 | Lens polish (PE bottle, 3.3 fl oz) | C 291 |
 | Oil Spray Bio, 500 ml | C 191 |
 | Enz® Magnet | 210.0801 |
 | Charging station | 291.0801 |
Installation
Equipping
To achieve the best possible cleaning results, the eBulldog from enz® is matched to the parameters specified by the customer.
 | If changes are made to the parameters, you should re-calibrate the eBulldog. |
Assembly of the camera
The eBulldog is delivered ready for use. The following must be observed when assembling the enz® Camera:

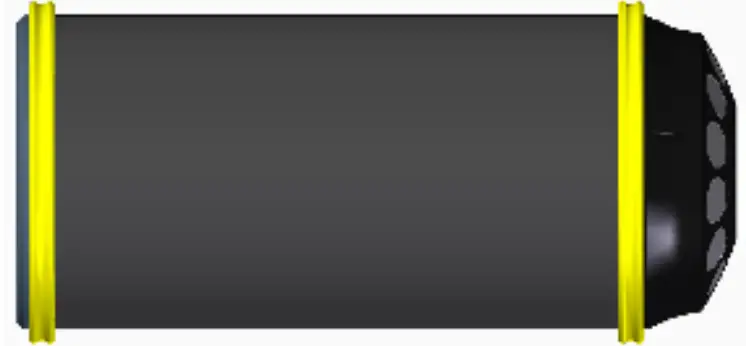

| Check if the damping rings are positioned correctly. |  |

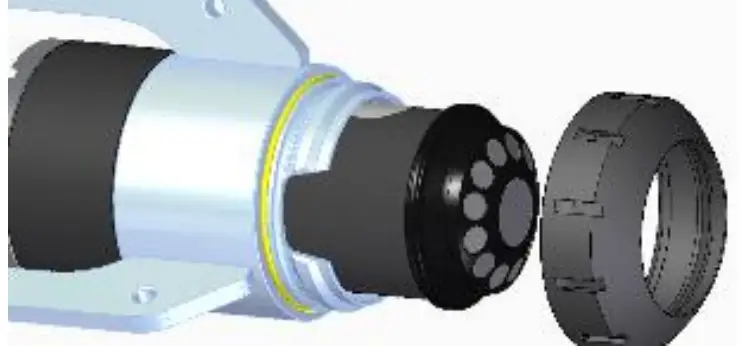

| Check the position of the O-ring on the central tube and tighten the cover hand tight. |  |
| When connecting the pressure hose, make sure that no contamination can enter in the tool. This can result in the inserts clogging. |
Operation
Clean the lens with lens cleaner (C290) at regular intervals and then seal this with the lens polish (C291).
When pulling out the nozzle, always leave the water running with a little pressure. This prevents the ingress of dirt particles in the nozzle.
Maintenance
Remove the camera after being used each time and check it for damage. Then spray the surfaces of the eBulldog using the Oil Spray Bio (C191) and check the screws of the clamping mechanism.
Assembly of the eBulldog
The following must be observed when assembling the cage:

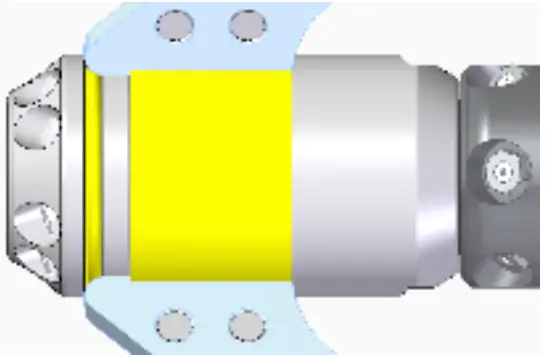

| Align the middle thrust nozzle of the Bulldog® precisely to the positioning skid. |  |
| Horizontal alignment: Ob- serve the distance of the O- ring to the clamping mechanism. |  |
| Nozzle inserts must be checked at regular intervals in order to ensure an optimum cleaning performance. |
| To charge the rechargeable battery of the Enz® Camera, use only the original Enz® Charging station. |
| Dispose of product components according to the country-specific laws and guidelines of the company location |
| Further information can be found in the operating instructions of the Enz® camera. |
