Airmax Ts94362 Spray Pattern Nozzle Instruction Manual

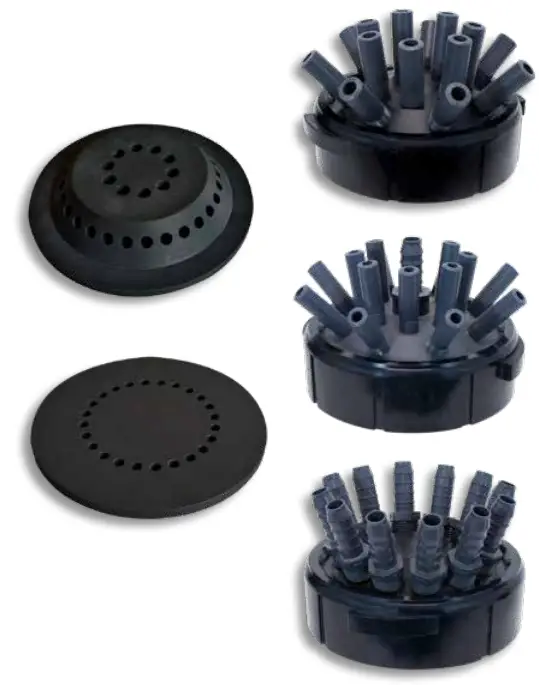

Spray Pattern Nozzle
INSTALLATION INSTRUCTIONS
For all PondSeries™ Fountains Systems

Installation Instructions

Warning: Always unplug the unit before any maintenance.

Step 1

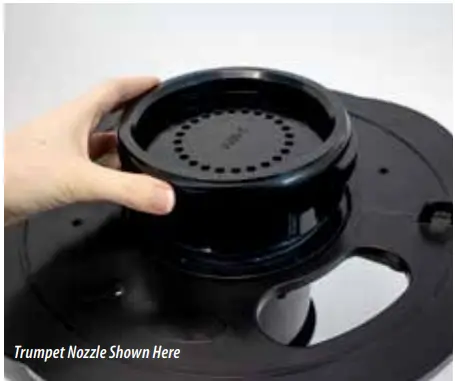

Unscrew the nozzle nut and remove the currently installed spray pattern.
If you are running the classic pattern, no nozzle nut or spray pattern will be installed.

Step 2

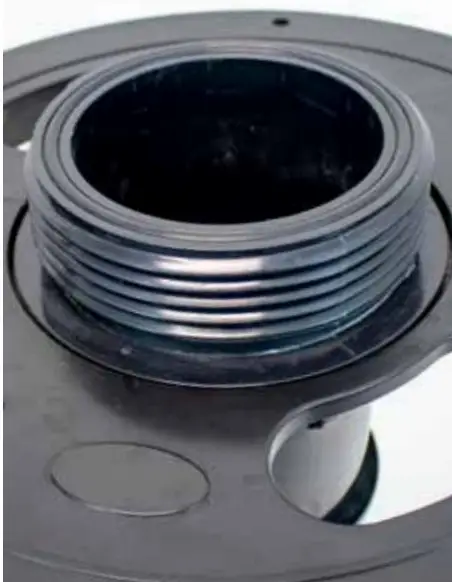

Prior to changing or installing nozzles, ensure that the Discharge Horn
O-Ring (#651311) is located in the
O-Ring groove.

Step 3 Optional

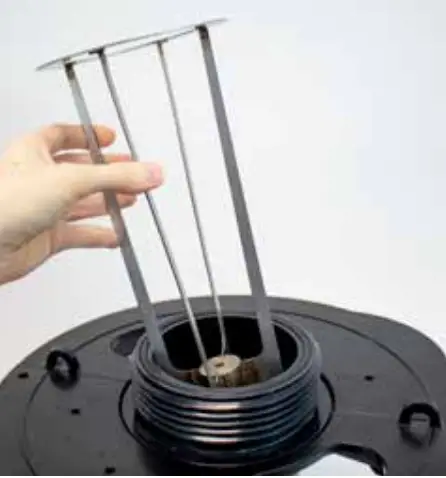

If your spray pattern requires a Flow Straightener it will be included with the pattern.
The Flow Straightener simply drops into the top of the Discharge Horn and is held in place by the nozzle and nozzle nut.

Step 4

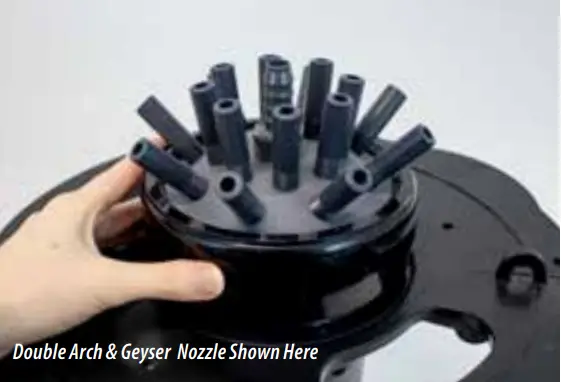

Place the selected nozzle onto the Discharge Horn and tighten the nozzle nut.
Please Note: ONLY hand tightens the nozzle nut. Tools are not required for this operation.

Step 5

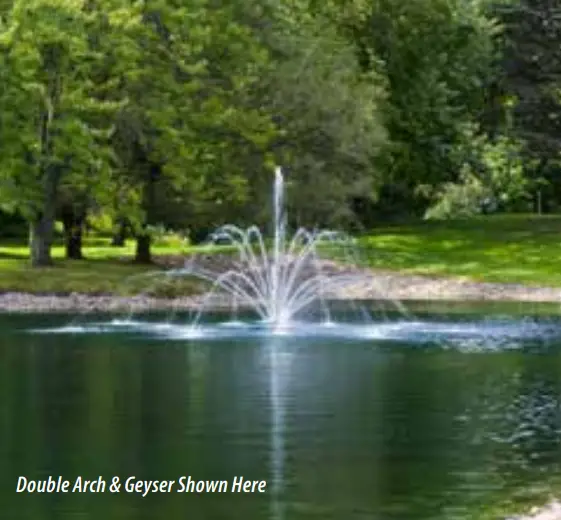

Enjoy your newly installed PondSeries spray pattern!

NOTES __________________

THANK YOU FOR CHOOSING:
Airmax, Inc.
#652124 V1.1
15425 Chets Way Street, Armada, MI 48005
866-424-7629
www.airmaxeco.com
[email protected]
