MP-WIFI-S-WHITE Hub WIFI Central Pack
User Manual
https://www.u-prox.systems/doc_hublan
MP-WIFI-S-WHITE Hub WIFI Central Pack
WIRELESS SECURITY CONTROL PANEL
Is a part of the U-Prox security alarm system
Manufacturer: Integrated Technical Vision Ltd.?
Vasyl Lypkivsky str. 1, 03035, Kyiv, Ukraine
U-Prox Hub LAN – is a wireless security control panel designed to control the home security system. U-Prox Hub LAN supports connection of up to 200 devices (sensors, keypads, key fobs, etc.) via the U-Prox band radio frequency at a distance of up to 4800 m. The device interacts with the user and the security company, using Ethernet, WiFi and GSM/GPRS communication for reliability.
The device is connected to the U-Prox Cloud and is configured with the U-Prox Installer mobile or WEB application.
https://maks.systems/MaksSetup

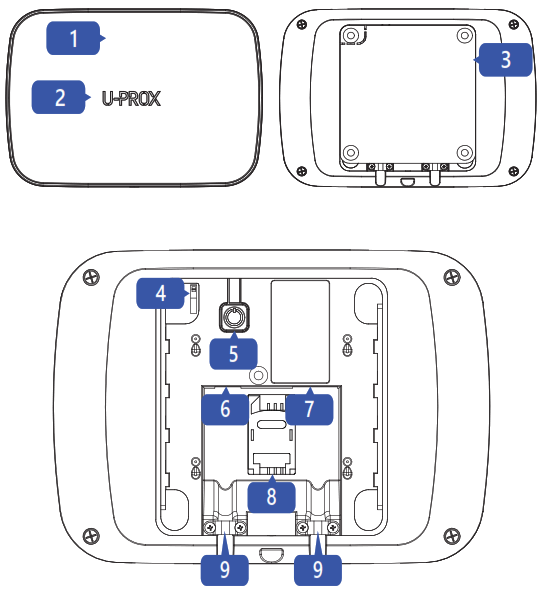

Functional parts of the device (see picture)
| 1. Device case 2. Light indicator 3. Mounting plate 4. Tamper switch 5. On/Off button | 6. Power supply connector 7. Ethernet cable connector (computer network) 8. SIM card holder 9. Cable clamps |
TECHNICAL SPECIFICATIONS
| Partitions | 30 |
| Wireless devices in the system | 500 |
| 100 detectors 30 keypads 200 key fobs 8 repeaters | |
| Users | 200 |
| Power supply | 12 VDC @ 0.35 A |
| Battery backup | 2500 mAh battery, up to 24 hours |
| Radio frequency | Two ISM-band wireless interfaces, multi-speed with several channels |
| ITU region 1 (EU, UA): 868.0 to 868.6 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight); ITU region 3 (AU): 916.5 to 917 MHz, bandwidth 100kHz, 20 mW max., up to 4800m (in line of sight). Secure two way communication, sabotage detection, key – 256 bits | |
| Connection | Wi-Fi 2.4GHz, Ethernet 100Mbit and GSM/GPRS modem for reliable and secure two-way communication. BLE 2.4 Hz (Bluetooth low energy) for initial setup. Encryption key – 256 bits |
| Wi-Fi | 2.4 GHz, 802.11b/g/n, Open/WPA/WPA2/WEP 14 dBm for 802.11n MCS7, 20 dBm for 802.11b |
| GSM/GPRS | 850/900/1800/1900 MHz, Class 4 (2 W @ 850/900MHz), Class 1(1 W @ 1800/1900MHz) |
| Operating temperature range | 0°C to +45°C |
| Dimensions & weight | 167 x 120 x 25.4 mm & 245 grams |
| Case colour | white, black |
COMPLETE SET
- U-Prox Hub LAN;
- One 18650 battery (pre-installed);
- Power supply;
- Ethernet cable;
- Quick start guide
CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS
WARRANTY
Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date.
If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.
REGISTRATION

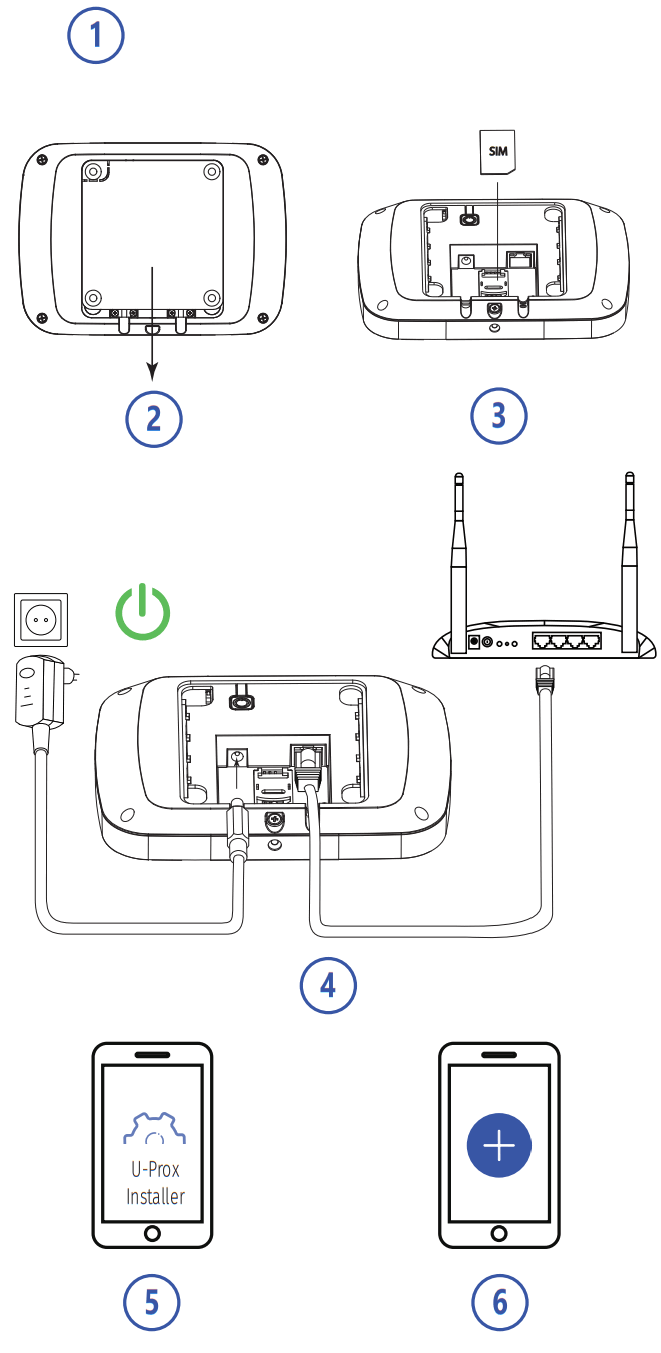

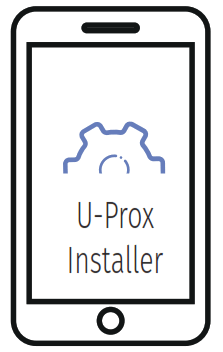

Install the app; Sign up, if you have no account yet; Sign in
 |  |

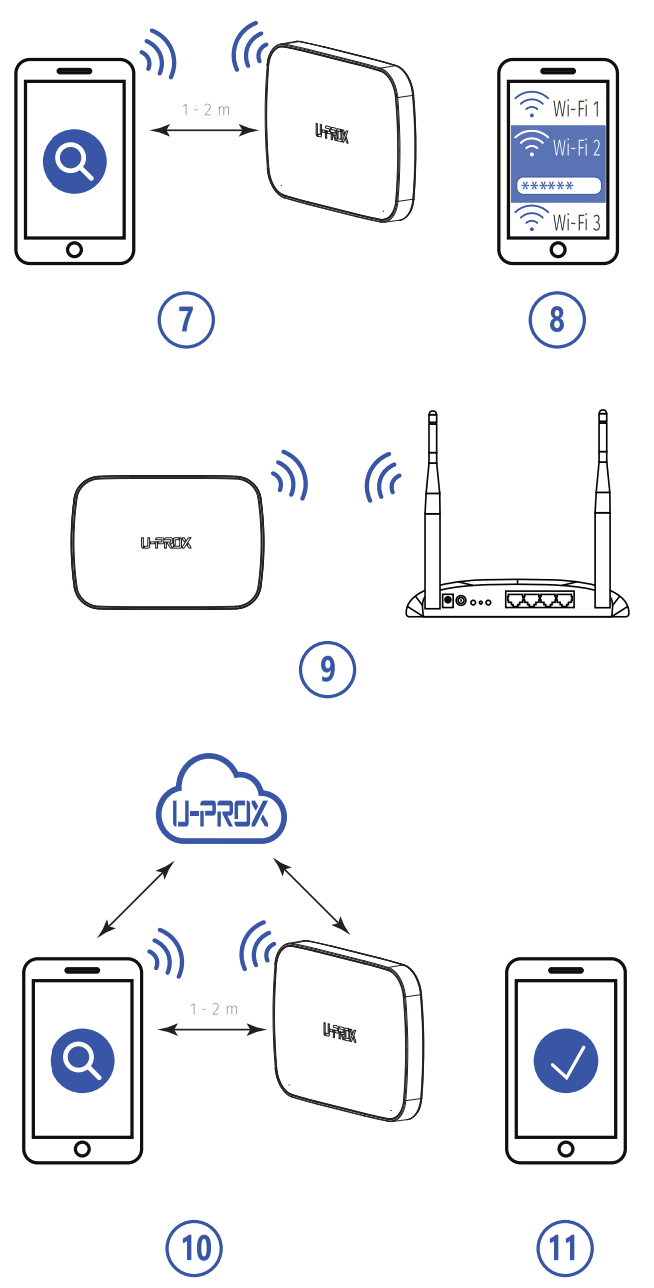

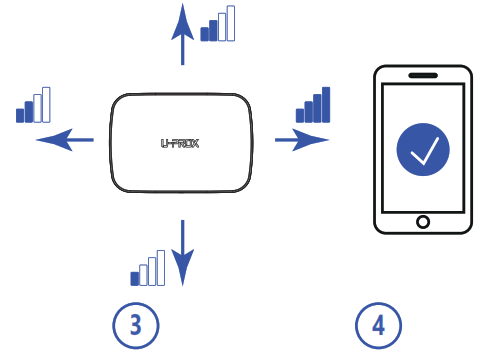

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION
Due to Grade 2 requirement RF link works with reduction of power in 8 dB
2b

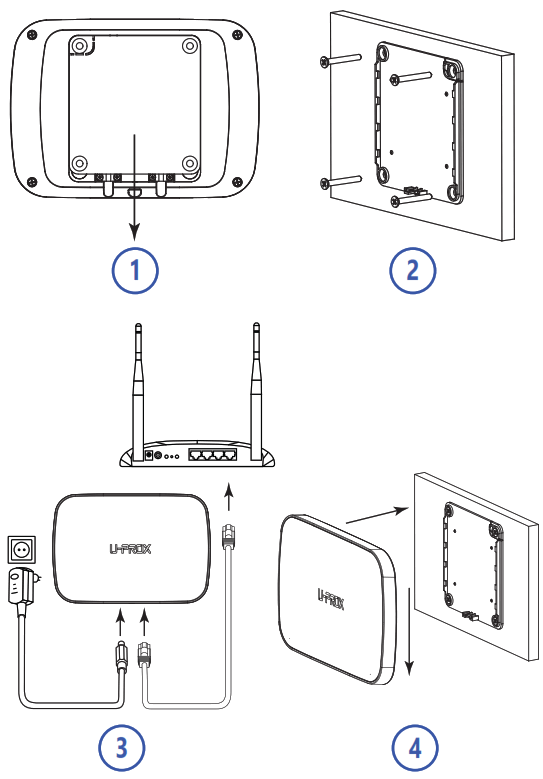

INSTALLATION

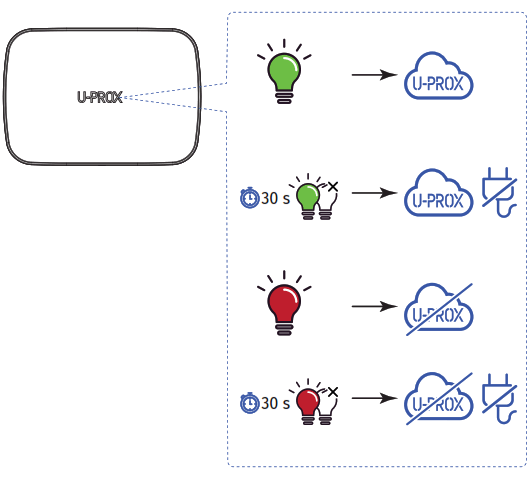

INDICATION

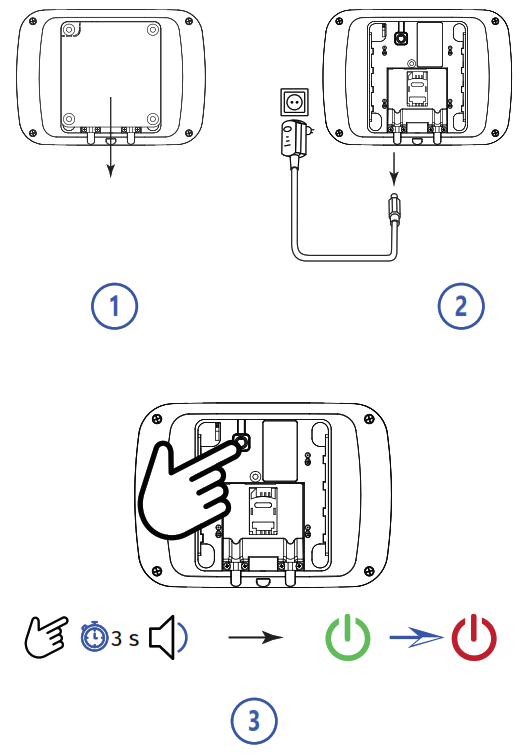

SWITCHING OFF

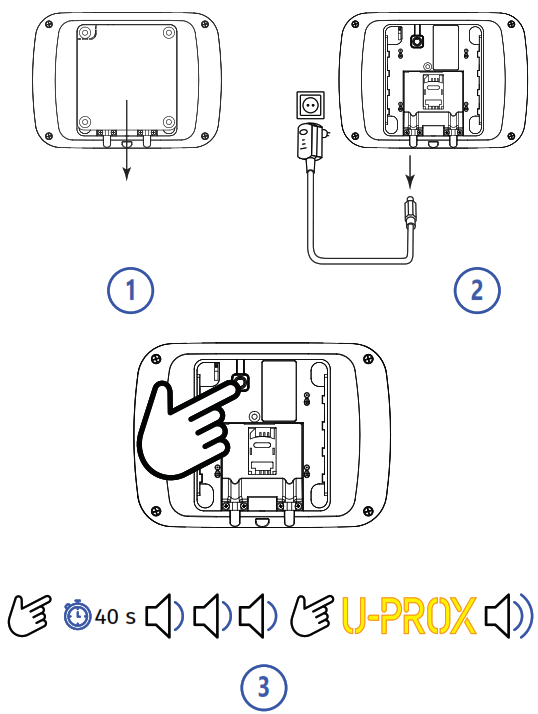

RESETTING TO DEFAULT
www.u-prox.systems
[email protected] www.u-prox.systems/doc_hublan
