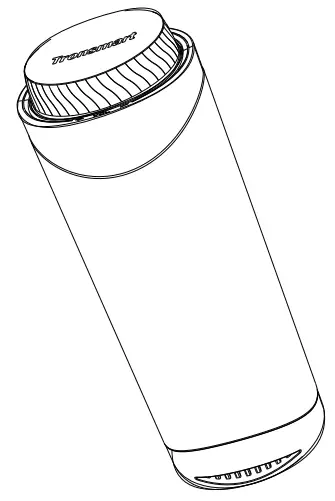

Tronsmart T7 Portable Wireless Outdoor Speaker User Manual

T7
Portable Outdoor Speaker

User Manual

Thank you for purchasing the Troasmart 77 Portable Outdoor Speaker Please read the user manual before use and keep It handy for future reference. If you have any additional questions or comments, please contact us by email at: supportgatronsmart.com

Package Contents

1×77 Portable Outdoor Speaker
1 x Type< Charging Cable
1 x Warranty Card
1 x User Manual
1 x SoundPulset Card
1 x Lanyard

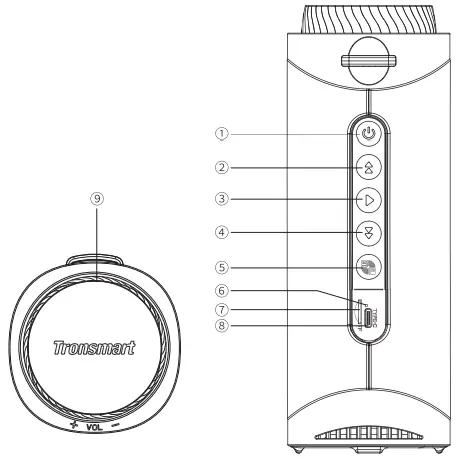

Button Configuration

1. Power On/Power Off
2. Previous Track
3. Play/Pause
4. Next Track
5. SoundPulse Fp Button
6. Charging Indicator
7. lt Card Slot
8. Type-C Charging Port
9. Volume Wheel

	Press for 2s to turn on
	Press for 2s to turn off
	Press once to turn on/off the LED indicator
	Double Press to switch music playing modes between Bluetooth & Micro SD Card
	Press once to play or pause the music
	Double Press to activate the voice assistant
	Press once to answer or hang up the phone call
	Press for 2 seconds to reject the phone call
	Press for 8s to reset
	Press once to skip to the previous track
	Press once to skip to the next track
	Rotate the volume wheel clockwise to turn up the volume
	Rotate the volume wheel counterclockwise to turn down the volume
	Press to switch EQ modes
	Double Press to enter/exit stereo pairing mode
	Press for 2s to disconnect from the device

Specifications

How to Use

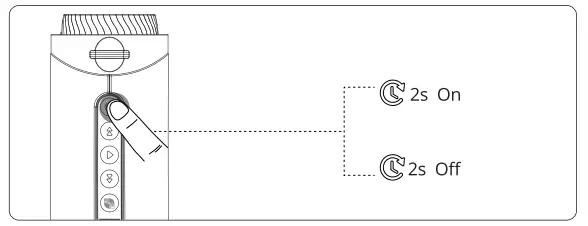

1. Turn On/Off


   On	Blue Indicator On
   Off	Blue Indicator Off

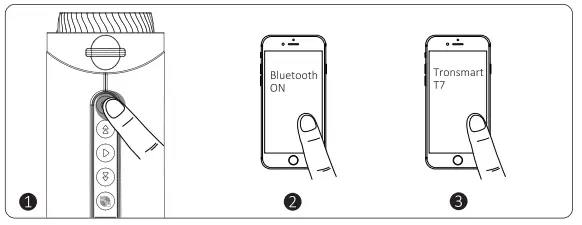

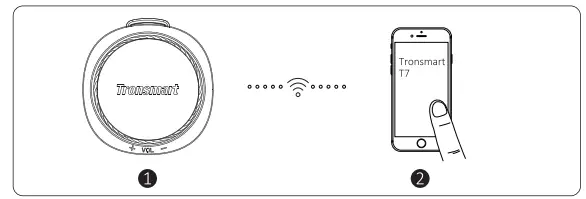

2. Bluetooth Connection
   Search & click Tronsmart 17′ to connect.

   Pairing	Blue Indicator Flashes
   Connected	Marquee On

3. Disconnect from Bluetooth

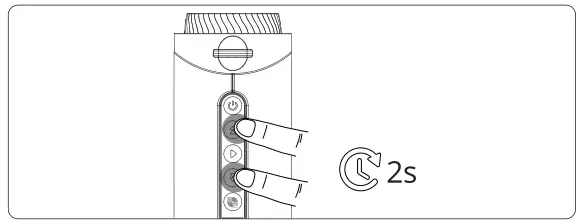

   Quickly connect to another device, you could press the ‘Previous & Next Track’ button for 2 seconds to disconnect from Bluetooth.
4. True Wireless Stereo Mode

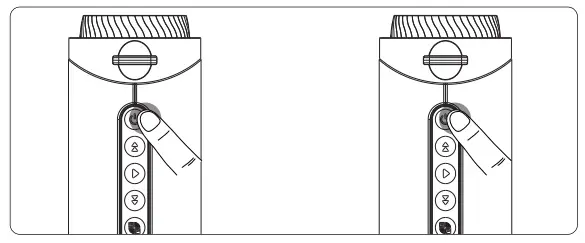

   Connect 2 Tronsmart 77 speakers to enjoy powerful stereo sound.

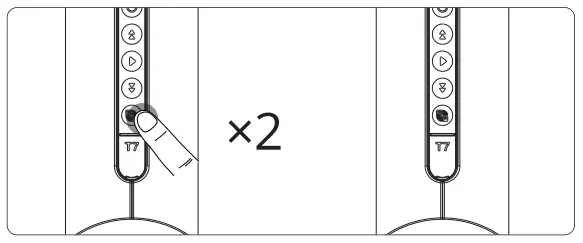

   1 )Turn on both speakers. Please make sure either speaker has entered pairing mode.2) Double Press the ‘SoundPulse’ Button of either speaker(Host Speaker) to enter stereo pairing mode with white indicator flashes slowly.(Double press to exit)3)If paired successfully, the host speaker will stay white indicator on while vice one will flash white once 3s.

   Host Speaker	White Indicator on
   Vice Speaker	White Indicator Flashes once 3s

   4)Search & click Tronsmart 17′ to connect

   Host & Vice Speaker

   Marquee On

   Note:
   1. You could only pick up a call from the host speaker.
   2. Under music-pausing mode, the host speaker will stay marquee while vice one will pause.

5. TF/Micro SD Card Slot Mode
   The speaker will play the music from your TF/Micro SD card when plugging the card into the slot.

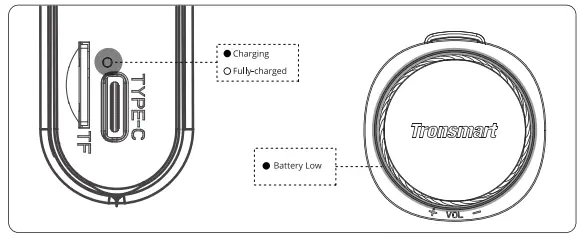

6. Indicators


   Aperture Red Indicator On	Battery Low
   Red Indicator On	Charging
   Red Indicator Goes off	Fully-charged

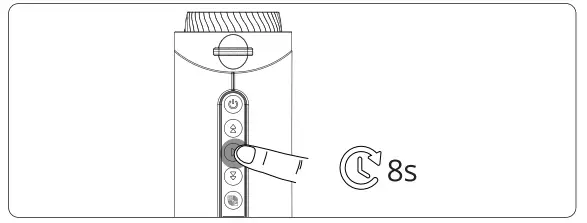

7. Reset
   Press the Play/Pause button for 8s to reset. If reset successfully, the speaker will turn off.

8. Auto Power Off
   The speaker will power off automatically after 10 minutes if it does not pair with any device through Bluetooth. When on a low battery, the speaker will power off automatically as well.

Tronsmart App

Download ‘Tronsmart App’ via Google Play or App Store.

Apple & the Apple logo are trademarks of Apple Inc.	Google Play & the Google Play logo are trademarks of Google Inc.

How to Connect to Tronsmart App?

1. Turn on the Bluetooth setting on your device, search & click ‘Tronsmart T7’ to connect.
2. Open the ‘Tronsmart’ App & allow yourself to access Bluetooth on your device.
3. Slide to find out T7′, click to connect.
4. If connected successfully, you could customize Equalizers, lights, etc. as you like.

Care & Maintenance

Do not use any form of detergents or cleaning material to dean the product as any type of chemical may make this device unusable. Do not disassemble this product. It contains no user-serviceable parts. Do not drop or jump on it and treat it with care for the best performance. Keep the product in a dry location. Dust, dirt & moisture from humidity can accumulate on the body of the product is kept in an unfriendly place. Do not dispose of this product in fire or batteries may explode or leak.

Warranty Information

Your Tronsmart T7 Portable Outdoor Speaker’, is warranted to the original owner for 12 months from the date of purchase against defects in material and workmanship under normal use and service. Tronsmart is not responsible for the accidental use of this product and its liability will not exceed the purchase price of the product. If you have any problems while using the product, please do not hesitate to contact our customer support team at [email protected].

FCC Warning
Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

The device has been evaluated to meet general RF exposure requirements. This equipment should be installed and operated with a minimum distance of 20cm between the radiator& your body.

SHENZHEN GEEKBUY E-COMMERCE CO., LTD.
Warehouse 101 H, No. 49 Wuhe Avenue, Wuhe Community,
Bantian Street, Longgang District, Shenzhen, China
mail: [email protected]
800-270-1082 (USA & Canada)
+86-755-23603740 (Global)
