Additel 762
Automated Hydraulic Pressure Calibrator
User Guide
762 Automated Hydraulic Pressure Calibrator
- Automated pressure generation and control to 10,000 psi (700 Bar)
- Accuracy to 0.01%FS
- Dual-range manual or auto select
- Control stability 0.005%FS
- Portable – designed for use in the field and in the lab
- Control by optional external pressure modules
- Supports two external pressure modules
- Wi-Fi, LAN, Bluetooth, USB and Ethernet communication
- Full HART field communicator
- HART and PROFIBUS communication
- Data logging and task management
- Patented electric pump technology

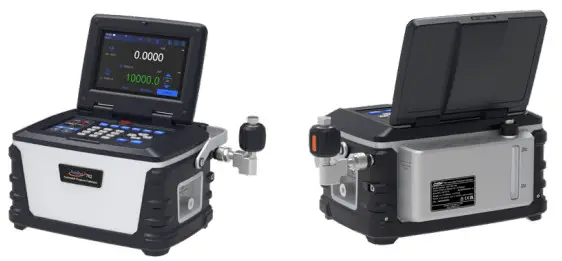

OVERVIEW

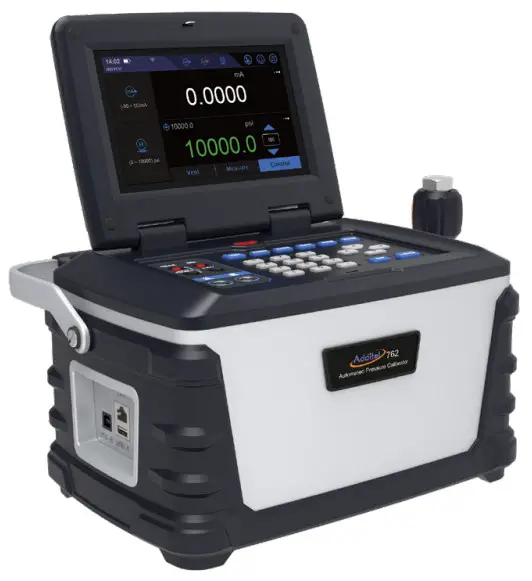

The Additel 762 Automated Pressure Calibrator is unlike any other pressure calibrator on the market. This revolutionary product is a complete turnkey solution for automation of pressure calibration work up to 10,000 PSI.
Designed for use in both the field and the laboratory, the portability and accuracy of this state-of-the-art product will quickly become the favorite go-to calibrator for lab personnel and field technicians alike.
With fully automated support for calibration of pressure transmitters, switches, dial and digital gauges and sensors, including HART/PROFIBUS devices in conjunction with a fully integrated task feature, data collection and Wi-Fi connectivity, we had our customer’s needs in mind when designing our most capable pressure calibrator to date.
Dual-Range Accuracy to 0.01% FS
The ADT762 includes the unique ability to automatically switch between different internal calibrations depending on the current control pressure of the ADT762.

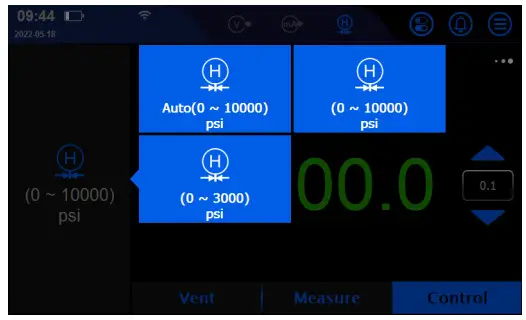

Additel provides calibrations unique to each ADT762 for ranges of 0-3,000 PSI (200 Bar) and 0-10,000 PSI (700 Bar). As the calibrator is pressurized, it will automatically select the control and measurement specification based on the specific pressure range. Pressure calibration range selection can be set to “auto” mode so the calibration range is automatically selected by the ADT762 based on the set point pressure, or the calibration range can be manually selected.
Built-in Auto-Purge Application
Purging hydraulic calibration systems can be challenging and time consuming.

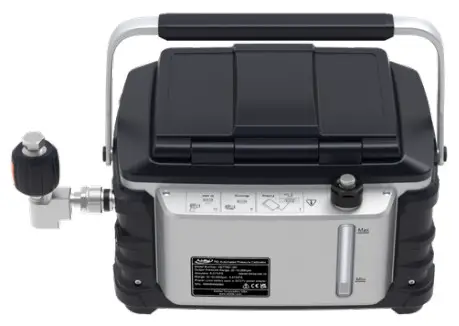

The ADT762 has been designed with an integrated auto-purge system that saves time, money and frustration by completely automating the removal of air from the system. With the push of a button, the ADT762 quickly manages the system purging. This helps to free up time for technicians to attend to other needs.
Documented Task Feature

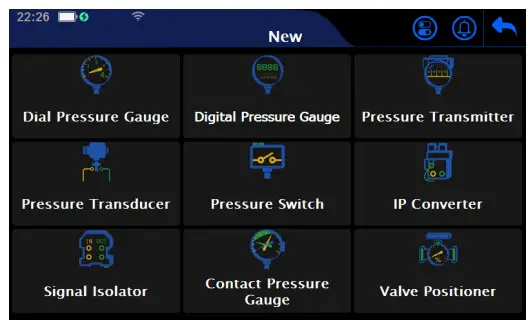

The powerful documented calibration task application allows users to quickly create and execute tasks without the need for a PC or tablet. The ADT762 automatically analyzes errors, generates test reports, while storing results locally.
The Additel 762 can support up to 1000 documented tasks which can be stored and recalled at any time to help save time and money.
Dual-Mode HART Communication
HART pressure transmitters can be directly maintained and calibrated without any other equipment or tools.

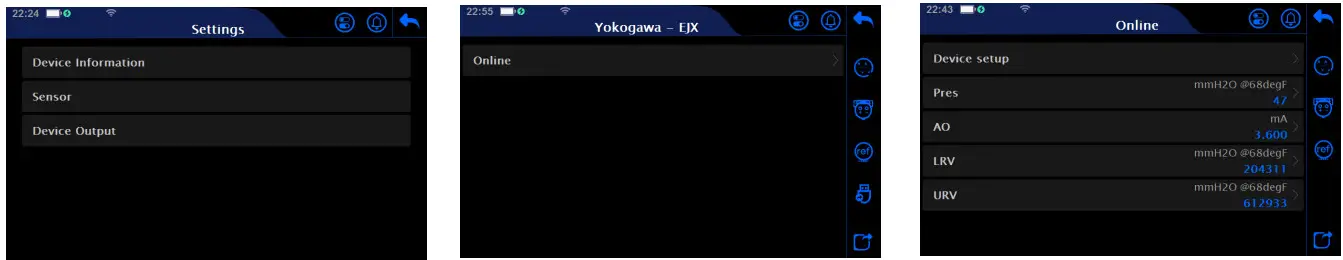

The ADT762 provides an automatic HART calibration mode as well as a manual mode. This dual-mode HART communication function not only provides an efficient and convenient interoperability mode for DUT, but also supports access to a fully HART capable calibrator.
Pressure Specifications
| Model Specification | ADT762 Automated Hydraulic Pressure Calibrator | |
| Pressure Range | 15~10,000 psi (1-700 Bar) | |
| Range Selection | Manual 3K psi, Manual 10K psi or Auto-range | |
| Accuracy | 0~10,000 psi, 0.01%FS | 0~10,000 psi, 0.02%FS |
| 0~3,000 psi, 0.01%FS | 0~3,000 psi, 0.02%FS | |
| Resolution | 7 digits | 6 digits |
| Maximum External Load Capacity | Max: 80 ml@700 Bar, 50 ml recommend | |
| Reservoir | Max: 350 ml, built-in filter | |
| [1] Control Stability | 0.005%FS from 100 to 10,000 psi | |
| Stability Duration | > 5 min | |
| Pressure Module | Built-in one module with dual range | |
| External Control Pressure Module | See the following “External Control Pressure Module Specification and Compatibility” table | |

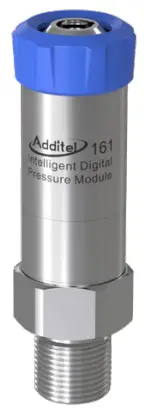

| External Measurement Pressure Module | All ADT161 pressure modules | |
Electrical Specifications
| Model Specification | Range | Resolution | Accuracy | Note |
| imA Measure | -25 to 25 mA | 0.1 pA | ± (0.008%RD + 1.0 pA) | Impedance <10 0 |
| -50 to 50 mA | 0.1 pA | ± (0.008%RD + 2.0 pA) | ||
| V Measure | -300 to 300 mV | 1 pV | ± (0.008%RD + 6 pV) | Impedance <1 GO |
| V Measure (Auto-ranging) | -5 to 5 V | 20 pV | ± (0.008%RD + 100 pV) | Impedance >1 MU |
| -12 to 12 V | 100 pV | ± (0.008%RD + 320 pV) | ||
| -30 to 30 V | 100 pV | ± (0.008%RD + 600 pV) | ||
| Loop Power Source | 24 V | N/A | ±1 V | 50 mA (Max Loading) |
| mA Source | 0 to 2.5 mA or 2.5 to 25 mA | 0-2.5 mA: 0.05pA 0-25 mA:0.5pA | 0-2.5 mA: 0.008%RD # 0.2 pA 20 mA * 1 KU 0-25 mA: 0.008%RD + 1.0 pA | |
| Power Source | 16 to 30V | 1 V | ±1 V | 70 mA (Max Loading) |
| V Source | Oto 16 V | 0.25 mV | 0.008%RD + 500 pV | |
| Pressure Switch | Mechanical Switch, Live Mechanical Switch, NPN Switch, PNP Switch | N/A | N/A | Response time<10 ms. If the switch is live, voltage range will be (3-30) V |
| Temperature Compensation | 18 °C to 28°C | |||
| Temperature Coefficient | Outside of 18 °C to 28 °C: <± 0.0005%RD + 0.00005%FS/°C | |||
| Misuse Protection | Up to 30 V on any two sockets | |||
| Pressure Switch Test | • | |||
| HART / PROMOS PA | • | |||
Supported
External Control Pressure Module Specification and Compatibility
| Specification Model | Pressure Range | Accuracy | Pressure Type | Media | |
| (Ps) | (bar) | ||||
| ADT161-01-GPXX for 0.01%FS | 1,000 | 70 | 0.01% FS | Gauge | G,L |
| 1,500 | 100 | 0.01% FS | Gauge | G,L | |
| 2,000 | 140 | 0.01% FS | Gauge | G,L | |
| 3,000 | 200 | 0.01% FS | Gauge | G,L | |
| 5,000 | 350 | 0.01% FS | Gauge | G,L | |
| 10.000700 | 0.01% FS | Gauge | G,L | ||
| ADT161-02-GPXX for 0.02%FS | 1,000 | 70 | 0.02% FS | Gauge | G,L |
| 1,500 | 100 | 0.02% FS | Gauge | G,L | |
| 2,000 | 140 | 0.02% FS | Gauge | G,L | |
| 3,000 | 200 | 0.02% FS | Gauge | G,L | |
| 5,000 | 350 | 0.02% FS | Gauge | G,L | |
| 10,000 | 700 | 0.02% FS | Gauge | G,L | |
General Specifications
| Specification | Description |
| User Interface | Color touch screen and keypad operation |
| Display | 7″ TFT touch screen 800 x 480 color |
| Enclosure IP Rating | 1P31 |
| Power | Dedicated lithium battery or power adapter |
| Battery | Rechargeable Li-Ion battery, typically 12 hours of operation, less than 5 hours recharge. |
| Weight | 28 lbs (12.8 kg) without media |
| Media | Sebacate oil |
| Size Communications | 11.81 x 8.66 x 7.56 in (300 x 220 x 192 mm) USB, LAN, Bluetooth, Wi-Fi and Ethernet |
| HART Communication | Read, configure and calibrate HART devices – DD files updated periodically > 8 GB |
| Data Storage | |
| Data Logging | Up to 1,000,000 readings (data and time stamped) |
| Task Documentation | Up to 1,000 tasks can be stored with data |
| Automation Functions | Switch test, auto step, leak test |
| User Interface Localization | English, German, French, Italian, Spanish, Portuguese, Chinese, Japanese, and Russian |
| Pump Life | > 1,000,000 cycles |
| Environmental Specifications | |
| Operating temperature: 32 °F to 122 °F( 0 °C to 50 °C) | |
| Storage temperature: -20 °C to 60 °C ( -4 °F to 120 °9 | |
| Humidity: <90%, non-condensing | |
| Certification | ISO 17025 accredited certificate of calibration with NIST-traceable data |
| Compliance | CE |
| Software Compatibility | ACaI, Additel Land and Additel Link for access via mobile application |
| Warranty | 1 year |
ORDERING INFORMATION
Accessories (included)
| Model number | Quantity | Picture |
| 9022 Test Leads | 2 sets (4 pcs) |  |
| USB Cable | 1 pc |  |
| 9725 Rechargeable Li-ion battery | 1 pc |  |
| 9818 110V/220V external Power adapter | 1 pc |  |
| Funnel | 1 pc |  |
| ADT100-762Hose High pressure hose | 1 pc |  |
| Small accessory case (For cables and adaptors) | 1 pc |  |
| Transportation cap | 1 pc |  |
| 9907-762 Carrying case | 1 pc |  |
| Sebacate oil (500ml) | 1 bottle |  |
| O rings for liquid storage tank 3.5*1.2-NBR70 | 5 pcs |  |
| O rings for right angle connector 5*1.5-NBR70 | 5 pcs | |
| 9060 Pressure module connection cable | 1 pc |  |
| ADT100-762-X | 1 pc |  |
| ISO17025 accredited calibration certificate | 1 pc |
Optional Accessories
| Model number | Description | Picture |
| ADT107-X-KIT | Includes dual ports manifold, and zero return communication cable |  |
| ADT161 | Pressure modules see pg. 4 |  |
| ADT100-762-X | ADT762 right angle connector |  |
| 9201 | Sebacate oil (1-Liter) |  |
