Inverter Pro 3000 E C5
Product Information: INVERTER PRO 3000 E C5

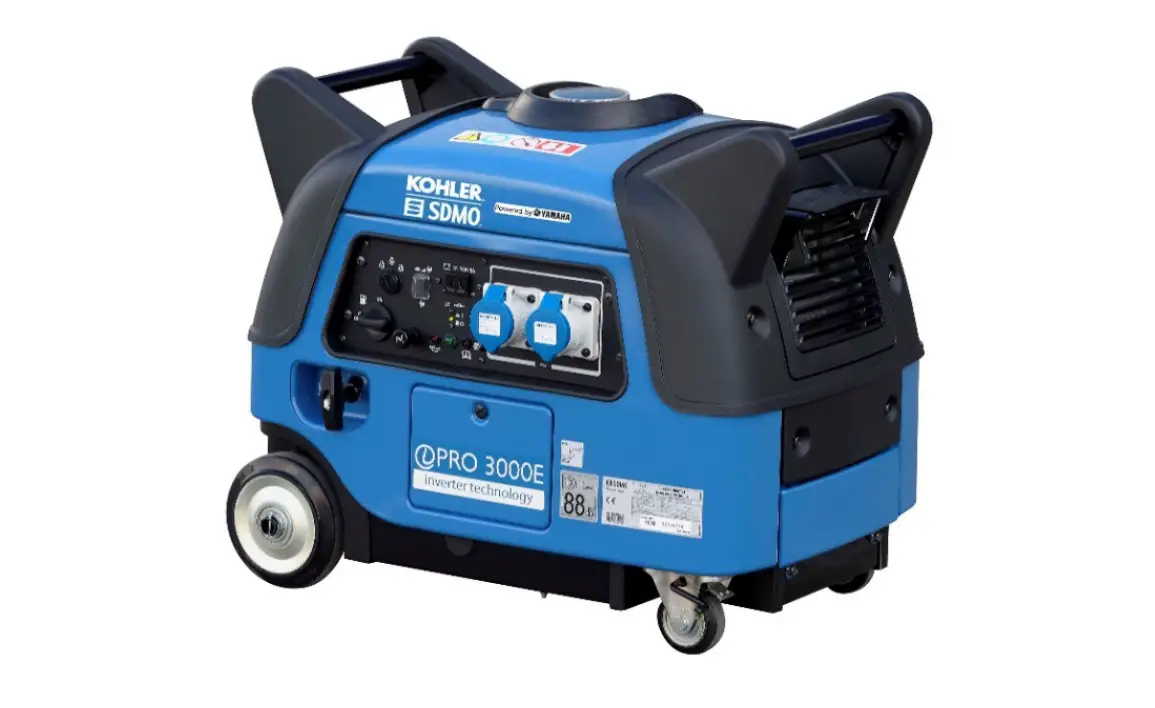

The INVERTER PRO 3000 E C5 is a portable power generating set
that belongs to the PRESTIGE range. It is an ergonomic, light, and
compact equipment designed for efficiency and low noise emissions.
With a maximum power output of 3 kW and a nominal voltage of 230V,
it is suitable for a wide range of standard requirements.
Key Product Advantages:
- Ergonomic, light, and compact equipment
- Very silent operation
- 12V output for equipment operating off 12V and battery
recharging - Supplies quality current with low consumption
General Specifications:
| Range | Frequency (Hz) | Max Power (kW) | Nominal Voltage (V) | Number of Phase | Fuel Tank (L) | 75% Consumption (l/h) | 75% Autonomy (h) | Sound Power Level Guaranteed LwA dB(A) | Acoustic Pressure Level @1m in dB(A) | Acoustic Pressure Level @7m in dB(A) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESTIGE | 50 Hz | 3 | 230 | Single phase | Petrol | 13 | 1.3 | 10 | 88 | 73 | 59 |
Engine Specifications:
| Engine Brand | Engine Ref. | Engine Type | Start | Oil Shutdown | Displacement (cm3) | Oil System Capacity including filters (l) |
|---|---|---|---|---|---|---|
| YAMAHA | MZ175_C5 | O.H.V. | Electrical Starter | Oui | 171 | 0.6 |
Alternator Specification:
| Technology | AVR Regulation | Indication of Protection | Insulation Class |
|---|---|---|---|
| Inverter | No | IP 23 H |
Plugs and Panel Descriptive:
- 2 sockets 230V 16A – circuit breaker
- 1 socket 12V 12A – circuit breaker + indicator
Dimensions and Weight:
| Length (cm) | Width (cm) | Height (cm) | Dry Weight (kg) |
|---|---|---|---|
| 68 | 44.5 | 55.5 | 68 |
Packaging:
| Packaging Type | Length (cm) | Width (cm) | Height (cm) | Weight (kg) |
|---|---|---|---|---|
| Box | 74.1 | 55.1 | 63.7 | 78 |
Accessories Supplied:
- Spark plug spanner
- User and maintenance manual
Options:
- R05M – The manual changeover switch used to connect and
disconnect a generating set manually to a domestic circuit during a
power cut - RYS3 – Maintenance kit for YAMAHA MZ175 engine
Product Usage Instructions
To use the INVERTER PRO 3000 E C5, follow these steps:
- Ensure the fuel tank is filled with petrol.
- Place the generator on a stable and level surface.
- Connect any equipment operating off 12V or in need of battery
recharging to the 12V socket using the included connection
cables. - For equipment requiring 230V power, connect them to the 230V
sockets with appropriate plugs. - Before starting the generator, make sure all connected
equipment is turned off. - Locate the electrical starter and switch it on to start the
generator. - Allow the generator to run for a few minutes to stabilize.
- Once stabilized, you can turn on the connected equipment.
- Monitor the fuel consumption and ensure the fuel tank is
refilled as needed. - When finished, turn off all connected equipment and switch off
the generator.
Note: Refer to the user and maintenance manual for detailed
instructions on maintenance, troubleshooting, and safety
precautions.
INVERTER PRO 3000 E C5
INVERTER PRO 3000 E C5
PORTABLE POWER
GENERATING SETRangePRESTIGE
PRODUCT ADVANTAGES
Ergonomic, light and compact equipment Very Silent 12 V output Quality current Low consumption
INVERTER TECHNOLOGY This new, very high performance technology guarantees the stability of the voltage and frequency of your genset to within ± 1% of the nominal value. Such high precision makes it possible to produce high-quality current and supply the most demanding equipment.
12V OUTPUT Supplies equipment operating off 12V and in particular for recharging batteries. Connection cables are included.
Range PRESTIGE
Top of the range equipment that is efficient and with low noise emissions, for a wide range of standard requirements.
GENERAL SPECIFICATIONS
Range Frequency (Hz) Max power (kW) Nominal voltage (V) Number of Phase Fuel Tank (L) 75% cons. (l/h) 75% Autonomy (h) Sound power level guaranteed LwA dB(A) Acoustic pressure level @1m in dB(A) Acoustic pressure level @7m in dB(A)
PRESTIGE 50 Hz 3 230 Single phase Petrol 13 1.3 10 88 73 59
ENGINE SPECIFICATIONS
Engine brand Engine ref. Engine Type Start Oil shutdown Displacement (cm3) Oil system capacity including filters (l)
YAMAHA MZ175_C5 O.H.V. Electrical Starter Oui 171 0.6
ALTERNATOR SPECIFICATION
Technology AVR Regulation Indication of protection Insulation class
Inverter No IP 23 H
PLUGS AND PANEL DESCRIPTIVE
2 sockets 230V 16A – circuit breaker + 1 socket 12V 12A – circuit breaker + indicator
DIMENSIONS AND WEIGHT
Length (cm)
68
Width (cm)
44.5
Height (cm)
55.5
Dry Weight (kg)
68
PACKAGING
Packaging type
Box
Length (cm)
74.1
Width (cm)
55.1
Height (cm)
63.7
Weight (kg)
78
Pallet type
Number of box by pallet
2
Pallet height (cm)
68
weight of the packaged Pallet (kg)
167
$DATEJOUR$ INVERTER PRO 3000 E C5 – PORTABLE POWER GENERATING SET PRESTIGE This document is not contractual – The SDMO company reserves the right to modify any of the characteristics stated in this document without notice, in a constant effort to
improve the quality of its products. *ISO 8528. SDMO Industries – 270 rue de Kerervern – CS 40047 – 29801 Brest cedex 9 France – Tél. +33 (0)2 98 41 41 41 – www.kohlersdmo.com
INVERTER PRO 3000 E C5
ACCESSORIES SUPPLIED
Spark plug spanner User and maintenance manual –
OPTIONS
R05M
3499231001875 RAP RPQ
The manual changeover switch is used to connect and disconnect a generating set manually to a domestic circuit when there is a power cut RYS3 – Maintenance kit for YAMAHA MZ175 engine
For earthing your generator set. Galvanised 1 m long spike, supplied with 2 m of 10 mm² cable
$DATEJOUR$ INVERTER PRO 3000 E C5 – PORTABLE POWER GENERATING SET PRESTIGE This document is not contractual – The SDMO company reserves the right to modify any of the characteristics stated in this document without notice, in a constant effort to
improve the quality of its products. *ISO 8528. SDMO Industries – 270 rue de Kerervern – CS 40047 – 29801 Brest cedex 9 France – Tél. +33 (0)2 98 41 41 41 – www.kohlersdmo.com
