Mega Lite 119686 Deco Flex Stealth Linear Led Light Strip User Manual

MEGA LITE 119686 Deco Flex Stealth Linear LED Light Strip

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.
2. Do Not install the unit too close to a heat source.
3. Make sure cables are properly secured away from movement.
4. Maximum surface operating temperature is 125°F

Protection Against Electrical Failure

1. Disconnect power before servicing.
2. .For connection to main power supply proceed to page 4.
3. This fixture must not be left on for long periods of time.

Protection Against Mechanical Hazards

1. Use safety measures when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open, risk of electrical shock.

Ingress Protection

The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2 numbers (i.e. 66) where the numbers define the fixture rating. The first number indicates the size of a particle that can enter the fixture.. The second number indicates the extent of protection against water entering the fixture. An IP66 rating in this fixture indicates that dust particles can not enter the fixture. And there is protection against powerful water spray from entering the fixture from any direction. Check that the unit has not been damaged during transport.

What is Included

1pc Deco Flex Stealth L
6pc Single Point Mounting Clips
1pc User Manual

Specifications

Part Numbers

Fixture

 5050SL– Deco Flex Stealth L

Mechanical Specifications

IP Rating:                 IP6
Fastening System: 6 Mounting Clips (included)
Power Connection:   5 Conductor Cable
Housing:                    Silicone type material (3 type)
Housing Type:          Flat Top
Curving Type:          Up & Down Curve (when light output is facing up)

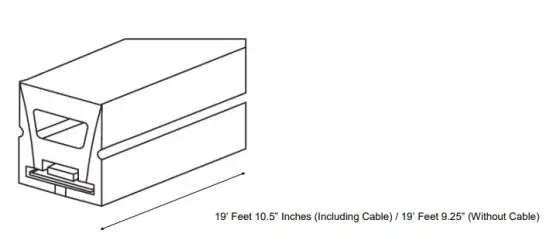

Length:                      19’ Feet 10.5” Inch Including Cable (605.79cm)
Cuttable:                    Cuttable mark located on the bottom, Cuttable every 2.81” inch (71.42mm)
LED Spacing:           .46” inch (11.9mm)

Electrical Specifications

LED Type:                                   SMD 5050 R,G,B,WW
LED Qty:                                      504
Color Temp WW:                         3000K
Each LED Watts:                       .  19
Power Input:                                  24V
Total Max Power:                          94W
Drive Method:                                Constant Voltage

Main Power Connection

Caution!

1. Deco Lighting fixtures are specifically designed to be used with a Deco Drivers.
2. Connection points must not be exposed to moisture or liquids. Use IP Rated Connections rated for outdoor use.
3. Maximum Cable distance of 100ft before voltage drop.
4. Connect only 1 Deco Flex per Deco Driver output.

The occupation of the connection-cable is as follows:

DMX-512 Control

When using the Deco Flex Stealth L with Deco Drivers the fixture is intended to be used in Ch4 or Ch7 modes. The Deco Driver will be required to be set in Ch4 or Ch7 operating modes

Deco Driver Info

Caution!

1. Deco Lighting fixtures are specifically designed to be used with a Deco Drivers.
2. Connection points must not be exposed to moisture or liquids. Use IP Rated Connections rated for outdoor use.
3. Maximum Cable distance of 100ft before voltage drop.
4. Connect only 1 Deco Flex per Deco Driver output.

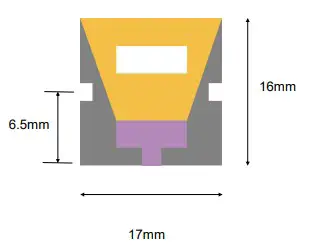

Size & Weight

Tube

With End Cap

Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installation and electronics checked by an expert every 2 years.

Cleaning and Maintenance

The following points have to be considered during the inspection:

• All screws used for installing the device or part of the device have to be tightly connected and must not be
• There must not be any deformations on the housing, fixation and installation
• The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.
• Flex Tube must only be cleaned using soap and water

Rigging the Fixture

Caution!

1.  The installation must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the Fixture has got to be built in the way that it can hold 10 times the weight for 1 hour with out any failures. Installation should be checked at least one time a year by a skilled person.

Accessories

5050SLACCSIN (single point mounting clip)

CONCOLDC5 (5PIN IP rated connection)

5050LACCCAPR (right angle cap )

5050LACCCAP (end cap)

5050LACCCAPL (left angle cap )

Customer Support

Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept. Monday—Friday 9am to 6pm CST Voice: 210-684-2600 E-mail: [email protected]

Manual Version

Please Visit www.mega.lighting for the most up to date manual version
