PARTNR: 154140
EAN: 7090049800269
M-Flex 750lm 4000K
Powerful LED Strip Light
User Manual

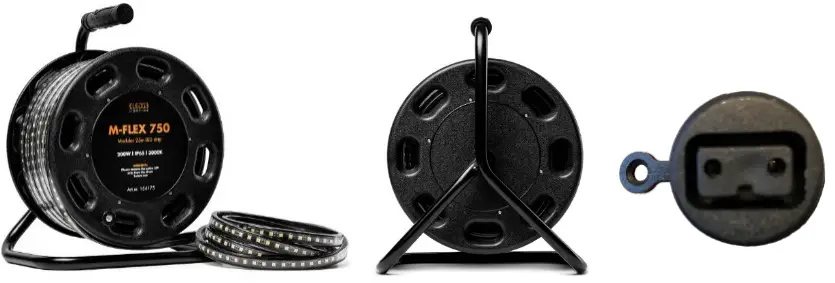

Product information
25 meters of powerful LED strip that connects directly to 230V. The LED strips could be interconnected in lengths up to 150 meters providing a smooth work light over the entire length. Well suited for both outdoor and indoor use. Space-saving and flexible!
Specifications
| Voltage | 220-240V |
| Length | 25 meters |
| IP class | IP65 |
| Max interconnected length | 150 meters |
| Power | 200W – 8W/m |
| Color temperature | 4000K |
| Beam angle | 120° |
| Lumen | 750 lm/m |
| LED type, quantity | SMD5050, 72LED/m |
| Work temperature | -25° to +45°C |
| Lifetime | 30.000 hours (L70) |
| Dimmable | Yes |
| Weight | 7 kg |
| Dimensions | 18mm x 8mm |
| Measurements | 32x26x39cm |
| Certificates | CE, Nemko, Semko |
| Warning | Please remove the entire LED strip from the drum before use |
Used electrical and electronic products, including all types of batteries, must be delivered for recycling at a separate collection point. (acc. to directive 2012/19/EU and 2006/66/EC).

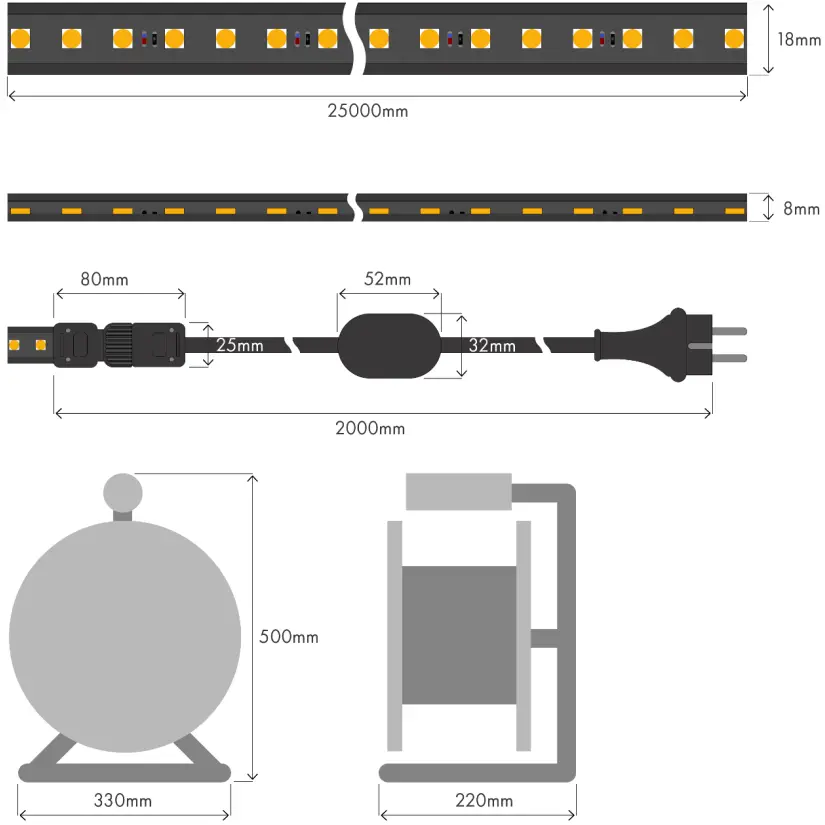

Technical specifications

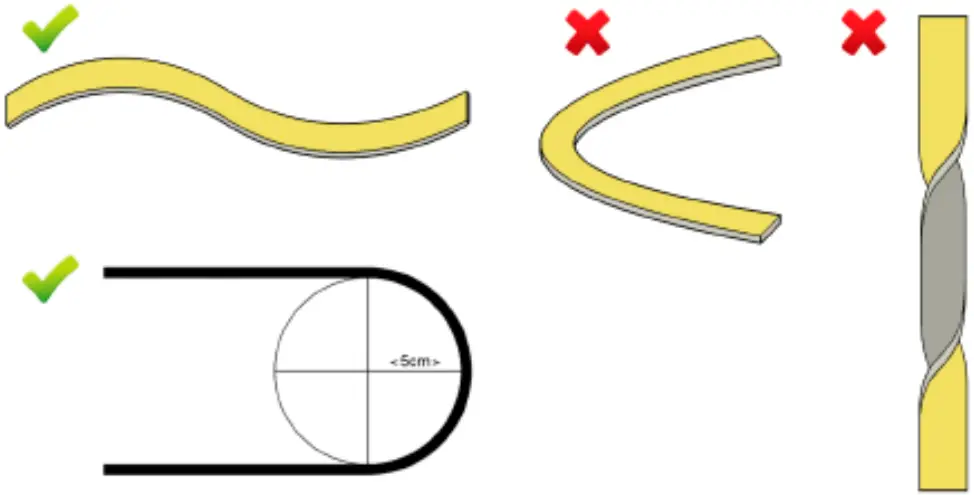

Assembly
When mounting this product, please consider the following:
Cable and connector should never be stretched. Also, the LED strip should not be twisted.
The LED strip is completely encapsulated and designed for versatile Use. It can be mounted in different ways and works equally well horizontally as vertically. When mounting the LED strip, It is important that the encapsulation is kept intact. We recommend use of the following types of mounting equipment:

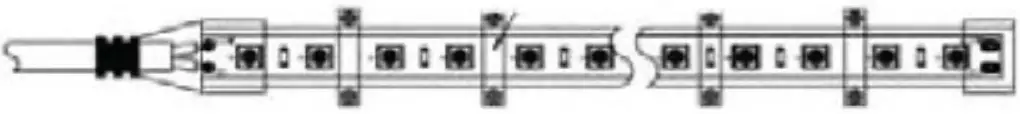

- Mounting brackets.

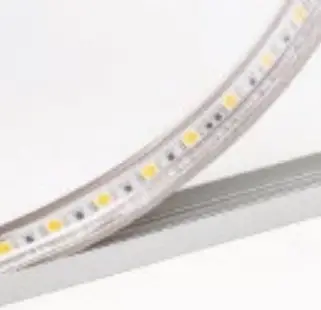

- Aluminum profiles
- Strip (for temporary use)
- Hooks (for temporary use)
Safety Regulations
- Make sure the voltage in the socket is the same as the one on the Product.
- Place the LED Strip out of reach for Children.
- The LED strip should always be fully rolled out before powering it.
- Never use the LED strip when it is rolled up onto the drum. This may cause overheating.
- Do not use the LED Strip if it is damaged. Always check the LED strip before use.
- Avoid hard Twisting. This may cause internal breakage of the LED Strip.
- If the cable or the LED strip should be damaged, the product shall be disposed.
- Continuous 24 hours use of the LED strip will reduce the lifetime.
- This product is not intended for use by children or persons with impaired physical, sensory or mental disabilities, or by people with lack of experience and knowledge of its use.
Use
- Carefully drag out the LED strip from the drum.
- Always mount the LED strip according to the installation Instructions.
- Connect to a suitable electrical outlet.
- When the work is finished, disconnect the product from the electrical outlet or turn off the power.
- When needed, clean the LED Strip and connector cable with a dry or moistened cloth. Never use Chemicals.
- PLEASE NOTE! The product shall not be powered while mounting it or when it is rolled in/out from the drum.
