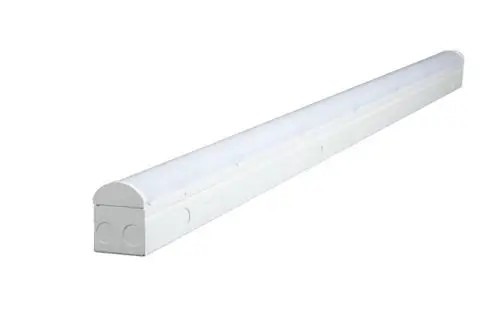

LED LIGHTING WHOLESALE E5SLB35D4-840 Energetic LED Strip Light

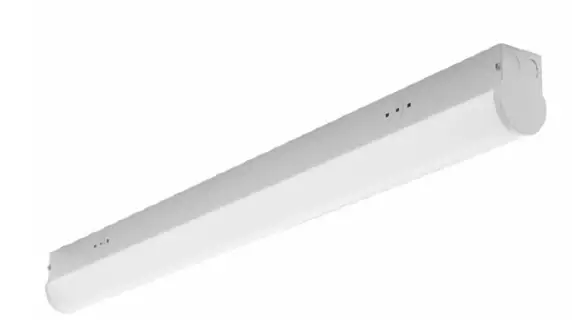

LED STRIP LIGHT
FEATURES:
- Quick Installation;
- Instant on;
- 5 years warranty;
- Excellent efficacy 130lm/w or 160lm/w;
- DLC Premium listed as LED Strip light & Linear lowboy;
Additional Information:
- Power: 24W/40W/64W
- Input: AC 100-277V
- CCT：4000K/5000K
- Efficacy: 130 LM/W
- Light Source: LED SMD
- Inner/outer emergency driver
TECHNICAL SPEC.

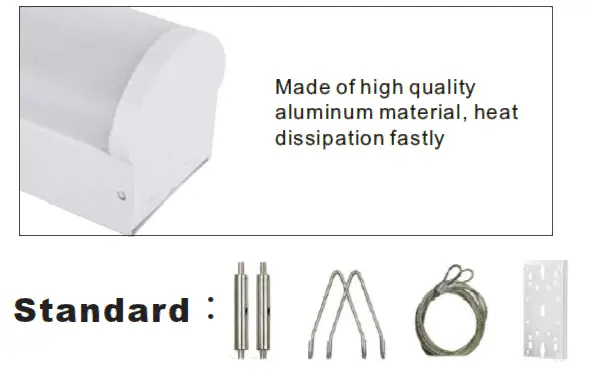

- Housing Riveted Sheet Metal c/w standard top and end KO

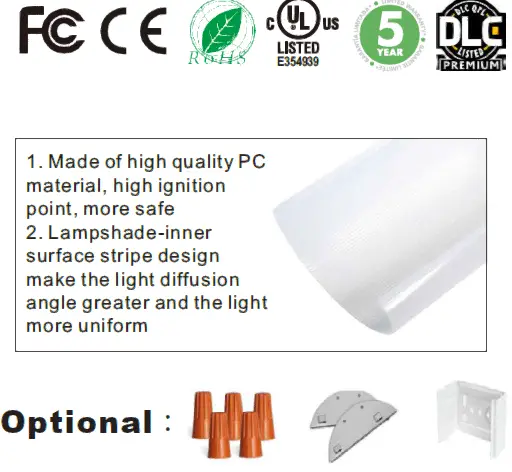

- Finish White Frosted PC
- Frosted PC Surface, hanging and continuous row mounted
- May be mounted to T-bar ceilings Application Commercial, industrial and area lighting, warehouses, offices, hallways etc.
OPTICAL & PERFORMANCE SPEC.
- Suitability For damp locations
- Beam Angle 120°
- L70 50,000hours
ELECTRICAL SPEC.
- Power Factor 0.90
- Ambient temp. Input Voltages -20°C to 40°C 100-277vAC Standard
- CRI 80
LED STRIP LIGHT

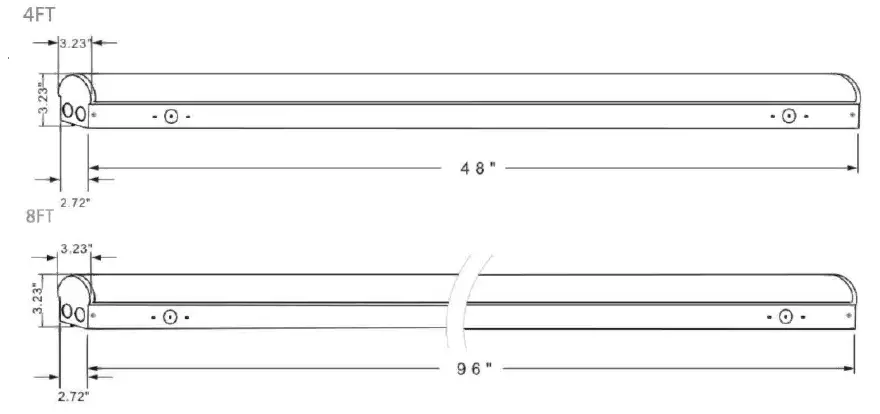

DIMENSIONS
PACKING INFO
| Part No. | Qty./CT | CT size | N.W. (lbs./CT) | G.W. (lbs./CT) | Qty./Pallet | Qty./40HQ | |
| In pallets | In Cans | ||||||
| WSD-ST4FT24-XXK | 4pcs | 50.6*7.5*7.7inch | 19.4lbs | 24.2lbs | 180pcs | 4320pcs | 6048pcs |
| WSD-ST4FT40-XXK | 4pcs | 50.6*7.5*7.7inch | 19.4lbs | 24.2lbs | 180pcs | 4320pcs | 6048pcs |
| WSD-ST8FT40-XXK | 4pcs | 98.8*7.5*7.7inch | 33.3lbs | 41.5lbs | 180pcs | 2160pcs | 2740pcs |
| WSD- ST8FT64-XXK | 4pcs | 98.8*7.5*7.7inch | 33.3lbs | 41.5lbs | 180pcs | 2160pcs | 2740pcs |
PERFORMANCE DATA
| Size | Part No. | Power | luminous Flux | input Voltage | PF | Ra | Beam Angle | Warranty | Certificate |
| 4FT | WSD-ST4FT24-XXK | 24W | 3120LM | AC100-277V | >0.9 | >80 | 110 | 5 Years | cull& Premium |
| 4FT | WSD-ST4FT40-XXK | 40W | 5200LM | AC100-277V | >0.9 | >80 | 110 | 5 Years | cull& Premium |
| 8FT | WSD-ST8FT40-XXK | 40W | 5200LM | AC100-277V | >0.9 | >80 | 110 | 5 Years | cull &Premium |
| 8FT | WSD- ST8FT64-XXK | 64W | 8320LM | AC100-277V | >0.9 | >80 | 110 | 5 Years | cull & Premium |

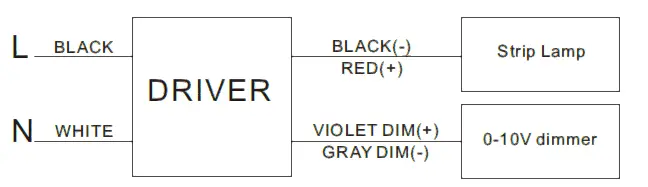

DIMMING CONNECTION
ORDERING EXAMPLE
| WSD | St | 4FT | 24 | XXK |
| Company | Product | Size | Power | Color Temp |
| WSD (WSD LED INC) | St Led Strip Light | 4FT( 4 feet ) 8FT( 8 feet ) | 24 ( 24 W ) 40 ( 40 W ) 64 ( 64 W ) | 40K (4000K) 50K (5000K)± 500K |
LED STRIP LIGHT
DIMENSIONS

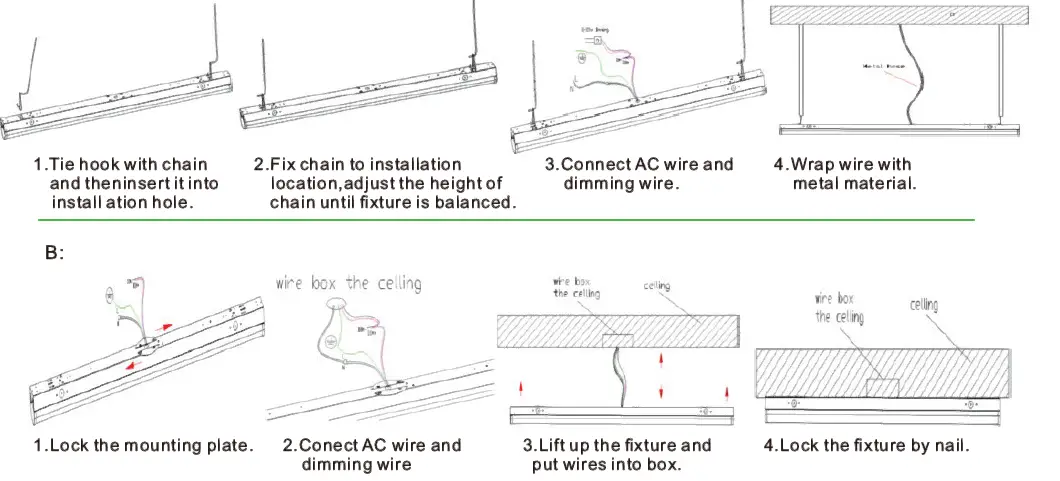

C: T-Bar clip mounting
Fix fixture to T-bar ceiling grid with T-bar clips which are provided by customer Refer to the left drawing; fix-bar clips on Position “C”.

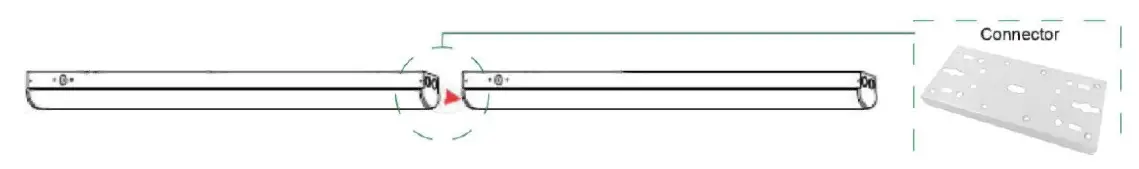

D: Connect in series

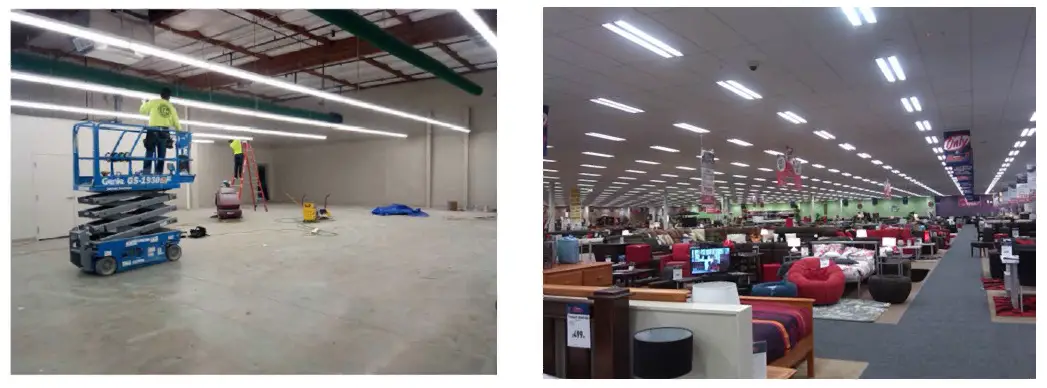

APPLICATIONS:
WSD LED INC - green and reliable lighting luminaires
