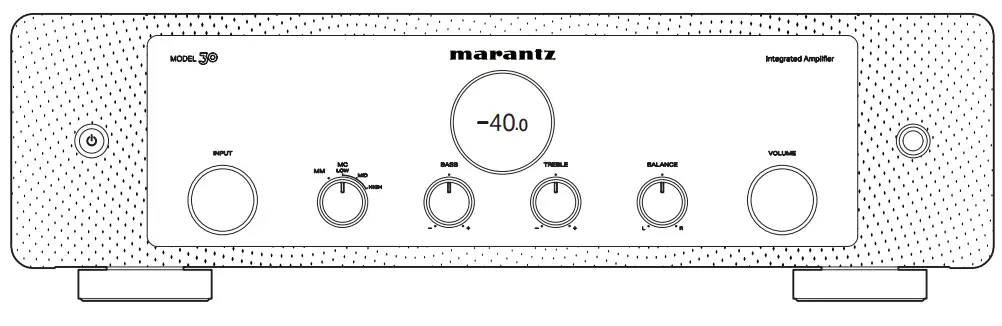

Integrated Amplifier
Integrated Amplifier
Welcome
Thank you for choosing a Marantz amplifier. This guide provides step-by-step instructions for setting up your amplifier.

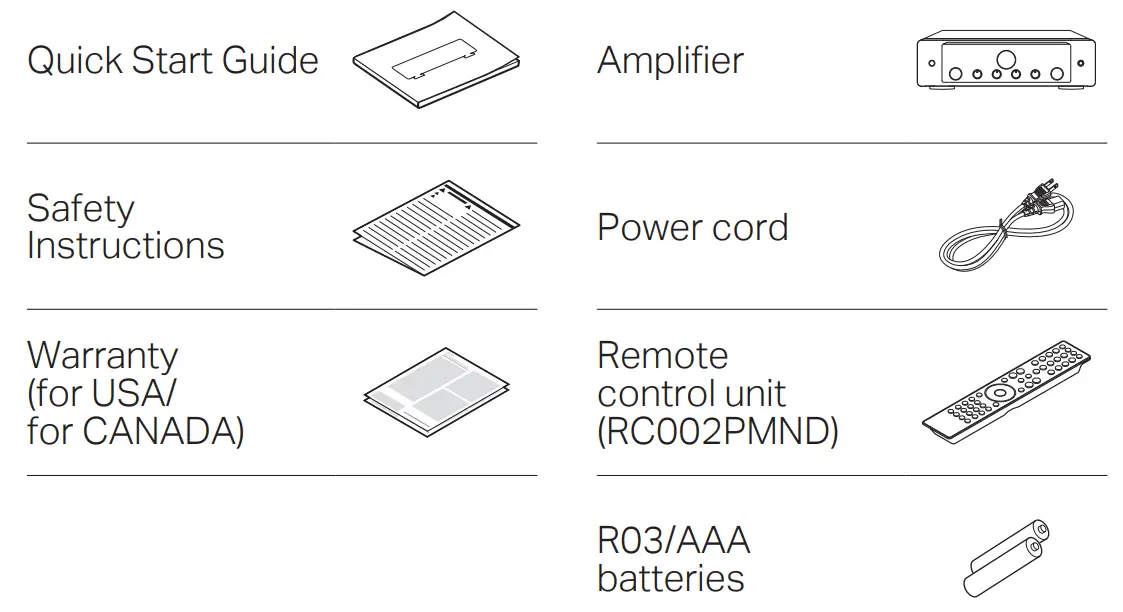

Before You Begin

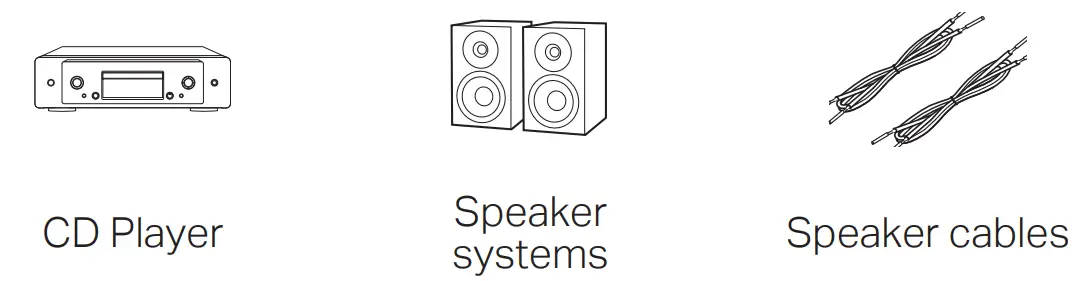

Required for Setup
These drawings are for illustrative purposes only and may not represent the actual product(s).
Setup
There are five steps to the setup process.
- Install batteries in the remote control unit
- Connect the speakers to MODEL 30
- Connect the CD player to MODEL 30
- Plug the power cord into a power outlet
- Begin CD playback
Install batteries in the remote control unit

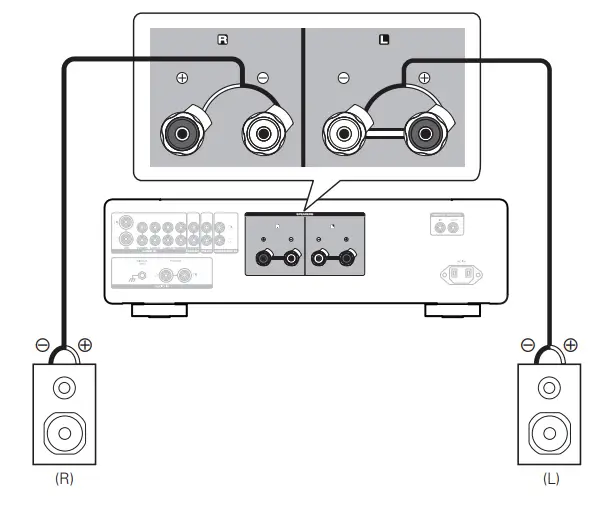

Connect the speakers to MODEL 30
| Peel off about 3/8 inch (10 mm) of sheathing from the tip of the speaker cable, then either twist the core wire tightly or apply solder to it. |  |
| Turn the speaker terminal counterclockwise to loosen it. |  |
| Insert the speaker cable’s core wire to all the way into the speaker terminal. |  |
| Turn the speaker terminal clockwise to tighten it. |  |
Connect the CD player to MODEL 30

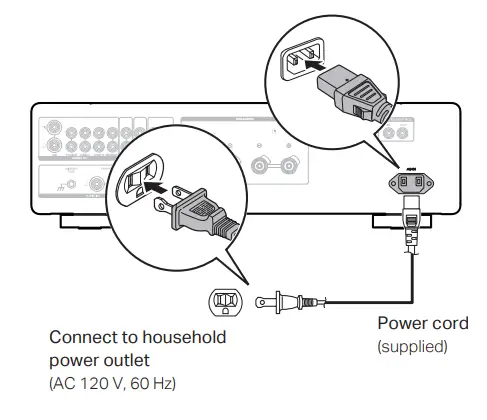

Plug the power cord into a power outlet
Begin CD playback
| Press the power operation button. |  |
| Set the input source to “CD”. |  |
| Play the CD player. |  |
| Adjust the volume. |  |
Owner’s Manual
- Refer to the Online Manual for other functions information and operation procedure details.
manuals.marantz.com/Model30/NA/EN/
For more information, visit www.marantz.com
registered trademark.
www.marantz.com
You can find your nearest authorized distributor or dealer on our website.
Printed in Japan 5411 11843 OOAM © 2020 Sound United. All Rights Reserved.
