Lg Arnh423k3a4 Hydro Kit High Temperature 42 Mbh Indoor Unit Owner's Manual

Job Name/Location: ________________ Tag No.: ________________
Date: ________________
For: File  Resubmit Approval Other ______________
PO No.: ________________
Architect: ______________ GC: _______________
Engr: ________________    Mech: _____________
Rep: ______________________________________
(Company)                    (Project Manager)

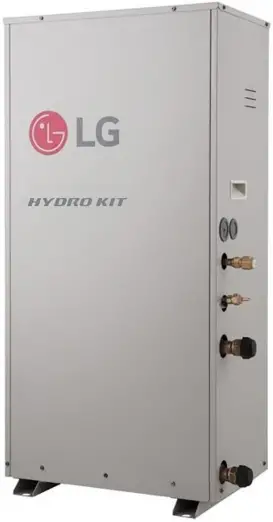

ARNH423K3A4

Hydro Kit High Temperature
42 MBh Indoor Unit

Performance:

Rated capacity is certified under AHRI Standard 1230. Ratings are subject to change without notice. Current certified ratings are available at www.ahridirectory.org.

Electrical:

MOP — Maximum Overcurrent Protection           MCA — Minimum Circuit Ampacity

Piping:

Standard Features:

• High temperature water heating
• Domestic water heating²
• Factory mounted inlet/outlet water temperature sensors
• Wi-Fi compatible with optional module
• Factory mounted internal flow switch
• Third-party thermostat interface^3,4
• Group control⁵
• Remote on/off site monitoring capability via the internet⁶

Water Flow Control Options:

• Water Pump On / Off Interlock
• 208V 3-Way Diverting Valve^3,7,8

Included Accessories:

• Hot Water Tank Temp Sensor with 32-foot Communication Cable^9,10
• 1 /2″ Male Pipe Thread (MPT) Hot Water Tank Sensor Well⁹
• Remote Wall Mounted Hydro Kit Controller with 32-foot Communication Cable^9,11
• 1″ Female Pipe Thread (FPT) 50 Mesh Inlet Strainer⁹

Optional Accessories:

Dry Contact ­- PDRYCB320 / PDRYCB100
Remote Temperature Sensor -­ ZRTBS01^9,12
Group Control Cable Kit ­- PZCWRCG3⁵
Extension Cable -­ PZCWRC1¹¹
LG MultiSITE™ Communications Manager -­ PBACNBTR0A
AC Smart™ 5 ­- PACS5A000
ACP 5 -­ PACP5A000
ACP LonWorks® ­- PLNWKB100
Wi-Fi Module ­- PWFMDD200

Unit Data:

Heat Exchanger:

Compressor:

Notes:

1. Voltage fluctuation tolerance is ±10%.
2. Requires the use of an indirect water storage tank.
3. Field provided and mounted.
4. Field-provided thermostat must be a line voltage (208V) heating only thermostat. Heating setpoint, deadband, and manual restart functions provided by Hydro Kit controller are not available with use of a third-party thermostat. Cannot be used in conjunction with remote temperature sensor.
5. Group Control Cable Kit (PZCWRCG3) required and sold separately.
6. Monitoring capability available using a MultiSITE Communication Manager, AC Smart 5, or ACP 5 (sold separately), or a BMS system integration gateway (sold separately). Requires a field provided LAN/internet connection or BMS system provided by others.
7. Not required on dedicated domestic water heating applications.
8. Alternates flow between comfort heating equipment and water heating tank.
9. Field mounted.
10. Cannot field splice.
11. Cannot field splice. To extend cable length, use Extension Cable (PZCWRC1), sold separately.
12. Requires the installation of the Hydro Kit controller. Does not apply when used in conjunction with a third-party thermostat.
13. Sound pressure levels tested in an anechoic chamber in accordance with ISO Standard 3475.
14. Internal second stage refrigerant circuit.
15. Water only (no antifreeze).

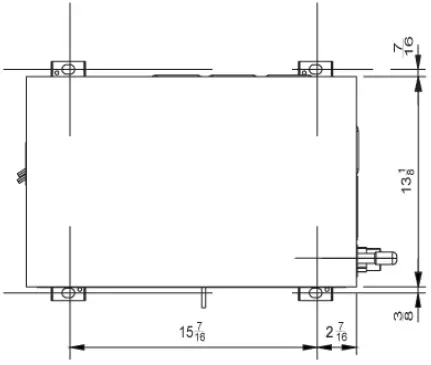

(Unit: Inch)

Notes:

1. Unit must be installed in compliance with the installation manual.
2. Unit must be grounded in accordance with the local or state regulations and applicable national codes.
3. All field-supplied electrical components and materials must comply with the local, state, and national codes.

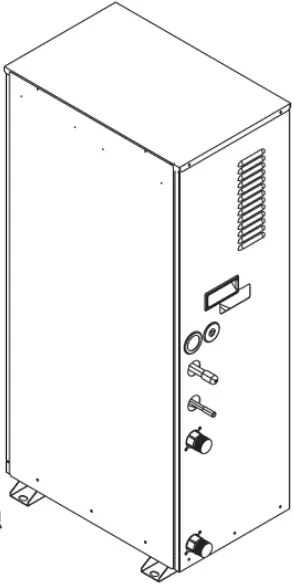

3D VIEW

1. Power Supply Wiring
   Routing Hole (01-3/16)
2. Communications Cable
   Routing Hole (01-3/16)
3. Vapor Piping
4. Liquid Piping
5. Water Outlet
6. Water Inlet

For continual product development, LG reserves the right to change specifications without notice.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG Life’s Good” is a registered trademark of LG Corp. /www.lghvac.com

162279
SB_HydroKit HighHeat _ARNH423K3A4_2023_03_10_092044
