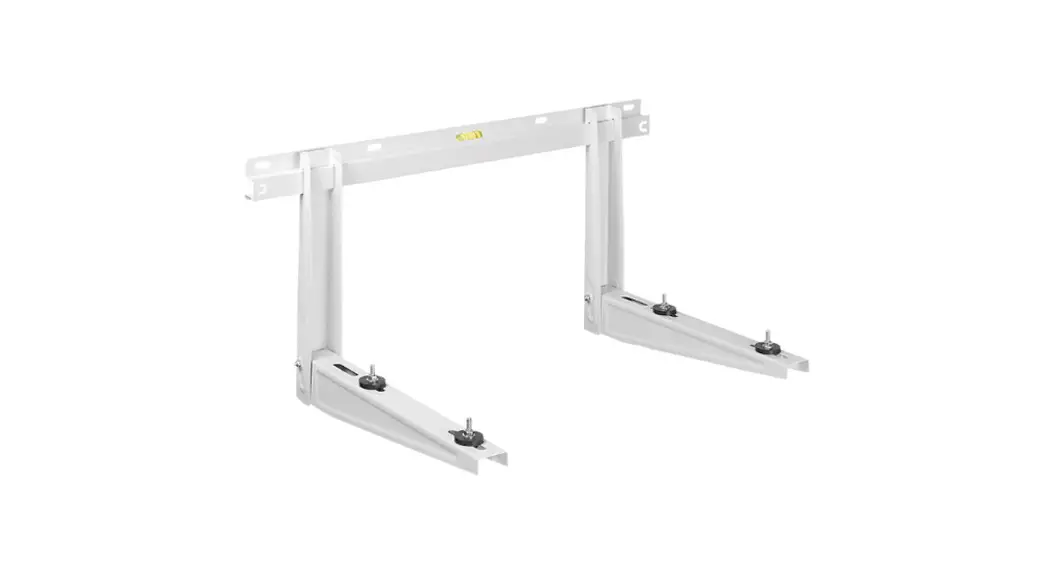

Mini Split Wall Bracket
INSTALLATION GUIDE
Installation Instructions
Properly inspect the wall or supporting structure that it is secure and will be able to support the wall bracket and unit.
Note: Until installation, product should be stored in its original packaging and kept away from any weathered conditions.

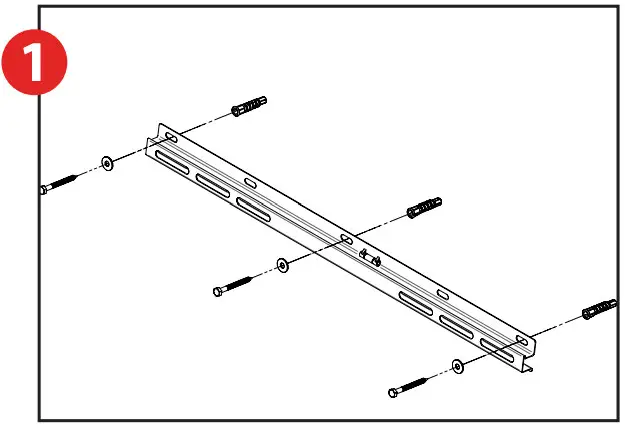

Level and fix the supplied crossbar to the wall. Use plugs at your discretion.

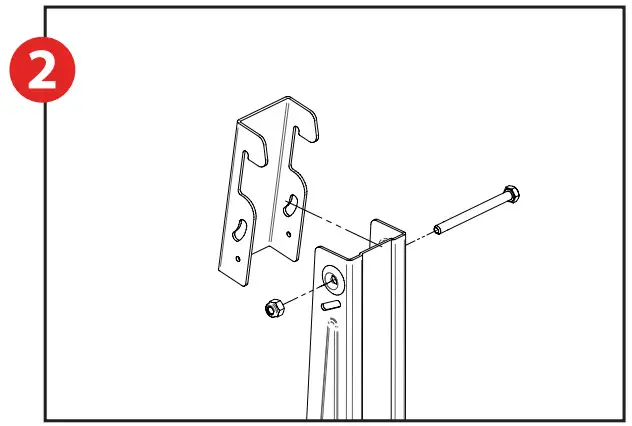

Using the appropriate nuts and bolds, secure the hooks to the upper arms.

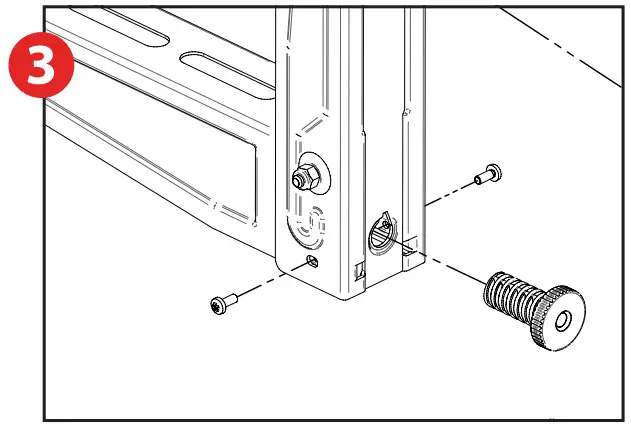

Adjust the distance of the arms to the wall using the nylon screws.

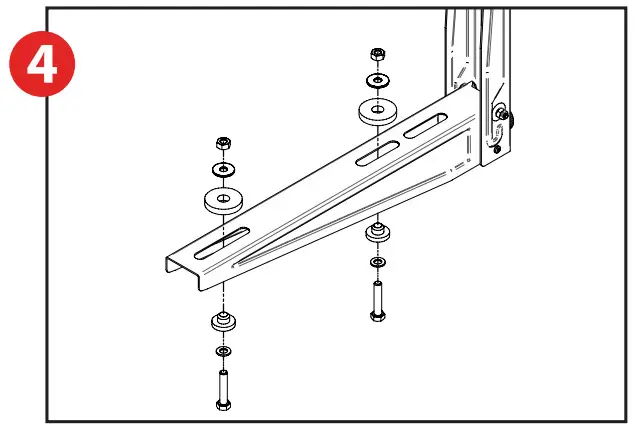

Place the washers on the horizontal arms.

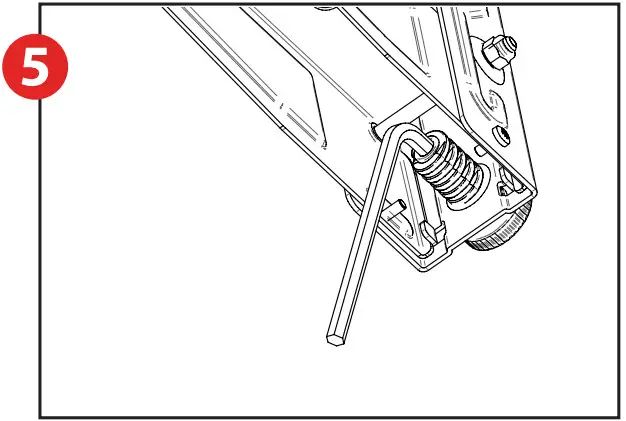

Fasten dampers at the corner with flat side facing the back.

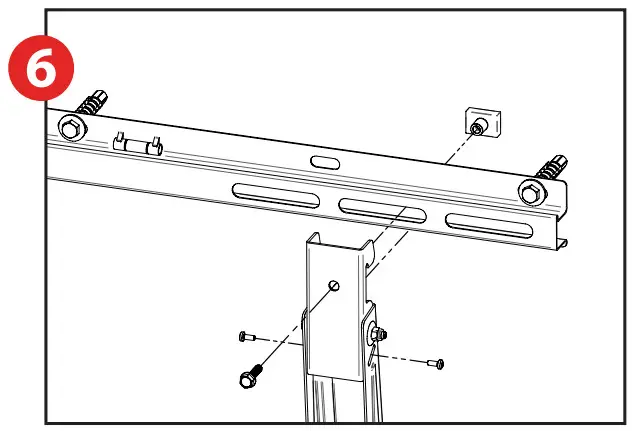

Secure to the crossbar with proper nuts and bolts.
Due to continuing product improvements, specifications may change without notice.
breeze33.com
02/23
