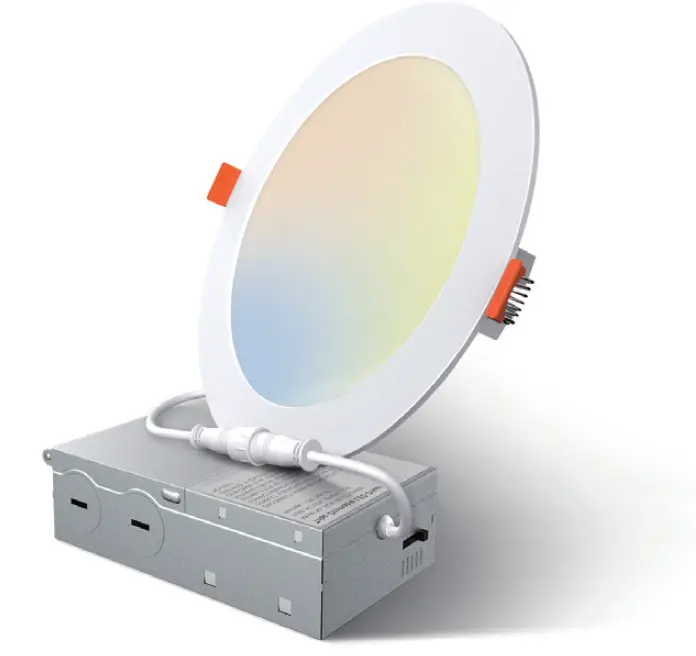

Amico 5CCT Ultra-Thin LED Recessed Ceiling Light with Junction Box

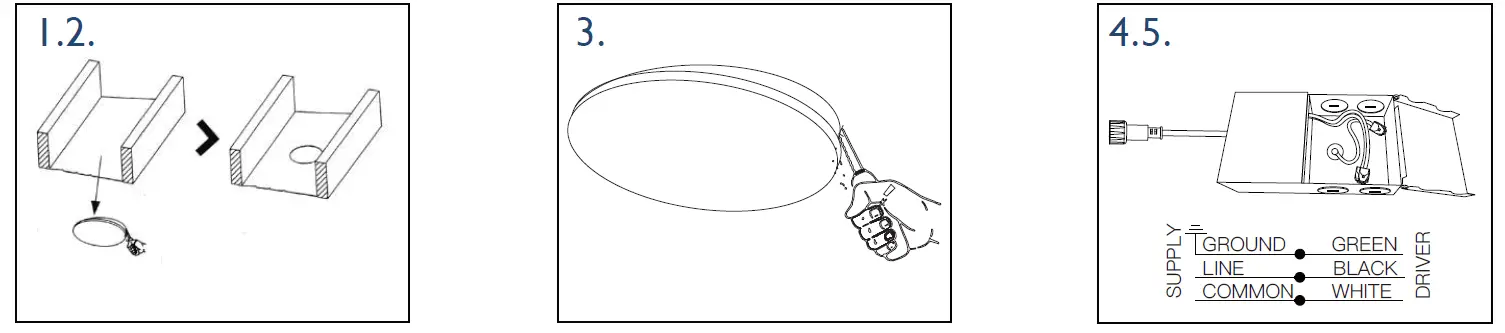

EASY INSTALLATION

1. After selecting a desired method of cutting, cut a 6.25″ hole in the mounting surface.
2. Install drywall directly over rough-in paper. NOTE: use some method of locating the center of the aperture hole.
3. Select desired method (i.e. hand saw, hole saw) to cut an opening in the ceiling by using the provided template.
   CAUTION: do not cut hole larger than the paper opening.
4. Make sure the POWER IS TURNED OFF at the source to the location in which you are mounting the luminaire.
5. Open the cover of the provided J-BOX and use wire nuts to make connections with power supply. Place splices in J-BOX before closing cover.

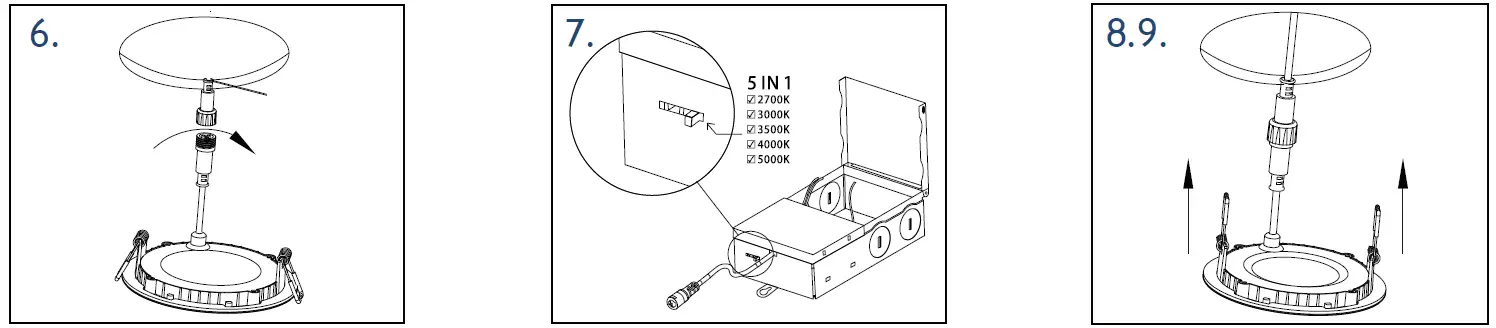

6. Connect the J-BOX to light module.
7. Turn on power and test light.
   BEFORE PROCEEDING:
   On back of j-box, slide the CCT Selection Switch to choose from five color temperatures (2700K, 3000K,3500K, 4000K, 5000K).
   Try each CCT to determinewhich suits your room.
   • Light will use the preferred setting whenever you turn on switch.
   • Turn off light switch and continue install.
8. Place the J-BOX through the cut-out hole and mount according to local electrical code compliance.
9. Rotate and hold both spring clips upward to allow passage though the cut-out in the ceiling, continue to press the light module through the cut-out hole until securely fixed and flush with ceiling.

WARNING

• RISK OF FIRE OR ELECTRIC SHOCK
  CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CI CUIT CONDUCTOR.
• RISK OF FIRE MIN 90°C SUPPLY CONDUCTORS.
• DO NOT make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
• To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
• Edges may be sharp. Please wear gloves while handing.
• Product designed for dimming with many 120V TRIAC/ELV phase cut control dimmers.
• Product can be installed directly into a ceiling without requiring separate J-box or recessed housing.
• Connect fixture to a 120V 60Hz power source, any other connection voids the warranty.

SPECIFICATIONS

• Voltage: 120V
• Wattage: 12W
• Suitable for Locations Ingress: Damp
• Housing: Aluminum
• Weight: 0.86lbs
• Warranty: 5 years
