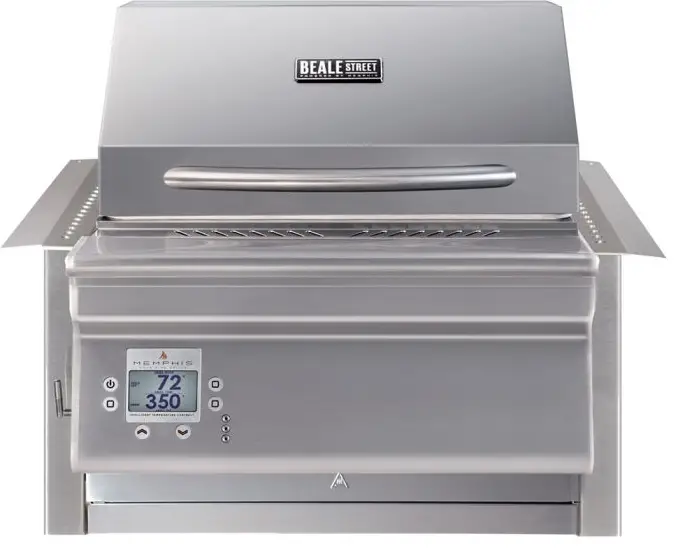

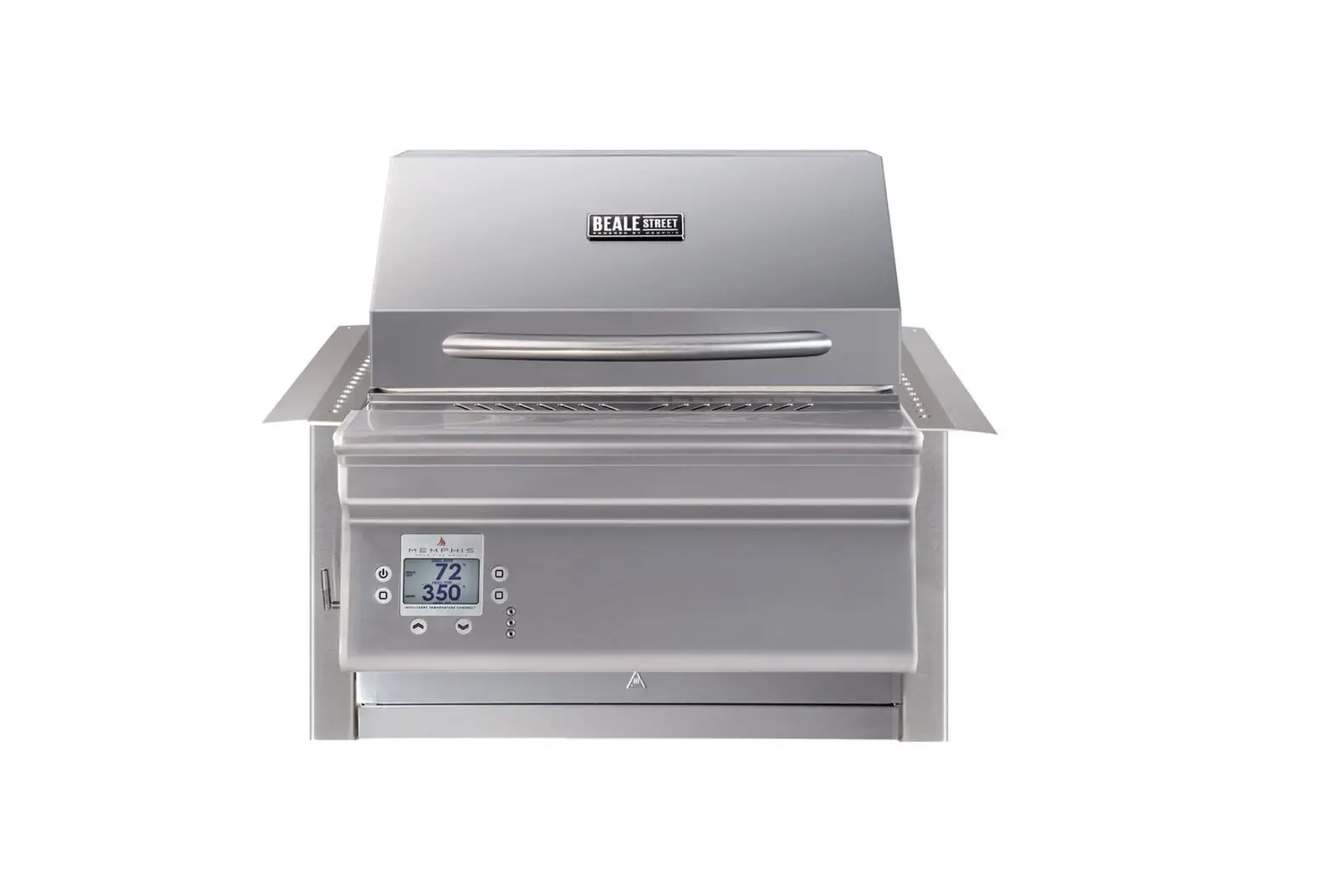

MEMPHIS BGBS26 Beale Street Stainless Steel Built-In Pellet Grill

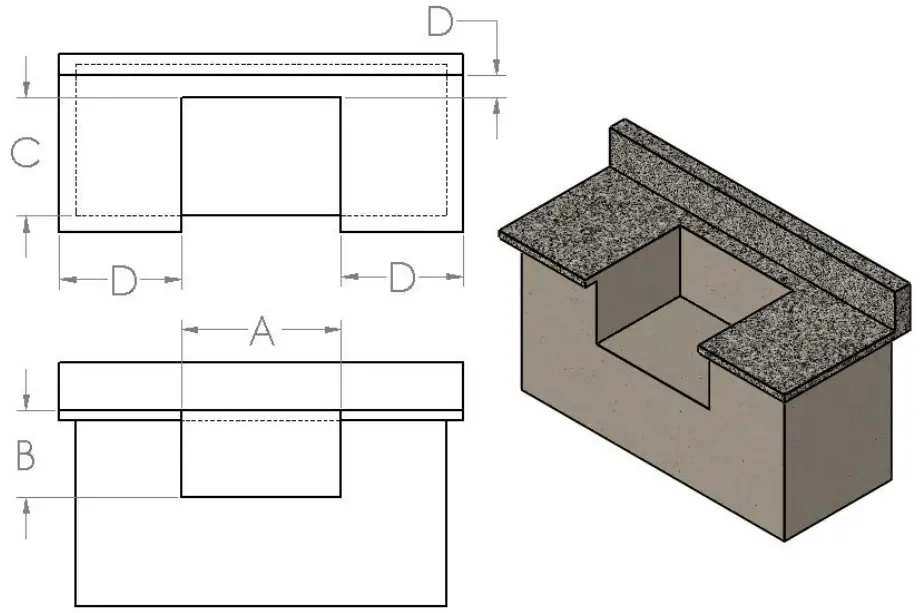

Dimensions
WARNING: See clearance to combustible materials, when designing and constructing a built-in island. Built-In islands must be built to the specifications listed below.
The owner and/or builder are responsible for consulting local, county and state building codes for securing any necessary building permits be fore construction.
NOTE: Construction codes vary from locality to locality.
NOTE: Dimensions are to the finished surfaces. Grill cavity surfaces are to be plumb and level to ensure a proper fit.
| BGBS26 BEALE BUILT-IN | ||
| DIMENSION | TOLERANCE | |
| A | 30 1/4″ | ± 1/8” |
| B | 16 3/4” | ± 1/8” |
| C | 24 1/2” | ± 1/8” |
| D | 3 1/2″ MIN | |
| BGBS26 BEALE BUILT-IN | ||
| DIMENSION | TOLERANCE | |
| A | 76.9 cm | ± .30cm |
| B | 42.6 cm | ± .30cm |
| C | 62.9 cm | ± .30cm |
| D | 8.9 cm MIN | |
